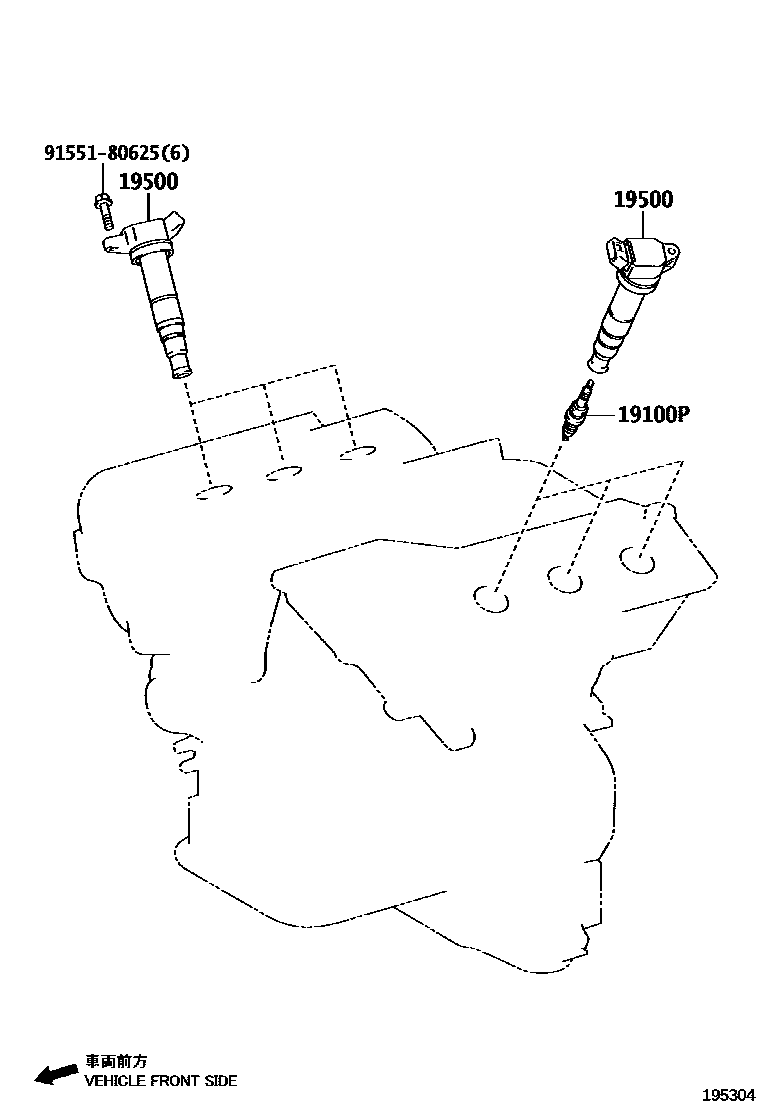

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1

19100PPLUG, SPARK

main90919-01235i1GRFE..GGN15,25200502-201107

K20HR-U11

sub90919-01236

main90919-01235i1TRFE,2TRFE..TGN15,16,26,36..SA200609-201006

K20HR-U11,(J)

sub90919-01236

main90919-T1004i2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..TGN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC,200501-201204

K20HR-U11,(L)

19500COIL ASSY, IGNITION

main90919-02248i1TRFE,2TRFE..TGN15,16,26,36..SA200609-201006

(J)

sub90919-02260

main90919-02248i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200502-201110

sub90919-02260

main90919-02260i2TRFE..TGN16..(DCB,SCB)..GEN201101-201204

(J)

main90919-02260i1GRFE..GGN25201110-201204

main90919-T2001i2TRFE..TGN36..CBU;1TRFE,2TRFE..TGN1#;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA)200501-201101

(L)

sub90919-T2008

main90919-T2008i2TRFE..TGN16..(DCB,SCB)..GEN201101-201204

(L)

9155180625

main91551-80625

3 parts on this diagram · 4 diagrams in section
