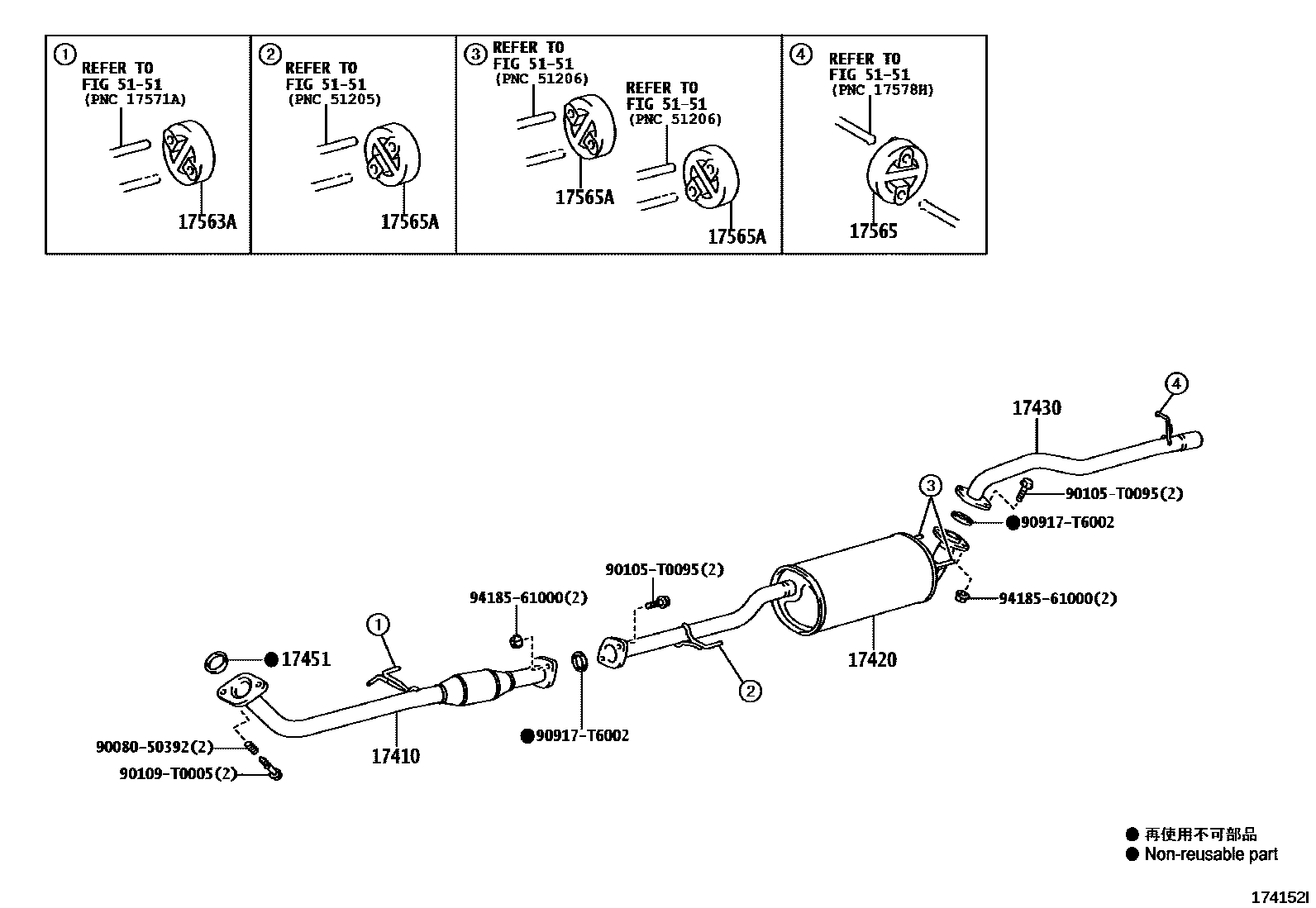

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
sub17401-05111
TYPE A:REFER ILLUST.
*114=TOYOTA/T30U55/Y,ECUADOR SPEC,TYPE A:REFER ILLUST.
main17401-0C210i2TRFE..TGN26..SR..GEN;2TRFE..TGN11,16,36..ANCOM,GCC,SA;2TRFE..TGN26..LHD..(ANCOM,GCC,SA)..CBU200501-201204
*114=TOYOTA/T30U55/Y,TYPE A:REFER ILLUST.
*114=TOYOTA/T30U55/Y,COLOMBIA SPEC,TYPE A:REFER ILLUST.
*114=TOYOTA/T30U55/Y,ECUADOR OR COLOMBIA SPEC,TYPE A:REFER ILLUST.
*114=TOYOTA/T30U55/Y,ECUADOR & COLOMBIA SPEC,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
LEADED GASOLINE,TYPE A:REFER ILLUST.
IRAQ SPEC,TYPE A:REFER ILLUST.
CHILE SPEC,TYPE A:REFER ILLUST.
MEXICO SPEC,TYPE A:REFER ILLUST.
*114=TOYOTA/AB5/Y,HIGH ALTITUDE COUNTRY SPEC
*114=TOYOTA/AB5/Y
ECUADOR SPEC
EXPORT FROM ARGENTINA
EXPORT FROM SOUTH AFRICA
LATIN AMERICA SPEC
main17401-0L060i2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..D200408-201204
*114=TOYOTA/AD5/Y
*114=TOYOTA/AF3/Y
*114=TOYOTA/AF3/Y,CHILE SPEC
*114=TOYOTA/AF3/Y,CHILE SPEC
TYPE B:REFER ILLUST.
main17410-0C110i2TRFE..TGN16..ARL;2TRFE..TGN26..SCB..LA;2TRFE..TGN26,36..SR..LA;2TRFE..TGN36..4FC..DLX..LA200808-201107
TYPE B:REFER ILLUST.
BRAZIL SPEC,TYPE B:REFER ILLUST.
17420PIPE ASSY, EXHAUST, CENTER
main17403-0C020i2TRFE..TGN36..CBU;1TRFE,2TRFE..TGN15,16;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA)200501-201106
sub17403-0C021
sub17403-0C110
main17403-0L060i1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;1KDFTV..KUN26,36..DCB,SCB,THDCB,XTR;2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH200408-201105
sub17403-0L061
CHILE SPEC
main17403-0L080i2KDFTV..KUN15..DCR..(GCC,GEN,PHL,SA,TH);2KDFTV,5LE..KUN25,35,LAN15,25,35..(DLX,SR)..(ANCOM,GCC,GEN,LA,MA,PHL,PKN,SA)200408-201105
sub17403-0L081
main17403-0L081i2KDFTV..KUN15..DCR..(GCC,GEN,PHL,SA,TH);2KDFTV,5LE..KUN25,35,LAN15,25,35..ANCOM,GCC,GEN,LA,MA,PHL,PKN,SA201106-201204
sub17403-0L091
sub17403-0P031
17430PIPE ASSY, EXHAUST, TAIL
main17405-0L080i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA);1GRFE,1TRFE,2TRFE..GGN15,2200501-201003
sub17405-0L081
sub17405-0L111
main17405-0L140i2KDFTV..KUN25..LA;2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN26,3#..GEN,LA200602-201003
sub17405-0L141
main17405-0L141i2KDFTV..KUN25..LA;2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN26,3#..LHD..(GEN,LA)201004-201110
17451GASKET, EXHAUST PIPE
main17451-0C010i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA);1GRFE,1TRFE,2TRFE..GGN15,2200501-201204
main17451-0L010i1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..200408-201204
17563ASUPPORT, EXHAUST PIPE, NO.3
main17565-0L040i2TRFE..TGN26..LA;2TRFE..TGN26..ANCOM..CBU;1KDFTV,2KDFTV,2TRFE..KUN2#,3#,TGN36..ANCOM,LA200501-201204
sub17565-0M010
17565SUPPORT, EXHAUST PIPE, NO.5
main17565-0L040i2TRFE..TGN36..DLX;2TRFE..TGN26..ANCOM;2TRFE..TGN26..DCB..DLX..LA;1GRFE,1KDFTV,2KDFTV..GGN25,KUN2#,3#..ANCOM,LA200501-201204
sub17565-0M010
main17565-0M010i1GRFE..GGN25..ARL;1GRFE..GGN25..5FC..SA;2TRFE..TGN26..LHD..(GCC,GEN,SA);2KDFTV..KUN25..GCC,GEN,MA,PKN,SA,TH;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN15,35,KUN1#,26,3200408-201202
17565ASUPPORT, EXHAUST PIPE, NO.4
main17565-0L040i2TRFE..TGN26..LA;2TRFE..TGN26..ANCOM..CBU;1GRFE,1KDFTV,2KDFTV,2TRFE..GGN25,KUN2#,3#,TGN36..ANCOM,LA200501-201204
sub17565-0M010
main17565-0M010i1GRFE..GGN25..ARL;1GRFE..GGN25..5FC..SA;2TRFE..TGN26..LHD..(GCC,GEN,SA);2KDFTV..KUN25..GCC,GEN,MA,PKN,SA,TH;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN15,35,KUN1#,26,3200408-201202
5151
9008050392
main90080-50392
90105T0095
main90105-T0095
90109T0005
main90109-T0005
90917T6002
main90917-T6002
9418561000
main94185-61000
13 parts on this diagram · 4 diagrams in section
