V-BELT

0001 1 0002 1

1106

1601

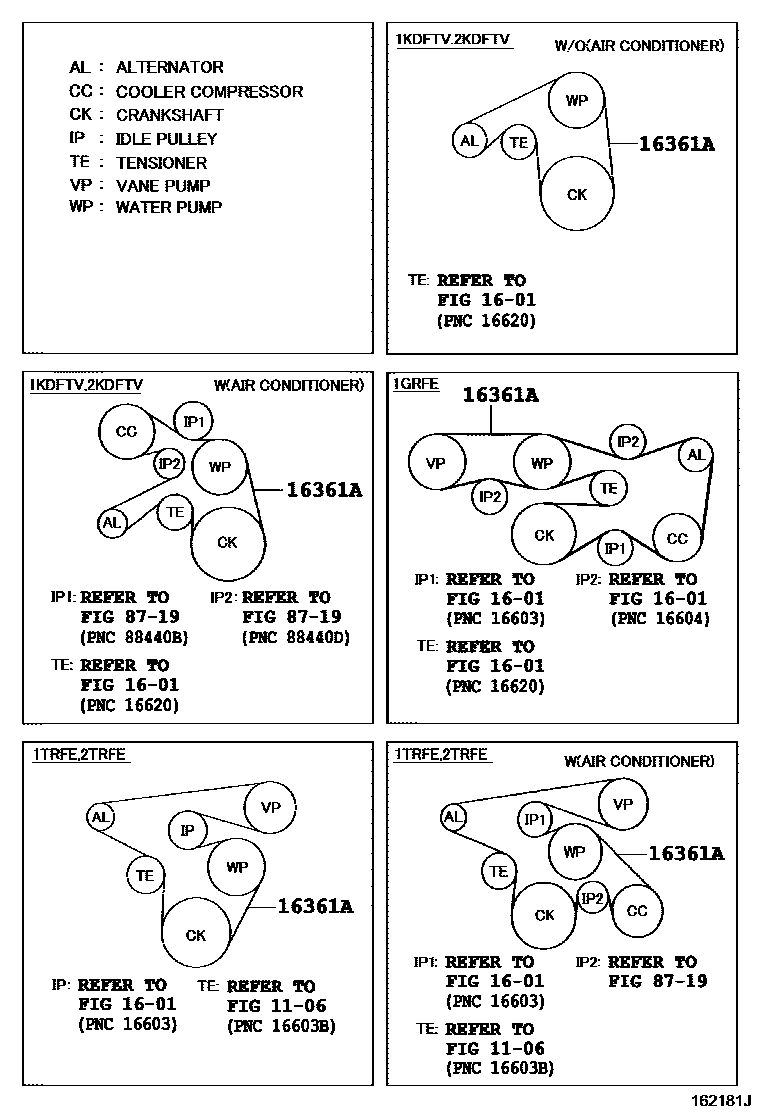

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02211i5LE..LAN15,25,35..SA200810-201108

main90916-02571i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200808-201107

sub99367-H2120

main90916-02636supersedes 90916-02639i2TRFE..TGN36..PHL,SA;2TRFE..TGN36..4FC..ANCOM;2TRFE..TGN16,26..RHD..(DCB,SCB,XTR)..(SA,TH)200509-200812

BANDO

sub90916-02707

main90916-02639i2TRFE..TGN16..XTR;2TRFE..TGN26..SR..GEN;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN16..ARL,GCC,SA;2TRFE..TGN36..ANCOM..IV3;2TRFE..TGN36..4FC..DLX..LA;2TRFE..TGN26..LHD..DLX200808-201111

BANDO

sub90916-02709

main90916-T2005i1KDFTV..KUN26..ARL;2KDFTV..KUN15..SCB..TH;2KDFTV..KUN25..LHD..SCB..SA;2KDFTV..KUN35..ANCOM,GEN,LA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..SCB..(GEN,LA);1KDFTV,2K200409-201202

main90916-T2006supersedes 90916-T2006i2KDFTV..KUN15..SR..SA200808-201108

main90916-T2017i1TRFE,2TRFE..TGN1#,26..DLX200502-200503

MITSUBOSHI

main90916-T2019i2TRFE..TGN16..ARL200502-200504

AIR CONDITIONER(DEALER OPTION),MITSUBOSHI

main90916-T2021i1TRFE..TGN10..IV3200908-201107

main90916-T2022i2TRFE..TGN26..SR..GEN;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;2TRFE..TGN36..5F..DLX..CBU;2TRFE..TGN36..4FC..DLX..LA;2TRFE..TGN26..LHD..DLX..(GCC,GEN,LA,SA200808

MITSUBOSHI

main90916-T2024i2TRFE..TGN36..5F..DLX;2TRFE..TGN26..DCB..DLX..LA;1TRFE,2TRFE..TGN1#..5F..(GCC,GEN,SA);2TRFE..TGN26..LHD..(ANCOM,GCC,GEN,SA)200504-200812

SINGLE AIR CONDITIONER,MITSUBOSHI

8719

4 parts on this diagram · 2 diagrams in section
