HEATING & AIR CONDITIONING - COMPRESSOR

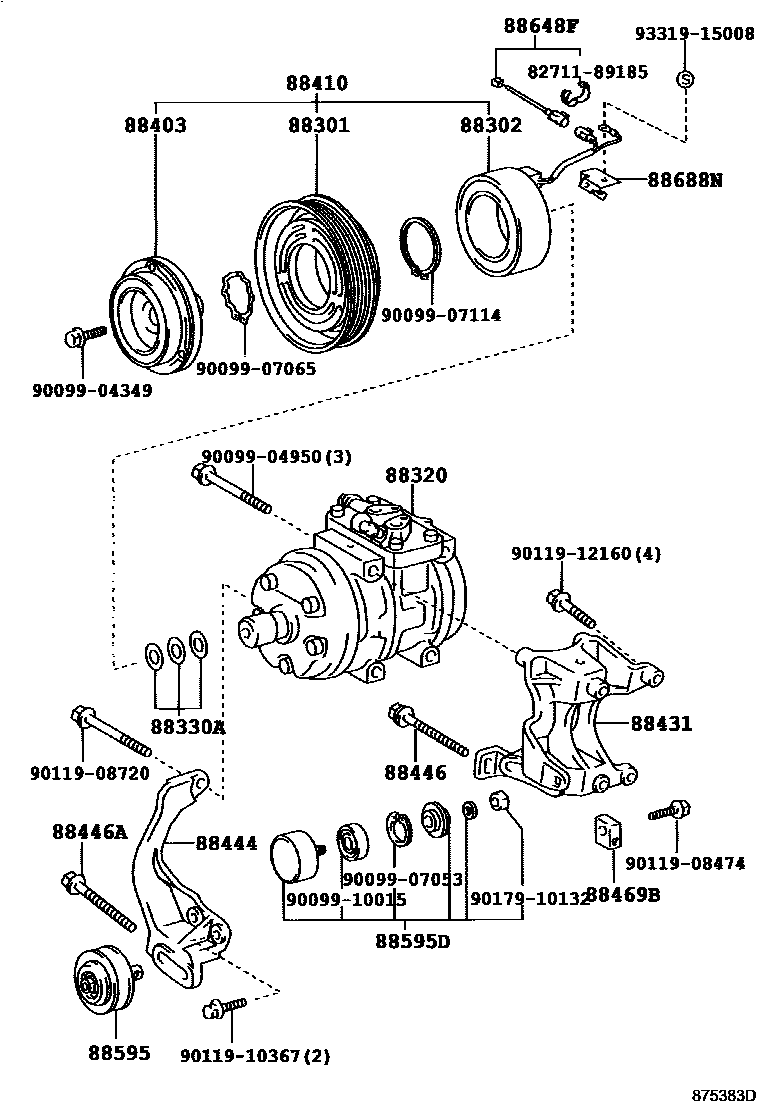

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1COMPONET OF COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150iRZN194..SADCB199708-200008

main88412-2A060iKZN165..ARL200309-200502

main88412-30430iLN167..DLX..SA199708-200203

sub88412-2A060

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2A030iLN166..RHD199708-200009

88320COMPRESSOR ASSY, COOLER

main88320-35620iLN145,166..RHD..GEN..CBU199708-200506

sub88320-35H92

main88320-35630iLN141,146,166..GCC199708-200108

sub88320-35H92

main88320-35640iRZN169,194..(DCB,SCB)..SA199708-200203

sub88320-35H92

main88320-35650iRZN142,144,147,149,169..GCC199708-200108

main88320-35650iRZN169..LHD..DCB..DLX..GEN200110-200201

IRAN SPEC

main88320-35660iKZN165..DLX199909-200504

main88320-37080iVZN167,172200208-200407

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iLN167..DLX..SA199708-200511

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iRZN194..SADCB199708-200203

88410CLUTCH ASSY, MAGNET

main88410-22480iKZN165,190,LN167,192..(DEFI,TDE)..SA199708-200203

main88410-34040iRZN149,194..(DCB,SADCB)..SR..(GEN,SA)199708-200203

main88410-35380iVZN167,172200208-200407

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-35200iRZN194..SADCB199708-200008

main88431-35220iVZN167,172200208-200407

main88431-60180iLN147..IV3;LN167,172,192..ARL,SA;LN145,155,166,171,191..LHD..(GEN,TH);LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU199708-200506

main88431-60220iKZN190..SR;KZN165..ARL,SA199909-200504

88444BRACKET, IDLE PULLEY

main88444-35030iLN141,145,146,166,171,191..LHD..DSL..(GCC,GEN)199708-200109

main88444-60070iLN167..SCB..ARL;LN145..RHD..GEN..CBU;LN167..SCB..DEFI..SA;LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN1199708-200506

88446BOLT, IDLE PULLEY

main88446-35010iRZN169..SR..SA;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);RZN148,169..(GCC,GEN)..CBU;RZN142,144,147,193..ARL,GCC,GEN;RZN154,168,194..(CO,GEN,SA)..CBU199708-200511

main88446-60020iLN192..SA;LN145..GEN..CBU;LN145..DCB..IV3;LN145..LHD..IV3;LN167..SCB..DSL..ARL;LN145,155..LHD..DLX..TH;LN167..(DCB,THDCB,THSCB)..DSL;LN141,146,147,152,166,17#,191..199708-200508

main88446-60040iKZN165,190..SA200007-200504

main90099-04321iLN157..DEFI;LN150,152,167,192..TH199806-200409

88446ABOLT, IDLE PULLEY NO.2

main88446-35030iLN145..RHD..DCB..TH;LN145..RHD..GEN..CBU;LN150,155,166..RHD..DLX199708-200506

main88446-35040iLN145,155..LHD..TH199708-200508

88469BCOLLAR

main88469-30280iLN167..DLX..SA199708-200506

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-35030iLN141,146,166..GCC199708-200508

main88440-35060iVZN167,172200208-200407

main88440-35080iRZN169..DLX..SA199708-200603

main88440-60050iKZN190;KZN165..SR..(ARL,SA)199909-200504

88595DPULLEY ASSY, IDLE

main88440-26070iLN147..IV3;LN167,172,192..ARL,SA;LN145,155,166,171,191..LHD..(GEN,TH);LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU199708-200506

88648FWIRE, MAGNET CLUTCH

main88648-35240iLN141,145,146,155,166,171,191..LHD199708-200109

main88648-35300iLN145..DCB..IV3;LN145..RHD..GEN..CBU;LN167..SCB..DSL..ARL;LN167..(DCB,THDCB,THSCB)..DSL;LN147,152,166,172,192..RHD..DSL..(ARL,GEN,SA)199708-200506

main88648-35330iLN152..IV3;LN147,167,172..DLX..DEFI200009-200504

88688NBRACKET, COOLER

main88688-25200iRZN147,149,154,169,174..ARL199708-200511

main88688-2D770iKZN165..SCB199708-200506

main88688-35590iVZN167,172200208-200407

main88688-60610iLN141,146,166,RZN142,144,147,149,169..GCC200108-200508

main88688-60610iRZN169..LHD..SCB..GEN200112-200201

IRAN SPEC

8271189185WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-89185

9009904349

main90099-04349

9009904950

main90099-04950

9009907053

main90099-07053

9009907065

main90099-07065

9009907114

main90099-07114

9009910015

main90099-10015

9011908474

main90119-08474

9011908720

main90119-08720

9011910367

main90119-10367

9011912160

main90119-12160

9017910132

main90179-10132

9331915008

main93319-15008

28 parts on this diagram · 6 diagrams in section
