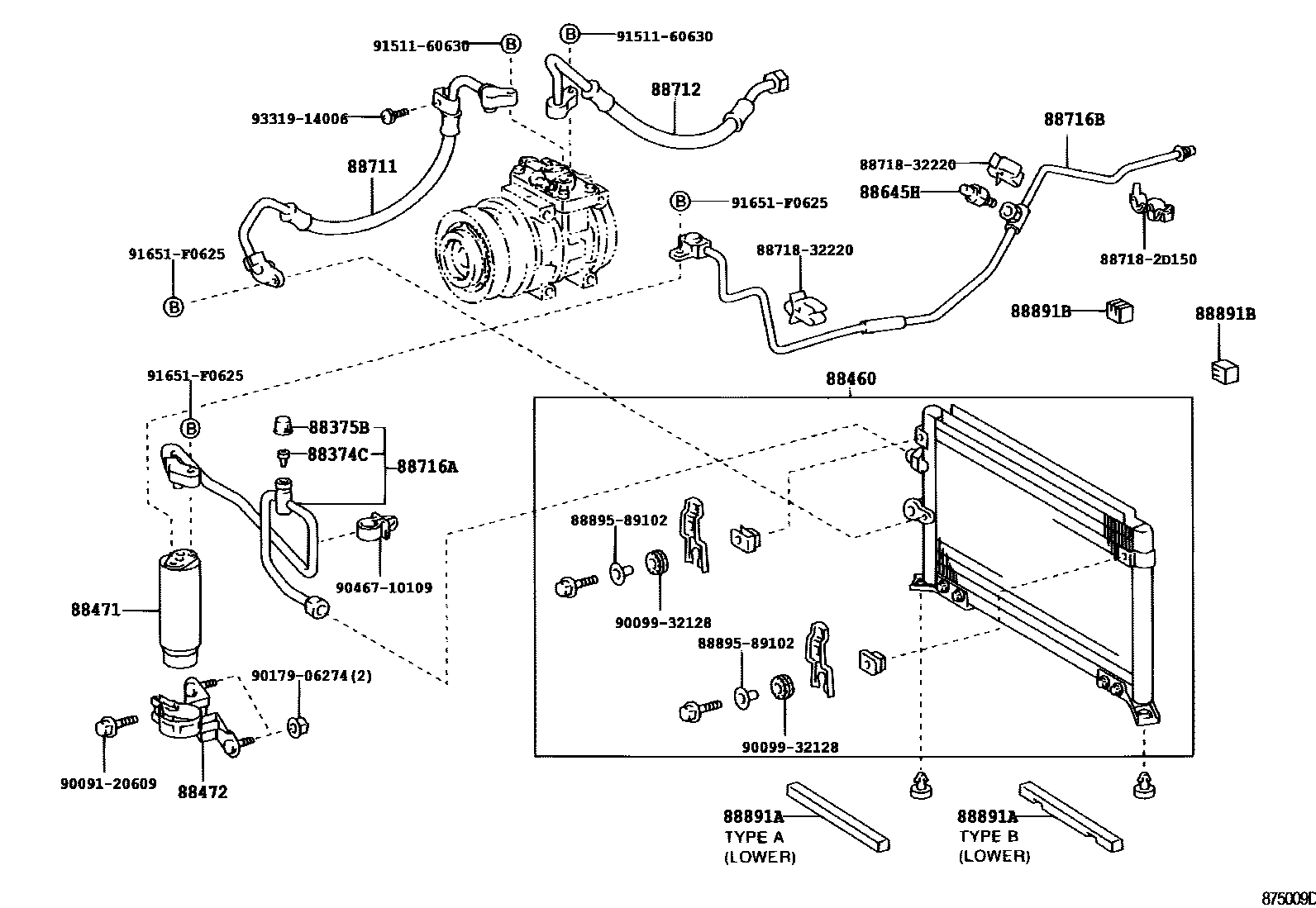

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1MAKER OPTION 0004 1DEALER OPTION 0005 1DEALER OPTION 0007 1MAKER OPTION 0009 1MAKER OPTION 0011 1DEALER OPTION 0013 1MAKER OPTION 0014 1MAKER OPTION 0015 1DEALER OPTION 0016 1MAKER OPTION 0017 1MAKER OPTION 0018 1DEALER OPTION 0019 1 0020 1 0021 1DEALER OPTION 0022 1DEALER OPTION 0023 1 0024 1DEALER OPTION 0025 1 0026 1DEALER OPTION 0027 1 0028 1 0029 1 0030 1 0031 1 0032 1 0033 1 0034 1 0035 1 0036 1 0037 1 0038 1 0039 1 0040 1 0041 1MAKER OPTION 0042 1DEALER OPTION 0043 1MAKER OPTION 0044 1DEALER OPTION 0045 1 0046 1 0047 1 0048 1 0049 1 0050 1 0051 1 0052 1 0053 1O RING

88374CVALVE, SERVICE, NO.2

main88374-30010iRZN194..SADCB199708-200009

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iLN145,155..LHD..DLX..TH199708-200407

88460CONDENSER ASSY, COOLER

main88460-35190iRZN194..SADCB199708-200203

main88460-35200iRZN149..GCC;RZN149..DLX..CBR..GEN;LN141,145,146,166,171,191,RZN142,144,147,154,169,193..LHD..(GCC,GEN)199708-200109

main88460-35210iLN167,RZN169..DLX..(DEFI,EFI)..SA199708-200404

DEALER OPTION

main88460-35220iLN145..LHD..GEN..CBU199708-200404

DEALER OPTION

main88460-35250iKZN165..SCB199909-200109

DEALER OPTION

main88460-35270iKZN165,190,RZN169,194..SR..SA;LN145,166,RZN147,169..RHD..(GEN,MA)..CBU200108-200506

main88460-35280iLN145..LHD..GEN;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154,16#,193..LHD..CBU200108-200403

main88460-35290iVZN167,172200208-200407

main88460-35300iLN141,146,166..GCC200108-200408

DEALER OPTION

main88460-35330iRZN142,144,147,149,169..GCC200402-200508

main88460-35340iRZN148,149..DCB..CO;LN145,RZN142,147,148,169..LHD..GEN;LN141,146,166,171,191,RZN154,168,193..LHD..CBU200402-200511

main88460-35360iLN141,146,166..GCC200408-200508

DEALER OPTION

main88460-35370iRZN144,149,169..GCC200408-200508

DEALER OPTION

88471TANK, RECEIVER AIR CONDITIONER

main88471-34010iKZN165,190,LN167,192,RZN169,194..(DCB,SCB)..(DEFI,EFI,TDE)..SA199708-200407

88472BRACKET, RECEIVER TANK, NO.1

main88472-04050iKDN165,190..MA200303-200503

main88472-35030iLN167..DLX..SA199708-200009

main88472-35040iRZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)199708

main88472-35050iKZN190..SR;LN147..IV3;LN147..DCB,THDCB;RZN147..RHD..(ARL,GEN);LN145,152..RHD..(ARL,GEN)..CBU;KZN165,LN16#,172,192,RZN149,154,169,174,194..RHD..(ARL,GEN,MA,SA)200108-200506

main88472-35060iRZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD200108

88645HSWITCH, PRESSURE NO.1

main88645-34010iLN192,RZN194..SA;LN167,RZN169..SR..SA199708-200009

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-35510iRZN169..RHD..CBR;RZN169..DLX..(ARL,SA);RZN147,149..RHD..DLX..(ARL,GEN);RZN154,174,194..RHD..(DCB,THXTR,XTR)199708-200008

main88711-35520iLN145..RHD..GEN..CBU;LN167,192..SCB..DEFI..SA;LN145,152..(DCB,THXTR,XTR)..IV3;LN147,16#,172..RHD..DLX..(ARL,GEN)199708-200009

sub88720-35400

main88711-35530iRZN142,144,147,149,169..CBR..GCC199708-199908

main88711-35540iLN141,145,146,155,166,171,191..LHD..DSL199708-200109

main88711-35570iKZN165..SR..ARL199909-200109

main88711-35590iRZN147,169..RHD..GEN200108-200506

main88711-35600iKZN165..THDCB,THSCB200109-200504

main88711-35610iRZN144,149,169..GCC200108-200407

DEALER OPTION

main88711-35610iRZN148..SR;RZN142,147,154..LHD;RZN169..LHD..SCB..GEN;RZN148,149,168..DCB..CO200108-200402

main88711-35730iKZN165..ARL200309-200502

main88711-35760iRZN142,147,148,154,16#,193..LHD..GEN..CBU200402-200506

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-35490iRZN169..RHD..CBR;RZN169..DLX..(ARL,SA);RZN147,149..RHD..DLX..(ARL,GEN);RZN154,174,194..RHD..(DCB,THXTR,XTR)199708-200504

sub88720-35370

main88712-35500iLN167..DLX..SA199708-200504

sub88720-35380

main88712-35510iRZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);RZN142,144,147,154,16#,193..LHD..CBU199708-199908

main88712-35520iLN141,145,146,155,166,171,191..LHD..DSL199708-200109

sub88720-35410

main88712-35550iKZN165..DLX199909-200109

main88712-35570iKZN165..ARL200109-200502

main88712-35600iLN141,145,146,166,171,191..LHD..(GCC,GEN)200108

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-35360iRZN194..SADCB199708-200009

main88716-35370iRZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)199708

main88716-35540iKZN165..DLX199909-200109

main88716-35590iLN147..IV3;LN147..DCB,THDCB;RZN147..RHD..(ARL,GEN);LN145,152..RHD..(ARL,GEN)..CBU;LN16#,172,192,RZN149,154,169,174,194..RHD..(ARL,GEN,MA,SA)200108-200506

main88716-35600iKZN190..SR;KZN165..ARL,SA200109-200504

main88716-35610iLN145..LHD..GEN200108-200506

DEALER OPTION

main88716-35610iRZN148..SR;LN166..LHD..GEN;RZN169..LHD..SCB..GEN;RZN148,149,168..DCB..CO;LN171,191,RZN142,147,154..LHD200108-200403

main88716-35690iLN145..LHD..GEN200407-200506

DEALER OPTION

main88716-35690iRZN149..SCB..GCC;LN145,RZN148..LHD..GEN;RZN148,149..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154,16#,193..LHD..CBU200402-200511

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-35580iLN141,146,166,RZN142,144,147,149,169..GCC200008-200108

DEALER OPTION

main88726-35030iLN145,147,152,16#,172,RZN147,149,154,169,174..RHD..(ARL,GEN)199708-200203

main88726-35040iLN145,155..LHD..TH199708-200109

main88726-35070iLN141,145,146,166,171,191..LHD..(GCC,GEN)199708-199908

main88726-35120iRZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU199908-200203

main88726-35130iRZN148,168..DLX..GEN..CBU199908

main88726-35140iKZN165..ARL200009-200109

main88726-35150iKZN165..SR..ARL199909-200009

88891APACKING A (FOR COOLER)

main53381-35030iLN166..RHD..GEN199708-200404

DEALER OPTION,UPPER

main53381-35030iLN152..IV3;KZN165..SR..ARL;LN167..DEFI..SA;RZN169..DLX..(ARL,SA);LN147,167,172,RZN147,149,154,174..DLX..ARL199708-200203

UPPER

main53381-35040iLN147..IV3;LN145..LHD..GEN;RZN169..DLX..SA;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN;LN167,192,RZN168,193..ARL,GEN,SA;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU;K200108-200309

UPPER

main53381-35041iRZN169..LHD..DCB;RZN169..SCB..GCC;LN145,RZN148..LHD..DLX..GEN;LN167,192,RZN168,193..ARL,GEN,SA;KZN165,LN141,146,147,152,166,172,RZN144,149,154,VZN167,172..ARL,GCC200309-200508

UPPER

main53381-35041iLN140,145,RZN142,147..SA200309-200504

main88578-35130iRZN169..RHD..GEN199708-200108

TYPE B:REFER TO ILLUSTRATION

main88578-35130iRZN148199808-200504

TYPE B:REFER TO ILLUSTRATION,LOWER

main88578-35130iRZN194..SADCB199708-200506

LOWER

main88578-35130iRZN169..DCB..SA;RZN168..DLX..GEN;RZN149..ATM..DLX..ARL;RZN169..LHD..CBR..GEN;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);LN167,RZN154..(DSL,EFI)..ARL;RZN149..(DCB,T199708

DEALER OPTION & TYPE B:REFER TO ILLUSTRATION,LOWER

main88578-35130iRZN169..SR..(GEN,SA);RZN169..LHD..DLX..GEN;LN166,171,191,RZN168,19#..(CO,GEN,MA,SA)..CBU200108-200511

main88578-89119iRZN147..ARL200109-200208

TYPE A:REFER ILLUST.

main88578-89119iLN145..LHD..IV3;LN167..SCB..ARL;RZN169..CBR..GCC;LN167..SCB..DEFI..SA;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);RZN169..LHD..DCB..CBR..GEN;RZN149..DLX..EFI..(ARL,G199708

DEALER OPTION & TYPE A:REFER TO ILLUSTRATION,LOWER

main88578-89119iRZN144,149,169..GCC200009-200508

LOWER

main88578-89119iVZN167,172199708-200508

TYPE A:REFER TO ILLUSTRATION,LOWER

main88578-89119iRZN147..RHD..GEN200108-200506

TYPE A:REFER TO ILLUSTRATION

main88578-89119iLN145..GEN..CBU;LN145..LHD..IV3;RZN149..SCB..GCC;KZN165,190..SR..SA;RZN148,149..DCB..(CO,GCC);RZN142,147,148,154..LHD..(GCC,GEN)..CBU;LN141,145,146,155,166,RZN144,1200108-200511

main88578-89119iRZN169..LHD..DCB..DLX..GEN200110-200201

IRAN SPEC

88891BPACKING B (FOR COOLER)

main88578-35110iLN147,152,167,172,RZN149,154,169,174..ARL199708-200203

DEALER OPTION,NO.1

main88578-35120iLN147..IV3;LN145..LHD..GEN;LN167,172,192..ARL,SA;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU199807-200506

DEALER OPTION

main88578-35120iRZN194..SADCB199708-200008

MAKER OPTION

main88578-35120iLN167..DLX..SA199708-200511

main88578-35150iKZN165..SR..ARL199909-200109

DEALER OPTION

main88578-35150iKZN165,190..SA200007-200203

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

8889589102HOLDER, FUSE

main88895-89102

9009120609

main90091-20609

9009932128

main90099-32128

9017906274

main90179-06274

9046710109

main90467-10109

9151160630

main91511-60630

91651F0625

main91651-F0625

9331914006

main93319-14006

22 parts on this diagram · 48 diagrams in section
