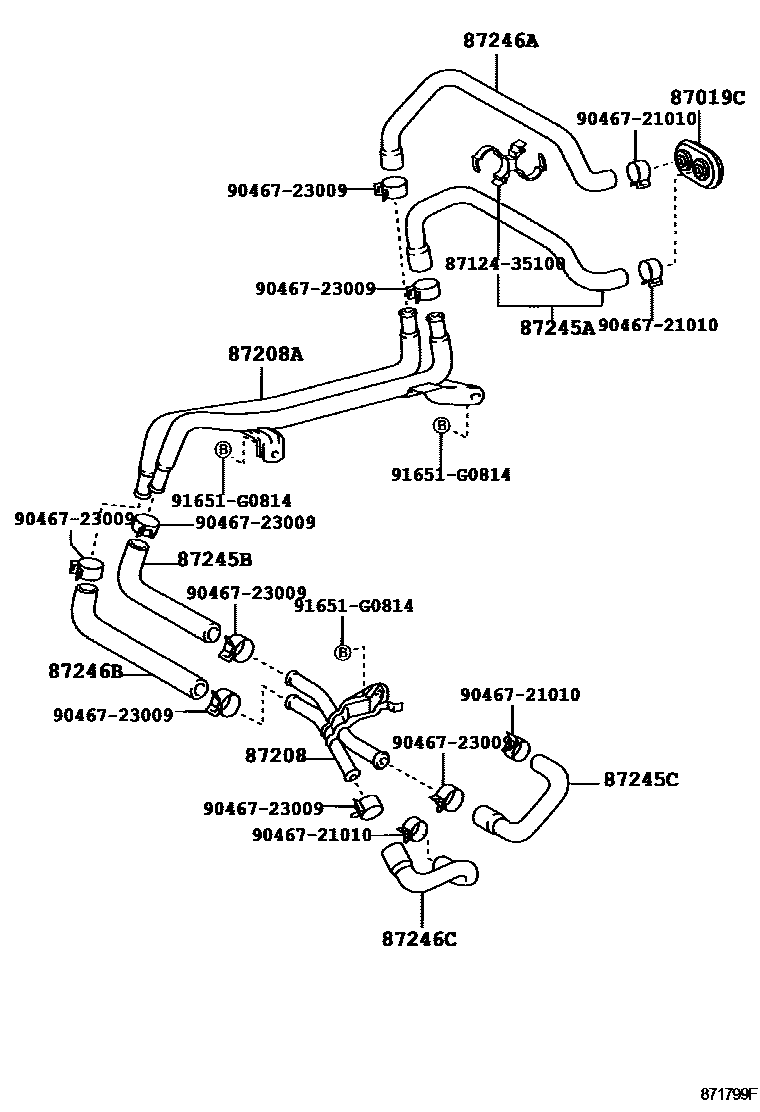

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1 0012 1

87019CGROMMET, HEATER HOSE

main90480-01405iLN167..SR..ARL;RZN147,169..ARL;LN167..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THDCB,THSCB,THXTR,XTR)..ARL200108-200208

87208PIPE SUB-ASSY, HEATER WATER

main87208-26100iKZN165..TH200009-200109

main87208-35280iLN145,155..LHD..TH;LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA199708-200009

main87208-35430iVZN167,172200208-200502

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-35250iKZN165..(THDCB,THSCB)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

NO.1

main87208-35260iKZN165..THDCB,THSCB200109-200208

NO.2

main87208-35300iLN152..IV3;LN155..LHD;LN167..DSL;LN167..DCB..DLX..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA)200009

87245AHOSE, HEATER WATER, INLET A

main87245-35840iLN167..SR..ARL;LN167..(SCB,THSCB)..ARL..CBU200108-200208

main87245-35860iLN145,166,171,191..LHD..GEN200108-200506

main87245-3D050iYN140199808-200010

main87245-3D400iVZN167,172200208-200502

main87246-35010iRZN147,149,154,169,174,194..RHD199708-200008

main87246-35030iRZN14#,154,16#,193..LHD199708-200108

main87246-35060iKZN165..THDCB,THSCB200109-200208

main87246-35090iRZN14#,16#..CO,GCC200108

87245BHOSE, HEATER WATER, INLET B

main87245-3D410iVZN167,172200208-200502

main87254-35010iLN167..SR..ARL;LN167..(SCB,THSCB)..ARL..CBU200108-200208

87245CHOSE, HEATER WATER ,INLET C

main87244-35010iLN167..SCB..SA;LN140,145,166,192..RHD..(GEN,SA)200109

87246AHOSE, HEATER WATER, OUTLET A

main87245-35860iLN145,166,171,191..LHD..GEN200108-200506

main87245-35890iRZN142,147..SA200108-200504

main87245-3D010iRZN149,154..ARL200108-200502

main87245-3D020iRZN148,154,16#,193..LHD..GEN..CBU200108-200506

main87245-3D030iRZN142,147..LHD..GEN200108-200506

main87245-3D040iYN140199808-200010

main87245-3D180iKZN165..(THDCB,THSCB)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

main87245-3D360iVZN167,172200208-200502

main87246-35020iLN147,167..IV3;LN147,172..DCB,THDCB,THXTR,XTR;LN152,167..(DCB,THDCB,THXTR,XTR)..DLX..ARL..CBU200108-200502

87246BHOSE, HEATER WATER, OUTLET B

main87242-35010iLN147,167..IV3;LN147,172..DCB,THDCB,THXTR,XTR;LN152,167..(DCB,THDCB,THXTR,XTR)..DLX..ARL..CBU200108-200502

main87246-35100iVZN167,172200208-200502

87246CHOSE, HEATER WATER, OUTLET C

main87243-35010iLN140,145,167,192..SA200108-200504

8712435100CLAMP, HEATER

main87124-35100

9046721010

main90467-21010

9046723009

main90467-23009

91651G0814

main91651-G0814

13 parts on this diagram · 10 diagrams in section
