RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1CONDENSER,DISC PLAYER,RECEIVE0002 1KNOB, RADIO RECEIVER 0003 1KNOB, RADIO RECEIVER

86011ACONDENSER, RADIO SETTING

main90980-04040iKZN165,LN145,15#,167,192..RHD..TH199806-200109

main90980-04083iRZN154,16#,193;RZN148..GEN..CBU;RZN144,147,148,149,174,194,VZN167,172..EFI..(ARL,CO,GCC,SA)199708-199909

86120RECEIVER ASSY, RADIO

main86120-02150iLN145,166..RHD..DCB..GEN;RZN148,168..DCB..DLX..GEN199805-200506

MATSUSHITA, ID=51801,TYPE K:REFER TO ILLUSTRATION

main86120-10460iLN147,167..IV3;KZN165..DCB..SR..ARL;LN172,RZN149,154,VZN172..ARL;LN167..(DCB,THDCB)..DLX..ARL;LN147,152,VZN167..(DCB,THDCB,THXTR,XTR)..ARL..CBU199805-200506

MATSUSHITA, ID=52202,TYPE L:REFER TO ILLUSTRATION

main86120-16650iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU199805-200506

MATSUSHITA, ID=52201,TYPE M:REFER TO ILLUSTRATION

main86120-16660iLN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU199805-200506

FUJITSU TEN,ID=17409,TYPE N:REFER TO ILLUSTRATION

main86120-16670iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU199805-200506

FUJITSU TEN,ID=17410,TYPE O:REFER TO ILLUSTRATION

main86120-16680iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU199805-200506

MATSUSHITA, ID=57206,TYPE P:REFER TO ILLUSTRATION

main86120-17280iRZN144,147,149,169..CBR;LN147,167,RZN149,169..DCB..ARL;LN145,166,17#,191,RZN142,148,154,168,174,193..ARL,GEN199708-199805

MATSUSHITA,ID=57201,TYPE A:REFER TO ILLUSTRATION

main86120-17290iLN147,167,RZN149,169..DCB..ARL199708-199805

MATSUSHITA,ID=57402,TYPE B:REFER TO ILLUSTRATION

main86120-1A010iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU199708-200506

MATSUSHITA,TYPE C:REFER TO ILLUSTRATION

main86120-1A020iLN14#,16#,17#,191,RZN14#,154,16#,174,193199708-199805

FUJITSU TEN,ID=12201,TYPE D:REFER TO ILLUSTRATION

main86120-2A070iLN145,166,171,191,RZN142,147,148,149,154,16#,193..GEN199708-199805

MATSUSHITA,TYPE E:REFER TO ILLUSTRATION

main86120-2B610iKZN165..THDCB..SR;LN167,RZN169..SR..ARL199805-200504

FUJITSU TEN,ID=17411,TYPE Q:REFER TO ILLUSTRATION

main86120-35080iLN141,146,166,RZN142,144,147,149,169..GCC199708-200506

MATSUSHITA,ID=52100,TYPE F:REFER TO ILLUSTRATION

sub86120-60N00

main86120-35090iLN145,166,171,191,RZN142,147,148,149,154,16#,193..GEN199708-199805

MATSUSHITA,ID=57400,TYPE G:REFER TO ILLUSTRATION

main86120-35100iLN145,166,171,191,RZN142,147,148,149,154,16#,193..GEN199708-199805

MATSUSHITA,ID=57401,TYPE H:REFER TO ILLUSTRATION

main86120-35110iLN145..DCB..IV3;LN145..LHD..IV3;RZN149..CBR..GEN;RZN148,168,193..DLX..GEN..CBU;LN145,166,171,191,RZN142,147,154,169..DLX..(CBR,DSL)..GEN..CBU199708-200506

MATSUSHITA,ID=52101,TYPE I:REFER TO ILLUSTRATION

main86120-35190iLN141,146,166,RZN142,144,147,149,169..GCC199708-200506

MATSUSHITA, ID=57101,TYPE J:REFER TO ILLUSTRATION

86211BRACKET, RADIO, NO.1

main86211-04040iLN145..DCB..IV3;LN145..LHD..IV3;LN167..DEFI..TH;RZN149..(DCB,SCB)..ATM..ARL;LN147,152,167,172..(THDCB,THSCB,THXTR)..DEFI;KZN165,LN150,171,192,RZN154,174..THDCB,THSC199902-200502

(L)

main86211-89111iLN141,146,166,RZN14#,16#..CO,GCC200108-200506

main86211-89111iLN141,145,146,147,152,16#,17#,191,RZN14#,154,16#,174,193..ARL,GCC,GEN199708-200109

(J)

86212BRACKET, RADIO, NO.2

main86212-04030iKDN16#,190..SRWGN199902-200502

(L)

main86212-89111iRZN148..IV3;LN145..RHD..IV3;RZN154,169..(DCB,SCB,XTR)..ARL;KZN165,LN147,152,167,172,RZN147,149,174..(DCB,SCB,XTR)..(DEFI,EFI,TDE)..(ARL,GEN)199708-200109

(J)

main86212-89111iLN167..DCB..SR..ARL;RZN147,169..(DCB,SCB)..ARL;LN167,RZN174..(SCB,XTR)..ARL..CBU200108-200506

86270ADISC PLAYER ASSY

main86270-60050iRZN144,149..SR..GCC199805-200502

9014950032

main90149-50032

9015350010

main90153-50010

9015950238

main90159-50238

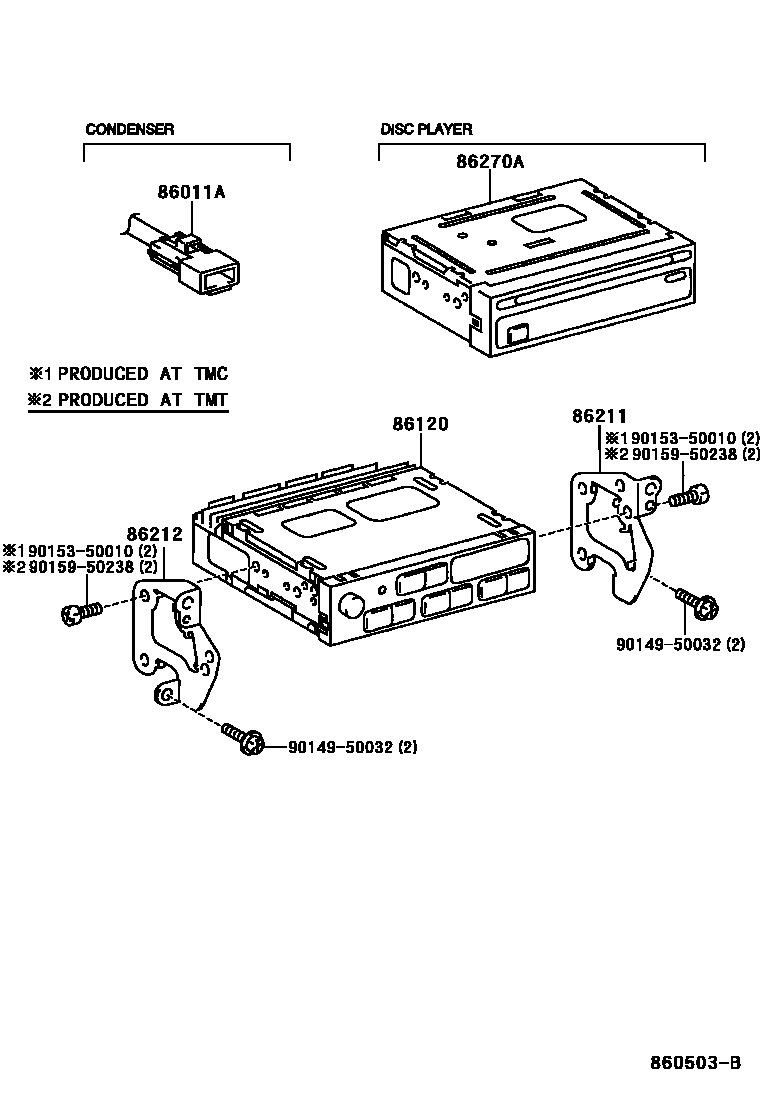

8 parts on this diagram · 3 diagrams in section
