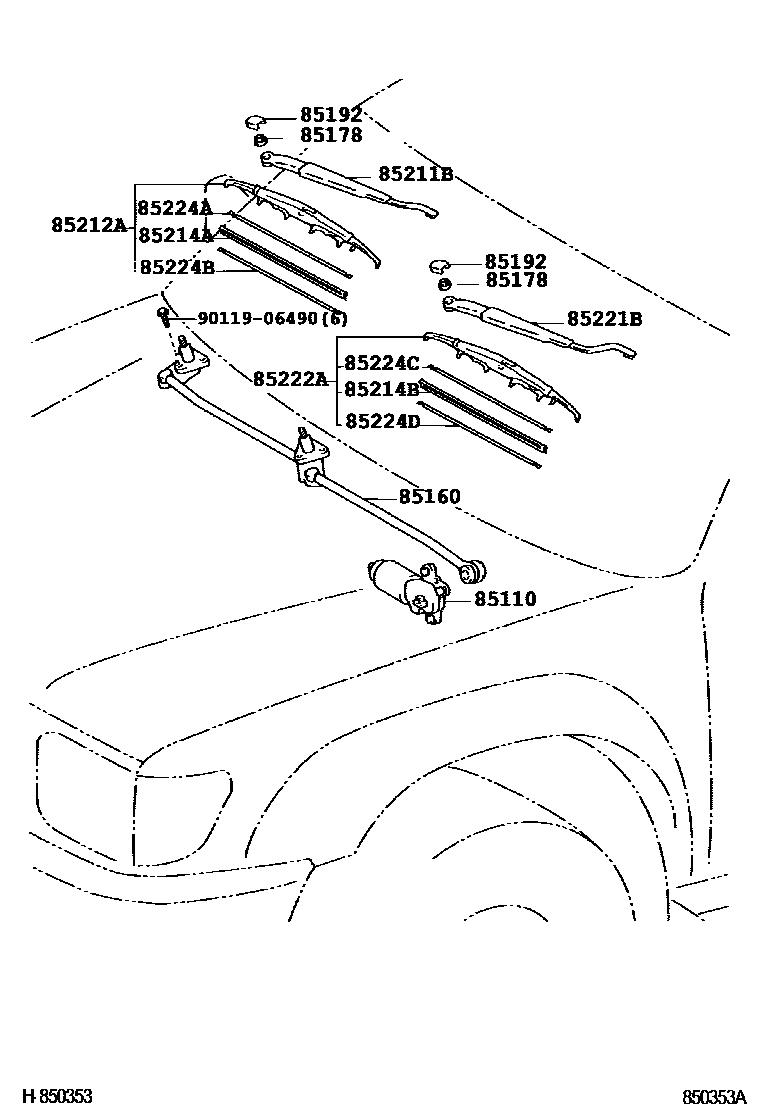

WINDSHIELD WIPER

0001 1 0003 1 0004 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-35190iRZN169..RHD..GEN200108-200506

main85110-35250iLN145,166,RZN147..RHD..GEN..CBU199708-200506

sub85110-35190

main85110-35260iLN141,146,166,RZN142,144,147,149,169..GCC199708-200506

sub85110-35270

main85110-35270iRZN148,154,16#,193..LHD..GEN..CBU199708-200506

85160LINK ASSY, WINDSHIELD WIPER

main85150-04030iLN167..THDCB..SR;LN167..THSCB..CBU;KZN165,RZN147,169,174..THDCB,THSCB,THXTR199808-200407

main85150-35190iKDN165,190,LN166..MA199708-200506

main85150-35200iLN141,146,166,RZN14#,16#..CO,GCC199708-200506

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113iLN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI.199708-200506

main90179-T0008iKDN145,15#,16#,190,LN145,150,155..RHD..TH;LN147,152,167,172,RZN149,154..THDCB,THSCB,THXTR200308-200407

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iLN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI.199708-200506

85211BARM, FRONT WIPER, RH

main85211-04020iKZN165..TH;KDN165,190..IV1;LN167..THDCB..SR;LN167..THSCB..CBU;KZN165,RZN147,169,174..THDCB,THSCB,THXTR199808-200503

main85211-35080iLN141,146,166,RZN14#,16#..CO,GCC199708-200506

main85211-35110iLN167..DCB..SR..ARL;RZN147,169..(DCB,SCB)..ARL;LN167,RZN174..(SCB,XTR)..ARL..CBU199708-200506

main85211-35120iRZN169..RHD..GEN200108-200506

85212ABLADE, FR WIPER, RH

main85212-04020iKZN165..TH;KDN165,190..IV1;LN167..THDCB..SR;LN167..THSCB..CBU;KZN165,RZN147,169,174..THDCB,THSCB,THXTR199808-200503

main85212-35070iLN141,146,166,RZN14#,16#..CO,GCC199708-200605

sub85212-35071

main85212-35071iRZN148,149,168..GEN200606

main85212-35100iLN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL199708-200605

sub85212-35101

main85212-35101iLN145,166,RZN147..GEN200606

main85212-35110iRZN169..RHD..GEN200108-200506

sub85212-35111

85214ARUBBER, WIPER, RH

main85214-04020iKZN165..TH;KDN165,190..IV1;LN167..THDCB..SR;LN167..THSCB..CBU;KZN165,RZN147,169..THDCB,THSCB;KDN165,190,LN166,RZN174..(DCB,SCB,THXTR)..(ARL,MA)199808-200503

main85214-12300iLN145,166..RHD..GEN;RZN147..RHD..SCB..GEN199708-200605

sub85214-12301

main85214-12301iLN145,166,RZN147,148,149,168..GEN200606

main85214-35050iLN166..LHD..DSL;LN141,145,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)199708-200109

sub85214-12300

main85214-51030iLN152..XTR..IV3;RZN169..DCB..SA;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN167..SCB..DLX..(DEFI,TDE);LN167,RZN169..RHD..(DCB,SCB)..(CBR,DSL);KZN165,RZN194..(DCB,SADC199708-200412

sub85214-12300

85214BRUBBER, WIPER, LH

main85214-04020iLN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR;KDN145,15#,16#,190,LN145,150,155..RHD..TH..CBU199808-200503

main85214-12300iLN145,166..RHD..GEN;RZN147..RHD..SCB..GEN199708-200605

sub85214-12301

main85214-12301iRZN148,149,168..GEN200606

main85214-35050iLN166..LHD..DSL;LN141,145,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)199708-200109

sub85214-12300

main85214-51030iRZN169..RHD..GEN199708-200506

sub85214-12300

85221BARM, FRONT WIPER, LH

main85221-04020iLN152..CBU;LN167..DCB..TH;KZN165,LN147,150,167,192,RZN147,149,169..THDCB,THSCB,XTR;LN145,152,155,157,172,RZN154,174..RHD..(SCB,THXTR)..(ARL,TH)199808-200503

main85221-35080iLN145,155..LHD..TH199708-200506

main85221-35110iLN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL199708-200506

main85221-35120iRZN148,149,168..CO199708-200506

85222ABLADE, FR WIPER, LH

main85222-04020iKZN165..TH;KDN165,190..IV1;LN167..THDCB..SR;LN167..THSCB..CBU;KZN165,RZN147,169,174..THDCB,THSCB,THXTR199808-200503

main85222-28090iKZN165,190,RZN194..SR..SA;LN140,145,167,192,RZN142,147,169..SA200108-200506

sub85222-51020

main85222-35090iLN145,166,171,191,RZN142,147..LHD..GEN199708-200506

sub85222-35091

main85222-35120iRZN148,149,168..CO199708-200605

sub85222-35121

main85222-35121iRZN148,149,168..GEN200606

main85222-51020iLN152..XTR..IV3;RZN169..DCB..SA;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN167..SCB..DLX..(DEFI,TDE);LN167,RZN169..RHD..(DCB,SCB)..(CBR,DSL);KZN165,RZN194..(DCB,SADC199708-200506

sub85222-12770

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-04030iLN152..CBU;LN167..DCB..TH;KZN165,LN147,150,167,192,RZN147,149,169..THDCB,THSCB,XTR;LN145,152,155,157,172,RZN154,174..RHD..(SCB,THXTR)..(ARL,TH)199808-200109

main85224-35050iLN152..XTR..IV3;RZN169..DCB..SA;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN167..SCB..DLX..(DEFI,TDE);LN167,RZN169..RHD..(DCB,SCB)..(CBR,DSL);KZN165,RZN194..(DCB,SADC199708

main85224-35060iRZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)199708

sub85224-10190

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-04030iLN152..CBU;LN167..DCB..TH;KZN165,LN147,150,167,192,RZN147,149,169..THDCB,THSCB,XTR;LN145,152,155,157,172,RZN154,174..RHD..(SCB,THXTR)..(ARL,TH)199808-200109

main85224-35050iLN152..XTR..IV3;RZN169..DCB..SA;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN167..SCB..DLX..(DEFI,TDE);LN167,RZN169..RHD..(DCB,SCB)..(CBR,DSL);KZN165,RZN194..(DCB,SADC199708

main85224-35060iRZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)199708

sub85224-10190

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-04040iLN152..CBU;LN167..DCB..TH;KZN165,LN147,150,167,192,RZN147,149,169..THDCB,THSCB,XTR;LN145,152,155,157,172,RZN154,174..RHD..(SCB,THXTR)..(ARL,TH)199808-200109

main85224-35050iRZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)199708

main85224-35060iLN152..XTR..IV3;RZN169..DCB..SA;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN167..SCB..DLX..(DEFI,TDE);LN167,RZN169..RHD..(DCB,SCB)..(CBR,DSL);KZN165,RZN194..(DCB,SADC199708

sub85224-10190

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-04040iLN152..CBU;LN167..DCB..TH;KZN165,LN147,150,167,192,RZN147,149,169..THDCB,THSCB,XTR;LN145,152,155,157,172,RZN154,174..RHD..(SCB,THXTR)..(ARL,TH)199808-200109

main85224-35050iRZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)199708

main85224-35060iLN152..XTR..IV3;RZN169..DCB..SA;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN167..SCB..DLX..(DEFI,TDE);LN167,RZN169..RHD..(DCB,SCB)..(CBR,DSL);KZN165,RZN194..(DCB,SADC199708

sub85224-10190

9011906490

main90119-06490

15 parts on this diagram · 3 diagrams in section
