ABS & VSC

0001 12WD 0003 14WD

85999MBRACKET, RELAY

main85999-35100iLN167..SR;KZN165..TH;KDN165,190..IV1;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU200109-200208

main85999-35110iLN141,146,166,RZN142,144,147,149,169..GCC199708-200108

88263ERELAY, SKID CONTROL NO.2

main88263-24030iLN141,146,166,RZN142,144,147,149,169..GCC200108

88263GRELAY, SKID CONTROL

main88263-14110iRZN169..SR..SA;LN152..DEFI..IV3;LN152,167,192..DSL;LN167..DEFI..(SA,TH);LN150,RZN194..(SCB,XTR)..SR;LN167,RZN149,169..DLX..(DEFI,EFI)..ARL;KZN165,LN152,192..(THDCB,199708-200203

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-35600iRZN169..SR..SA;LN152..DEFI..IV3;LN152,167,192..DSL;LN167..DEFI..(SA,TH);LN150,RZN194..(SCB,XTR)..SR;LN167,RZN149,169..DLX..(DEFI,EFI)..ARL;KZN165,LN152,192..(THDCB,199708-200203

89411ARING, O (FOR SPEED SENSOR)

main96723-19021×2iKDN16#,190..SRWGN200108-200411

89516WIRE, SKID CONTROL SENSOR

main89516-35050iRZN149..ARL;RZN147,154..ARL,GCC;LN141,146,147,150,152,RZN142,144,149..(CBR,DEFI,DSL)..(ARL,GCC,TH)199708-200109

main89516-35060iKDN16#,190..SRWGN200108-200411

89540COMPUTER ASSY, SKID CONTROL

main89540-35140iLN147..IV3;RZN149,154..ARL;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU200108-200502

main89540-35150iRZN169..ARL;LN167..SR..ARL;LN167..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THDCB,THSCB,THXTR,XTR)..ARL200108-200208

main89540-35170iKDN190..IV1200110-200208

main89540-35180iKZN165,LN167..(SCB,XTR)..(SA,TH);LN167,RZN169..DCB..(DEFI,EFI)..(SA,TH)199807-200203

main89540-35200iRZN169..DCB..SA200203-200504

W(REAR DIFFERENTIAL LOCK)

89542SENSOR, SPEED, FRONT RH

main89542-35080iRZN149..ARL;RZN147,154..ARL,GCC;LN141,146,147,150,152,RZN142,144,149..(CBR,DEFI,DSL)..(ARL,GCC,TH)199708-200109

main89542-35090iKZN165..TH;LN167..SR..ARL;KDN165,190..IV1;RZN169,174..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU200108-200208

89543SENSOR, SPEED, FRONT LH

main89543-35080iRZN149..ARL;RZN147,154..ARL,GCC;LN141,146,147,150,152,RZN142,144,149..(CBR,DEFI,DSL)..(ARL,GCC,TH)199708-200109

main89543-35090iRZN169..SR..SA;LN167..DEFI..(SA,TH);KZN165..(THDCB,THSCB,XTR)..SR;LN167,RZN169..DLX..(DEFI,EFI)..ARL;LN192,RZN194..(SCB,XTR)..SR..(DEFI,EFI);LN167,192,RZN169..(CBR,199708-200203

89545SENSOR, SPEED, REAR RH

main89545-35020iLN152,167..DSL;RZN169..SR..SA;LN152..DEFI..IV3;LN152,167..DEFI..(SA,TH);LN167,RZN149,169..DLX..(DEFI,EFI)..ARL;KZN165,LN150,192..(THDCB,THSCB,XTR)..SR;LN141,146,147199708-200203

89546SENSOR, SPEED, REAR LH

main89546-35020iLN152,167..DSL;RZN169..SR..SA;LN152..DEFI..IV3;LN152,167..DEFI..(SA,TH);LN167,RZN149,169..DLX..(DEFI,EFI)..ARL;KZN165,LN150,192..(THDCB,THSCB,XTR)..SR;LN141,146,147199708-200203

89771COVER, ABS RELAY BLOCK, UPPER

main89771-12010iRZN169..SR..SA;LN152..DEFI..IV3;LN152,167,192..DSL;LN167..DEFI..(SA,TH);LN150,RZN194..(SCB,XTR)..SR;LN167,RZN149,169..DLX..(DEFI,EFI)..ARL;KZN165,LN152,192..(THDCB,199708-200203

89772COVER, ABS RELAY BLOCK, LOWER

main89772-12010iRZN169..SR..SA;LN152..DEFI..IV3;LN152,167,192..DSL;LN167..DEFI..(SA,TH);LN150,RZN194..(SCB,XTR)..SR;LN167,RZN149,169..DLX..(DEFI,EFI)..ARL;KZN165,LN152,192..(THDCB,199708-200203

9011906801

main90119-06801

9011908413

main90119-08413

9011908983

main90119-08983

9011908B17

main90119-08B17

90119T0073

main90119-T0073

90119T0074

main90119-T0074

90119T0075

main90119-T0075

9017908099

main90179-08099

9017908237

main90179-08237

91621J0612

main91621-J0612

91645H0818

main91645-H0818

91651B0618

main91651-B0618

91651B0620

main91651-B0620

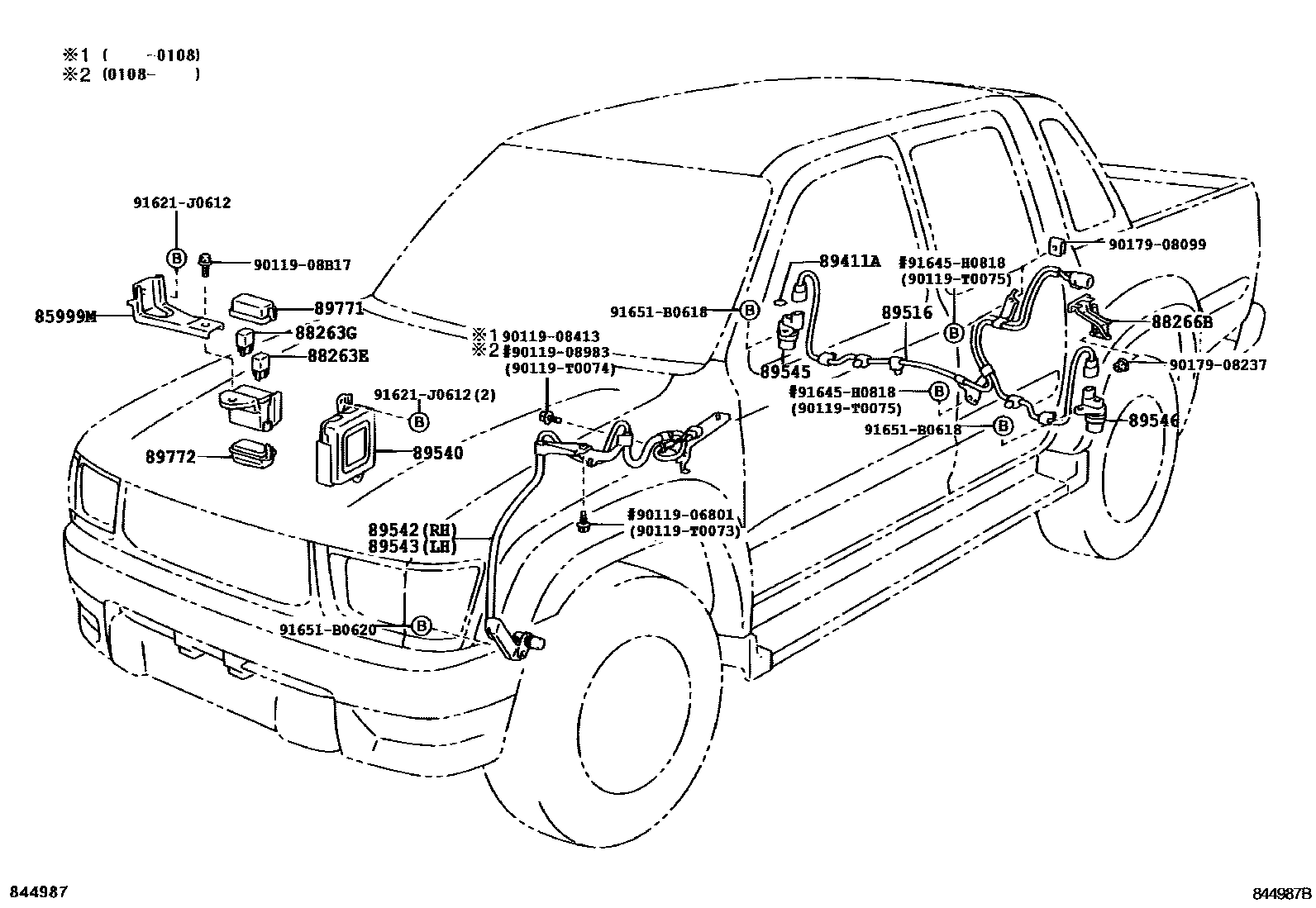

26 parts on this diagram · 2 diagrams in section
