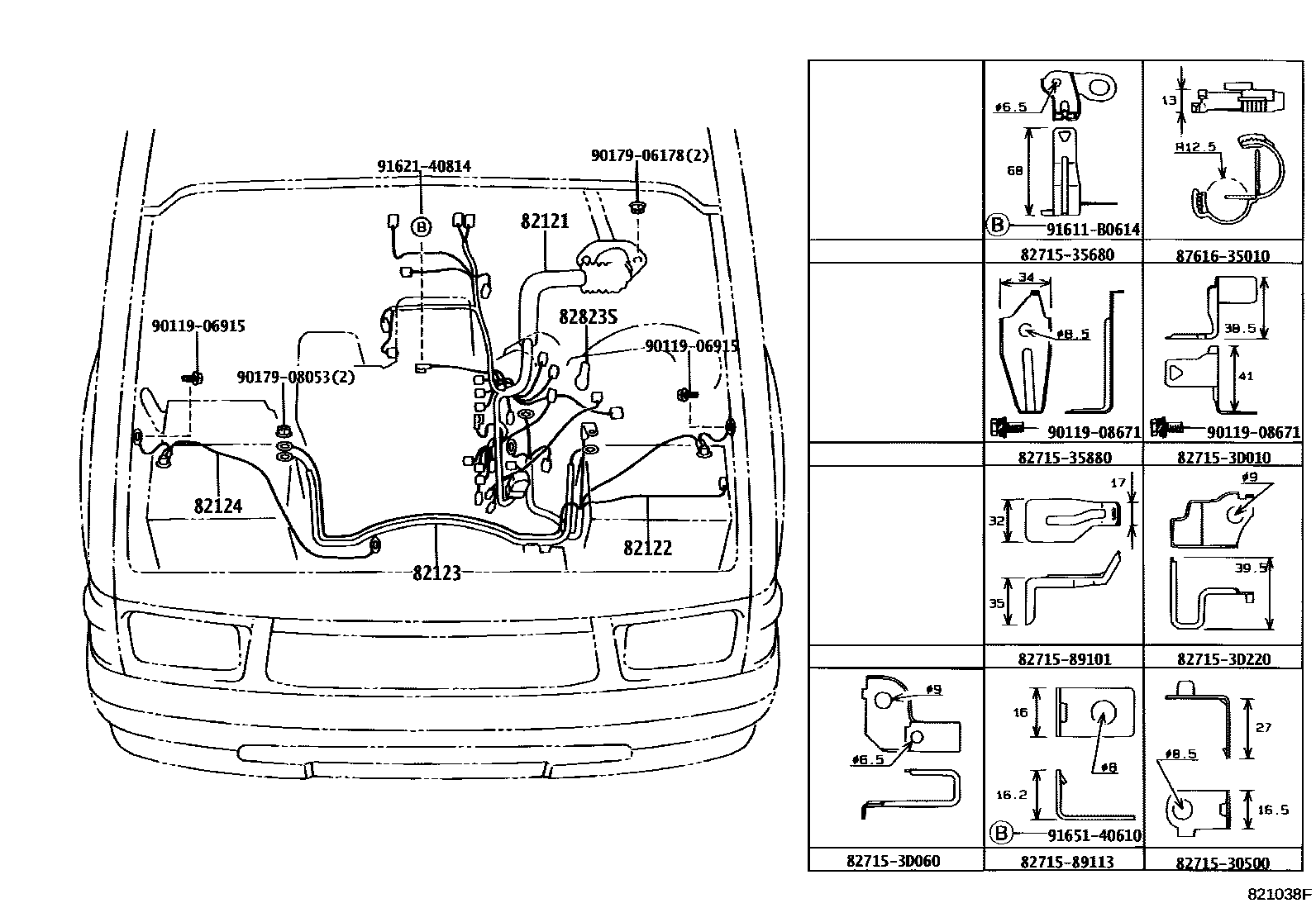

WIRING & CLAMP

0001 1ENGINE WIRE 0002 1ENGINE WIRE 0003 1ENGINE WIRE 0004 1ENGINE WIRE 0005 1ENGINE WIRE CLAMPS & BRACKETS0006 1ENGINE WIRE CLAMPS & BRACKETS0007 1ENGINE WIRE 0008 1ENGINE WIRE CLAMPS & BRACKETS0009 1ENGINE WIRE CLAMPS & BRACKETS0010 1ENGINE WIRE 0011 1ENGINE WIRE CLAMPS & BRACKETS0012 1ENGINE WIRE 0013 1ENGINE WIRE CLAMPS & BRACKETS0014 1ENGINE WIRE 0015 1ENGINE ROOM 0016 1ENGINE ROOM 0017 1ENGINE ROOM 0018 1ENGINE ROOM 0019 1ENGINE ROOM WIRE 0020 1ENGINE ROOM WIRE CLAMPS & BRA0021 1COWL WIRE 0022 1COWL WIRE 0023 1ROOF,DOOR,FRAME & DIFF. WIRE 0024 1CABLE BOND 0025 1CABLE BOND 0026 1CONNECTOR

82121WIRE, ENGINE

main82121-04040iLN147,152,157,192..MTM..DEFI200009-200203

main82121-04180iLN167,172..DLX..ARL;LN167..DEFI..(SA,TH)200009-200203

W(FULL TIME 4WD)

main82121-04190iLN167..(DCB,THDCB,XTR)..DEFI200009-200109

W(PART TIME 4WD)

main82121-04240iLN145,150,155..RHD..TH200009-200109

main82121-04300iLN147,152..THDCB,THSCB,THXTR200109-200208

main82121-04310iLN167,172..(THDCB,THSCB,THXTR)..DLX200109-200208

main82121-04320iLN167..THDCB..SR200109-200208

main82121-04390iLN147,152..DCB,SCB,XTR200208-200502

main82121-04400iLN167,172..THDCB,THSCB,THXTR200208-200407

main82121-3D290iRZN193199708-200506

main82121-3D560iLN147,152..ARL199708-200009

main82121-3D570iLN167,172..ARL199708-200009

main82121-3D580iLN167..(DCB,THDCB)..ARL199708-200009

SR PACKAGE

main82121-3D590iLN145..RHD..GEN199708-200506

main82121-3D600iLN166..RHD..GEN199708-200506

main82121-3D610iLN166..RHD..GEN199708

MALAYSIA SPEC

main82121-3D610iLN166..MA200209-200503

main82121-3D630iLN141,145,146,191..LHD..(GCC,GEN)199708-200108

main82121-3D640iLN166,171..LHD199708-200108

main82121-3D690iRZN144,149,154..CBR199708-200108

main82121-3D700iRZN169..LHD199708-200108

main82121-3D710iRZN149,154..MTM..ARL199708-200308

main82121-3D711iRZN149,154..MTM..ARL200308-200502

main82121-3D720iRZN149,154..ATM..ARL199708-200308

main82121-3D721iRZN149,154..ATM..ARL200308-200502

main82121-3D730iRZN169,174..DLX..ARL199708-200208

main82121-3D740iRZN169..DCB..ARL199708-200109

SR PACKAGE

main82121-3D740iRZN169..SR..ARL200109-200208

main82121-3D750iRZN142,147..LHD199708-200108

main82121-3D790iRZN147..ARL199708-200208

main82121-3D800iRZN148..CO;RZN148..GEN..CBU199708

main82121-3D810iRZN168..DLX..GEN199708

main82121-3D850iKZN165..DLX;KZN165..SA,TH200007-200203

main82121-3G050iRZN147..RHD..GEN199708-200506

main82121-3G060iRZN169..RHD..GEN199708-200108

main82121-3G520iRZN149..CO200009

main82121-3G530iKZN165..ARL199909-200008

main82121-3G590iKZN190200007-200203

main82121-3G650iKZN165..SR..ARL200009-200109

main82121-3M020iRZN154..GEN200108-200506

main82121-3M030iRZN169..LHD..GEN200108-200506

main82121-3M040iRZN169,194..RHD..(GEN,SA)200108-200506

main82121-3M050iRZN144,149..GCC200108

main82121-3M060iRZN169..GCC200108

main82121-3M100iKZN165..SR..ARL200109-200208

main82121-3M101iKZN165..SR..ARL200208-200502

main82121-3M160iKZN165..(DCB,SCB)..DLX200109-200504

main82121-3M170iKZN190200203-200504

main82121-3M380iVZN167,172..MTM..DLX200208-200502

main82121-3M390iVZN167..MTM..SR200208-200502

main82121-3M400iVZN167,172..ATM..DLX200208-200502

main82121-3M410iVZN167..ATM..SR200208-200502

main82121-3M540iKZN165..DLX200208-200502

82122WIRE, ENGINE, NO.2

main82122-04070iLN147,150..THDCB,THSCB,XTR;LN145,152,155..RHD..(DCB,SCB,THXTR)..(ARL,TH)200109-200407

main82122-04110iLN167..THSCB..CBU200109-200407

main82122-04120iLN172..THXTR..CBU200109-200407

W(AUTOMATIC DISCONNECTING DIFFERENTIAL)

main82122-04130iRZN147..THSCB200109-200208

main82122-04140iRZN149,154..THDCB,THSCB,THXTR200109-200407

main82122-04150iRZN169,174..(THDCB,THSCB,THXTR)..DLX200109-200208

main82122-04160iRZN174..THXTR;RZN169..THDCB..SR200109-200208

W(AUTOMATIC DISCONNECTING DIFFERENTIAL)

main82122-35500iLN141,145,146..LHD..(GCC,GEN)199708-200506

main82122-35510iLN145..RHD..GEN..CBU199708-200506

main82122-35530iLN166,171,191..LHD199708-200506

main82122-35550iLN166..MA199708-200506

main82122-35560iLN167,172..(DCB,THDCB,THXTR,XTR)..ARL..CBU199708-199908

W(A.D.D)

sub82122-35561

main82122-35561iLN167..DCB..SR200109-200208

main82122-35561iLN172..XTR..CBU199908-200502

W(A.D.D)

main82122-35600iRZN142,147..ARL,GCC,GEN199708-199908

sub82122-35601

main82122-35601iRZN147..RHD..SCB..GEN199908-200306

main82122-35610iRZN144,149,154199708-199908

sub82122-35611

main82122-35611iRZN154..XTR..ARL;RZN144,149,154..CBR;RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN)199908-200110

main82122-35620iRZN148..CBU199708-200009

COLOMBIA SPEC

main82122-35620iRZN148..IV3199909-200009

main82122-35621iRZN148..CBU199908-200009

main82122-35640iRZN168199908-200009

COLOMBIA SPEC

main82122-35640iRZN168,193199708-199908

main82122-35641iRZN168,193199908-200108

main82122-35660iRZN169..CBR199708-199908

sub82122-35661

main82122-35661iRZN169..CBR199908-200108

main82122-35680iRZN169,174..ARL199708-199908

sub82122-35681

main82122-35681iRZN168..DLX..GEN200306-200506

70A

main82122-35681iRZN169..GCC199908-200506

main82122-35690iRZN169,174..(DCB,THDCB,THXTR,XTR)..ARL199708-199908

W(A.D.D)

sub82122-35691

main82122-35691iRZN174..XTR199908-200208

W(A.D.D)

main82122-35780iRZN194..SADCB200002-200008

main82122-35820iKZN165..(DCB,SCB)..DLX200008-200502

main82122-35860iRZN149..SR..GEN;RZN147..LHD..GEN199708-199908

COLD SPEC

sub82122-35861

main82122-35861iRZN148..DLX..GEN..CBU200009

THAILAND PRODUCT

main82122-35861iRZN149..SR..GEN;RZN147..LHD..GEN199908-200009

COLD SPEC

main82122-35870iRZN169..LHD..GEN199708-199908

COLD SPEC

sub82122-35871

main82122-35871iRZN168..DCB..DLX..GEN199908-200009

COLD SPEC

main82122-35A00iRZN147..RHD..SCB..GEN200306-200506

main82122-3D020iKZN165..DCB..SR..ARL199909-200502

main82122-3D050iRZN168..DLX..GEN200108-200306

70A

main82122-3D080iRZN168..DCB..GEN200108-200304

COLD SPEC;70A

main82122-3D080iRZN168..DCB..GEN200108-200304

COLD SPEC

main82122-3D090iRZN148..CO200109-200506

70A

main82122-3D090iRZN144,149..CO,GCC200108-200506

main82122-3D100iRZN148..DLX..GEN..CBU200108-200306

70A

main82122-3D100iRZN148..CO200206-200306

main82122-3D110iRZN148..SR200108-200304

COLD SPEC

main82122-3D110iRZN148..DLX..GEN..CBU200009-200304

PLANT NO.P11

main82122-3D120iRZN147..SCB..ARL200109-200208

70A

main82122-3D140iVZN167,172200208-200502

82123WIRE, ENGINE, NO.3

main82123-35070iLN145,166..RHD..GEN..CBU199708-200108

82124WIRE, ENGINE, NO.4

main82124-04100iLN147,150..THDCB,THSCB,XTR;LN145,152,155..RHD..(DCB,SCB,THXTR)..(ARL,TH)200109-200407

main82124-04110iLN167..THDCB..SR;LN167..THSCB..CBU200109-200407

main82124-35060iLN152..XTR..DEFI..IV3;LN147,167,172..(DCB,SCB,XTR)..DLX..DEFI..ARL;LN141,145,146,147,152,16#,17#,191..DSL..(ARL,GCC,GEN)199708-200506

main82124-35080iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200506

W(1 BATTERY)

main82124-35100iLN166..RHD199708-200506

W(1 BATTERY)

main82124-35140iYN140199808-200010

main82124-35150iKZN165..THDCB,THSCB199909-200506

main82124-35180iKZN165,190..SA200007-200504

main82124-35200iLN140,145,167,192..SA199807-200504

82823SCAP, STARTER TERMINAL

main82823-35040iRZN169..DCB..SA;RZN149..EFI..GEN;RZN142,144,149,154,169..CBR;RZN147,174,19#..DCB,SCB,XTR;RZN154,169..(DCB,SCB,XTR)..MTM..DLX..(ARL,SA);RZN148,149,168..(DCB,SCB)..MT199708-200603

MARK 82823-35040

main82823-35040iRZN149,154..THDCB,THSCB,THXTR199909-200511

STARTER SIDE

main82823-35050iRZN148..DLX..CBU200009-200206

MARK 82823-35050

main82823-35050iRZN148..GEN..CBU;RZN168..DCB..GEN200108-200502

main82823-35060iLN140,145,167,192..DSL..SA199708-200603

main82823-35070iKDN166,190..ATM..TH..CBU200112-200503

8271530500BRACKET,WIRING HARNESS CLAMP

main82715-30500

8271535680BRACKET,WIRING HARNESS CLAMP

main82715-35680

8271535880BRACKET,WIRING HARNESS CLAMP

main82715-35880

827153D010BRACKET,WIRING HARNESS CLAMP

main82715-3D010

827153D060BRACKET,WIRING HARNESS CLAMP

main82715-3D060

827153D220BRACKET,WIRING HARNESS CLAMP

main82715-3D220

8271589101BRACKET,WIRING HARNESS CLAMP

main82715-89101

8271589113BRACKET,WIRING HARNESS CLAMP

main82715-89113

8761635010CLAMP, COOLING UNIT CASE

main87616-35010

9011906915

main90119-06915

9011908671

main90119-08671

9017906178

main90179-06178

9017908053

main90179-08053

91611B0614

main91611-B0614

9162140814

main91621-40814

9165140610

main91651-40610

21 parts on this diagram · 26 diagrams in section
