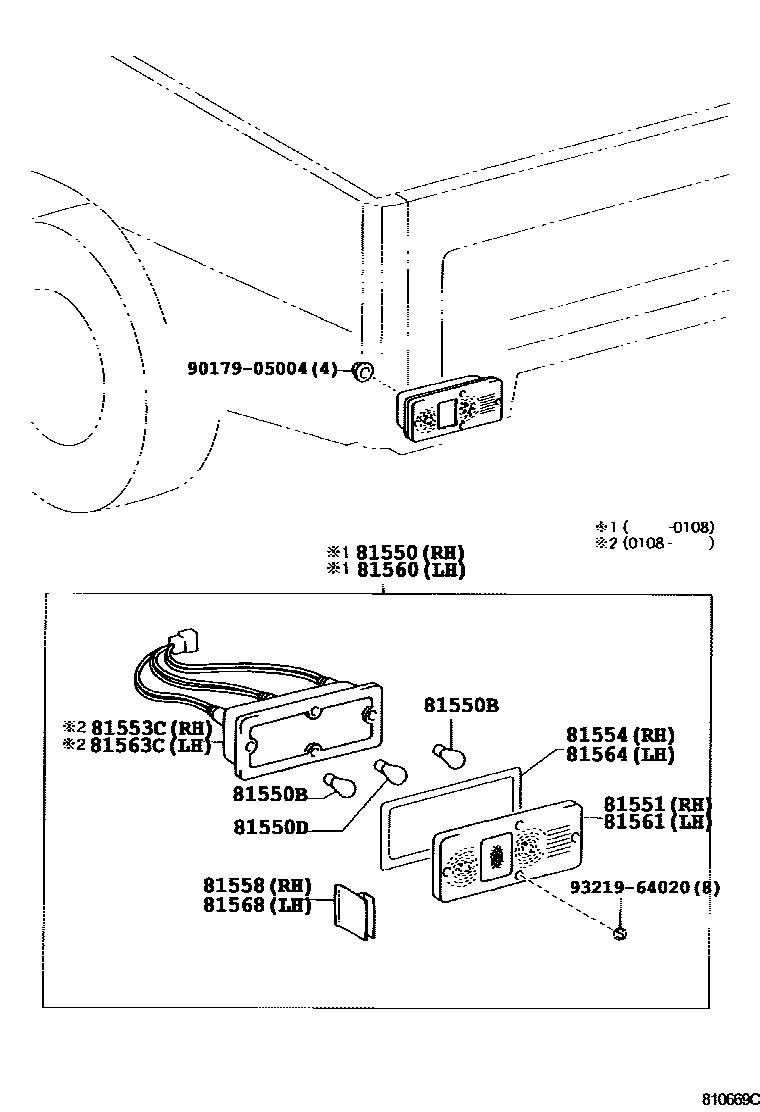

REAR COMBINATION LAMP

0001 1(0108- )THAILAND PRODUCT 0003 1PLANT NO.P11 0004 1 0005 1THAILAND PRODUCT 0007 1PLANT NO.P11 0008 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-04040iLN147,RZN147,149,154..(THDCB,THSCB,THXTR)..CBU200009-200109

main81550-35061iKZN165..(DCB,SCB)..IV3;LN147,167,172,RZN149,VZN167..IV3199708-200506

main81550-35130iRZN154..GEN199708-200108

MALTA SPEC

main81550-35130iLN145..DCB..IV3199708-200108

NEW ZEALAND SPEC

main81550-35130iRZN148,149..DLX..EFI..GEN..CBU;LN141,145,146,RZN142,144,147,149..(CBR,DSL)..(GCC,GEN)..CBU199708

main81550-35140iLN145..LHD..GEN..CBU199708-200108

ALGERIA SPEC

main81550-35140iRZN148..DLX..GEN..CBU199708-200009

CHINA SPEC

main81550-35140iLN147,RZN147,149,154..(THDCB,THSCB,THXTR)..CBU199708-200203

main81550-35150iRZN169..CBR;RZN169..DCB..SA;LN167..SCB..DEFI..CBU;LN167..DCB..DLX..DEFI..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA)..CBU;KZN165,LN167,RZN194..(DCB,SADCB,SCB)..(DSL,EFI,TD199708

TYPE B

main81550-35150iLN167,172,RZN169,174..(THDCB,THSCB,THXTR)..CBU199708-199908

main81550-89152iLN152..IV3199708-199810

NEW ZEALAND SPEC

main81550-89152iLN145,RZN148..GEN..IV3199708

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11059iLN167..SR..ARL;KDN145,150,151,16#,190,KZN165,LN145,147,166,RZN148,149,16#,VZN167..(DCB,THDCB,XTR)..SR..(ARL,CO,GCC,GEN,TH)..CBU200108-200511

12V 16W

main90981-15009iLN147,167,172,RZN147,149,154,169,174..(THDCB,THSCB,THXTR)..CBU199708-200203

12V 21W,AMBER,TURN SIGNAL

main90981-15009iKDN155,LN155200108-200511

12V 21W,AMBER

main99132-11210iKZN165..SCB..DLX..CBU;LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..ARL..CBU;KZN165,LN172,RZN174..(DCB,XTR)..(DEFI,EFI,TDE)..ARL..CBU199708-200506

12V 21W

main99132-11210iLN167,172,RZN169,174..(THDCB,THSCB,THXTR)..CBU199708-200203

12V 21W,BACK

main99132-11230iLN145..DCB..IV3;LN145..LHD..IV3199708-200511

12V 23W

main99132-21210iLN147,152,157,167,172,192..(DCB,SCB,XTR)..(ARL,TH)..CBU199708-200203

12V 21/5W

81550DBULB(FOR REAR COMBINATION LAMP)

main99132-11210iLN167..TH..CBU;LN147,152,157,192..(DCB,SCB,XTR)..(ARL,TH)..CBU199708-200511

12V 21W

main99132-21210iKZN165,LN147,152,167,172,RZN147,149,169..DLX..(DEFI,EFI,TDE)..IV3199708-200511

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iRZN148,168..CO..IV3199708-200506

main81551-25060iLN147,167,172,RZN149..MTM..IV3199708-199810

NEW ZEALAND SPEC

main81551-35061iLN145..LHD..IV3200108-200506

TURKEY SPEC

main81551-35061iRZN147,169..IV3;KZN165..THSCB..IV3199708-200502

main81551-35130iRZN154..GEN199708-200108

NEW ZEALAND SPEC

main81551-35130iRZN154..GEN199708-200108

MALTA SPEC

main81551-35130iLN141,146,RZN14#..(CO,GCC)..CBU200108-200506

TYPE B:REFER TO ILLUSTRATION

main81551-35130iRZN148,149..DLX..EFI..GEN..CBU;LN141,145,146,RZN142,144,147,149..(CBR,DSL)..(GCC,GEN)..CBU199708

main81551-35140iLN145..LHD..GEN..CBU199708-200506

ALGERIA SPEC

main81551-35140iLN147,RZN147,149,154..(THDCB,THSCB,THXTR)..CBU199708-200203

main81551-35140iRZN147..LHD..GEN199708-200304

CHINA SPEC

main81551-35140iRZN147..SCB..ARL..CBU200109-200502

TYPE B:REFER TO ILLUSTRATION

main81551-35150iLN166,171,191,RZN16#,193..DLX..GEN200108-200506

TYPE B:REFER TO ILLUSTRATION

main81551-35150iRZN169..CBR;RZN169..DCB..SA;LN167..SCB..DEFI..CBU;LN167..DCB..DLX..DEFI..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA)..CBU;KZN165,LN167,RZN194..(DCB,SADCB,SCB)..(DSL,EFI,TD199708-199908

main81551-35280iRZN148..SR200108-200506

TYPE A:REFER TO ILLUSTRATION

main81551-35290iVZN167..SR200208-200502

main81551-35290iLN166,RZN16#..SR..GEN200108-200506

TYPE A:REFER TO ILLUSTRATION

81553CBODY, REAR COMBINATION LAMP, RH

main81553-35061iRZN147,169..IV3;KZN165..THSCB..IV3200109-200502

main81553-35061iLN145..LHD..IV3200108-200506

TURKEY SPEC

main81553-35250iKDN165,190,LN166..MA200108-200506

TYPE B:REFER TO ILLUSTRATION

main81553-35280iVZN167..SR200208-200502

main81553-35280iLN166,RZN148,16#..SR..GEN200108-200506

TYPE A:REFER TO ILLUSTRATION

main81553-89152iLN145..LHD..IV3199708-200506

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-25060iRZN148,168..CO..IV3199708-200506

main81552-25060iLN147,167,172,RZN149..MTM..IV3199708-199810

NEW ZEALAND SPEC

main81552-26040iLN152..THXTR..DSL199708-200502

main81552-26040iLN145..LHD..IV3200108-200506

TURKEY SPEC

main81554-35130iLN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU199708-200506

main81554-35130iLN145..DCB..IV3199708-200108

MALTA SPEC

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060iRZN148,168..CO..IV3199708-200506

main81557-25060iLN152..IV3199708-199810

NEW ZEALAND SPEC

main81557-26040iLN152..THXTR..DSL199708-200502

main81557-26040iLN145..LHD..IV3200108-200506

TURKEY SPEC

main81557-35130iRZN168..DLX..CO..CBU;LN141,146,166,RZN14#,169..(CO,GCC)..CBU200108-200506

TYPE B:REFER TO ILLUSTRATION

main81557-35130iLN147,167,172,RZN147,149,154,169,174..(THDCB,THSCB,THXTR)..CBU199708-199908

main81557-35130iLN145..DCB..IV3199708-200108

MALTA SPEC

main81557-35280iKZN165,LN147,RZN149..DCB..SR..ARL200108-200506

TYPE A:REFER TO ILLUSTRATION

main81557-35280iVZN167..SR200208-200502

81560LAMP ASSY, REAR COMBINATION, LH

main81560-04040iLN147,RZN147,149,154..(THDCB,THSCB,THXTR)..CBU200009-200109

main81560-35061iLN152..THXTR..DSL199708-200502

main81560-35061iLN145..LHD..IV3200108-200506

TURKEY SPEC

main81560-35130iRZN154..GEN199708-200108

MALTA SPEC

main81560-35130iRZN154..MTM..ARL;LN147,RZN149..DCB..ARL199708-200108

NEW ZEALAND SPEC

main81560-35130iRZN148,149..DLX..EFI..GEN..CBU;LN141,145,146,RZN142,144,147,149..(CBR,DSL)..(GCC,GEN)..CBU199708

main81560-35140iLN147,RZN147,149,154..(THDCB,THSCB,THXTR)..CBU199708-200203

main81560-35140iRZN148..DLX..GEN..CBU199708-200009

CHINA SPEC

main81560-35140iLN145..LHD..GEN..CBU199708-200108

ALGERIA SPEC

main81560-35150iLN167,172,RZN169,174..(THDCB,THSCB,THXTR)..CBU199708-199908

main81560-35150iRZN169..CBR;RZN169..DCB..SA;LN167..SCB..DEFI..CBU;LN167..DCB..DLX..DEFI..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA)..CBU;KZN165,LN167,RZN194..(DCB,SADCB,SCB)..(DSL,EFI,TD199708

TYPE B

main81560-89152iLN152..IV3199708-199810

NEW ZEALAND SPEC

main81560-89152iLN145,RZN148..GEN..IV3199708

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iLN145..LHD..IV3199708-200506

main81561-25040iLN152..IV3199708-199810

NEW ZEALAND SPEC

main81561-35061iLN152..XTR..IV3;LN152..THXTR..DEFI;KZN165,LN147,167,172,RZN147,149,169..IV3199708-200502

main81561-35061iLN145..LHD..IV3200108-200506

TURKEY SPEC

main81561-35130iRZN154..MTM..ARL;LN147,RZN149..DCB..ARL199708-200108

NEW ZEALAND SPEC

main81561-35130iRZN154..GEN199708-200108

MALTA SPEC

main81561-35130iRZN147..LHD..SCB;RZN149..EFI..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,RZN142,144,149..LHD..(CBR,DSL)..(GCC,GEN)..CBU199708-200506

TYPE B:REFER TO ILLUSTRATION

main81561-35140iLN147,RZN147,149,154..(THDCB,THSCB,THXTR)..CBU199708-200203

main81561-35140iRZN149..SR..GEN199708-200304

CHINA SPEC

main81561-35140iLN145..LHD..GEN..CBU199708-200506

ALGERIA SPEC

main81561-35140iLN147,152,RZN149,154..(DCB,SCB,XTR)..DLX..ARL..CBU200109-200502

TYPE B:REFER TO ILLUSTRATION

main81561-35150iRZN169..(DCB,SCB)..DLX..ARL..CBU;LN167,RZN174..(SCB,XTR)..ARL..CBU200108-200506

TYPE B:REFER TO ILLUSTRATION

main81561-35150iLN167,172,RZN169,174..(THDCB,THSCB,THXTR)..CBU199708-199908

main81561-35240iRZN149..DCB..SR..GCC200108-200506

TYPE A:REFER TO ILLUSTRATION

main81561-35250iLN167,RZN169..DCB..SR..ARL200108-200506

TYPE A:REFER TO ILLUSTRATION

main81561-35250iVZN167..SR200208-200502

81563CBODY, REAR COMBINATION LAMP, LH

main81563-35061iKZN165..(DCB,SCB)..IV3;LN147,167,172,RZN149,VZN167..IV3200109-200502

main81563-35061iLN145..LHD..IV3200108-200506

TURKEY SPEC

main81563-35210iKDN165,190,LN166..MA200108-200506

TYPE B:REFER TO ILLUSTRATION

main81563-35240iLN166,RZN148,16#..SR..GEN200108-200506

TYPE A:REFER TO ILLUSTRATION

main81563-35240iVZN167..SR200208-200502

main81563-89152iLN145,RZN148..GEN..IV3199708-200506

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-35130iLN167..DCB..SR..ARL;RZN169..(DCB,SCB)..ARL..CBU;LN167,RZN147,174..(SCB,XTR)..ARL..CBU199708-200506

main81554-35130iLN145..DCB..IV3199708-200108

MALTA SPEC

main81562-25040iLN147,167,172,RZN149..MTM..IV3199708-199810

NEW ZEALAND SPEC

main81562-25040iLN145,RZN148..GEN..IV3199708-200506

main81562-26040iLN152..THXTR..DSL199708-200502

main81562-26040iLN145..LHD..IV3200108-200506

TURKEY SPEC

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060iLN152..IV3199708-199810

NEW ZEALAND SPEC

main81557-25060iLN145,RZN148..GEN..IV3199708-200506

main81557-26040iRZN147,169..IV3;KZN165..THSCB..IV3199708-200502

main81557-26040iLN145..LHD..IV3200108-200506

TURKEY SPEC

main81567-35130iRZN169..DCB..SA;LN167..SCB..DEFI..CBU;LN167..DCB..DLX..DEFI..ARL;RZN154,194..RHD..(DCB,SADCB,SCB,XTR);RZN169..(DCB,SCB)..DLX..(ARL,SA)..CBU;RZN149..(DCB,SCB)..DLX..199708-199908

main81567-35130iLN147,167..DCB..DLX..ARL;KZN165,LN152,172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..DLX..ARL..CBU200108-200506

TYPE B:REFER TO ILLUSTRATION

main81567-35130iLN145..DCB..IV3199708-200108

MALTA SPEC

main81567-35240iKZN165,LN147,RZN149..DCB..SR..ARL200108-200506

TYPE A:REFER TO ILLUSTRATION

main81567-35240iVZN167..SR200208-200502

9017905004

main90179-05004

9321964020

main93219-64020

14 parts on this diagram · 6 diagrams in section
