E
EPC Data

SEAT BELT

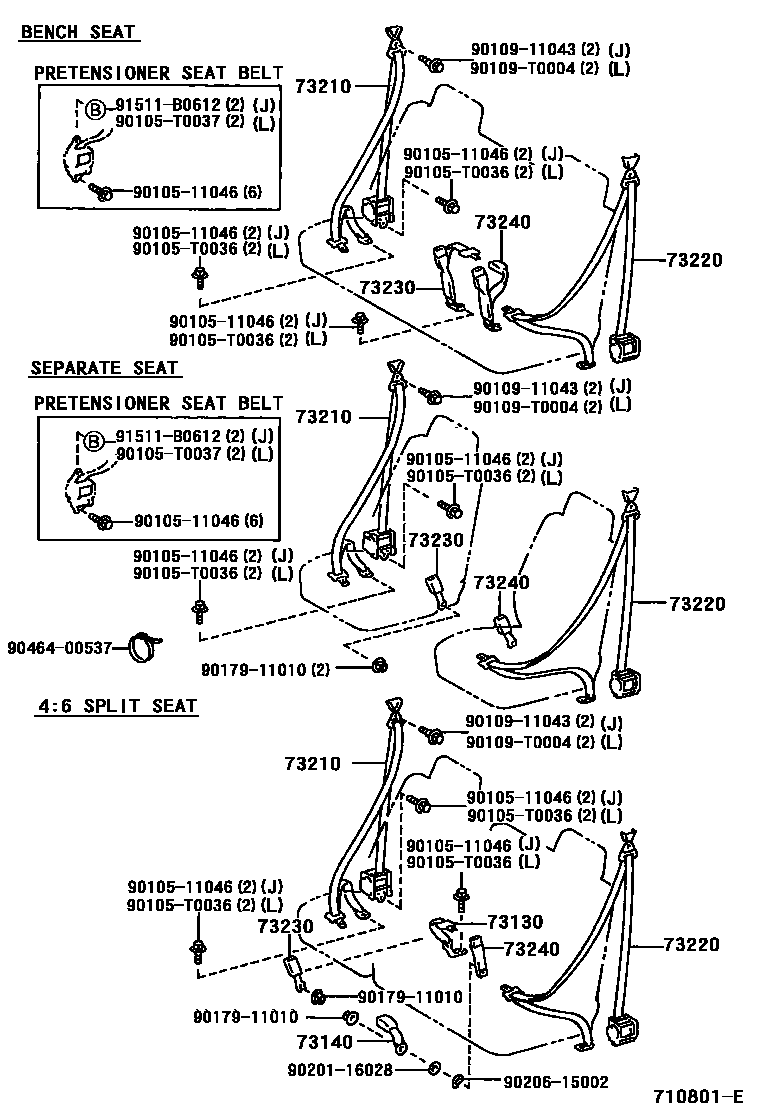

Parts diagram
73130BELT ASSY, FRONT SEAT LAP TYPE, RH
main73130-04030-B0i199909-200502
BLUISH GRAY,TRIM1#
main73130-35020-B0i199708-200502
BLUISH GRAY,TRIM1#
73140BELT ASSY, FRONT SEAT LAP TYPE, LH
main73140-04010-B0i199909-200502
BLUISH GRAY,TRIM1#
main73140-35010-B0i199708-200502
BLUISH GRAY,TRIM1#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-04090-B0i199909-200502
BLUISH GRAY,TRIM1#
main73210-04100-B0i199909-200109
BLUISH GRAY,TRIM1#
main73210-04101-B0i200109-200111
BLUISH GRAY,TRIM1#
sub73210-04102
main73210-04102-B0i200111-200502
BLUISH GRAY,TRIM1#
main73210-04150-B0i200109-200502
BLUISH GRAY,TRIM1#
main73210-35380-B0i199708-199903
W(*80),BLUISH GRAY,TRIM1#
sub73210-35610
main73210-35380-K0i199708-199903
W(*80),TAUPE,TRIM3#
sub73210-35610
main73210-35390-B0i199708-200104
W(*80 & AUTOMATIC ROCKING RETRACTOR),BLUISH GRAY,TRIM1#
sub73210-35390
main73210-35390-K0i199708-200104
W(*80 & AUTOMATIC ROCKING RETRACTOR),TAUPE,TRIM3#
sub73210-35390
main73210-35400-B0i199708-200011
TURKEY SPEC,BLUISH GRAY,TRIM1#
main73210-35400-B0i199807-200103
BLUISH GRAY,TRIM1#
main73210-35410-B0i199708-200104
BLUISH GRAY,TRIM1#
sub73210-35410
main73210-35410-K0i199708-200104
TAUPE,TRIM3#
sub73210-35410
main73210-35430-B0i199806-199903
BLUISH GRAY,TRIM1#
sub73210-35620
main73210-35440-B0i199708-200104
W(AUTOMATIC LOCKING RETRACTOR),BLUISH GRAY,TRIM1#
sub73210-35440
main73210-35440-K0i199708-200104
W(AUTOMATIC LOCKING RETRACTOR),TAUPE,TRIM3#
sub73210-35440
main73210-35460-B0i199708-200203
W(*80),BLUISH GRAY,TRIM1#
main73210-35460-B0i200012-200201
BLUISH GRAY,TRIM1#
main73210-35460-K0i199708-200104
W(*80),TAUPE,TRIM3#
main73210-35470-B0i199708-200011
TURKEY SPEC,BLUISH GRAY,TRIM1#
main73210-35470-B0i199708-200107
BLUISH GRAY,TRIM1#
main73210-35480-B0i199708-200107
BLUISH GRAY,TRIM1#
main73210-35480-K0i199708-200104
TAUPE,TRIM3#
main73210-35510-B0i199708-200104
BLUISH GRAY,TRIM1#
main73210-35520-B0i199711-200103
BLUISH GRAY,TRIM1#
main73210-35540-B0i199708-200102
BLUISH GRAY,TRIM1#
main73210-35550-B0i199708-199908
W(*80),BLUISH GRAY,TRIM1#
sub73210-35630
main73210-35560-B0i199711-200102
BLUISH GRAY,TRIM1#
main73210-35570-B0i199711-199908
W(*80),BLUISH GRAY,TRIM1#
sub73210-35640
main73210-35610-B0i199903-200104
W(*80),BLUISH GRAY,TRIM1#
sub73210-35610
main73210-35610-K0i199903-200104
W(*80),TAUPE,TRIM3#
sub73210-35610
main73210-35620-B0i199903-200104
BLUISH GRAY,TRIM1#
main73210-35630-B0i199908-200104
W(*80),BLUISH GRAY,TRIM1#
main73210-35640-B0i199908-200104
W(*80),BLUISH GRAY,TRIM1#
main73210-35650-B0i200103-200504
BLUISH GRAY,TRIM1#
main73210-35650-B0i200108-200506
TURKEY SPEC,BLUISH GRAY,TRIM1#
main73210-35660-B0i200104-200508
BLUISH GRAY,TRIM1#
sub73210-35660
main73210-35660-C0i200108-200508
BLACK,TRIM3#
sub73210-35660
main73210-35660-K0i200104-200108
TAUPE,TRIM3#
sub73210-35660
main73210-35670-B0i200104-200508
W(AUTOMATIC LOCKING RETRACTOR),BLUISH GRAY,TRIM1#
sub73210-35670
main73210-35670-C0i200108-200508
W(AUTOMATIC LOCKING RETRACTOR),BLACK,TRIM3#
sub73210-35670
main73210-35670-K0i200104-200108
W(AUTOMATIC LOCKING RETRACTOR),TAUPE,TRIM3#
sub73210-35670
main73210-35680-B0i200103-200508
W(*80),BLUISH GRAY,TRIM1#
sub73210-35680
main73210-35680-C0i200108-200508
W(*80),BLACK,TRIM3#
sub73210-35680
main73210-35680-K0i200104-200108
W(*80),TAUPE,TRIM3#
sub73210-35680
main73210-35690-B0i200104-200508
W(*80 & AUTOMATIC ROCKING RETRACTOR),BLUISH GRAY,TRIM1#
sub73210-35690
main73210-35690-C0i200108-200508
W(*80 & AUTOMATIC ROCKING RETRACTOR),BLACK,TRIM3#
sub73210-35690
main73210-35690-K0i200104-200108
W(*80 & AUTOMATIC ROCKING RETRACTOR),TAUPE,TRIM3#
sub73210-35690
main73210-35700-B0i200102-200502
BLUISH GRAY,TRIM1#
main73210-35710-B0i200102-200502
W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE),BLUISH GRAY,TRIM1#
main73210-35720-B0i200103-200603
BLUISH GRAY,TRIM1#
main73210-35740-B0i200104-200109
BLUISH GRAY,TRIM1#
main73210-35750-B0i200102-200109
BLUISH GRAY,TRIM1#
main73210-35751-B0i200109-200502
BLUISH GRAY,TRIM1#
main73210-35760-B0i200102-200502
W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE),BLUISH GRAY,TRIM1#
main73210-35770-B0i200103-200109
BLUISH GRAY,TRIM1#
sub73210-35771
main73210-35771-B0i200109-200506
BLUISH GRAY,TRIM1#
main73210-35781-B0i200107-200508
W(*80),BLUISH GRAY,TRIM1#
main73210-35781-C0i200107-200508
W(*80),BLACK,TRIM3#
main73210-35790-B0i200108-200506
TURKEY SPEC,BLUISH GRAY,TRIM1#
main73210-35790-B0i200107-200504
BLUISH GRAY,TRIM1#
main73210-35790-B0i200208-200506
PHILIPPINES SPEC,BLUISH GRAY,TRIM1#
main73210-35800-B0i200107-200603
BLUISH GRAY,TRIM1#
main73210-35800-C0i200108-200508
BLACK,TRIM3#
main73210-35800-K0i200107-200108
TAUPE,TRIM3#
main73210-35850i200201-200203
main73210-35850-B0i200201-200504
MD.MOON MIST,TRIM1#
main73210-35850-B0i200201-200504
W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE),MD.MOON MIST,TRIM1#
main73210-35850-E0i200201-200402
W(*80),OAK,TRIM4#
main73210-35850-E0i200208-200402
OAK,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-04100-B0i200104-200109
BLUISH GRAY,TRIM10
main73220-04101-B0i200109-200111
BLUISH GRAY,TRIM1#
sub73220-04102
main73220-04102-B0i200111-200502
BLUISH GRAY,TRIM1#
main73220-04110-B0i200109-200502
BLUISH GRAY,TRIM1#
main73220-04110-B0i199909-200109
BLUISH GRAY,TRIM10
main73220-04110-B0i200110-200402
SINGAPORE SPEC,BLUISH GRAY,TRIM1#
main73220-04160-B0i200109-200502
BLUISH GRAY,TRIM1#
main73220-35290-B0i199708-199903
PRETENSIONER SEAT BELT,BLUISH GRAY,TRIM1#
sub73220-35510
main73220-35290-K0i199708-199903
PRETENSIONER SEAT BELT,TAUPE,TRIM3#
sub73220-35510
main73220-35300-B0i199708-200011
TURKEY SPEC,BLUISH GRAY,TRIM1#
main73220-35300-B0i199807-200103
BLUISH GRAY,TRIM1#
main73220-35310-B0i199708-200104
BLUISH GRAY,TRIM1#
sub73220-33310
main73220-35310-K0i199708-200104
TAUPE,TRIM3#
sub73220-33310
main73220-35330-B0i199806-199903
BLUISH GRAY,TRIM1#
sub73220-35520
main73220-35360-B0i199708-200203
W(*80),BLUISH GRAY,TRIM1#
main73220-35360-B0i200012-200201
BLUISH GRAY,TRIM1#
main73220-35360-K0i199708-200104
W(*80),TAUPE,TRIM3#
main73220-35370-B0i199708-200011
TURKEY SPEC,BLUISH GRAY,TRIM1#
main73220-35370-B0i199708-200107
BLUISH GRAY,TRIM1#
main73220-35380-B0i199708-200107
BLUISH GRAY,TRIM1#
main73220-35380-K0i199708-200107
TAUPE,TRIM3#
main73220-35390-B0i199708-200102
BLUISH GRAY,TRIM1#
main73220-35410-B0i199708-200104
BLUISH GRAY,TRIM1#
main73220-35420-B0i199711-200103
BLUISH GRAY,TRIM1#
main73220-35440-B0i199708-199908
W(*80),BLUISH GRAY,TRIM1#
sub73220-35500
main73220-35450-B0i199711-200102
BLUISH GRAY,TRIM1#
main73220-35460-B0i199711-199908
W(*80),BLUISH GRAY,TRIM1#
sub73220-35530
main73220-35500-B0i199908-200104
W(*80),BLUISH GRAY,TRIM1#
main73220-35510-B0i199903-200104
W(*80),BLUISH GRAY,TRIM1#
sub73220-35510
main73220-35510-K0i199903-200104
W(*80),TAUPE,TRIM3#
sub73220-35510
main73220-35520-B0i199903-200104
BLUISH GRAY,TRIM1#
main73220-35530-B0i199908-200104
W(*80),BLUISH GRAY,TRIM1#
main73220-35540-B0i200103-200504
BLUISH GRAY,TRIM1#
main73220-35540-B0i200108-200506
TURKEY SPEC,BLUISH GRAY,TRIM1#
main73220-35550-B0i200104-200508
BLUISH GRAY,TRIM1#
sub73220-35550
main73220-35550-C0i200108-200508
BLACK,TRIM3#
sub73220-35550
main73220-35550-K0i200104-200108
TAUPE,TRIM3#
sub73220-35550
main73220-35560-B0i200103-200508
W(*80),BLUISH GRAY,TRIM1#
sub73220-35560
main73220-35560-C0i200108-200508
W(*80),BLACK,TRIM3#
sub73220-35560
main73220-35560-K0i200104-200108
W(*80),TAUPE,TRIM3#
sub73220-35560
main73220-35570-B0i200102-200502
BLUISH GRAY,TRIM1#
main73220-35580-B0i200102-200502
W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE),BLUISH GRAY,TRIM1#
main73220-35590-B0i200103-200511
BLUISH GRAY,TRIM1#
main73220-35610-B0i200104-200109
BLUISH GRAY,TRIM1#
main73220-35620-B0i200102-200109
BLUISH GRAY,TRIM1#
main73220-35621-B0i200109-200502
BLUISH GRAY,TRIM1#
main73220-35630-B0i200104-200108
BLUISH GRAY,TRIM1#
main73220-35630-B0i200102-200502
W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE),BLUISH GRAY,TRIM1#
main73220-35640-B0i200103-200109
BLUISH GRAY,TRIM1#
sub73220-35641
main73220-35641-B0i200109-200506
BLUISH GRAY,TRIM1#
main73220-35651-B0i200107-200508
W(*80),BLUISH GRAY,TRIM1#
main73220-35651-C0i200107-200508
W(*80),BLACK,TRIM3#
main73220-35660-B0i200108-200506
TURKEY SPEC,BLUISH GRAY,TRIM1#
main73220-35660-B0i200107-200504
BLUISH GRAY,TRIM1#
main73220-35660-B0i200208-200506
PHILIPPINES SPEC,BLUISH GRAY,TRIM1#
main73220-35670-B0i200107-200511
BLUISH GRAY,TRIM1#
main73220-35670-C0i200108-200508
BLACK,TRIM3#
main73220-35670-K0i200107-200108
TAUPE,TRIM3#
main73220-35720i200201-200203
main73220-35720-B0i200201-200504
MD.MOON MIST,TRIM1#
main73220-35720-B0i200201-200502
W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE),MD.MOON MIST,TRIM1#
main73220-35720-E0i200201-200402
OAK,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-04080-B0i199909-200502
MD.MOON MIST,TRIM1#
main73230-04080-B0i199909-200109
MD.MOON MIST,TRIM1#,THAILAND PRODUCT
main73230-04090-B0i199909-200502
W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#
main73230-04140-B0i200310-200502
W(SEPARATE SEAT),MD.MOON MIST,TRIM1#
main73230-16410-B1i199708-200511
W(SEPARATE SEAT),MD.MOON MIST,TRIM1#
sub73230-16410
main73230-16410-B1i200108-200502
W(SEPARATE SEAT & *80),MD.MOON MIST,TRIM1#
sub73230-16410
main73230-16410-B1i199805-200108
W(SEPARATE SEAT),MD.MOON MIST,TRIM1#,3#
sub73230-16410
main73230-16410-D0i200108-200508
W(SEPARATE SEAT),RED,TRIM3#
sub73230-16410
main73230-35610-B0i199708-200506
W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#
main73230-35620-B0i199708-200107
W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#
main73230-35630-B0i199708-200001
W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#
sub73230-35631
main73230-35630-K0i199708-200001
W(BENCH SEAT = THREE PERSONS),TAUPE,TRIM3#
sub73230-35631
main73230-35631-B0i200001-200511
W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#
sub73230-35631
main73230-35631-B0i200109-200503
BLUISH GRAY,TRIM1#
sub73230-35631
main73230-35631-C0i200108-200508
W(BENCH SEAT = THREE PERSONS),BLACK,TRIM3#
sub73230-35631
main73230-35631-K0i200001-200108
W(BENCH SEAT = THREE PERSONS),TAUPE,TRIM3#
sub73230-35631
main73230-35640-B0i199708-199911
W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#
sub73230-35641
main73230-35640-K0i199708-199911
W(BENCH SEAT = THREE PERSONS),TAUPE,TRIM3#
sub73230-35641
main73230-35641-B0i199911-200107
W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#
main73230-35641-K0i199911-200107
W(BENCH SEAT = THREE PERSONS),TAUPE,TRIM3#
main73230-35680-B0i199708-200109
W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#
main73230-35680-B0i200109-200502
BLUISH GRAY,TRIM1#
main73230-35700-B0i199708-200508
MD.MOON MIST,TRIM1#
sub73230-35700
main73230-35700-B0i199805-200203
MD.MOON MIST,TRIM10
sub73230-35700
main73230-35700-B0i200109-200508
W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE),MD.MOON MIST,TRIM1#
sub73230-35700
main73230-35700-B0i199808-200109
W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE),MD.MOON MIST,TRIM10
sub73230-35700
main73230-35700-D0i200109-200508
W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE),RED,TRIM30
sub73230-35700
main73230-35700-D0i200108-200508
RED,TRIM3#
sub73230-35700
main73230-35710-B0i200012-200208
W(SEPARATE SEAT),MD.MOON MIST,TRIM1#
main73230-35710-E0i200110-200402
W(SEPARATE SEAT),SANDAL WOOD,TRIM4#
main73230-35720-B0i199806-200109
W(SEPARATE SEAT),MD.MOON MIST,TRIM1#
sub73230-35720
main73230-35750-B0i200107-200506
W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#
main73230-35750-B0i200108-200506
MD.MOON MIST,TRIM1#
main73230-35760-B0i200107-200511
W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#
main73230-35760-C0i200108-200508
W(BENCH SEAT = THREE PERSONS),BLACK,TRIM3#
main73230-35760-K0i200107-200108
W(BENCH SEAT = THREE PERSONS),TAUPE,TRIM3#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-04080-B0i199909-200109
MD.MOON MIST,TRIM1#,THAILAND PRODUCT
main73230-04080-B0i200109-200502
MD.MOON MIST,TRIM1#
main73230-04100-B0i199909-200502
W(4:6 SPRIT SEAT),MD.MOON MIST,TRIM1#
main73230-04140-B0i200310-200502
W(SEPARATE SEAT),MD.MOON MIST,TRIM1#
main73230-16410-B1i199902-200502
W(SEPARATE SEAT & *80),MD.MOON MIST,TRIM1#
sub73230-16410
main73230-16410-B1i199708-200511
W(SEPARATE SEAT),MD.MOON MIST,TRIM1#
sub73230-16410
main73230-16410-E2i200208-200402
SANDAL WOOD,TRIM4#
sub73230-16410
main73230-16410-E2i200110-200402
W(SEPARATE SEAT),SANDAL WOOD,TRIM4#
sub73230-16410
main73230-35690-B0i199708-200502
W(4:6 SPRIT SEAT),MD.MOON MIST,TRIM1#
main73230-35700-B0i199808-200502
W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE),MD.MOON MIST,TRIM1#
sub73230-35700
main73230-35700-B0i199708-200506
MD.MOON MIST,TRIM1#
sub73230-35700
main73230-35710-B0i199805-200508
W(SEPARATE SEAT),MD.MOON MIST,TRIM1#
main73230-35710-D0i200108-200508
W(SEPARATE SEAT),RED,TRIM3#
main73230-35720-B0i200208-200508
MD.MOON MIST,TRIM1#
sub73230-35720
main73230-35720-B0i199805-200508
W(SEPARATE SEAT),MD.MOON MIST,TRIM1#
sub73230-35720
main73230-35720-D0i200108-200508
W(SEPARATE SEAT),RED,TRIM3#
sub73230-35720
main73230-35720-D0i200208-200508
RED,TRIM3#
sub73230-35720
main73240-04110-B0i199909-200502
W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#
main73240-35270-B0i199708-200506
W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#
main73240-35280-B0i199708-200107
W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#
main73240-35400-B0i200109-200409
BLUISH GRAY,TRIM1#
sub73240-35400
main73240-35400-B0i199708-200508
W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#
sub73240-35400
main73240-35400-C0i200108-200508
W(BENCH SEAT = THREE PERSONS),BLACK,TRIM3#
sub73240-35400
main73240-35400-K0i199708-200108
W(BENCH SEAT = THREE PERSONS),TAUPE,TRIM3#
sub73240-35400
main73240-35410-B0i199708-200107
W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#
main73240-35410-K0i199708-200107
W(BENCH SEAT = THREE PERSONS),TAUPE,TRIM3#
main73240-35420-B0i199708-200511
W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#
main73240-35420-B0i200203-200504
BLUISH GRAY,TRIM1#
main73240-35430-B0i199708-200107
W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#
main73240-35440-B0i199708-200502
W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#
main73240-35450-B0i200107-200506
W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#
main73240-35450-B0i200108-200506
MD.MOON MIST,TRIM1#
main73240-35460-B0i200107-200508
W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#
main73240-35460-C0i200108-200508
W(BENCH SEAT = THREE PERSONS),BLACK,TRIM3#
main73240-35460-K0i200107-200108
W(BENCH SEAT = THREE PERSONS),TAUPE,TRIM3#
main73240-35470-B0i200108-200511
W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#
9010511046
main90105-11046
90105T0036
main90105-T0036
90105T0037
main90105-T0037
9010911043
main90109-11043
90109T0004
main90109-T0004
9017911010
main90179-11010
9020116028
main90201-16028
9020615002
main90206-15002
9046400537
main90464-00537
91511B0612
main91511-B0612

16 parts on this diagram · 3 diagrams in section

SEAT BELT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
