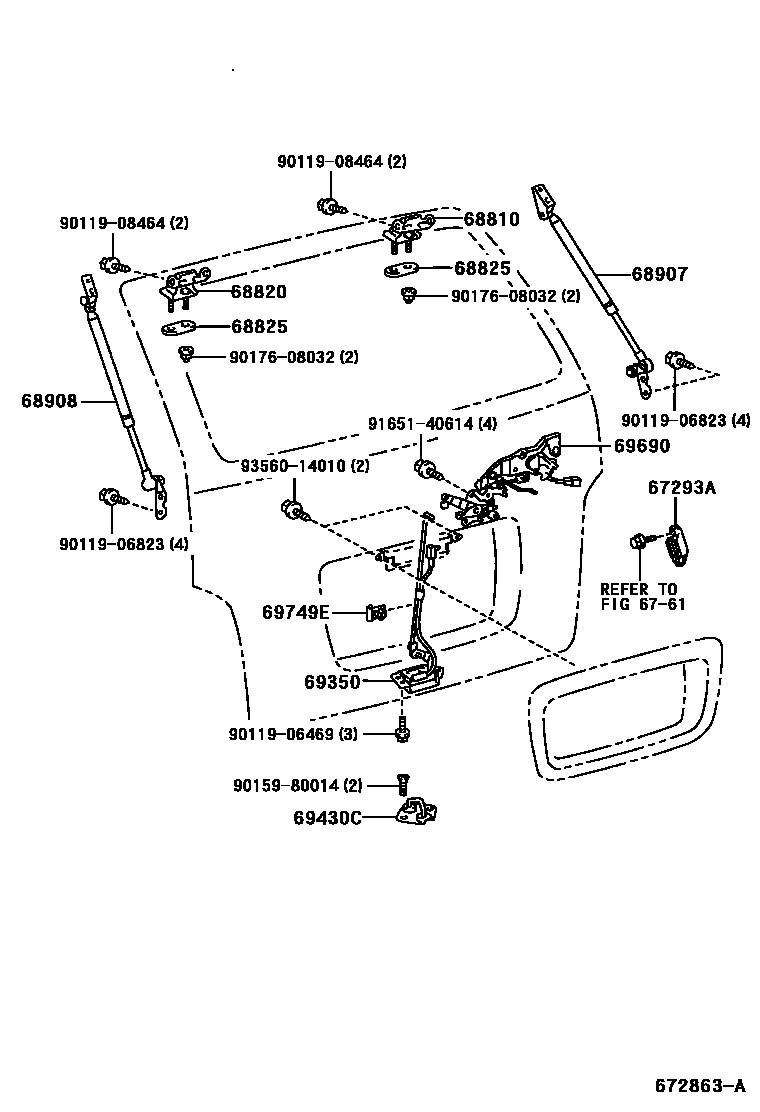

BACK DOOR LOCK & HINGE

67293ACUSHION, BACK DOOR STOPPER

main67293-D0010iKDN16#,190..SRWGN200208-200408

RH

main67294-D0010iKDN16#,190..SRWGN200208-200408

LH

6761

68810HINGE ASSY, BACK DOOR, UPPER

main68810-95J02iKDN16#,190..SRWGN200208-200408

68820HINGE ASSY, BACK DOOR, LOWER

main68820-95J02iKDN16#,190..SRWGN200208-200408

68825PLATE, BACK DOOR HINGE

main68825-95700×2iKDN16#,190..SRWGN200208-200408

68907STAY SUB-ASSY, BACK DOOR DAMPER, RH

mainC465001020iKDN16#,190..SRWGN200208-200408

68908STAY SUB-ASSY, BACK DOOR DAMPER, LH

mainC466001020iKDN16#,190..SRWGN200208-200408

69350LOCK ASSY, BACK DOOR

mainC477001010iKDN16#,190..SRWGN200208-200408

69430CSTRIKER ASSY, BACK DOOR LOCK

mainC470901010iKDN16#,190..SRWGN200208-200408

69690CONTROL ASSY, BACK DOOR REMOTE

mainC483001010iKDN16#,190..SRWGN200208-200408

69749ECLAMP, BACK DOOR LOCK LINK

main69749-30020iKDN16#,190..SRWGN200208-200408

9011906469

main90119-06469

9011906823

main90119-06823

9011908464

main90119-08464

9015980014

main90159-80014

9017608032

main90176-08032

9165140614

main91651-40614

9356014010

main93560-14010

18 parts on this diagram · 1 diagram in section
