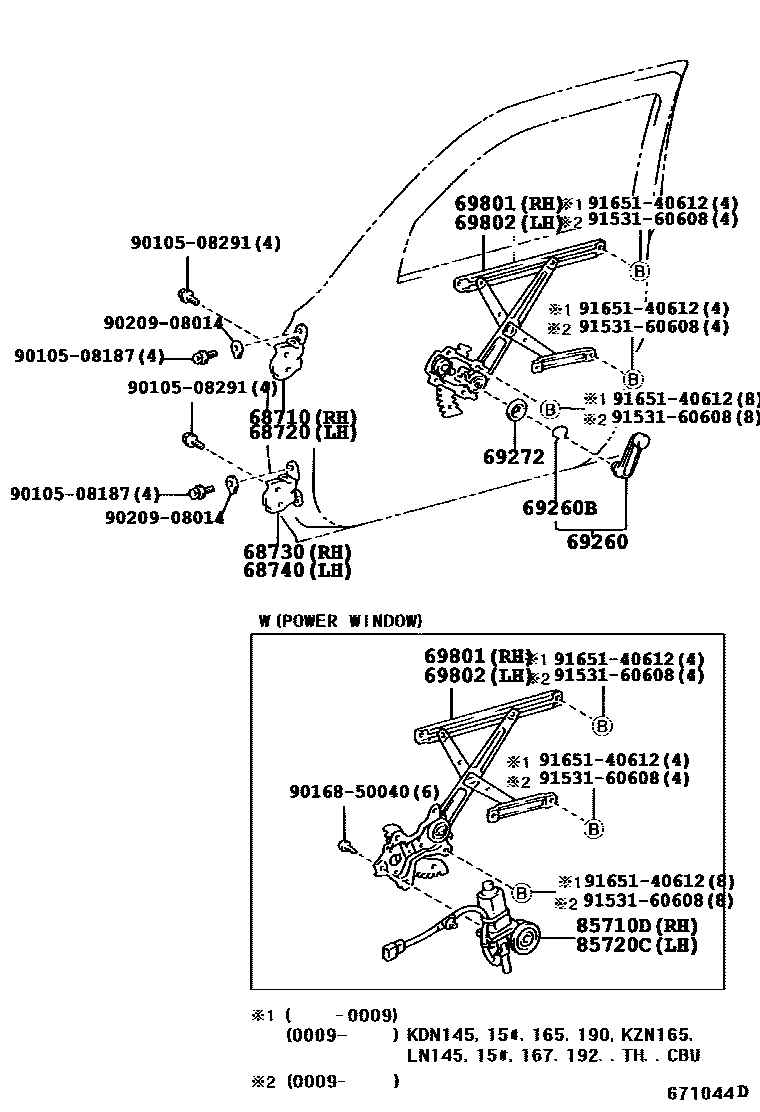

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1W(VENT WINDOW)

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-04010iKDN165,190,LN166..MA199708-200506

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-04010iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU199708-200506

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-04010iLN167..SR..ARL;KZN165..TH..CBU;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU199708-200506

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-04010iLN145..DCB..GEN;LN150,RZN194..SR;LN152..DEFI..IV3;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);LN167..DSL..(CBU,IV3);RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);K199708-200506

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-04030-B0iLN167..THDCB,THSCB;KZN165,LN152,167..TH..CBU;LN147,150,192,RZN147,149,169..(THDCB,THSCB,XTR)..(CBU,IV3);LN145,152,155,157,172,RZN154,174..(DCB,SCB,THXTR)..(ARL,TH).200007-200502

MD.MOON MIST,TRIM1#

sub69260-04030

main69260-04030-E0iKDN150200110-200408

SANDAL WOOD,TRIM4#

sub69260-04030

main69260-89104-B1iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU199708-200506

MD.MOON MIST,TRIM1#

sub69260-89104

main69260-89104-D0iLN141,146,166,RZN142,144,147,149,169..GCC199708-200108

RED,TRIM3#

sub69260-89104

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iLN147,167..IV3;LN152..ARL..CBU;RZN149..(SCB,THSCB)..ARL;KZN165,LN172,RZN154,VZN167,172..(SCB,THXTR,XTR)..ARL199708-200506

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-04020iLN167..THSCB..CBU;KZN165,RZN147,169,174..(THDCB,THSCB,THXTR)..DLX200109-200502

main69268-20020iKZN165..SA;KZN165..DLX;KZN190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN,SA)199708-200203

sub69285-22010

main69285-22010iRZN168..DLX..CO;LN141,146,166,RZN14#,169..CO,GCC200108-200506

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-35110iLN145,166..RHD..GEN;RZN147..RHD..SCB..GEN;RZN148,149,168..DLX..GEN199708-200506

main69801-35130iLN145..LHD..IV3;RZN169..CBR..GEN;RZN149,169..DLX..ARL;KZN165..DCB..DLX..CBU;LN166,RZN148..DLX..GEN..CBU;LN145,152..(DCB,THXTR,XTR)..IV3;KZN165,RZN154..(SCB,THXTR,XT199708-200506

W(VENT WINDOW)

main69801-35140iRZN169..SR..SA;RZN147..LHD..DCB;KZN190,LN146,171,19#,RZN19#..GCC,GEN,SA;LN145,166,RZN148,168..LHD..DCB..DLX..GEN;KZN165,RZN144,149..SR..(CBR,TDE)..(ARL,GCC,GEN,SA);199708-200506

W(POWER WINDOW)

main69801-35150iRZN144..SR;RZN147..DCB..GCC;LN146,RZN149..GCC199708-200108

W(VENT WINDOW & POWER WINDOW)

main69801-35150iKZN165,LN147,167,172,RZN149,VZN167..(DCB,SCB,XTR)..IV3200407

SPECIAL EDITION(AUSTRALIA)

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-35110iLN145,166..RHD..GEN;RZN147..RHD..SCB..GEN;RZN148,149,168..DLX..GEN199708-200506

main69802-35130iLN141,146,RZN142,144,147,149..GCC199708-200506

W(VENT WINDOW)

main69802-35140iKZN165,LN147,152,167,172,RZN149,154..DLX..ARL..CBU199708-200506

W(POWER WINDOW)

main69802-35150iRZN144..SR;RZN147..DCB..GCC;LN146,RZN149..GCC199708-200108

W(VENT WINDOW & POWER WINDOW)

main69802-35150iKZN165,LN147,167,172,RZN149,VZN167..(DCB,SCB,XTR)..IV3200407

SPECIAL EDITION(AUSTRALIA)

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35120iKZN165,LN147,167,172,RZN149,VZN167..(DCB,SCB,XTR)..IV3200407

SPECIAL EDITION(AUSTRALIA)

main85710-35120iRZN147..DCB..GCC;LN146,RZN149..GCC;RZN144,168..SR..(CO,GCC)199708-200506

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35090iRZN144,149..SR;RZN147..LHD..DCB;RZN149..DCB..DLX..(ARL,GCC);LN145,166,RZN169..LHD..DCB..GEN;LN146,147,167,171,191,RZN16#,193..(DCB,XTR)..(DSL,EFI)199708-200506

main85720-35090iKZN165,LN147,167,172,RZN149,VZN167..(DCB,SCB,XTR)..IV3200407

SPECIAL EDITION(AUSTRALIA)

9010508187

main90105-08187

9010508291

main90105-08291

9016850040

main90168-50040

9020908014

main90209-08014

9153160608

main91531-60608

9165140612

main91651-40612

17 parts on this diagram · 2 diagrams in section
