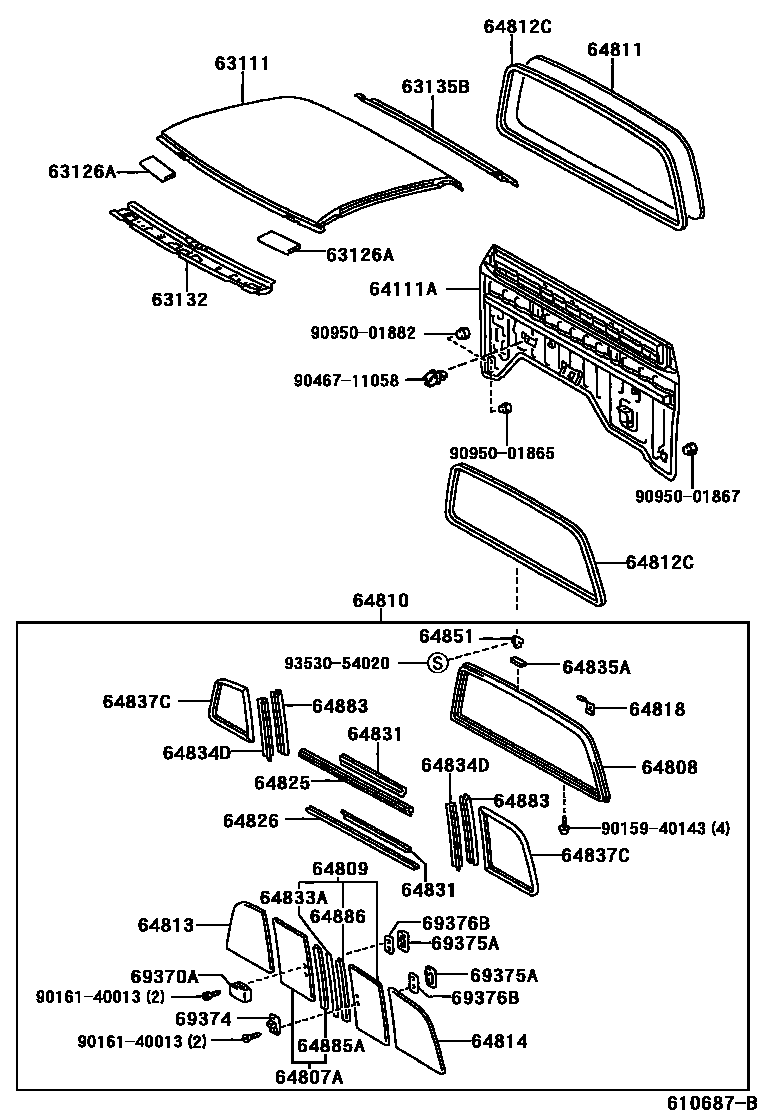

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1W(MOON ROOF) 0005 1

63111PANEL, ROOF

main63111-35150iKDN155,LN155199708-200506

main63111-35190iLN152..ARL..CBU;LN172,RZN154,VZN172..ARL199711-200506

main63111-35200iRZN174199711-200502

W(MOON ROOF)

main63111-35220iLN146,166,RZN147,148,149,16#..DCB..(CO,GCC)199708-200506

main63111-35240iKZN165..(DCB,THDCB)..SR..ARL;LN147,167,RZN149,169..(DCB,THDCB)..ARL199708-200502

W(MOON ROOF)

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-04030iKZN165..TH..CBU;LN167..THDCB..SR;LN167..THSCB..CBU;KZN165,RZN147,169,174..THDCB,THSCB,THXTR200109-200408

(L)

main63126-35030iKDN16#,190..SRWGN200108-200506

main63126-35030iRZN169..SR..SA;LN152..DEFI..IV3;RZN149,169..DLX..ARL;RZN169..DCB..CBR..GEN;RZN149..DCB..DLX..CBR;LN167,RZN147..SCB..(ARL,GCC);LN141,147,RZN142,154..DLX..(ARL,GCC);L199708-200112

(J)

63132PANEL, WINDSHIELD HEADER, INNER

main63132-35030iLN145..DCB..GEN;LN150,RZN194..SR;LN152..DEFI..IV3;RZN169..DLX..ARL;LN145..LHD..DLX..TH;LN167..DSL..(CBU,IV3);LN167,RZN169..(DEFI,EFI)..(SA,TH)..CBU;LN167,RZN149..DL199708-200506

63135BPANEL, BACK WINDOW, UPPER INNER

main63135-04040iRZN154..CBR;RZN154..ARL;KZN165,LN150,152,167,17#,192,RZN174..(THXTR,XTR)..(CBU,IV3)199711-200506

main63135-35070iKZN190..SCB..SR;LN140,145,167,192,RZN142,147,169,194..SCB..SA199708-200506

main63135-35090iKDN145,16#,190,LN145..DCB..TH199708-200506

64111APANEL, BACK

main64101-35050iRZN147,149,169..SCB..ARL199708-200502

W(REAR SEAT BELT)

main64101-35050iLN147..IV3;KZN190..SCB..SR;RZN147,149,169..THSCB;RZN169..SCB..(GCC,GEN,SA);LN145,RZN142,147..SCB..(GCC,SA);KDN155,KZN165,LN140,141,155,16#,192,RZN144,168,VZN167..(S199708

main64101-35060iLN141,RZN142,144,147..SCB..DLX..GCC199708-200502

W(TRIM)

main64101-35080iLN152..IV3;LN172..XTR..DEFI;LN172,RZN154,174..THXTR199808-200109

main64101-35080iRZN154..CBR;RZN154..XTR..ARL;LN17#,RZN174..XTR..(DSL,EFI)199711-200506

W(REAR SEAT BELT)

main64101-35100iLN166..LHD..DCB..DSL..GEN199708

W(TRIM)

sub64101-35130

main64101-35120iLN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;RZN149..(DCB,THDCB)..DLX..EFI..(ARL,GEN);KZN165,LN146,166,191,RZN147,148,168,193..DCB..DLX..(ARL,GCC,GEN)..CBU;LN1199708-199808

main64101-35130iLN167..DCB..SA;KDN145,16#,190,KZN165,190,LN145,166,RZN148,149,16#,194..DCB..SR..(CO,GCC,GEN,SA,TH)200108

main64101-35130iKZN165,LN147,167,RZN149,169,VZN167..SR..ARL199909-200502

W(TRIM)

main64101-35130iLN147,167,RZN149,169..(DCB,THDCB)..(DSL,EFI)..ARL199708-200109

W(REAR SEAT BELT)

main64101-35150iLN145..LHD..IV3;RZN148,149..SCB..CO;LN145,RZN142,147,148..SCB..GEN..CBU199708

64807AGLASS SUB-ASSY, BACK WINDOW SLIDE, RH

main64807-35010iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU199708-200506

*TT,T=3.5,GREEN

64808CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS

main64808-35010iKZN165,190,RZN194..SR..SA;LN145,167,192,RZN147,169..SA199708-200506

64809GLASS SUB-ASSY, BACK WINDOW SLIDE, LH

main64809-35010iRZN169..DCB..SA;RZN169..DLX..SA;LN167,RZN147..RHD..SCB..(GEN,SA);KZN190,RZN148,168..DLX..(GEN,SA)..CBU;KZN165,LN145,166,192,RZN194..RHD..(GEN,SA)..CBU199708-200506

*TT,T=3.5,GREEN

64810WINDOW ASSY, BACK

main64810-35010iLN167..SR..ARL;RZN169..(DCB,THDCB)..ARL;LN167..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THDCB,THSCB,THXTR,XTR)..ARL199708-200506

*TT,T=3.5,GREEN

64811GLASS, BACK WINDOW

main64811-04040iLN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR199808-200502

*TT,T=3.5,GREEN

sub64811-04050

main64811-04050iLN167..THDCB..SR;KZN165,RZN169,174..THDCB,THXTR200009-200502

*TT,T=3.5,GREEN,W(REAR WINDOW DEFOGGER)

main64811-04050iKZN165..TH..CBU200109-200408

*TT,T=3.5,GREEN

main64811-35010iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU199708-200506

*TT,T=3.5,GREEN

main64811-35030iRZN149,169..DCB..DLX..ARL;KZN165,RZN154..(DCB,XTR)..ARL..CBU;LN147,167,172,RZN148,168,174..(DCB,XTR)..DLX..(ARL,GEN)199708-200301

*EHTT,T=3.5,GREEN

sub64811-35031

main64811-35031iKZN165,LN147,152,167,172,RZN149,154,VZN167,172..(DCB,XTR)..ARL200301-200506

*EHTT,T=3.5,GREEN

64812CWEATHERSTRIP, BACK WINDOW GLASS

main64812-04050iKDN145,150,151,16#,190,LN145,150..(DCB,XTR)..TH..CBU200104-200502

W(FIXED GLASS)

main64812-35030iKDN165,190,LN166..MA199708-200506

W(FIXED GLASS)

main64812-35040iRZN169..SA;LN145..LHD..IV3;LN145..DCB..IV3;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN167,RZN149,169..(CBR,DEFI)..(GCC,GEN,SA);LN145,RZN147,148,168..DLX..(GCC,GEN,SA)..CB199708-200506

W(SLIDE GLASS)

64813GLASS, BACK WINDOW CORNER, RH

main64813-35010iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU199708-200506

*TT,T=3.5,GREEN

64814GLASS, BACK WINDOW CORNER, LH

main64814-35010iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU199708-200506

*TT,T=3.5,GREEN

64818SPACER, BACK WINDOW GLASS

main64818-89101iLN141,146,166,RZN142,144,147,149,169..GCC199708-200506

64825RUN, BACK WINDOW CHANNEL, UPPER

main64825-35030iRZN169..SA;LN145..LHD..IV3;LN145..DCB..IV3;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN167,RZN149,169..(CBR,DEFI)..(GCC,GEN,SA);LN145,RZN147,148,168..DLX..(GCC,GEN,SA)..CB199708-200506

64826RUN, BACK WINDOW CHANNEL, LOWER

main64826-35010iRZN169..SA;LN145..LHD..IV3;LN145..DCB..IV3;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN167,RZN149,169..(CBR,DEFI)..(GCC,GEN,SA);LN145,RZN147,148,168..DLX..(GCC,GEN,SA)..CB199708-200506

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-35010iRZN169..SA;LN145..LHD..IV3;LN145..DCB..IV3;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN167,RZN149,169..(CBR,DEFI)..(GCC,GEN,SA);LN145,RZN147,148,168..DLX..(GCC,GEN,SA)..CB199708-200506

64833AWEATHERSTRIP, BACK WINDOW CENTER CHANNEL

main64833-89114iRZN169..SA;LN145..LHD..IV3;LN145..DCB..IV3;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN167,RZN149,169..(CBR,DEFI)..(GCC,GEN,SA);LN145,RZN147,148,168..DLX..(GCC,GEN,SA)..CB199708-200506

64834DWEATHERSTRIP, BACK WINDOW SLIDE GLASS

main64834-89101iRZN169..SA;LN145..LHD..IV3;LN145..DCB..IV3;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN167,RZN149,169..(CBR,DEFI)..(GCC,GEN,SA);LN145,RZN147,148,168..DLX..(GCC,GEN,SA)..CB199708-200506

64835AWEATHERSTRIP, BACK WINDOW GLASS, CENTER

main64835-89101iRZN169..SA;LN145..LHD..IV3;LN145..DCB..IV3;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN167,RZN149,169..(CBR,DEFI)..(GCC,GEN,SA);LN145,RZN147,148,168..DLX..(GCC,GEN,SA)..CB199708-200506

64837CWEATHERSTRIP, BACK WINDOW CORNER GLASS

main64837-35010iRZN169..SA;LN145..LHD..IV3;LN145..DCB..IV3;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN167,RZN149,169..(CBR,DEFI)..(GCC,GEN,SA);LN145,RZN147,148,168..DLX..(GCC,GEN,SA)..CB199708-200506

64851STOP, BACK WINDOW SLIDE GLASS

main64851-89103iRZN169..SA;LN145..LHD..IV3;LN145..DCB..IV3;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN167,RZN149,169..(CBR,DEFI)..(GCC,GEN,SA);LN145,RZN147,148,168..DLX..(GCC,GEN,SA)..CB199708-200506

64883FRAME, BACK WINDOW

main64881-35010iRZN169..SA;LN145..LHD..IV3;LN145..DCB..IV3;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN167,RZN149,169..(CBR,DEFI)..(GCC,GEN,SA);LN145,RZN147,148,168..DLX..(GCC,GEN,SA)..CB199708-200506

64885ACHANNEL, BACK WINDOW GLASS, RH

main64885-35010iRZN169..SA;LN145..LHD..IV3;LN145..DCB..IV3;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN167,RZN149,169..(CBR,DEFI)..(GCC,GEN,SA);LN145,RZN147,148,168..DLX..(GCC,GEN,SA)..CB199708-200506

64886CHANNEL, BACK WINDOW GLASS, LH

main64886-35010iRZN169..SA;LN145..LHD..IV3;LN145..DCB..IV3;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN167,RZN149,169..(CBR,DEFI)..(GCC,GEN,SA);LN145,RZN147,148,168..DLX..(GCC,GEN,SA)..CB199708-200506

69370ALOCK ASSY, BACK WINDOW

main69370-35010iRZN169..SA;LN145..LHD..IV3;LN145..DCB..IV3;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN167,RZN149,169..(CBR,DEFI)..(GCC,GEN,SA);LN145,RZN147,148,168..DLX..(GCC,GEN,SA)..CB199708-200506

69374CATCH, BACK WINDOW LOCK

main69374-89103iRZN169..SA;LN145..LHD..IV3;LN145..DCB..IV3;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN167,RZN149,169..(CBR,DEFI)..(GCC,GEN,SA);LN145,RZN147,148,168..DLX..(GCC,GEN,SA)..CB199708-200506

69375ARETAINER, BACK WINDOW LOCK

main69375-89103iRZN169..SA;LN145..LHD..IV3;LN145..DCB..IV3;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN167,RZN149,169..(CBR,DEFI)..(GCC,GEN,SA);LN145,RZN147,148,168..DLX..(GCC,GEN,SA)..CB199708-200506

69376BPACKING, BACK WINDOW LOCK

main69376-89103iRZN169..SA;LN145..LHD..IV3;LN145..DCB..IV3;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN167,RZN149,169..(CBR,DEFI)..(GCC,GEN,SA);LN145,RZN147,148,168..DLX..(GCC,GEN,SA)..CB199708-200506

9015940143

main90159-40143

9016140013

main90161-40013

9046711058

main90467-11058

9095001865

main90950-01865

9095001867

main90950-01867

9095001882

main90950-01882

9353054020

main93530-54020

36 parts on this diagram · 4 diagrams in section
