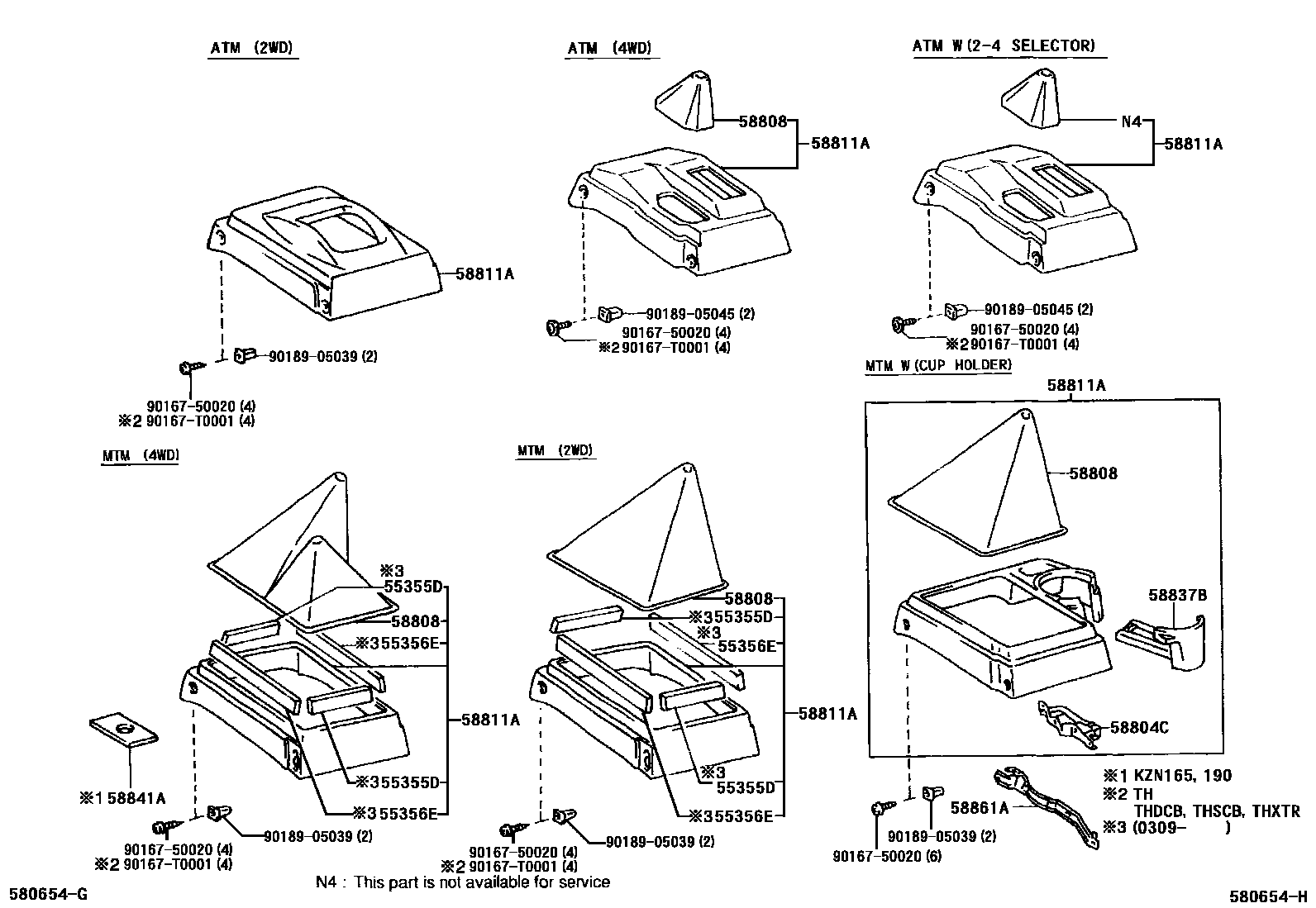

CONSOLE BOX & BRACKET

0001 1 0002 1

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-35050×2iLN145..RHD..DCB..GEN;RZN148,168..DCB..DLX..GEN200309

55356ECUSHION, INSTRUMENT PANEL, NO.2

main55356-35050×2iLN145..RHD..DCB..GEN;RZN148,168..DCB..DLX..GEN200309

58804CINSERT SUB-ASSY, CONSOLE BOX, FRONT

main58804-04010iLN141,146,RZN142,144,147,149..GCC199708-200108

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-35180-B0iVZN167,172..ATM..DLX200208-200502

MD.MOON MIST,TRIM1#

main58808-35180-E0iKDN166..SRWGN200208-200411

SANDAL WOOD,TRIM4#

main58808-35190-B0iLN145,RZN148,154,193..(DCB,XTR)..GEN200108-200506

MD.MOON MIST,TRIM1#

main58808-35190-D0iLN141,146,RZN142,144,147,149..GCC200108

RED,TRIM3#

main58808-35200-B0iKZN165..THDCB..DLX200110-200208

MD.MOON MIST,TRIM1#

main58808-35210-B0iLN167..DCB..TH200012-200108

MD.MOON MIST,TRIM1#

main58808-35220-B0iLN166,171,RZN16#..LHD..(DCB,XTR)..GEN200108-200506

MD.MOON MIST,TRIM1#

main58808-35220-D0iLN166,RZN169..GCC200108

RED,TRIM3#

main58808-35230-B0iKZN190..DCB200007-200108

MD.MOON MIST,TRIM1#

58811ABOX, CONSOLE, FRONT

main58802-0W010-B0iLN141,146,RZN142,144,147,149..GCC199708-200108

W(CUP HOLDER),MD.MOON MIST,TRIM1#

main58802-0W010-D0iLN141,146,RZN142,144,147,149..GCC199708-200108

W(CUP HOLDER),RED,TRIM3#

main58802-35110-B0iLN152..IV3;RZN148..DCB..DLX;LN147,RZN149,154..MTM..DLX..ARL;LN145,RZN194..RHD..DCB..(GEN,SA)200108-200203

MD.MOON MIST,TRIM1#

main58802-35110-D0iLN141,146,RZN142,144,147,149..GCC199708-200108

RED,TRIM3#

main58802-35111-B0iLN147,152,RZN149,154..MTM..ARL200309-200502

MD.MOON MIST,TRIM1#

main58802-35111-D0iLN141,146,RZN142,144,147,149..GCC200309

RED,TRIM3#

main58802-35120-B0iKDN165,LN166..DCB..MA200108-200503

MD.MOON MIST,TRIM1#

main58802-35130-B0iRZN169..SCB..GCC;LN166,171,RZN16#..LHD..(DCB,XTR)200108-200309

MD.MOON MIST,TRIM1#

main58802-35130-D0iLN166,RZN169..GCC200108-200309

RED,TRIM3#

main58802-35131-B0iLN166,RZN16#..(CO,GCC)..CBU200309

MD.MOON MIST,TRIM1#

main58802-35131-D0iLN166,RZN169..GCC200309

RED,TRIM3#

main58802-35140-B0iKZN165..THDCB..SR;LN167,RZN169..SR..ARL200109-200208

W(2-4 SELECTOR),MD.MOON MIST,TRIM1#

main58802-35150-B0iVZN167,172..ATM..DLX200208-200502

MD.MOON MIST,TRIM1#

main58802-35150-E0iKDN166..SRWGN200208-200411

SANDAL WOOD,TRIM4#

main58802-35180-B0iKZN190..DCB200007-200108

MD.MOON MIST,TRIM1#

main58802-35220-B0iVZN167..ATM..SR200208-200502

W(2-4 SELECTOR),MD.MOON MIST,TRIM1#

main58811-04060-B0iKDN190..CBU200109-200208

MD.MOON MIST,TRIM1#

main58811-04060-E0iKDN190..(DCB,XTR)..TH..CBU200112-200408

SANDAL WOOD,TRIM4#

main58811-35120-B0iRZN149,154..(DCB,SCB,XTR)..ATM..DLX..(ARL,GEN)200104

MD.MOON MIST,TRIM1#

58837BBOX, CONSOLE CUP HOLDER

main58837-04010-B0iLN141,146,RZN142,144,147,149..GCC200108

MD.MOON MIST,TRIM1#

main58837-04010-D0iLN141,146,RZN142,144,147,149..GCC200108

RED,TRIM3#

58841ACOVER, SHIFTING HOLE

main58841-35010iKZN165..THDCB..DLX200110-200208

58861ASUPPORT, CONSOLE BOX, NO.1

main58861-35010iLN141,146,RZN142,144,147,149..GCC200108

9016750020

main90167-50020

90167T0001

main90167-T0001

9018905039

main90189-05039

9018905045

main90189-05045

12 parts on this diagram · 2 diagrams in section
