E
EPC Data

FLOOR MAT & SILENCER PAD

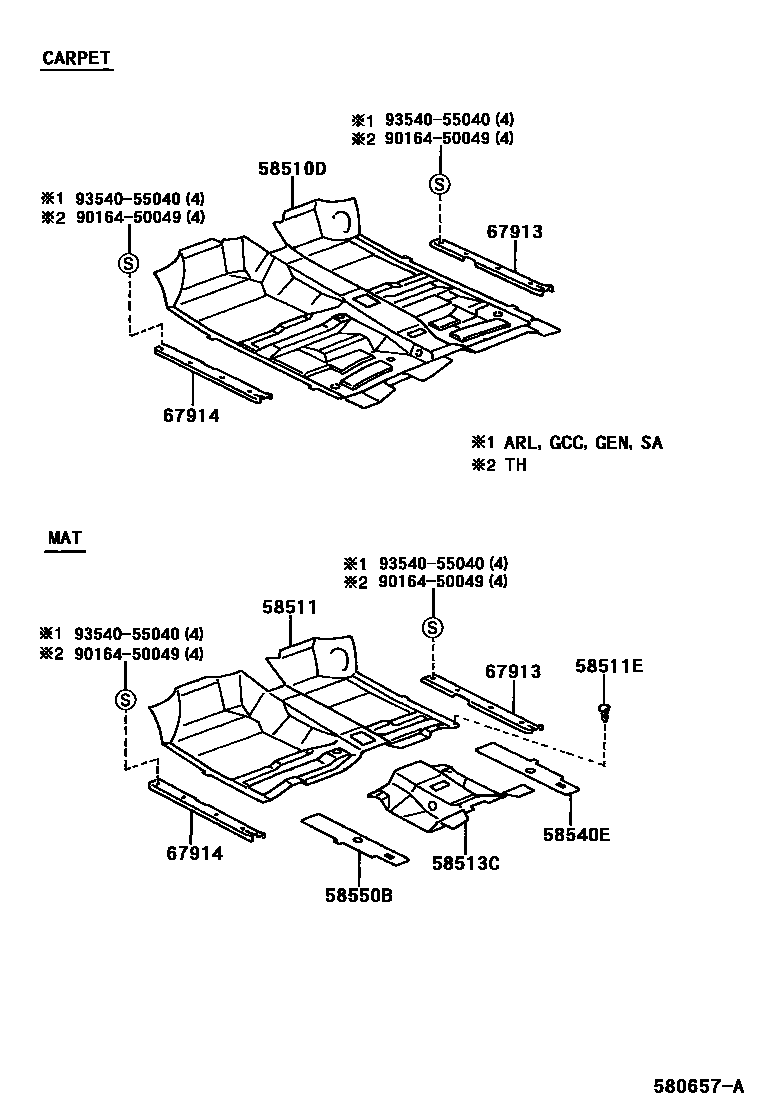

Parts diagram
58510DCARPET ASSY, FLOOR, FRONT
main58510-04490-B0i199908-200109
MEDIUM MOONMIST,TRIM1#
main58510-04580-B0i200109-200502
W(REAR SEAT BELT),MEDIUM MOONMIST,TRIM1#
main58510-04650-B0i200208-200502
MEDIUM MOON MIST,TRIM1#
main58510-3D630-B0i200108-200310
MEDIUM MOON MIST,TRIM1#
main58510-3D630-D0i200108-200310
RED,TRIM3#
main58510-3D631-B0i200310
MEDIUM MOON MIST,TRIM1#
main58510-3D631-D0i200310
RED,TRIM3#
main58510-3D650-B1i199806-200109
W(BENCH SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3D660-B1i199806-200109
W(FRONT SEPARATE SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3D670-B0i199805
W(REAR SEAT BELT),MEDIUM MOON MIST,TRIM1#
main58510-3D690-B0i200009-200310
W(SEPARATE SEAT OR SPORTS SEAT) & W(REAR SEAT BELT),MEDIUM MOON MIST,TRIM1#
main58510-3D692-B0i200310-200506
W(FRONT CONSOLE BOX & REAR SEAT BELT),MEDIUM MOON MIST,TRIM1#
main58510-3D750-B0i200008-200109
MD.MOON MIST,TRIM1#
sub58510-3D751
main58510-3G440-B0i199909-200008
W(FRONT & REAR CONSOLE BOX),MEDIUM MOON MIST,TRIM1#
sub58510-3G441
main58510-3G470-B1i199806-200109
W(FRONT & REAR CONSOLE BOX & FRONT SEPARATE SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3G520-B0i199708-200109
W(FRONT & REAR CONSOLE BOX & REAR SEAT BELT),MEDIUM MOON MIST,TRIM1#
main58510-3G522-B0i200310-200501
W(FRONT & REAR CONSOLE BOX & REAR SEAT BELT),MEDIUM MOON MIST,TRIM1#
main58510-3G580-B0i199708-199908
W(REAR SEAT BELT),MEDIUM MOON MIST,TRIM1#
main58510-3G590-B0i199708-199908
MEDIUM MOON MIST,TRIM1#
main58510-3G600-B0i199805
W(SEPARATE SEAT),MEDIUM MOON MIST,TRIM1#
main58510-3G610-B0i200310
W(FRONT & REAR CONSOLE BOX & REAR SEAT BELT) & W(SEPARATE SEAT OR SPORTS SEAT),MEDIUM MOON MIST,TRIM1#
main58510-3G610-D0i200208-200310
W(FRONT & REAR CONSOLE BOX & FRONT SEPARATE SEAT & REAR SEAT BELT),RED,TRIM3#
main58510-3G611-B0i200310
W(FRONT & REAR CONSOLE BOX & FRONT SEPARATE SEAT & REAR SEAT BELT),MEDIUM MOON MIST,TRIM1#
main58510-3G611-D0i200310
W(FRONT & REAR CONSOLE BOX & FRONT SEPARATE SEAT & REAR SEAT BELT),RED,TRIM3#
main58510-3G620-B0i199708-200008
COLD SPEC & W(REAR SEAT BELT),MEDIUM MOON MIST,TRIM1#
sub58510-3G621
main58510-3G630-B0i200108-200304
W(FRONT CONSOLE BOX & REAR SEAT BELT & REAR HEATER),MEDIUM MOON MIST,TRIM1#
main58510-3G640-B0i200108-200304
W(FRONT CONSOLE BOX & REAR HEATER),MEDIUM MOON MIST,TRIM1#
main58510-3G650-B0i200108-200304
W(FRONT & REAR CONSOLE BOX & REAR HEATER),MEDIUM MOON MIST,TRIM1#
main58510-3G660-B0i200004-200010
W(SEPARATE SEAT),MEDIUM MOON MIST,TRIM1#
main58510-3G661-B0i200310-200506
W(FRONT & REAR CONSOLE BOX & FRONT SEPARATE SEAT),MEDIUM MOON MIST,TRIM1#
main58510-3G670-B0i199708-200108
W(FRONT CONSOLE BOX & REAR SEAT BELT),MEDIUM MOON MIST,TRIM1#
main58510-3G670-D0i200108-200310
RED,TRIM3#
main58510-3G671-B0i200310
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT & REAR SEAT BELT),MEDIUM MOON MIST,TRIM1#
main58510-3G671-D0i200310
RED,TRIM3#
main58510-3G680-B0i199708-200008
MEDIUM MOON MIST,TRIM1#
main58510-3G681-B0i200310-200506
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT),MEDIUM MOON MIST,TRIM1#
main58510-3G830-B0i200109-200310
W(FRONT & REAR CONSOLE BOX & FRONT SEPARATE SEAT & REAR SEAT BELT),MEDIUM MOONMIST,TRIM1#
main58510-3G831-B0i200310-200501
W(REAR SEAT BELT),MEDIUM MOONMIST,TRIM1#
main58510-3G840-B0i199711-199909
W(FRONT & REAR CONSOLE BOX),MEDIUM MOONMIST,TRIM1#
main58510-3G841-B0i200310-200501
MEDIUM MOONMIST,TRIM1#
main58510-3G860-B0i200108-200310
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3G861-B0i200310-200506
W(REAR SEAT BELT),MEDIUM MOONMIST,TRIM1#
main58510-3G870-B0i200108-200310
W(FRONT & REAR CONSOLE BOX),MEDIUM MOONMIST,TRIM1#
main58510-3G871-B0i200310-200506
MEDIUM MOONMIST,TRIM1#
main58510-3N010-B0i199711-200108
W(FRONT CONSOLE BOX),MEDIUM MOONMIST,TRIM1#
main58510-3N060-B1i199806-200009
W(FRONT CONSOLE BOX),MEDIUM MOONMIST,TRIM1#
main58510-3N150-B0i199807-200203
MEDIUM MOON MIST,TRIM1#
main58510-3N250-B0i199805-200008
W(REAR HEATER),MEDIUM MOON MIST,TRIM1#
main58510-3N260-B0i199805-200008
W(FRONT & REAR CONSOLE BOX),MEDIUM MOON MIST,TRIM1#
main58510-3N270-B0i199805-200108
MEDIUM MOON MIST,TRIM1#
main58510-3N280-B0i199805-200108
W(REAR SEAT BELT),MEDIUM MOON MIST,TRIM1#
58511MAT, FLOOR, FRONT
main58510-3D750-B0i200110-200208
MD.MOON MIST,TRIM1#
sub58510-3D751
main58510-3D880-B0i200108-200304
COLD SPEC & W(SEPARATE SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3D890i199708-200108
W(FRONT CONSOLE BOX & FRONT BENCH SEAT & FOOT REST)
main58510-3D890-B0i200108-200310
MEDIUM MOONMIST,TRIM1#
main58510-3D890-D0i200108-200310
RED,TRIM3#
main58510-3D891-B0i200310
MEDIUM MOONMIST,TRIM1#
main58510-3D891-D0i200310
RED,TRIM3#
main58510-3G010-B0i200209-200408
MEDIUM MOONMIST,TRIM1#
main58510-3G020-B0i200108-200506
W(FRONT SEPARATE SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3G040-B0i199708-200108
W(FRONT BENCH SEAT & FOOT REST),MEDIUM MOONMIST,TRIM1#
main58510-3G040-D0i200108-200310
W(FRONT BENCH SEAT & FOOT REST),RED,TRIM3#
main58510-3G041-B0i200310
W(FRONT BENCH SEAT & FOOT REST),MEDIUM MOONMIST,TRIM1#
main58510-3G041-D0i200310
W(FRONT BENCH SEAT & FOOT REST),RED,TRIM3#
main58510-3G060i199708
MALAYSIA SPEC FOR CKD
main58510-3G060-B0i200208-200310
MEDIUM MOONMIST,TRIM1#
main58510-3G061-B0i200310-200502
MEDIUM MOONMIST,TRIM1#
main58510-3G070-B0i200108
W(FRONT SEPARATE SEAT & FOOT REST),MEDIUM MOONMIST,TRIM1#
main58510-3G070-D0i200208
W(FRONT SEPARATE SEAT & FOOT REST),RED,TRIM3#
main58510-3G080-B0i199708-200108
W(FRONT SEPARATE SEAT & FOOT REST),MEDIUM MOONMIST,TRIM1#
main58510-3G080-D0i200108-200310
W(FRONT SEPARATE SEAT & FOOT REST),RED,TRIM3#
main58510-3G081-B0i200310
W(FRONT SEPARATE SEAT & FOOT REST),MEDIUM MOONMIST,TRIM1#
main58510-3G081-D0i200310
W(FRONT SEPARATE SEAT & FOOT REST),RED,TRIM3#
main58510-3G100-B0i200108-200506
W(FRONT BENCH SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3G110-B0i200108-200208
W(FRONT SEPARATE SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3G140-B0i199708
W(FRONT BENCH SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3G150-B0i199708-200408
W(SEPARATE SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3G170-B0i200203-200310
W(FRONT CONSOLE BOX),MEDIUM MOONMIST,TRIM1#
main58510-3G171-B0i200310-200504
W(FRONT CONSOLE BOX & FRONT BENCH SEAT & FOOT REST),MEDIUM MOONMIST,TRIM1#
main58510-3G180-B0i199708-200109
W(FRONT BENCH SEAT & FOOT REST),MEDIUM MOONMIST,TRIM1#
main58510-3G180-D0i200108
W(FRONT BENCH SEAT & FOOT REST),RED,TRIM3#
main58510-3G190-B0i199708-200009
W(FRONT SEPARATE SEAT & REAR HEATER & FOOT REST),MEDIUM MOONMIST,TRIM1#
main58510-3G200-B0i200208-200502
W(FRONT BENCH SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3G210-B0i199708-200009
W(FRONT BENCH SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3G220-B0i200108-200506
W(FRONT SEPARATE SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3G240-B0i200108-200208
W(FRONT & REAR CONSOLE BOX & FRONT SEPARATE SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3G241-B0i200404
W(FRONT & REAR CONSOLE BOX & FRONT SEPARATE SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3G260-B0i200109-200208
MEDIUM MOONMIST,TRIM1#
main58510-3G261-B0i200404
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3G270-B0i199708-200404
W(FRONT CONSOLE BOX & FRONT BENCH SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3G272-B0i200310-200506
W(FRONT CONSOLE BOX & FRONT BENCH SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3G320-B0i200009
COLD SPEC,MEDIUM MOONMIST,TRIM1#
main58510-3G330-B0i200108
W(FRONT BENCH SEAT & FOOT REST),MEDIUM MOONMIST,TRIM1#
main58510-3G330-D0i200108
W(FRONT BENCH SEAT & FOOT REST),RED,TRIM3#
main58510-3G340-B0i199708-200108
W(FRONT SEPARATE SEAT & FOOT REST),MEDIUM MOONMIST,TRIM1#
main58510-3G340-D0i200108
W(FRONT SEPARATE SEAT & FOOT REST),RED,TRIM3#
main58510-3G350-B0i200108-200304
COLD SPEC,MEDIUM MOONMIST,TRIM1#
main58510-3G370-B0i200108-200310
W(FRONT & REAR CONSOLE BOX & FRONT SEPARATE SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3G370-D0i200108-200310
W(FRONT & REAR CONSOLE BOX & FRONT SEPARATE SEAT & FOOT REST),RED,TRIM3#
main58510-3G371-B0i200310
PLANT NO.P11, W(FRONT & REAR CONSOLE BOX & FRONT SEPARATE SEAT & FOOT REST),MEDIUMMOONMIST,TRIM1#
main58510-3G371-D0i200310
W(FRONT & REAR CONSOLE BOX & FRONT SEPARATE SEAT & FOOT REST),RED,TRIM3#
main58510-3G380-B0i200108-200304
MEDIUM MOONMIST,TRIM1#
sub58510-3G381
main58510-3G440-B0i199909-200009
W(FRONT & REAR CONSOLE BOX),MEDIUM MOON MIST,TRIM1#
sub58510-3G441
main58510-3G520-B0i199902-200009
W(FRONT & REAR CONSOLE BOX & FRONT SEPARATE SEAT & REAR SEAT BELT),MEDIUM MOON MIST,TRIM1#
main58510-3G720-B0i200110-200408
MEDIUM MOONMIST,TRIM1#
main58510-3G750-B0i200203-200310
MEDIUM MOONMIST,TRIM1#
main58510-3G751-B0i200310-200504
W(FRONT SEPARATE SEAT),MEDIUM MOONMIST,TRIM1#
main58510-3G760-B0i200208-200501
MEDIUM MOONMIST,TRIM1#
main58510-3M090-B0i200208-200408
W(FRONT SEPARATE SEAT & FOOT REST),MEDIUM MOONMIST,TRIM1#
main58510-3M100-B0i200208-200501
MEDIUM MOONMIST,TRIM1#
58511ECLIP(FOR FRONT FLOOR MAT)
main90467-06049-22×2i200108-200408
BLACK,TRIM1#
58513CMAT, FLOOR, FRONT CENTER
main58513-35020-B0i199708-200203
MEDIUM MOONMIST,TRIM1#
main58513-35020-D0i199708-200108
RED,TRIM3#
main58513-35021-B0i200310-200511
MEDIUM MOONMIST,TRIM1#
main58513-35021-D0i200310-200508
RED,TRIM3#
main58513-35030-B0i199708-200103
W(FRONT & REAR CONSOLE BOX),MEDIUM MOONMIST,TRIM1#
main58513-35030-D0i200108-200310
W(FRONT & REAR CONSOLE BOX),RED,TRIM3#
main58513-35031-B0i200310-200501
W(FRONT & REAR CONSOLE BOX),MEDIUM MOONMIST,TRIM1#
main58513-35031-D0i200310-200508
W(FRONT & REAR CONSOLE BOX),RED,TRIM3#
58540EMAT ASSY, FLOOR, REAR RH
main58540-04020-B0i200109-200502
MEDIUM MOONMIST,TRIM1#
main58540-35150-B0i200108-200208
MEDIUM MOONMIST,TRIM1#
main58540-35150-D0i200108
RED,TRIM3#
58550BMAT ASSY, FLOOR, REAR LH
main58550-04020-B0i200109-200208
MEDIUM MOONMIST,TRIM1#
main58550-35010-B0i199708
MEDIUM MOONMIST,TRIM1#
main58550-35010-D0i199708-200108
RED,TRIM3#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-04050-B0i200109-200408
MD.MOON MIST,TRIM1#
main67913-04050-E0i200110-200408
SANDAL WOOD,TRIM4#
main67913-04060-B0i200109-200408
MD.MOON MIST,TRIM1#
main67913-04060-E0i200110-200408
SANDAL WOOD,TRIM4#
main67913-35020-B0i200109
MD.MOON MIST,TRIM1#
main67913-35020-D0i199708-200108
RED,TRIM3#
main67913-35030-B0i200108-200501
MD.MOON MIST,TRIM1#
main67913-35030-D0i200108
RED,TRIM3#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-04050-B0i200109-200502
MD.MOON MIST,TRIM1#
main67914-04050-E0i200110-200408
SANDAL WOOD,TRIM4#
main67914-04060-B0i200109-200502
MD.MOON MIST,TRIM1#
main67914-04060-E0i200110-200408
SANDAL WOOD,TRIM4#
main67914-35020-B0i200108-200503
MD.MOON MIST,TRIM1#
main67914-35020-D0i199708-200108
RED,TRIM3#
main67914-35030-B0i200108-200501
MD.MOON MIST,TRIM1#
main67914-35030-D0i199708-200108
RED,TRIM3#
9016450049
main90164-50049
9354055040
main93540-55040

10 parts on this diagram · 4 diagrams in section
