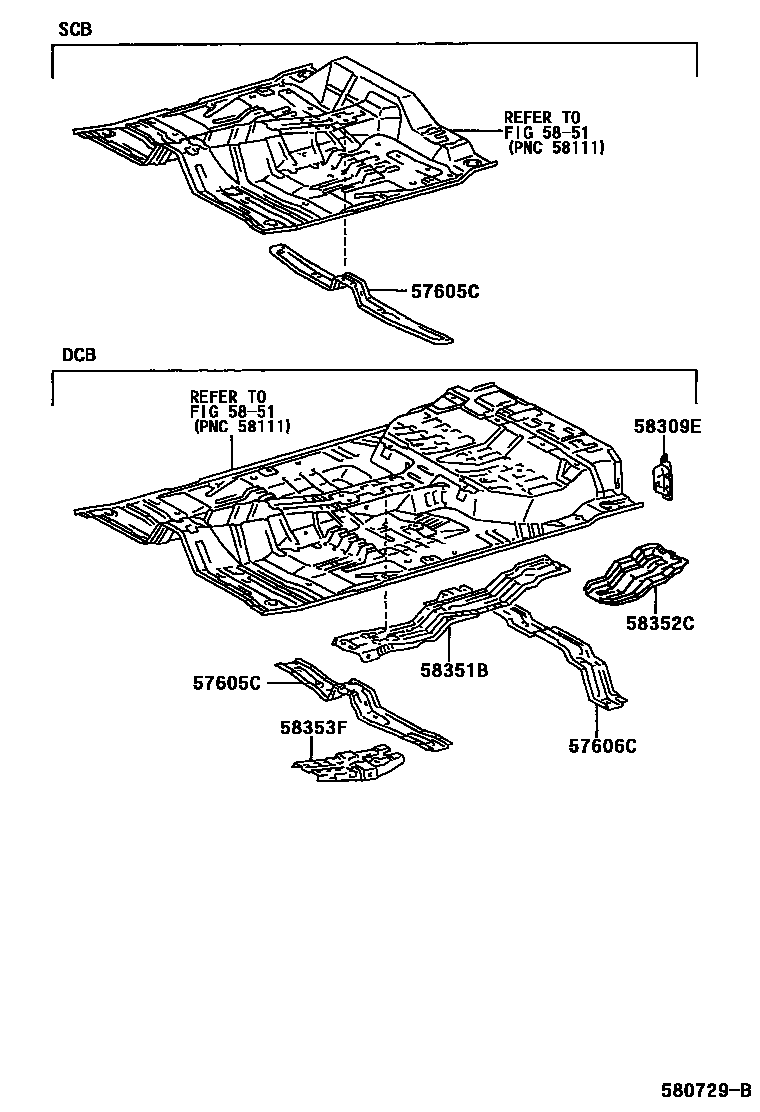

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-35070iRZN169..SCB..GEN199708-200506

W(BENCH SEAT)

main57605-35070iLN167..SCB..IV3200009-200502

NEW ZEALAND SPEC

main57605-35070iRZN148..IV3;LN145..RHD..SCB..IV3;RZN149..SCB..EFI..GEN;LN167,RZN147,169..THSCB..(DSL,EFI);KZN190,LN157,167,192,RZN142,YN140..SCB..(CBR,DEFI,TDE)..(SA,TH)199808-200503

main57605-35130iRZN169..SCB..SR200203-200504

W(SRS AIR BAG)

main57605-35130iLN141,RZN142,144,147,149..SCB..GCC199708-200506

W(SEPARATE SEAT)

main57605-35130iKZN165..SCB;LN147,167..IV3199909-200502

NEW ZEALAND SPEC & W(SRS AIR BAG)

main57605-35150iLN146,166,RZN147..DCB..GCC199708-200506

W(BENCH SEAT)

main57605-35150iRZN149..DCB..EFI..GEN200009

main57605-35170iRZN169..DCB..SA;LN145..LHD..DLX..TH;RZN169..DCB..DLX..ARL;RZN148,168..DCB..DLX..GEN;LN145,166,RZN149..RHD..DCB..DLX..(ARL,GEN)199708-200506

W(SEPARATE SEAT)

main57605-35170iLN167..DCB..TH;KZN165..THDCB..SR;LN147,167..DCB..DLX..DEFI;LN147,167,RZN149,169..THDCB..DLX;KZN165,190,RZN194..(DCB,SADCB)..(ARL,SA)199902-200504

main57605-35190iRZN149..SCB..ATM..IV3;RZN149..(SCB,THSCB)..MTM..ARL200109-200502

W(FRONT 6:4 SPRIT SEAT)

main57605-35190iRZN149..SCB..ATM..IV3;RZN149..(SCB,THSCB)..MTM..ARL200009-200502

NEW ZEALAND SPEC & W(FRONT 6:4 SPRIT SEAT)

main57605-35190iRZN149..SCB..ATM..IV3;RZN149..(SCB,THSCB)..MTM..ARL199708-200502

W(SPLIT TYPE FRONT SEAT)

main57605-35190iLN147..IV3;KZN165..SCB200008-200502

NEW ZEALAND SPEC

main57605-35200iLN172,RZN154..XTR;RZN154..THXTR..ATM;LN150,152,167,171,192..THXTR,XTR199711-200502

NEW ZEALAND SPEC

main57605-35200iLN171,RZN154..GEN200009-200506

main57605-35260iVZN167..SCB200208-200502

NEW ZEALAND SPEC

main57605-35270iVZN167..SCB200208-200502

sub57605-35260

main57605-35280iVZN167..SCB200208-200502

NEW ZEALAND SPEC & W(SEPARATE SEAT & SRS AIR BAG)

main57605-35290iVZN167..SCB200208-200502

W(SEPARATE SEAT & SRS AIR BAG)

sub57605-35280

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-35020iLN167..DCB..SA;KZN190,RZN194..DCB..SR199708-200506

W(REAR SEAT BELT)

main57606-35020iKDN165,190,LN166..DCB..MA199902-200503

main57606-35050iRZN169..SR..SA;RZN149,169..DCB..CBR..GEN;RZN147,148,168..DCB..DLX..(GEN,SA);KZN165,190,LN145,16#,19#,RZN19#..DCB..(DSL,EFI,TDE)..(GEN,SA,TH)199708-200506

main57653-04010iRZN154..CBR;RZN154..ARL;KZN165,LN150,152,167,17#,192,RZN174..THXTR,XTR199711-200506

58309EPLATE SUB-ASSY, REAR FLOOR

main58309-35010iKZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149199905-200603

main58309-35020iLN145,146,147,16#,19#,RZN147,148,149,16#,193..(DCB,THDCB)..CBU199811-199905

sub58309-35010

58351BREINFORCEMENT, REAR FLOOR PANEL, RH

main58351-35020iKDN145,16#,190,LN145..DCB..TH199708-200506

58352CREINFORCEMENT, REAR FLOOR PANEL, NO.2

main58352-35010iKZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149199708-200603

58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3

main58353-35010iLN145,147,16#,191,RZN147,148,149,16#,193..DCB..(ARL,GEN)199708-200506

5851

7 parts on this diagram · 3 diagrams in section
