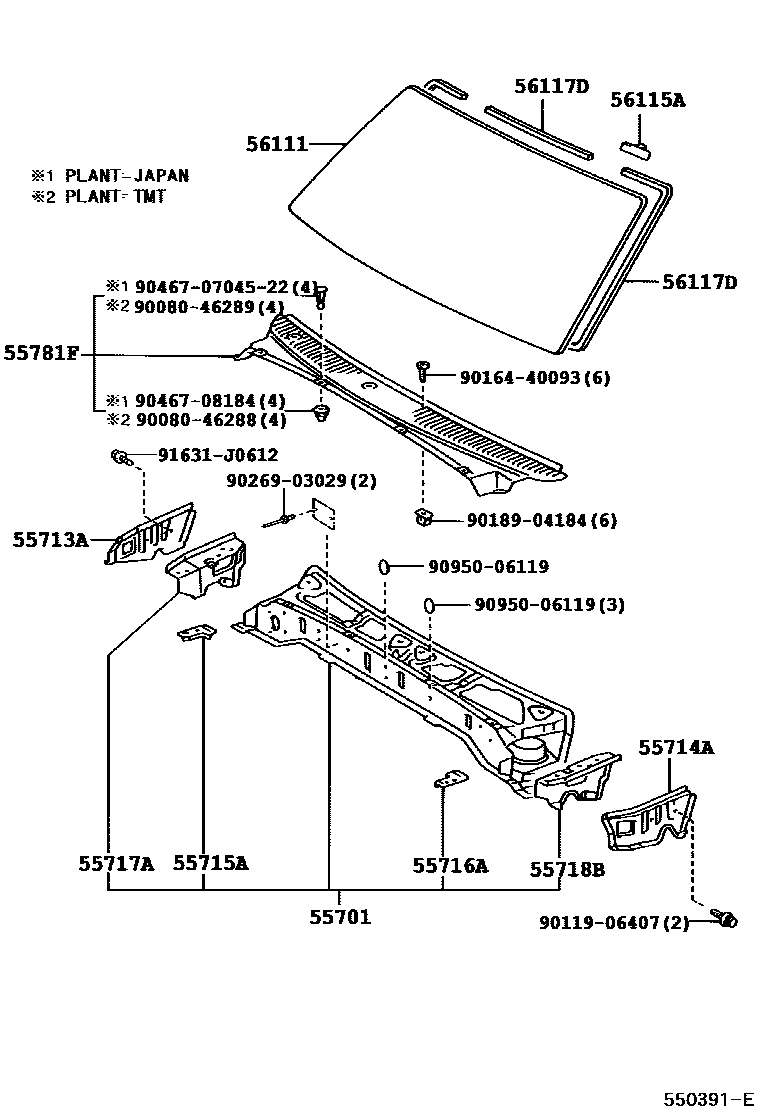

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-35040iRZN142,147..LHD199708-200108

main55700-35140iRZN148,149,168,193..DLX..EFI..GEN199708

main55700-35260iRZN144,149,154,169..LHD..CBR199708-200108

sub55700-35140

main55700-35270iLN141,145,146,166,171,191..LHD..(GCC,GEN)199708-200108

sub55700-35430

main55700-35330iRZN147..RHD..DCB199708-200110

main55700-35430iLN141,145,146,166,171,191..LHD..(GCC,GEN)200108

main55700-35460iLN152,167,172,RZN154,174..(THDCB,THSCB,THXTR)..(DSL,EFI);KZN165,LN147,RZN149,169..(THDCB,THSCB,XTR)..(DSL,EFI,TDE)199808-200109

main55700-35480iLN145,155..LHD..TH199808-200109

main55700-35550iLN147..SCB..IV3;RZN147..RHD..SCB;LN147,152..(DCB,XTR)..ARL..CBU;LN167,172,192,RZN142..(DCB,SCB,XTR)..(ARL,SA)200108-200504

sub55700-35330

main55700-35560iKZN190..SR;LN145..RHD..(GEN,SA)..CBU;KDN165,190,KZN165,LN140,166,RZN149,154,169,174,194..RHD..(DCB,SCB,XTR)..(ARL,GEN,MA,SA)200108-200506

sub55700-35330

main55700-35570iKDN145,150,151,16#,190,KZN165..TH;KZN165,RZN149,154,169,174..THDCB,THSCB,THXTR200109-200502

main55700-35580iLN147,150,167,RZN147..THDCB,THSCB,XTR;LN145,152,172..RHD..(DCB,THXTR)..(ARL,TH)200109-200502

main55700-35600iRZN142,147..LHD200108

main55700-35610iRZN149..CO200108

main55700-35620iRZN149..CO200108-200506

sub55700-35610

main55700-35660iVZN167,172200208-200502

55713APANEL, COWL TOP SIDE, RH

main55713-35011iRZN154..CBR;RZN169..ARL,SA;RZN147,148,168..DLX;RZN149..EFI..(ARL,GEN);LN145,RZN154..(DCB,THXTR,XTR)..(ARL,TH);LN167,RZN142,144,149,169,YN140..(DCB,SCB,THDCB,THSCB).199708-200506

55714APANEL, COWL TOP SIDE, LH

main55714-35011iRZN154..CBR;RZN169..ARL,SA;RZN147,148,168..DLX;RZN149..EFI..(ARL,GEN);LN145,RZN154..(DCB,THXTR,XTR)..(ARL,TH);LN167,RZN142,144,149,169,YN140..(DCB,SCB,THDCB,THSCB).199708-200506

55715ABRACE, COWL TOP TO APRON, RH

main55715-35010iLN141,146,166,RZN14#,16#..CO,GCC199708-200506

55716ABRACE, COWL TOP TO APRON, LH

main55716-35010iLN145,166..RHD;LN145,166..DCB..(GCC,TH);KZN165,190,LN140,141,146,147,15#,167,17#,192,RZN14#,154,16#,174,19#,YN140199708-200506

55717APANEL, COWL TOP SIDE, INNER RH

main55717-35020iLN166..GCC;LN145,155,166..RHD;LN140,141,146,147,150,152,157,167,17#,192,RZN14#,154,16#,174,19#199708-200506

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-35020iKDN155,LN155199708-200506

55781FLOUVER, COWL TOP VENTILATOR

main55708-04020iKZN165,LN150..THDCB,XTR;LN152,167,192..DEFI..TH;LN152,157,172..(SCB,THXTR)..DEFI;LN145,155,RZN154,174..RHD..(SCB,THXTR)..(ARL,TH);LN147,167,RZN147,149,169..(THDCB,T199903-200103

sub55708-04021

main55708-04021iKDN145,150,151,16#,190,LN145,150..RHD..(DCB,XTR)..TH..CBU200103-200502

main55708-35030iLN147,152,167,172,RZN147,149,154,169,174..THDCB,THSCB,THXTR199708-200108

sub55708-35031

main55708-35031iLN145,166..RHD..GEN;RZN147..RHD..SCB..GEN200108-200404

sub55708-35032

main55708-35032iLN145,166..RHD..GEN;RZN147..RHD..SCB..GEN200403-200506

main55708-35040iRZN149..SR..GEN199708-200108

sub55708-35041

main55708-35041iRZN148..GEN..CBU;RZN148,149..CO,GCC;LN141,145,146,155,166,171,191,RZN142,144,147,154,16#,193..LHD200108-200404

sub55708-35042

main55708-35042iRZN148,149,168..DLX..GEN200307-200506

56111GLASS, WINDSHIELD

main56111-04070iKZN165..TH;KDN165,190..IV1;LN167..THDCB..SR;LN167..THSCB..CBU;KZN165,RZN147,169,174..THDCB,THSCB,THXTR199808-200502

*LAM,T=4.76

sub56111-04080

main56111-04080iRZN154..THXTR199808-200502

*TEM,T=4.76,W(TOP SHADE)

main56111-35011iRZN149..GEN;LN145..RHD..IV3;RZN148..GEN..IV3199901-200304

*LAM,T=4.76

sub56111-35012

main56111-35012iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU200108-200506

*LAM,T=4.76

main56111-35012iRZN149..GEN;LN145..RHD..IV3;RZN148..GEN..IV3200304

*LAM,T=4.76,THAILAND PRODUCT

main56111-35012iRZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU200301

*LAM,T=4.76,PLANT NO.P11

main56111-35040iLN14#,16#,191,RZN14#,16#,193199708-199901

*LAM,T=4.76,W(TOP SHADE)

main56111-35041iLN145..LHD..IV3;RZN169..DCB..SA;LN145,152..(DCB,XTR)..IV3;KZN165..(DCB,SCB)..SR..ARL;RZN154,194..RHD..(SCB,XTR);LN145,RZN148..DLX..(GEN,SA)..CBU;RZN169..(DCB,SCB)..199901-200301

*LAM,T=4.76,W(TOP SHADE)

sub56111-35042

main56111-35042iLN141,146,166,RZN142,144,147,149,169..GCC200108-200506

*LAM,T=4.76,W(TOP SHADE)

sub56111-35043

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56116-35050iLN150..DLX;KDN145,150,151,16#,190,LN145..(DCB,XTR)..TH..CBU199708-200506

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-47010iLN145..CBU;LN145..LHD..IV3;KDN16#,190,KZN165,190,LN140,141,146,147,152,16#,17#,19#,RZN14#,154,16#,19#,VZN167,172..DCB,SCB,SRWGN,XTR199708-200603

*D,L=2940

main56117-52040iLN145,166..RHD..GEN;RZN147..RHD..SCB..GEN199708-200603

*D,L=602

sub56117-74010

9008046288

main90080-46288

9008046289

main90080-46289

9011906407

main90119-06407

9016440093

main90164-40093

9018904184

main90189-04184

9026903029

main90269-03029

904670704522

main90467-0704522

9046708184

main90467-08184

9095006119

main90950-06119

91631J0612

main91631-J0612

21 parts on this diagram · 1 diagram in section
