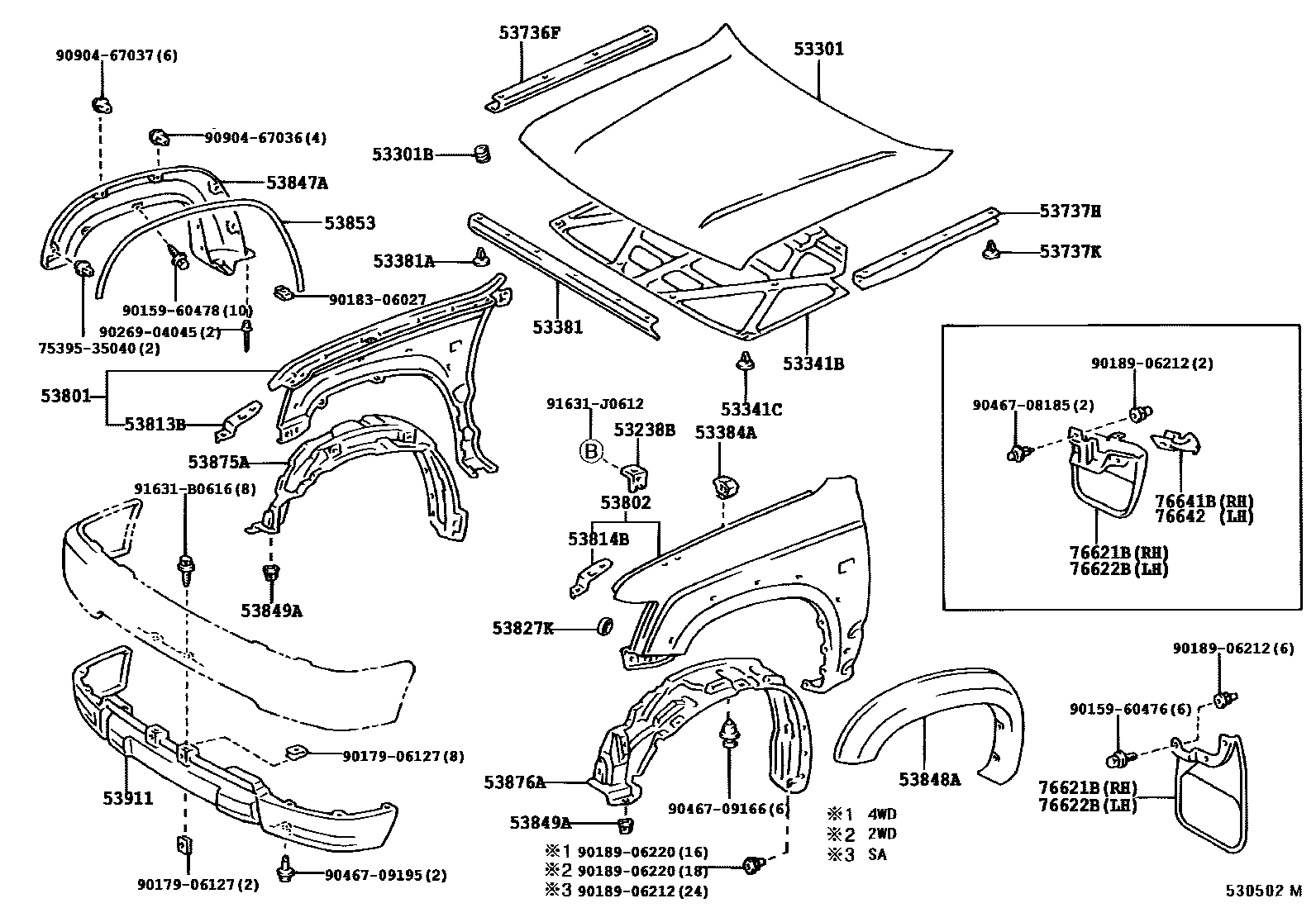

HOOD & FRONT FENDER

0001 1 0002 1 0004 1 0010 1

53238BBRACKET, HOOD BUMPER MOUNTING

main53238-35010iLN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI.199708-200603

53301HOOD SUB-ASSY

main53301-35060iKZN165,LN145,147,15#,167,172,192,RZN147,149,154,169,174..ARL,TH199708-200603

main53301-35070iRZN149..SR;RZN149..DLX..GCC;LN141,146,RZN142,144,147..GCC199708-200108

W(HOOD EMBLEM)

main53301-35070iRZN148..DLX..CBU;RZN168..DCB..DLX200009-200206

CHINA SPEC

main53301-35100iRZN148,149,168..CO200108-200511

main53301-35110iLN141,146,RZN142,144,147,149..GCC200108-200508

53301BCUSHION, HOOD BUMPER

main90541-15004iLN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI.199711-200603

main90541-15010iLN14#,16#,191,RZN14#,16#,193199708-199711

53341BINSULATOR, HOOD

main53341-04040iKDN145,15#,16#,190..(DCB,SCB,XTR)..TH..CBU200109-200502

main53341-35040iLN150,152..SR;LN157,167,192..SA,TH;LN140,141,145,146,166..GCC,SA199708-200203

main53341-35090iLN140,141,145,146,16#,192..GCC,SA200108-200508

main53341-35100iKZN190..SR;LN145..LHD..GEN;LN147..SCB..IV3;LN167..(DCB,SCB)..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN172..(DCB,SCB,XTR)..(ARL,SA)200108-200506

main53341-35121iLN145..LHD..DCB..GEN199708-200203

main53341-YE030iKDN16#,190..SRWGN200304-200409

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iLN147,167,172199708-199801

main90467-09118iKZN190..SR;LN167..ARL;LN147..IV3;LN145..LHD..GEN;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU;KDN145,15#,16#,190,KZN165,LN172..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(ARL,S199801-200508

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-35030iLN145..DCB..IV3;LN145..LHD..IV3;RZN169..DCB..SA;RZN169..DLX..SA;RZN149..EFI..GEN;LN167,RZN194..SR..SA;LN145,RZN142,147..(GCC,GEN)..CBU;KZN190,LN166,RZN148,168,193..199708-200603

main53381-35040iKZN165,190,RZN169,194..SR..SA200108-200307

main53381-35041iRZN148..GEN;LN145..LHD..IV3;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);KDN165,190,LN141,145,146,166,171,191,RZN142,144,147,154,16#,193..(CO,GCC,GEN,MA)..CBU200307-200511

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iLN145..DCB..IV3;LN145..LHD..IV3;RZN169..DCB..SA;RZN169..DLX..SA;RZN149..EFI..GEN;LN167,RZN194..SR..SA;LN145,RZN142,147..(GCC,GEN)..CBU;KZN190,LN166,RZN148,168,193..199708-200603

53384ABUMPER, FENDER TO HOOD

main53384-35010iLN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI.199708-200603

53736FSEAL, FRONT FENDER APRON, RH

main53736-35020iLN145..LHD..DCB..GEN199708-200508

53737HSEAL, FRONT FENDER APRON, LH

main53737-04010iKDN16#,190..SRWGN200109-200502

main53737-35040iKZN190..SR;KZN165,LN140,145,147,152,167,172,192..(DCB,SCB,XTR)..(ARL,SA)199708-200504

53737KCLIP(FOR FRONT FENDER APRON SEAL)

main90467-08011iLN145..LHD..DCB..GEN199708-200508

main90467-08011iKZN165,LN145,15#,167,192..TH199806-200109

W(AIR CONDITIONER)

53801FENDER SUB-ASSY, FRONT RH

main53801-35080iLN166,171,191,RZN16#,193..GCC,GEN199708-200008

sub53801-35081

main53801-35080iLN167,172..IV3;LN167..DCB..ARL199708-199809

NEW ZEALAND SPEC

sub53801-35081

main53801-35081iLN167,192..SCB..DSL..SA;LN166,171,191,RZN16#,193..GCC,GEN200008-200108

main53801-35090iLN166,RZN169..RHD..GEN199708-200008

W(ANTENNA)

sub53801-35091

main53801-35090iLN172..THXTR..IV3199808-199809

NEW ZEALAND SPEC & W(ANTENNA)

sub53801-35091

main53801-35091iLN192..SCB;RZN169..RHD..(GEN,SA);LN16#..RHD..DLX..(GEN,SA)200008-200108

W(ANTENNA)

main53801-35100iKZN190..SCB;RZN169..LHD..GEN;KZN165,LN167,172,RZN169,174..ARL199708-200008

W(SIDE TURN SIGNAL LAMP)

sub53801-35101

main53801-35101iRZN169..DCB..SA;RZN169..DLX..SA;RZN168..DCB..DLX200008-200206

W(SIDE TURN SIGNAL LAMP)

main53801-35110iLN167,192,RZN169,194..SA199708-200008

W(ANTENNA & SIDE TURN SIGNAL LAMP)

sub53801-35111

main53801-35111iRZN169..SA200008-200203

W(ANTENNA & SIDE TURN SIGNAL LAMP)

main53801-35120iKZN190;LN167,RZN169..(DCB,THDCB)..(ARL,GEN);KZN165,LN166..(DCB,THDCB)..(ARL,GEN,SA)199708-200008

W(SIDE TURN SIGNAL LAMP & OVER FENDER)

sub53801-35121

main53801-35121iRZN169..SA;RZN194..SCB200008-200108

W(SIDE TURN SIGNAL LAMP & OVER FENDER)

main53801-35130iKZN190;KZN165,LN166..RHD..(DCB,THDCB);LN167,RZN169..RHD..(DCB,THDCB)..DLX199708-200008

W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)

sub53801-35131

main53801-35131iKZN190,LN192..DLX..(DEFI,TDE);RZN169..(DCB,THDCB)..DLX..ARL;KZN165,RZN194..(DCB,THDCB)..SR..(ARL,SA);LN16#,RZN169..RHD..(DCB,THDCB)..DLX..(CBR,DEFI,DSL)..(ARL,GEN)200008

W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)

main53801-35150iLN140,145,RZN147..SA199708-200008

sub53801-35151

main53801-35150iLN152..IV3199708-199809

NEW ZEALAND SPEC

sub53801-35151

main53801-35151iLN145..DCB..IV3;LN145..LHD..IV3;RZN147..DCB..SA;RZN148,YN140..DLX..(GEN,SA);LN145,RZN149..(DSL,EFI)..GEN..CBU;LN141,146,157,RZN142,144,147,149,154..(CBR,DSL)..(GCC,200008-200603

main53801-35160iRZN154..XTR..MTM..ARL;LN147,RZN149..MTM..IV3;LN147,152,RZN149..(DCB,THXTR)..ARL199708-200008

W(ANTENNA)

sub53801-35311

main53801-35160iRZN154..THXTR..MTM199808-199809

NEW ZEALAND SPEC & W(ANTENNA)

sub53801-35311

main53801-35170iRZN149..SR..GEN;RZN147..LHD..GEN;LN147,RZN147,149,154..ARL199708-200008

W(SIDE TURN SIGNAL LAMP)

sub53801-35171

main53801-35170iLN152..IV3199809-200008

sub53801-35171

main53801-35171iLN152..IV3;RZN147..ARL;LN147,RZN142,149,154..RHD..DLX200008-200206

W(SIDE TURN SIGNAL LAMP)

main53801-35180iLN140,145,RZN147..SA199708-200008

W(ANTENNA & SIDE TURN SIGNAL LAMP)

sub53801-35181

main53801-35180iLN152..THXTR199808-200008

W(ANTENNA)

sub53801-35181

main53801-35181iLN147,152,RZN149,154..(DSL,EFI)..ARL200008-200109

W(ANTENNA & SIDE TURN SIGNAL LAMP)

main53801-35300iLN145..RHD..SCB..GEN200006-200008

PAKISTAN SPEC

sub53801-35301

main53801-35310iLN145..RHD..SCB..GEN200006-200008

PAKISTAN SPEC & W(ANTENNA)

sub53801-35311

main53801-35311iLN145,RZN147..RHD..GEN200008

W(ANTENNA)

main53801-35331iRZN147..ARL;LN152..DEFI..IV3;LN147,RZN142..RHD..DLX..(CBR,DEFI)200008-200203

W(ANTENNA HOLE)

sub53801-35181

main53801-35360iLN145..LHD..IV3;RZN148,149..CO,GCC;LN141,145,146,RZN142,144,147,148,154..(GCC,GEN)..CBU200108-200511

main53801-35370iLN145..SA;LN145..LHD..TH;LN140,147,152,155,RZN142,147..ARL,SA,TH200109-200504

main53801-35370iRZN148..GEN..CBU200108-200304

CHINA SPEC

main53801-35370iRZN149,154..ARL200109-200502

W(SIDE TURN SIGNAL LAMP)

main53801-35370iLN145..LHD..GEN200108-200506

TURKEY SPEC

main53801-35380iKDN145,15#,LN145,147,150,152,RZN147,149,154..RHD..(ARL,TH)200109-200502

W(ANTENNA & SIDE TURN SIGNAL LAMP)

main53801-35420iLN145,RZN147..RHD..GEN..CBU200108-200506

W(ANTENNA)

main53801-35430iLN166,171,191,RZN16#,193..CO,GCC,GEN200108-200511

main53801-35440iLN166,RZN169..RHD..(GEN,MA)200108-200506

W(ANTENNA)

main53801-35450iVZN167..DCB;KZN165..IV1;RZN169..ARL;KZN165..SR..ARL;RZN169..DLX..SA;LN167,172,192,RZN174,VZN172..ARL,SA200108-200504

W(SIDE TURN SIGNAL LAMP)

main53801-35460iKDN165,190..IV1;KZN165,LN167,172,RZN169,174,VZN167,172..ARL200109-200502

W(ANTENNA & SIDE TURN SIGNAL LAMP)

main53801-35470iLN167..SR..ARL;LN166..DCB..GEN;KDN165,190,RZN169..DCB..DLX..(GEN,MA);KDN166,KZN165,RZN169,VZN167..(DCB,THDCB,XTR)..SR..(ARL,GEN,TH)..CBU200108-200506

W(SIDE TURN SIGNAL LAMP & OVER FENDER)

main53801-35480iKZN165,LN167..SR..(ARL,SA);LN166,RZN169..RHD..DCB..(GEN,MA);KDN165,190,KZN190,RZN169,194,VZN167..RHD..(DCB,SCB,THDCB,XTR)..SR..CBU200108-200506

##

53802FENDER SUB-ASSY, FRONT LH

main53802-35180iLN166,171,191,RZN16#,193..GEN199708-200008

sub53802-35181

main53802-35180iLN167,172..IV3;LN167..DCB..ARL199708-199809

NEW ZEALAND SPEC

sub53802-35181

main53802-35181iLN167,192..SCB..DSL..SA;LN166,171,191,RZN16#,193..GEN,SA200008-200203

main53802-35190iLN167..DCB..ARL199708-200008

W(ANTENNA HOLE)

sub53802-35191

main53802-35191iRZN169..LHD..CBR;LN166,171,191,RZN168,193..LHD..DLX200008-200206

W(ANTENNA)

main53802-35200iKZN165..ARL;RZN169..LHD..GEN;LN167,RZN169..(DCB,THDCB)..ARL199708-200008

W(ANTENNA & SIDE TURN SIGNAL LAMP)

sub53802-35201

main53802-35201iKZN165..SR..ARL;LN167,RZN169..(DCB,THDCB)..ARL200008-200109

W(ANTENNA & SIDE TURN SIGNAL LAMP)

main53802-35230iLN166,RZN169..LHD..DCB..GEN;KZN165,LN167,RZN169..(DCB,THDCB)..ARL199708-200008

W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)

sub53802-35231

main53802-35231iKZN165..(DCB,THDCB)..SR..ARL;LN167,RZN169..(DCB,THDCB)..ARL;LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN200008-200109

W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)

main53802-35240iLN167,192,RZN169..DCB..SA199708-200008

W(SIDE TURN SIGNAL LAMP & OVER FENDER)

sub53802-35241

main53802-35241iKZN165,LN192,RZN169,194..SA200008-200203

W(SIDE TURN SIGNAL LAMP & OVER FENDER)

main53802-35260iLN152..IV3199708-199809

NEW ZEALAND SPEC

sub53802-35440

main53802-35260iLN140,145,RZN147..SA199708-200008

sub53802-35440

main53802-35270iLN145,155..LHD..TH199806-200008

W(ANTENNA)

sub53802-35271

main53802-35270iLN145..LHD..GEN;LN141,146,RZN14#,154..LHD..CBU199708-200008

W(ANTENNA HOLE)

sub53802-35271

main53802-35270iRZN148..IV3199909-200008

sub53802-35271

main53802-35271iRZN148,149..DLX..EFI..GEN;LN141,145,146,RZN142,144,147,149,154..LHD..(CBR,DSL)..(GCC,GEN)200008-200206

W(ANTENNA)

main53802-35280iLN152..THXTR199708-200008

W(SIDE TURN SIGNAL LAMP)

sub53802-35281

main53802-35281iLN152..IV3;RZN147..ARL;LN147,RZN142,149,154..RHD..DLX200008-200203

W(SIDE TURN SIGNAL LAMP)

main53802-35281iRZN148..DLX..CBU200009-200206

THAILAND PRODUCT

main53802-35290iRZN149..SR..GEN;RZN147..LHD..GEN;LN147,RZN149..(DCB,THDCB)..ARL199708-200008

W(ANTENNA & SIDE TURN SIGNAL LAMP)

sub53802-35291

main53802-35291iLN145,155..LHD..TH200008-200109

W(ANTENNA & SIDE TURN SIGNAL LAMP)

main53802-35291iRZN148..DLX..CBU200009-200206

main53802-35320iLN167,192,RZN169,194..SA199708-200008

W(SIDE TURN SIGNAL LAMP)

sub53802-35321

main53802-35321iRZN169..LHD..GEN200008-200203

W(SIDE TURN SIGNAL LAMP)

main53802-35440iLN145..RHD..SCB..GEN200006-200008

PAKISTAN SPEC

sub53802-35441

main53802-35441iRZN148..CBU;LN145,RZN142,147,149,154..MTM..GEN200008-200108

PAKISTAN SPEC

main53802-35470iRZN148..GEN..CBU;RZN148,149..CO,GCC;LN141,145,146,RZN142,144,147,154..LHD..(GCC,GEN)200108-200511

W(ANTENNA)

main53802-35480iLN145..SA;LN147..IV3;LN145..LHD..GEN;LN147..DCB,THDCB;LN145,150,152..RHD..(DCB,THXTR,XTR)..DLX..(ARL,TH)..CBU;KDN145,15#,LN140,155,RZN142,147,149,154..RHD..(ARL,SA,200108-200506

W(SIDE TURN SIGNAL LAMP)

main53802-35490iRZN148..GEN..CBU200108-200506

W(ANTENNA & SIDE TURN SIGNAL LAMP)

main53802-35510iRZN142,147,154..GEN;LN145..RHD..GEN..CBU200108-200506

W(SIDE TURN SIGNAL LAMP)

main53802-35520iLN166,171,191,RZN16#,193..GEN,MA200108-200506

main53802-35530iLN166,171,191,RZN16#,193..LHD200108-200511

W(ANTENNA)

main53802-35540iKDN165,190..IV1;RZN169..DLX..SA;LN167,192..ARL,SA;KZN165,LN172,RZN169,174,VZN167,172..ARL200108-200504

W(SIDE TURN SIGNAL LAMP)

main53802-35550iKZN165..IV1;KZN165..SR..ARL;LN167,RZN169,VZN167..(DCB,THDCB)..ARL200108-200502

W(ANTENNA & SIDE TURN SIGNAL LAMP)

main53802-35570iKDN165,190..MA;LN167..SR..ARL;LN166..LHD..DCB..GEN;RZN169..LHD..DCB..DLX..GEN;KDN166,KZN165,RZN169,VZN167..(DCB,THDCB,XTR)..SR..(ARL,GEN,TH)..CBU200108-200506

W(SIDE TURN SIGNAL LAMP & OVER FENDER & ANTENNA)

main53802-35580iLN166..DCB..(GEN,MA);RZN169..DCB..DLX..GEN;KZN165,LN167..SR..(ARL,SA);KDN165,190,KZN190,RZN169,194,VZN167..(DCB,SCB,THDCB,XTR)..SR..CBU200108-200506

W(SIDE TURN SIGNAL LAMP & OVER FENDER)

53813BEXTENSION, FRONT FENDER, RH

main53813-35010iRZN149,154..CBR;LN147,RZN149..SCB..ARL..CBU;LN167,RZN144,169,194..DCB,SCB;RZN149,154..(SCB,THXTR,XTR)..ATM;LN140,141,145,146,152,155,157,166,17#,19#,RZN142,147,148,199708-200203

main53813-35040iKZN190..SR;LN147..IV3;LN145..LHD..IV3;LN150,152,192..DLX..CBU;LN145,RZN148..(GEN,SA)..CBU;LN167,RZN148,149..ARL,CO,GCC,SA;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15200108-200511

53814BEXTENSION, FRONT FENDER, LH

main53814-35010iLN145..SA;LN145..IV3;RZN147..GCC;RZN149..CBU;LN145..DCB..CBU;RZN147..RHD..DCB..GEN;RZN147..RHD..(SCB,THSCB);LN145,155,RZN154..LHD..(SCB,XTR)..CBU;RZN149,154..(SCB,T199708-200203

main53814-35040iRZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU200108-200511

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-35010iLN145,15#,167,192..TH199902-200009

sub53827-35011

main53827-35011iLN150..SR;LN145,155..SCB..TH;LN145..LHD..DLX..TH200007-200603

53847AEXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, RH

main53087-35901iLN167,RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN194..(DCB,SADCB,THDCB)..SR..(ARL,SA);KZN190,LN166,RZN169..DCB..DLX..(CBR,DS199708-200603

53848AEXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, LH

main53088-35901iRZN169..DCB..DLX..GEN;KDN165,190,LN166,RZN194..DCB..(GEN,MA,SA);KZN165,190,LN167,RZN169,VZN167..DCB..SR..(ARL,GEN,SA)199708-200603

53849ACAP, FRONT WHEEL OPENING

main53849-35010iKZN165,LN172..SCB,XTR;LN167..(DCB,SCB)..ARL199904-200603

53853PAD, FRONT WHEEL OPENING EXTENSION, NO.3

main53853-35050-A0iRZN169..DCB..SA;KZN165..SR..(ARL,SA);LN167,RZN169..(DCB,THDCB)..DLX..ARL;KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN16#,192,RZN194..(DCB,SADCB)..(DSL,EFI)..(GEN200009-200603

LIGHT GREEN,6P4

sub53853-35050

main53853-35050-A1iKZN165..SR..(ARL,SA);LN167,RZN169..DCB..SR..(SA,TH);LN167,RZN169..(DCB,THDCB)..DLX..ARL;KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN166,192,RZN194..(DCB,SADCB)..200009-200603

*104,DARK GREEN,6N7

sub53853-35050

main53853-35050-A2iLN166,RZN169..DCB..(GEN,SA);KZN165,RZN194..DCB..SR..(ARL,SA)200108-200506

*104,DARK BLUE,8L7

sub53853-35050

main53853-35050-A2iRZN169..DCB..SR..ARL;KDN165,190,LN166..DCB..MA;KZN190,LN167,VZN167..DCB..SR200109-200504

DARK BLUE,8L7

sub53853-35050

main53853-35050-A2iKZN165..SR..(ARL,SA);LN167,RZN169..DCB..SR..(SA,TH);LN167,RZN169..(DCB,THDCB)..DLX..ARL;KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN166,192,RZN194..(DCB,SADCB)..200009-200603

*104,DARK BLUE,6N7 ,8L7

sub53853-35050

main53853-35050-A3iLN166,RZN169..DCB..DLX..(CBR,DSL)..GEN200009-200603

GRAYISH PURPLE,000 ,058 ,926

sub53853-35050

main53853-35050-A3iKZN165..SR..(ARL,SA);LN167,RZN169..(DCB,THDCB)..DLX..ARL;KZN190,LN167,192,RZN169,194..(DCB,SADCB)..(SA,TH)200009-200203

GRAYISH PURPLE,058 ,926

sub53853-35050

main53853-35050-B1iLN166..DCB..DSL..GEN;RZN169..RHD..DCB..(GEN,SA);RZN169..LHD..DCB..DLX..GEN;KZN165,190,RZN194..DCB..SR..SA200108-200303

GRAY,058 ,1E4 ,204 ,3K4 ,3L5 ,6R4

sub53853-35050

main53853-35050-B1iLN166,RZN169..SR..GEN200303-200506

GRAY,000 ,058 ,1E4 ,204 ,2HT ,3K4 ,3L5 ,587 ,6R4 ,8L7

sub53853-35050

main53853-35050-B1iLN166,RZN169..DCB..DLX..GEN200209-200506

GRAY,000 ,058 ,1E4 ,204 ,3K4 ,3L5 ,587 ,6R4 ,8L7

sub53853-35050

main53853-35050-B1iKZN165,LN16#,RZN169,VZN167..DCB..SR..(ARL,GEN)200108-200303

GRAY,058 ,1E4 ,204 ,2HT ,3K4 ,3L5 ,6R4

sub53853-35050

main53853-35050-B1iKZN165,VZN167..SR..ARL200303-200502

GRAY,058 ,1E4 ,204 ,2HT ,3K4 ,3L5 ,587 ,6R4 ,8L7

sub53853-35050

main53853-35050-B1iKZN165,190,RZN169,194..DCB..SA200303-200504

GRAY,058 ,1E4 ,204 ,3K4 ,3L5 ,587 ,6R4 ,8L7

sub53853-35050

main53853-35050-E0iRZN169..DCB..DLX..GEN;KDN165,190,LN166,RZN194..DCB..(GEN,MA,SA);KZN165,190,LN167,RZN169,VZN167..DCB..SR..(ARL,GEN,SA)200108-200506

IVORY,587

sub53853-35050

main53853-35050-G0iKZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA)199708-200009

LIGHT GREEN,6P4

sub53853-35050

main53853-35050-G1iLN167,192..DCB..SA199708-200009

DARK GREEN,6N7

sub53853-35050

main53853-35050-J0iLN167,192..DCB..SA199708-200009

DARK BLUE,8L7

sub53853-35050

main53853-35050-K0iKZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA)199708-200009

GRAISH PURPLE,058 ,926

sub53853-35050

53875ALINER, FRONT FENDER, RH

main53875-04140iKDN16#,190..TH;LN167,172..THDCB,THSCB,THXTR200305-200502

main53875-35030iLN166,171,191,RZN193..LHD;LN167,172,RZN169,174..ARL,GCC,GEN199708-199904

main53875-35040iLN140,145,RZN147,YN140..SA199708-200603

main53875-35060iKZN165..SCB..SR;LN167,172..(DCB,SCB,XTR)..DSL..ARL199904-200603

main53875-35070iLN147..IV3;LN145..LHD..IV3;LN147..DCB,THDCB;RZN148,149..ARL,CO,GCC;LN140,141,146,RZN142,144,147,154;LN145,152,RZN148..(ARL,GEN,SA)..CBU200108-200511

main53875-35080iLN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX200108-200511

53876ALINER, FRONT FENDER, LH

main53876-04140iKDN16#,190..TH;LN167,172..THDCB,THSCB,THXTR200305-200502

main53876-35020iLN166,171,191,RZN193..LHD;LN167,172,RZN169,174..ARL,GCC,GEN199708-199904

main53876-35030iLN140,145,RZN147,YN140..SA199708-200603

main53876-35050iLN166..LHD..DSL;RZN169..DLX..ARL;LN167..(THDCB,THSCB)..DLX;KZN165..(THDCB,THSCB)..SR;KZN165,LN172..(SCB,THXTR)..DLX;KZN165,LN171,191,RZN174,193..(DCB,THXTR,XTR)..(A199904-200603

main53876-35060iLN147..IV3;LN145..LHD..IV3;LN147..DCB,THDCB;RZN148,149..ARL,CO,GCC;LN140,141,146,RZN142,144,147,154;LN145,152,RZN148..(ARL,GEN,SA)..CBU200108-200511

main53876-35070iLN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX200108-200511

53911PANEL, FRONT VALANCE

main53911-04140iKDN145,15#,LN145,150,155..TH;LN147,152,RZN147,149,154..THDCB,THSCB,THXTR200109-200502

main53911-04160iKDN16#,190,KZN165..(DCB,XTR)..TH;KZN165,LN167,172,RZN169,174..THDCB,THSCB,THXTR200109-200502

main53911-35190iKZN165,LN167,172,192,RZN169,174..ARL,TH199708-200603

main53911-35220iLN152..XTR..IV3;RZN154..XTR..ARL;RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);LN147,RZN147,148..(DCB,SCB)..DLX..(ARL,GCC,GEN,SA);LN140,141,145,146,RZN142,144,149,154,YN14199708-200603

main53911-35360iLN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,G200108-200511

main53911-35370-B0iLN147,RZN148,149..DCB..SR..(ARL,GEN)200108-200506

SILVER ME.,2HT

main53911-35370-F0iLN147,RZN148,149..DCB..SR..(ARL,GEN)200108-200506

CHAMPAGNE M.M.,587

main53911-35390iKDN165,190,LN166..MA200108-200511

main53911-35400-B0iKZN165,LN16#,RZN16#,VZN167..DCB..SR..(ARL,GEN)200108-200506

SILVER ME.,2HT

main53911-35400-F0iKZN165,LN16#,RZN16#,VZN167..DCB..SR..(ARL,GEN)200108-200506

CHAMPAGNE M.M.,587

76621BMUDGUARD, FRONT BODY, RH

main76603-35020iLN166..DCB..GEN;RZN169..DCB..DLX..GEN;KZN165,LN167,RZN169,VZN167..SR..(ARL,GEN)199708-200603

W(OVER FENDER)

main76621-04070iLN167..TH..CBU;KZN165,LN192..(THDCB,XTR)..CBU;LN167,172,RZN169,174..THDCB,THSCB,THXTR200104-200502

main76621-35050iRZN194199708-200603

main76621-35090iLN147,RZN149..SCB..MTM..IV3;LN147,RZN149,154..(DCB,XTR)..ARL;LN140,145,152,RZN142,147..RHD..(DCB,SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN,SA)..CBU199708-200603

76622BMUDGUARD, FRONT BODY, LH

main76604-35020iKZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)199708-200603

W(OVER FENDER)

main76622-04070iLN167..TH..CBU;KZN165,LN192..(THDCB,XTR)..CBU;LN167,172,RZN169,174..THDCB,THSCB,THXTR200104-200502

main76622-35050iRZN194199708-200603

main76622-35090iLN147,RZN149..THSCB..MTM..(DSL,EFI)..IV3199708-200603

76641BBRACKET, FRONT FENDER PANEL MUDGUARD, RH

main76641-35020iKZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)199708-200603

76642BRACKET, FRONT FENDER PANEL MUDGUARD, LH

main76642-35020iLN166..DCB..GEN;RZN169..DCB..DLX..GEN;KZN165,LN167,RZN169,VZN167..SR..(ARL,GEN)199708-200603

7539535040CLIP, BACK DOOR MOULDING, NO.1

main75395-35040

9015960476

main90159-60476

9015960478

main90159-60478

9017906127

main90179-06127

9018306027

main90183-06027

9018906212

main90189-06212

9018906220

main90189-06220

9026904045

main90269-04045

9046708185

main90467-08185

9046709166

main90467-09166

9046709195

main90467-09195

9090467036

main90904-67036

9090467037

main90904-67037

91631B0616

main91631-B0616

91631J0612

main91631-J0612

42 parts on this diagram · 4 diagrams in section
