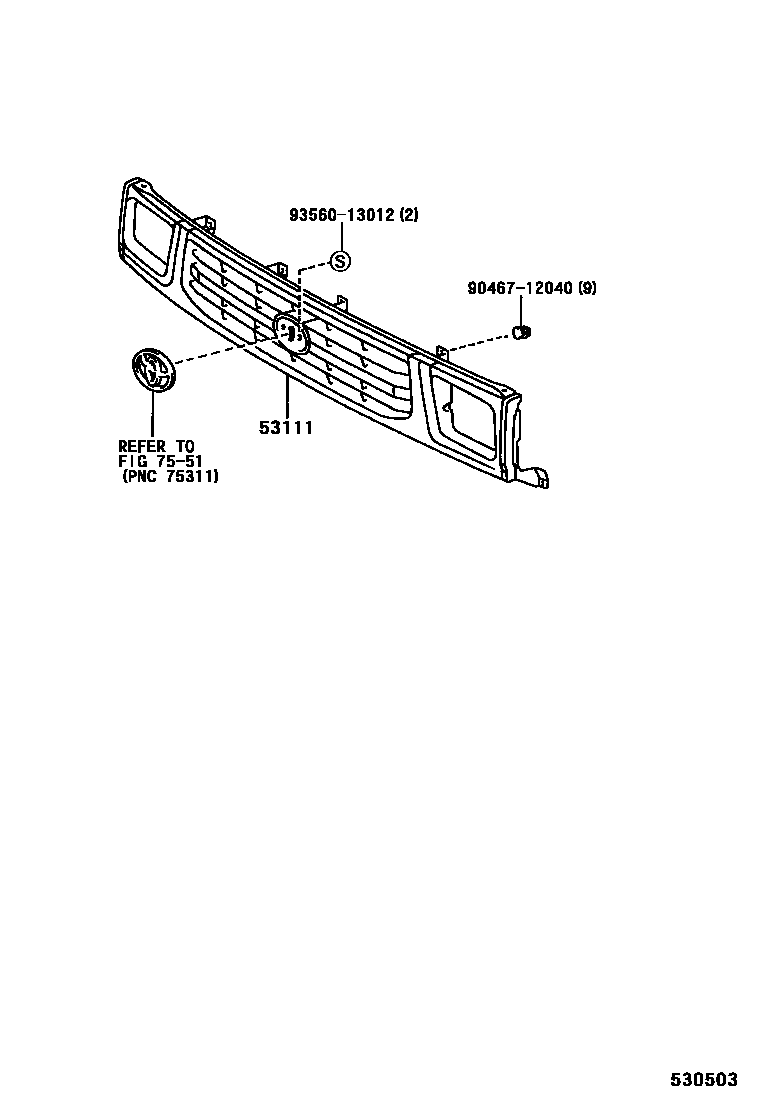

RADIATOR GRILLE

0001 1 0004 1 0010 1 0011 1

53111GRILLE, RADIATOR

main53101-35040iVZN167,172200208-200502

TYPE B:REFER TO ILLUSTRATION

main53101-35050iVZN167,172200208-200502

TYPE B:REFER TO ILLUSTRATION, CHROME PLATED

main53111-04160iLN145,155,157..TH199806-200009

main53111-04170iLN145,155..LHD..TH200009-200109

CHROME PLATED

main53111-04260iLN167..THDCB..SR;LN167..THSCB..CBU;KZN165,RZN147,169,174..THDCB,THSCB,THXTR200109-200208

main53111-04280iKZN165..TH;KDN165,190..IV1;LN167..THSCB..CBU;KZN165,LN167..THDCB..SR;RZN169,174..THDCB,THXTR200109-200208

CHROME PLATED

main53111-35370iRZN148,149..DLX..GEN199708-199909

COLOMBIA SPEC

main53111-35380iRZN169..SA;KZN165..SR..(ARL,SA);RZN169..(DCB,THDCB)..ARL;LN167,172,192,RZN174,194..ARL,SA200108-200109

CHROME PLATED

main53111-35410iRZN142..SA200109-200203

main53111-35420iRZN149..MTM;LN145..LHD..IV3;LN145..DCB..IV3;LN145..(GEN,SA)..CBU;RZN149..ATM..ARL..CBU;RZN142,148,154..(ARL,GCC,GEN)..CBU;LN140,141,146,147,152,RZN144,147..(CBR,DEF199909-200108

CHROME PLATED

main53111-35510iLN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN;RZN148..DLX..GEN..CBU200203

TYPE A:REFER TO ILLUSTRATION

main53111-35520iLN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN;RZN148..DLX..GEN..CBU200108

TYPE A:REFER TO ILLUSTRATION, CHROME PLATED

main53111-35530iLN166..MA200108-200503

TYPE B:REFER TO ILLUSTRATION

main53111-35540iRZN169..DCB..ARL;LN167..DCB..SR..ARL;LN167,RZN174..(SCB,XTR)..ARL..CBU200108-200208

TYPE B:REFER TO ILLUSTRATION, CHROME PLATED

main53111-35610iLN166..RHD..SCB..GEN200210

FOR PAKISTAN GOVERNMENT

7551

9046712040

main90467-12040

9356013012

main93560-13012

4 parts on this diagram · 4 diagrams in section
