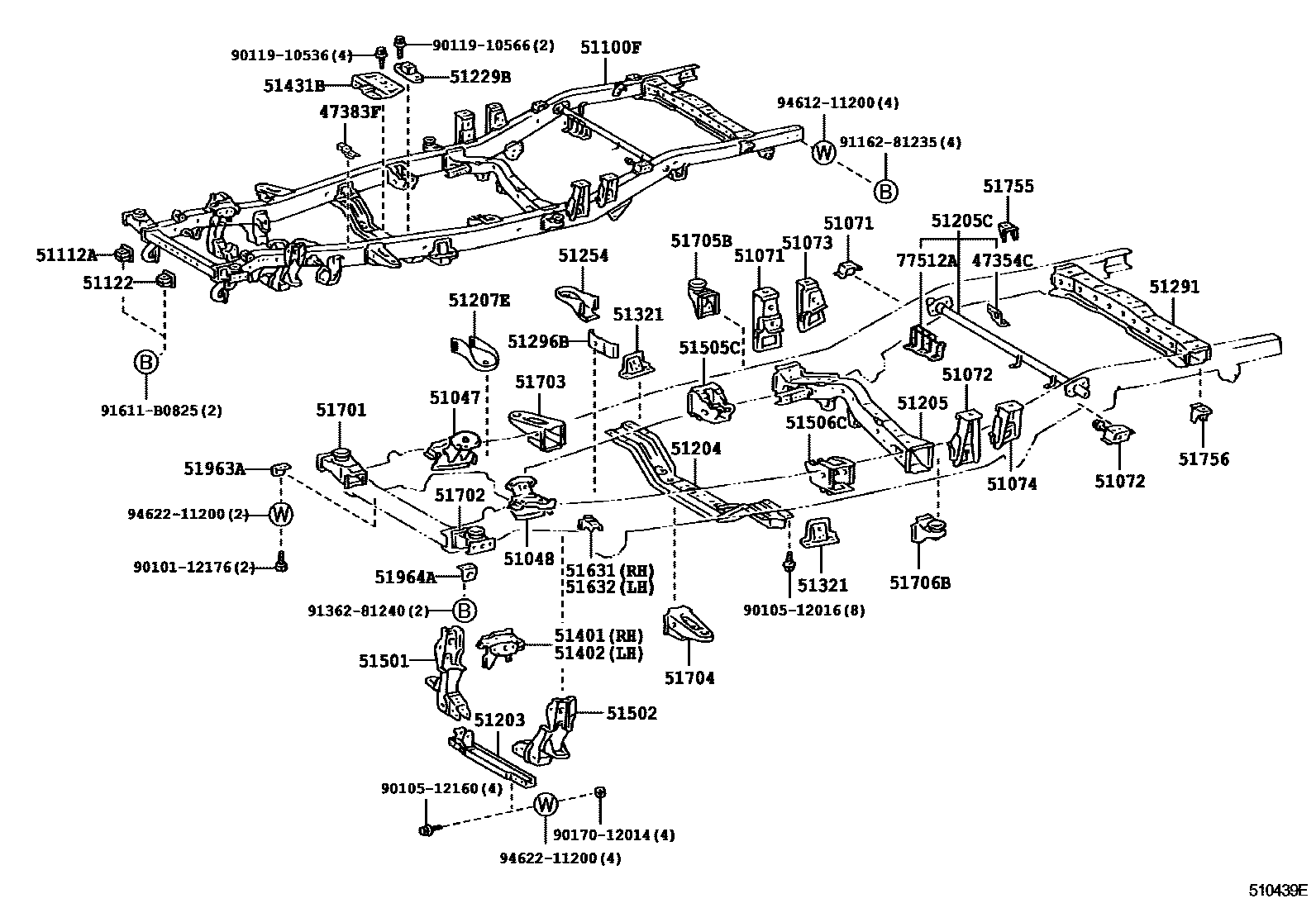

FRAME

0001 1 0004 1 0005 1 0007 1

47354CBRACKET, FLEXIBLE HOSE, NO.4

main47354-35110iLN167,192..SA;RZN194..SADCB199708-200408

47383FBRACKET, CONNECTOR

main47383-35020iLN167..DSL..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);KZN165,RZN168..SCB..DLX..(ARL,GEN);RZN169..(SCB,THSCB)..DLX..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZ199708-200603

51047BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, RH

main51047-35080iKZN165..SCB199909-200203

51048BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, LH

main51048-35080iKZN165..SCB199909-200203

51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH

main51741-35080iRZN168..DCB..DLX199708-200511

main51741-35090iLN147..IV3;LN145..LHD..IV3;RZN169..SCB..(ARL,GCC,GEN);LN145,RZN148..SCB..GEN..CBU;RZN148,149..(SCB,THSCB)..(ARL,CO,GCC);KZN165,LN16#,RZN147,168,VZN167..(SCB,THSCB).199708-200511

51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH

main51072-35030iRZN149..SR..GEN199708-200511

main51072-35040iRZN169..DCB;KZN190..DCB..SR;LN167..(DCB,THDCB)..(ARL,SA);KDN16#,190,KZN165,LN166,191,RZN168,19#,VZN167..DCB,THDCB199708-200511

main51741-35090iLN167..THSCB199708-200511

51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

main51742-35120iLN147,167..IV3;LN152..ARL..CBU;RZN149..(SCB,THSCB)..ARL;KZN165,LN172,RZN154,VZN167,172..(SCB,THXTR,XTR)..ARL199708-200506

51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

main51743-35120iRZN154..GEN199708-200506

51100FFRAME SUB-ASSY

main51001-3G050iRZN169..THDCB199708-200208

sub51002-3G400

main51001-3G050iRZN168..DCB..DLX199909-200206

COLOMBIA CKD PACKAGE

sub51002-3G400

main51001-3G060iLN167..DCB..TH;LN167..THDCB..DEFI199708-200502

sub51002-3G410

main51001-3G130iLN167..SCB..ARL199708-200506

main51001-3G140iRZN168..SCB199708-200506

main51001-3G160iRZN154..XTR..ARL199711-200109

main51001-3G161iRZN154..XTR..ARL200109-200502

main51001-3G280iRZN149..DCB..ARL199708-199908

ROUGH ROAD PACKAGE

main51001-3G280iRZN149..THDCB199902-200109

main51001-3G281iRZN149..THDCB200109-200502

main51001-3G290iLN147..DCB199708-199908

ROUGH ROAD PACKAGE

main51001-3G290iLN147..THDCB..DEFI199902-200109

main51001-3G291iLN145..RHD..TH200109-200502

main51001-3G300iRZN148..DCB..DLX199708-200206

main51001-3G301iRZN147,148..LHD..DCB..GEN200108-200506

sub51001-3G300

main51001-3G310iRZN147,148,149..LHD..DCB..GEN199708-199908

ROUGH ROAD PACKAGE

main51001-3G310iRZN148..DCB..DLX199909-200206

COLOMBIA CKD PACKAGE, ROUGH ROAD PACKAGE

main51001-3G310iRZN149..DCB..EFI..GEN200009-200206

main51001-3G340iRZN142,144..GCC199708-200108

main51001-3G341iRZN142,144..GCC200108

main51001-3G370iLN147..THSCB199708-200109

sub51002-3G430

main51001-3G371iLN147..THSCB200109-200502

main51001-3G380iRZN147,149..THSCB199812-200109

sub51002-3G420

main51001-3G380iRZN147,149..SCB..ARL199708-199908

ROUGH ROAD PACKAGE

sub51002-3G420

main51001-3G381iRZN149..THSCB200109-200502

main51001-3G400iLN141199708-200108

ROUGH ROAD PACKAGE

main51001-3G401iLN141200108

ROUGH ROAD PACKAGE

main51001-3G410iRZN147,149..SCB..GCC199708-200108

main51001-3G411iRZN147,149..SCB..GCC200108

main51001-3G420iRZN147,149..SCB..GCC199708-200108

ROUGH ROAD PACKAGE

main51001-3G421iRZN147,149..SCB..GCC200108

ROUGH ROAD PACKAGE

main51001-3G480iLN172..THXTR199911-200009

main51001-3G530iLN141199708-200108

main51001-3G531iLN141200108

main51001-3G540iRZN142,144..GCC199708-200108

ROUGH ROAD PACKAGE

main51001-3G541iRZN142,144..GCC200108

ROUGH ROAD PACKAGE

main51001-3G550iLN145..LHD..SCB199708-200108

ROUGH ROAD PACKAGE

main51001-3G551iLN145..LHD..SCB200108-200506

ROUGH ROAD PACKAGE

main51001-3G570iLN152..XTR..DEFI..IV3199811-200109

main51001-3G571iLN152..XTR200109-200502

main51001-3G610iRZN142..GEN199708-200108

main51001-3G611iRZN142..GEN200108-200506

main51001-3G620iRZN142..GEN199708-200108

ROUGH ROAD PACKAGE

main51001-3G621iRZN142..GEN200108-200506

ROUGH ROAD PACKAGE

main51001-3G630iRZN193199708-200506

main51001-3G640iLN191199708-200506

main51001-3G720iRZN147,149..DCB..GCC199708-200108

main51001-3G721iRZN147,149..DCB..GCC200108

main51001-3G730iRZN147,149..DCB..GCC199708-200108

ROUGH ROAD PACKAGE

main51001-3G731iRZN147,149..DCB..GCC200108

ROUGH ROAD PACKAGE

main51001-3G740iLN146199708-200108

main51001-3G741iLN146200108

main51001-3G750iLN146199708-200108

ROUGH ROAD PACKAGE

main51001-3G751iLN146200108

ROUGH ROAD PACKAGE

main51001-3G760iRZN147..RHD..SCB..GEN199708

main51001-3G761iRZN147..RHD..SCB..GEN200108-200506

main51001-3G770iRZN147..RHD..SCB..GEN199708

ROUGH ROAD PACKAGE

main51001-3G771iRZN147..RHD..SCB..GEN200108-200506

ROUGH ROAD PACKAGE

main51001-3G780iRZN148..SCB..CBU199708-200206

main51001-3G781iRZN147,148..LHD..SCB..GEN..CBU200108-200506

main51001-3G810iRZN147,148,149..LHD..SCB..GEN199708-199908

ROUGH ROAD PACKAGE

main51001-3G810iRZN148..IV3;RZN149..SCB..EFI..GEN199909-200206

COLOMBIA CKD PACKAGE, ROUGH ROAD PACKAGE

main51001-3G820iLN145..RHD..SCB..GEN..CBU199708

main51001-3G821iLN145..RHD..SCB..GEN..CBU200108-200506

main51001-3G830iLN145..RHD..SCB..GEN199708

ROUGH ROAD PACKAGE

main51001-3G831iLN145..RHD..SCB..GEN..CBU200108-200506

ROUGH ROAD PACKAGE

main51001-3G840iLN145..LHD..SCB199708-200108

main51001-3G841iLN145..LHD..SCB200108-200506

main51001-3G850iRZN154..GEN199808-200108

main51001-3G851iRZN154..GEN200108-200506

main51001-3G860iRZN154..GEN199808-200108

ROUGH ROAD PACKAGE

main51001-3G861iRZN154..GEN200108-200506

ROUGH ROAD PACKAGE

main51001-3G870iRZN147..RHD..DCB..GEN199708-200108

sub51001-3G260

main51001-3G871iRZN147..RHD..DCB200108-200506

main51001-3G880iRZN147..RHD..DCB..GEN199708-200108

ROUGH ROAD PACKAGE

sub51002-3G440

main51001-3G881iRZN147..RHD..DCB200108-200506

ROUGH ROAD PACKAGE

sub51002-3G441

main51001-3G890iLN145..RHD..DCB..GEN..CBU199708-200108

main51001-3G891iLN145..RHD..DCB..GEN200108-200506

sub51001-3G271

main51001-3M110iKDN165..MA200303-200503

main51001-3M330iVZN167..SCB200208-200502

main51001-3M340iVZN172..MTM200208-200502

main51001-3M350iVZN172..ATM200208-200502

main51001-3M360iVZN167..DCB..MTM200208-200502

main51001-3M370iVZN167..ATM200208-200502

main51001-3M380iKDN166..XTR..ATM200208-200408

main51001-3M530iKDN190..MA200303-200503

main51002-3G010iLN145..DCB..IV3199708-200108

ROUGH ROAD PACKAGE

main51002-3G011iLN145..RHD..DCB..GEN200108-200506

ROUGH ROAD PACKAGE

sub51002-3G451

main51002-3G020iLN145..LHD..DCB..GEN199708-200108

sub51001-3G320

main51002-3G021iLN145..LHD..DCB..GEN200108-200506

main51002-3G030iLN145..LHD..DCB..GEN199708-200108

ROUGH ROAD PACKAGE

sub51001-3G330

main51002-3G031iLN145..LHD..DCB..GEN200108-200506

ROUGH ROAD PACKAGE

main51002-3G180iRZN154..THXTR199808-200109

main51002-3G181iRZN154..THXTR200109-200502

main51002-3G191iLN152..THXTR200109-200502

main51002-3G220iKZN165..SCB199909-200502

main51002-3G260iKZN165..DCB..ARL199909-200502

main51002-3G270iKZN165..THSCB200109-200208

main51002-3G280iKZN165..THDCB;KZN165..DCB..TH200109-200208

main51002-3G310iLN172..XTR199911-200009

main51002-3G380iRZN174..XTR199908-200208

main51002-3G390iLN171199908-200506

main51002-3G400iRZN169..DCB..ARL199908-200506

main51002-3G410iLN166..GCC199908-200506

main51002-3G420iRZN147,149..SCB..ARL199908-200109

main51002-3G421iRZN149..SCB..ARL200109-200502

main51002-3G430iLN147..SCB..DEFI199908-200109

main51002-3G431iLN147..SCB200109-200502

main51002-3G440iRZN149..DCB..ARL199908-200109

main51002-3G441iRZN149..DCB..ARL200109-200502

main51002-3G450iLN147..DCB199908-200109

main51002-3G451iLN147..DCB200109-200502

main51002-3G460iRZN147,149..LHD..SCB..CBR..GEN199908-200206

ROUGH ROAD PACKAGE

main51002-3G461iRZN147,148..LHD..SCB..GEN..CBU200108-200506

ROUGH ROAD PACKAGE

main51002-3G470iRZN149..SR..GEN199908-200206

ROUGH ROAD PACKAGE

main51002-3G471iRZN147,148..LHD..DCB..GEN200108-200506

ROUGH ROAD PACKAGE

main51002-3G480iRZN169..THSCB199909-200208

sub51001-3G140

main51002-3G480iRZN168..SCB199909-200206

COLOMBIA SPEC

sub51001-3G140

main51002-3G490iLN167..THSCB..IV3199909-200502

sub51001-3G130

main51003-3D860iLN172..THXTR199711-200502

main51003-3D880iRZN174..XTR199711-200208

51112AEXTENSION, SIDE RAIL, RH

main51112-35070iLN167..SCB..ARL;LN167..DEFI..TH;LN152..DEFI..IV3;RZN149,169..DLX..ARL;LN167..(DCB,THDCB,THSCB)..DLX..DEFI;LN152,167..(DCB,THDCB,THSCB,THXTR,XTR)..DSL;KZN165,LN152..199708-200508

W(*80)

main51112-35080iLN167..DSL;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..(DCB,SCB)..(ARL,SA);LN167,RZN169..(DEFI,EFI)..(SA,TH);LN167,RZN149,169..DLX..(DEFI,EFI)..AR199708-200508

51122EXTENSION, SIDE RAIL, LH

main51112-35070iLN167..SCB..ARL;LN167..DEFI..TH;LN152..DEFI..IV3;RZN149,169..DLX..ARL;LN167..(DCB,THDCB,THSCB)..DLX..DEFI;LN152,167..(DCB,THDCB,THSCB,THXTR,XTR)..DSL;KZN165,LN152..199708-200508

W(*80)

main51112-35080iLN167..DSL;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..(DCB,SCB)..(ARL,SA);LN167,RZN169..(DEFI,EFI)..(SA,TH);LN167,RZN149,169..DLX..(DEFI,EFI)..AR199708-200508

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-35340iRZN147..ARL199708-200506

main51202-35451iKDN145,15#200110-200408

main51203-35270iKDN165,LN166..MA199708-200506

main51203-35360iKDN190..IV1199708-200506

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51202-35370iRZN169..THDCB199708-200506

main51202-35380iKDN166..SRWGN200208-200411

main51202-35390iRZN193199708-200506

main51202-35400iLN166..RHD..GEN199708-200506

main51202-35410iLN192..DEFI..SA199708-200506

main51202-35420iKZN165..SA199909-200504

main51202-35440iKDN190..IV1200007-200504

main51202-35460iVZN167,172..MTM200208-200502

sub51202-35420

main51203-35310iRZN147..ARL199708-200506

main51203-35340iRZN149..SR..GEN199708-200506

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-35540iLN145,155,157,RZN147..SA,TH;LN147,RZN147,149..THDCB,THSCB199908-199909

KENYA SPEC & ROUGH ROAD PACKAGE

sub51204-35800

main51204-35540iLN145,146,147,155,157,RZN147,148,149199708-200109

sub51204-35800

main51204-35540iRZN148..DLX..GEN..CBU199909

COLOMBIA SPEC

sub51204-35800

main51204-35550iLN150,152,RZN154..RHD199711-200109

sub51204-35730

main51204-35560iLN167..DCB..TH;KZN165,LN167..THDCB,THSCB199708-200109

sub51204-35710

main51204-35570iLN191,RZN193199708-200506

main51204-35590iLN172..THXTR199711-200109

sub51204-35790

main51204-35600iLN141,RZN142,144..GCC199708-200506

main51204-35640iRZN169..THDCB,THSCB199708-200109

sub51204-35780

main51204-35640iRZN168..DLX..GEN199909

COLOMBIA SPEC

sub51204-35780

main51204-35670iRZN174199801-200109

sub51204-35680

main51204-35680iVZN172199911-200502

main51204-35710iKZN165..SA199908-200506

main51204-35720iKDN190..MA200303-200503

main51204-35730iRZN154..GEN199908-200506

main51204-35780iRZN168..DLX;RZN169..(DCB,SCB)..(ARL,SA);LN167,RZN169..(CBR,DEFI,DSL)..(GCC,GEN,SA)199908-200506

main51204-35790iLN17#..XTR199908-200506

sub51204-35680

main51204-35800iRZN147..SCB..ARL199908-200506

main51204-35820iVZN167200208-200502

51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-35250iRZN148,149..DLX..EFI..GEN199708-200506

main51205-35260iLN167,192..SA;RZN194..SADCB199708-200506

main51205-35270iLN141,RZN142,144..GCC199708-200506

51207EBRACKET SUB-ASSY, DIFFERENTIAL SUPPORT, RH

main51207-35010iRZN168..DCB..DLX199708-200206

51229BDUMPER, NO.2 FRAME CROSSMEMBER DYNAMIC

main51229-35020iRZN169..GCC199708-200504

main51229-35040iLN167..DSL;LN167..DEFI..(SA,TH);LN167..DLX..DEFI..ARL;LN166,172,192..ARL,GCC,SA,TH199708-200504

51254BRACKET, DIFFERENTIAL SUPPORT, LH

main51254-35010iRZN169..THDCB199708-200506

51291CROSSMEMBER, FRAME, REAR

main51209-35180iKZN165..SCB;RZN149..SR..GEN199708-200504

main51209-35200iKDN165,190,LN166..MA200109-200506

51296BREINFORCEMENT, DIFFERENTIAL BRACKET, LH

main51296-35010iLN166,171..LHD;RZN169..SCB..CBR199708-200506

51321GUSSET, CROSSMEMBER, NO.2 RH

main51321-35050iLN166..LHD..SCB;RZN169..SCB..CBR199708-200411

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51047-35030iVZN167,172200208-200502

main51047-35070iLN166..RHD..GEN199708-200506

main51047-35080iKZN165,190..SR..SA200109-200504

main51047-35090iRZN194..SADCB199708-200506

main51401-35350iRZN147..RHD..SCB..GEN199708-200506

main51401-35370iLN140,145..SA199708-200506

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51048-35030iVZN167,172200208-200502

main51048-35070iLN167,172,192..ARL,TH199708-200506

main51048-35080iKDN16#,190..(DCB,XTR)..TH..CBU200109-200504

main51048-35090iRZN169,194..SA199708-200506

main51402-35300iKDN145199708-200506

main51402-35320iLN145..RHD..SCB..GEN;LN145..RHD..DCB..GEN..CBU199708-200506

51431BBRACKET, ENGINE REAR MOUNTING

main51431-35050iLN152..ATM199806-200109

main51431-35060iLN150..DLX;LN145..DCB..TH199708-200506

main51431-35080iRZN148,149..DLX..EFI..GEN199708-200506

main51431-35100iKDN190..MA199708-200506

main51431-35110iKZN190200007-200504

main51431-35141iKZN165..SA199909-200504

main51431-35240iKDN155200110-200409

main51431-35250iKDN166..SRWGN200208-200411

main51431-35260iKDN151200208-200408

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-35110iRZN148,149..CO199708-200506

main51501-35130iRZN168..SCB199708-200506

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-35110iRZN149..SR..GEN199708-200508

main51502-35130iRZN168..SCB199708-200511

51505CSUPPORT SUB-ASSY, ANCHOR ARM, RH

main51505-35100iKZN165..SCB199708-200506

51506CSUPPORT SUB-ASSY, ANCHOR ARM, LH

main51506-35020iKZN165..SCB199708-200506

51631STOPPER, FRONT SUSPENSION REBOUND, RH

main51061-35010iLN166,171,191,RZN16#,193..GEN199708-200506

51632STOPPER, FRONT SUSPENSION REBOUND, LH

main51061-35010iLN167..THSCB199708-200506

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-35160iLN140,145,RZN142,147..SA199708-200506

main51701-35170iRZN168..SCB199708-200506

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51702-35120iLN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN199708-200506

main51702-35140iKDN165,190,LN166..MA199708-200506

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-35120iLN145..LHD..IV3;LN145,RZN142,147,148,154..(SCB,XTR)..GEN..CBU199708-200506

main51703-35130iKZN165..SCB199708-200506

main51703-35140iLN147..(DCB,THDCB)..DEFI;LN145,RZN149..(DCB,THDCB)..(ARL,TH)199708-200506

main51703-35150iLN166,191,RZN16#,193..DCB..GEN199708-200506

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51703-35120iRZN147..ARL199708-200506

main51704-35120iKZN165..SCB199708-200506

main51704-35130iLN147,RZN149..(DCB,THDCB)..ARL199708-200506

main51704-35140iLN166,191,RZN193..LHD..DCB199708-200506

51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

main51705-35130iLN155199708-200506

main51705-35140iKDN165,190..IV1199806-200408

main51705-35150iRZN154..GEN199711-200506

51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

main51705-35130iRZN147,149..SCB..GCC;LN141,145,RZN142,144..LHD..SCB199708-200506

main51705-35150iLN171,RZN154..GEN199711-200506

51755BRACKET, BODY SUPPORT, NO.3 RH

main51755-35010iKZN165..SCB;RZN149..SR..GEN199708-200506

51756BRACKET, BODY SUPPORT, NO.3 LH

main51755-35010iLN16#..DCB..DLX199708-200506

51963AHOOK, TRANSPORT, FRONT RH

main51963-35070iRZN168..DCB..DLX199708-200506

51964AHOOK, TRANSPORT, FRONT LH

main51964-35050iLN147,157,167..ARL,TH;KZN165,LN152,172,192..THSCB,THXTR,XTR199708-200506

77512ABRACKET, FUEL TANK, REAR

main77512-35090iKZN165,190,RZN194..SR..SA;LN145,167,192,RZN147,169..SA199708-200506

main77512-35110iKDN190..SRWGN199808-200411

9010112176

main90101-12176

9010512016

main90105-12016

9010512160

main90105-12160

9011910536

main90119-10536

9011910566

main90119-10566

9017012014

main90170-12014

9116281235

main91162-81235

9136281240

main91362-81240

91611B0825

main91611-B0825

9461211200

main94612-11200

9462211200

main94622-11200

52 parts on this diagram · 4 diagrams in section
