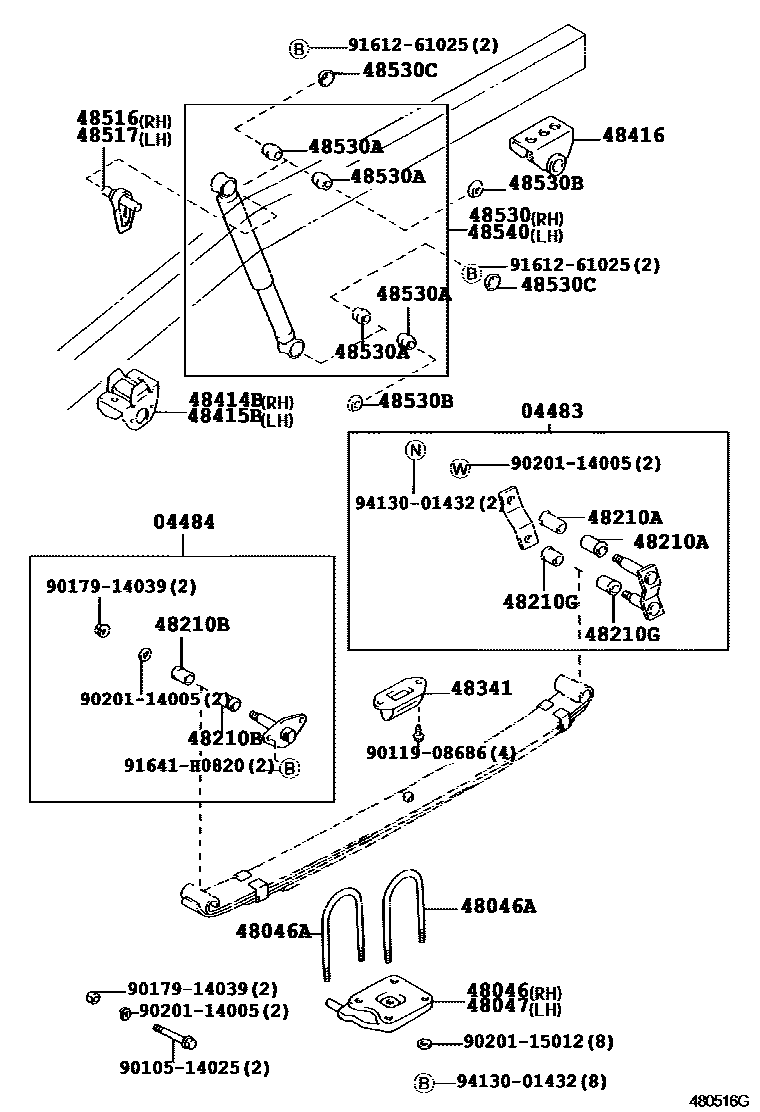

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 14-LEAF 0005 15-LEAF 0007 15-LEAF 0008 15-LEAF 0009 15-LEAF 0014 15-LEAF 0015 15-LEAF 0016 15-LEAF 0017 16-LEAF 0020 16-LEAF 0021 16-LEAF 0022 16-LEAF

04483SHACKLE KIT, REAR SPRING

main04483-35120iKZN165,190..SR..SA;LN167,RZN169..GEN,SA;KZN165,LN167..(DCB,SCB)..IV3;KZN165,LN152..(SCB,XTR)..ARL..CBU;KDN165,190,LN166,17#,19#,RZN154,168,19#,VZN167,172..(DCB,SCB,199708-200511

main04483-35130iLN141,RZN142,144,147,149..SCB..GCC199708-200512

04484PIN KIT, REAR SPRING

main04484-04010iKDN155,LN155200109-200502

main04484-35070iRZN147..GEN;LN145..LHD..IV3;RZN147,149..SCB..GCC;LN141,145,RZN142,144,148..(GCC,GEN)..CBU199708-200511

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-04010iLN147,152,RZN147,149,154..THDCB,THSCB,THXTR200103-200502

main48046-04020iKDN190..DCB..TH200103-200502

main48046-35170iKZN165..SCB199708-200511

main48046-35230iLN147,152,RZN147,149,154..(DCB,SCB,XTR)..(DEFI,EFI)..ARL199708-200511

48046ABOLT, U(FOR REAR SPRING)

main90117-14039iLN152,RZN154..THXTR..CBU199711-200506

L=139

main90117-14040iRZN149..SR..GEN199708-200506

L=155

main90117-14044iLN167..SR..ARL;RZN169,174..ARL;KZN165..DCB..TH;KDN165,190..IV1;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU199708-200506

L=165

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-04010iKDN145,150,151,LN145,150,155..TH;LN147,152,RZN147,149,154..THDCB,THSCB,THXTR200103-200502

main48046-04020iLN167..THSCB..IV3200103-200502

main48046-35170iKZN165..SCB199708-200511

main48046-35230iLN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN199708-200511

48210SPRING ASSY, REAR RH

main48210-04160iLN152..THXTR199808-200502

4-LEAF

main48210-04250iLN147,RZN147,149..THSCB200109-200502

5-LEAF

main48210-04260iKDN145,LN145..TH200109-200502

5-LEAF

main48210-04270iLN172..THXTR199907-199912

6-LEAF,(L)

sub48210-04271

main48210-04271iLN172..THXTR;KZN165..DCB..TH200109-200502

6-LEAF

main48210-04271iLN172..THXTR199912-200109

6-LEAF,(L)

main48210-04280iRZN174..THXTR199907-199912

6-LEAF,(L)

sub48210-04281

main48210-04281iRZN174..THXTR199912-200109

6-LEAF,(L)

main48210-04281iRZN174..THXTR200109-200208

6-LEAF

main48210-04290iKZN165,LN167..THDCB,THSCB199907-199912

5-LEAF,(L)

sub48210-04291

main48210-04291iLN167..THSCB;LN167..THDCB..SR;KZN165..THDCB,THSCB199912-200408

5-LEAF,(L)

main48210-04300iRZN169..THDCB,THSCB199907-199912

5-LEAF,(L)

sub48210-04301

main48210-04301iRZN169..THDCB,THSCB199912-200109

5-LEAF,(L)

main48210-04301iRZN169..THDCB,THSCB200109-200208

5-LEAF

main48210-04460iLN167..THDCB200208-200502

main48210-35830iLN166,191..GEN;RZN169..RHD..(ARL,GEN)199708-199912

5-LEAF

sub48210-3D180

main48210-35880iLN172;LN16#,192,RZN169,194..GCC,SA199708-199912

6-LEAF

sub48210-35881

main48210-35881iLN172..DEFI;LN167..DCB..TH199912-200203

6-LEAF

sub48210-35882

main48210-35890iLN166..DCB..GEN;RZN169..LHD..GEN;LN171,RZN168,174,193;RZN169..RHD..DCB..GEN199708-199912

6-LEAF

sub48210-35891

main48210-35891iLN166..DCB..GEN;RZN169..LHD..GEN;LN171,RZN168,174,193;RZN169..RHD..DCB..GEN199912-200106

6-LEAF

sub48210-35892

main48210-35892iRZN169..LHD..GEN;RZN169..RHD..DCB..GEN;LN166,171,RZN193..LHD..(DCB,XTR)..GEN200106-200511

6-LEAF

main48210-3D030iLN147,RZN147,149..(SCB,THSCB)..(DEFI,EFI)..ARL199708-200511

5-LEAF

main48210-3D050iLN152,RZN154..XTR..DLX..CBU199711-200506

4-LEAF

main48210-3D060iRZN147..DCB..SA199708-200511

5-LEAF

main48210-3D090iLN146,RZN147,149..DCB..GCC199708-200508

5-LEAF

main48210-3D110iKZN165,LN167..ARL199708-199912

5-LEAF

sub48210-3D111

main48210-3D111iKZN165..SCB199912-200506

5-LEAF

main48210-3D111iLN167..SCB..ARL;KZN165..SCB..CBU;LN166,191..LHD..GEN;LN167..DCB..SR..ARL;KZN165..(DCB,SCB)..IV3200108-200506

5-LEAF,PLANT NO.P11

main48210-3D180iLN166..MA;RZN169..RHD..(DCB,SCB)..(ARL,GEN)199912-200506

5-LEAF

main48210-3D200iKDN190..MA200303-200503

6-LEAF

main48210-3D210iVZN167..SCB200208-200502

5-LEAF

main48210-3D220iLN16#,192,RZN169..GCC,SA;LN172,RZN174,VZN172..XTR;KZN165,190,RZN194..SR..SA200108-200508

6-LEAF

main48210-3D240iKDN165..MA200303-200503

6-LEAF

main48210-3D250iKZN165,LN167..DCB..ARL..CBU200208-200502

5-LEAF

main48210-3D260iVZN167..DCB200208-200502

5-LEAF

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18013iLN147..IV3;RZN149..ARL;LN147..DCB,THDCB199708-200506

main90385-18019iLN167..SCB..IV3;LN152,167..(DCB,THDCB,THXTR,XTR)..DLX..ARL..CBU;KZN165,LN172,RZN154,VZN167,172..(DCB,SCB,THXTR,XTR)..ARL199708-200506

48210BBUSH(FOR REAR SPRING PIN)

main90385-18046iRZN149..SR..GEN199708-200506

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18020iLN150,152199708-200506

main90385-18046iKDN145,155;LN145..DCB..TH199708-200506

48341BUMPER, REAR SPRING

main48341-04030iLN147,152,RZN149,154..THSCB,THXTR199806-200502

main48341-04040iKDN145,LN145..TH199806-200502

main48341-35080iLN140,145,RZN142,147..SCB..SA199708-200506

main48341-35090iRZN148,149..DCB..CO199708-200506

main48341-35100iLN146,RZN147,149..DCB..GCC199708-200108

48414BBRACKET, SPRING, NO.3 RH

main48404-35050iLN140,145,RZN142,147..SCB..SA199708-200506

main48404-35060iRZN154..GEN199711-200506

main48404-35070iLN146,RZN147,149..DCB..GCC199708-200108

main48414-35130iLN166..RHD..GEN199708-200506

48415BBRACKET, SPRING, NO.3 LH

main48407-35040iRZN154..GEN199711-200506

main48407-35050iLN145..LHD..IV3;LN145,RZN142,147,148..GEN..CBU199708-200506

main48407-35060iLN146,RZN147,149..DCB..GCC199708-200108

main48415-35060iKZN165,190,LN167,192,RZN169,194..(DCB,SCB)..(DEFI,EFI,TDE)..SA199708-200506

48416BRACKET, SPRING, NO.4

main48416-35080iKZN165..SCB199708-200506

main48416-35120iLN147..IV3;RZN149,154..ARL;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU199708-200506

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-35030iRZN149..SR..GEN199708-200508

main48505-35070iKZN165..SCB199708-200511

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48505-35030iLN141,145,RZN142,144,147,149..LHD..SCB..MTM199708-200508

main48506-35010iRZN169..THSCB199708-200511

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-09150iLN152,RZN154..THXTR199907-200502

MARK 48531-04110

main48531-09160iKZN165,190,LN167,192,RZN169,194..(DCB,SCB)..(DEFI,EFI,TDE)..SA199907-200502

MARK 48531-04130

main48531-09230iLN147,RZN147,149..THDCB,THSCB200109-200502

MARK 48531-04120

main48531-09280iLN167..THDCB200208-200502

main48531-80637iLN152,RZN154..XTR..DLX..CBU199711-200506

MARK 48531-3D070

main48531-80638iLN146,RZN147,149..DCB..GCC199708-200508

MARK 48531-3D100

main48531-80641iLN147,RZN147,149..(SCB,THSCB)..(DEFI,EFI)..ARL199708-200511

MARK 48531-3D120

main48531-80644iLN16#,17#,19#,RZN16#,174,19#..ARL,GCC,GEN,SA199708-199809

sub48531-80669

main48531-80648iLN145..RHD..DCB..GEN..CBU;RZN148,149..DCB..DLX..EFI..GEN199708-200511

MARK 48531-3D180

sub48531-80641

main48531-80669iLN167,192..SA;RZN194..SADCB199809-200511

MARK 48531-3D061

main48531-80704iKZN165,LN167,VZN167..DCB..ARL..CBU200208-200502

MARK 48531-3D140

sub48531-80669

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iLN147,152,157199708-200506

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004iLN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU199708-200506

main90948-03011iLN167..ARL,TH;KZN165,LN172,192..THSCB,THXTR,XTR199708-200506

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03012iRZN149..SR..GEN199708-200506

main90948-03020iRZN168..DLX..GEN199708-200506

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-09150iLN152..IV3199907-200502

MARK 48531-04110

main48531-09230iLN147,RZN147,149..THSCB200109-200208

MARK 48531-04120

main48531-80637iRZN154..GEN199711-200506

MARK 48531-3D070

main48531-80638iLN146,RZN147,149..DCB..GCC199708-200508

MARK 48531-3D100

main48531-80641iLN140,145,RZN142,147..SCB..SA199708-200511

MARK 48531-3D120

main48541-09040iKZN165..SCB199907-200502

MARK 48541-04060

main48541-09080iKDN145,LN145..TH200109-200502

MARK 48541-04050

main48541-09090iLN167..THDCB200208-200502

main48541-39295iLN147..DCB,THDCB199708-200511

MARK 48541-35240

main48541-39315iLN16#,17#,19#,RZN16#,174,19#..ARL,GCC,GEN,SA199708-199809

sub48541-39316

main48541-39316iRZN169..CBR;LN166,171,191,RZN193..LHD199809-200511

MARK 48541-35231

main48541-39355iKZN165,LN167,VZN167..DCB..ARL..CBU200208-200502

MARK 48541-35210

sub48541-39316

9010514025

main90105-14025

9011908686

main90119-08686

9017914039

main90179-14039

9020114005

main90201-14005

9020115012

main90201-15012

9161261025

main91612-61025

91641H0820

main91641-H0820

9413001432

main94130-01432

28 parts on this diagram · 14 diagrams in section
