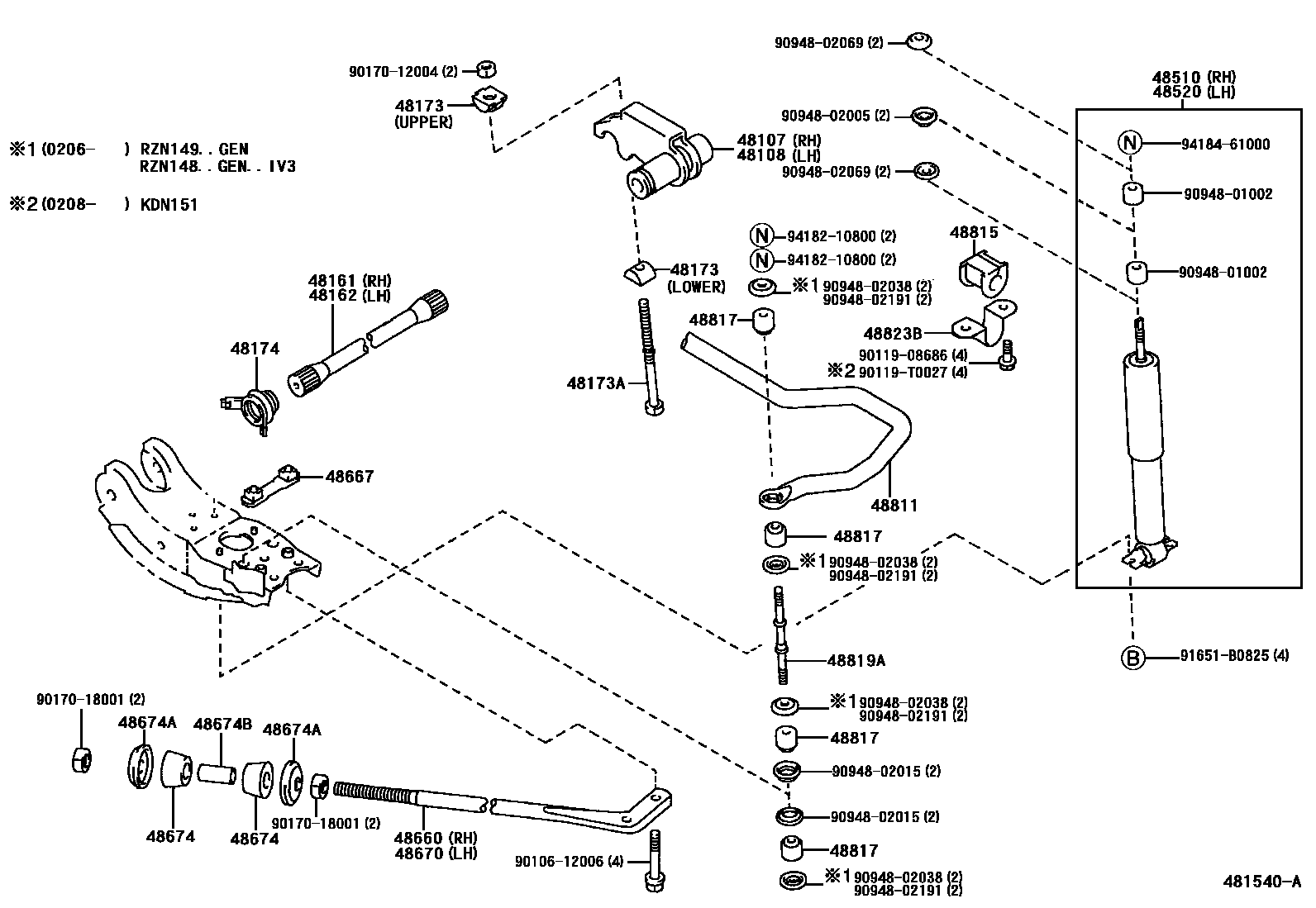

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-04020iKDN145,15#,LN145,150..TH200109-200502

main48107-04030iKDN16#,190..(DCB,XTR)..TH..CBU200109-200502

main48107-35050iLN166,RZN16#..CO,GCC199708-200506

main48107-35060iRZN147..SCB..ARL199708-200506

48108ARM SUB-ASSY, ANCHOR, LH

main48108-04020iRZN147..THSCB200109-200502

main48108-04030iKDN165,190..IV1;LN167..THDCB..SR;LN167..THSCB..CBU;KZN165..THDCB,THSCB200109-200502

main48108-35050iKZN165..SCB199708-200506

main48108-35060iRZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,RZN142,144,154..LHD..(GCC,GEN)199708-200506

48161SPRING, TORSION BAR, RH

main48161-04050iKDN145,15#,LN145,150..RHD..TH200109-200502

main48161-04050iLN152,157199808-200203

(L)

main48161-04070iLN145..LHD..TH200109-200502

main48161-04080iRZN154..ARL199907-200109

(L)

main48161-04080iRZN154..THXTR200109-200502

main48161-04090iKDN16#,190..SRWGN200109-200411

main48161-04090iLN167,192..TH199907-200203

(L)

main48161-04100iKZN165..SCB199909-200203

(L)

main48161-04100iLN166..RHD..GEN199907-200108

W(225/70R15LT 7JJ15 TIRE),(L)

main48161-04100iLN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX200109-200502

main48161-35110iRZN16#,193..LHD..GEN199708-200506

W(225/70R15LT 7JJ15 TIRE)

main48161-35110iRZN168..DLX..GEN199708-200504

main48161-35130iLN171;RZN169..GCC;RZN169..RHD..GEN199708-200506

W(225/70R15LT 7JJ15 TIRE)

main48161-35130iLN167,192..DCB..SA199708-200504

main48161-35130iLN171;RZN169..RHD..GEN200108-200506

W(255/70R15LT 7JJ15 TIRE)

main48161-35200iLN166..RHD..GEN199708-200506

main48161-35280iRZN142,147..GEN199708-200506

main48161-35290iLN145..GEN..CBU;LN145..LHD..IV3199708-200506

main48161-35310iRZN154..ARL199711-200506

main48161-35320iRZN147,149..ARL199708-200502

main48161-35330iLN152,157..DEFI;LN145,150,155..(SCB,XTR)..TH199806-200504

main48161-35350iKZN165..ARL200208-200502

main48161-35360iRZN148..GEN..CBU200206-200506

48162SPRING, TORSION BAR, LH

main48162-04050iLN152,157..DEFI;LN145,150,155..(SCB,XTR)..TH199808-200203

(L)

main48162-04050iLN152..THXTR200109-200502

main48162-04070iLN145..LHD..TH200109-200502

main48162-04080iRZN154..ARL199907-200109

(L)

main48162-04080iRZN154..THXTR200109-200502

main48162-04090iRZN169..GCC;RZN169..RHD..GEN;LN166,171..LHD..(DCB,XTR)..GEN199907-200203

(L)

main48162-04090iKDN16#,190..(DCB,XTR)..TH..CBU200109-200411

main48162-04100iKZN165..SCB199907-200203

(L)

main48162-04100iLN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX200109-200502

main48162-35110iKZN190..SCB..SR;RZN169..DLX..SA;LN192,RZN194..SA199708-200504

main48162-35110iRZN16#,193..LHD..GEN200108-200506

W(225/70R15LT 7JJ15 TIRE)

main48162-35130iLN167,192..DCB..SA199708-200504

main48162-35130iLN166..LHD..DCB..GEN199708-200108

(J)

main48162-35130iLN171;RZN169..GCC;RZN169..RHD..GEN199708-200506

W(225/70R15LT 7JJ15 TIRE)

main48162-35200iLN167..DCB..SR..ARL;LN167..SCB..ARL..CBU;KZN165..(DCB,SCB)..ARL200108-200506

main48162-35200iKZN190,LN167,192..SCB..(DEFI,TDE)..SA199708-200203

(J)

main48162-35280iRZN147..RHD..SCB..GEN199708-200506

main48162-35290iLN147199708-200506

main48162-35310iRZN154..ARL199711-200506

main48162-35320iRZN147,149..ARL199708-200502

main48162-35330iLN152,157..DEFI;LN145,150,155..(SCB,XTR)..TH199806-200504

main48162-35350iKZN165..ARL200208-200502

main48162-35360iRZN144,149..GCC200206-200506

48173SEAT, ANCHOR ARM ADJUSTER

main48173-35010iLN140,145,RZN142,147..SCB..SA199708-200506

UPPER

main48173-35030iLN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN199708-200506

LOWER

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12104iLN140,145,RZN142,147..SCB..SA199708-200506

48174COVER, TORSION BAR DUST

main48174-35030iLN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN199708-200406

sub48174-35031

main48174-35031iKDN145,150,151,LN145,150,155..TH;LN147,152,RZN149,154..THDCB,THSCB,THXTR200405-200511

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-09100iLN147,152,RZN147,149,154..THDCB,THSCB,THXTR199808-200502

MARK 48511-04110

main48511-09110iKZN165..SCB199907-200502

MARK 48511-04120

main48511-39686iLN141,146,RZN142,144,147,149..GCC199708-199809

MARK 48511-35350

sub48511-39687

main48511-39687iLN141,146,RZN142,144,147,149..GCC199809-200508

MARK 48511-35351

main48511-39696iLN140,145,147,152,RZN142,147,148,149,154,YN140..ARL,GEN,SA199708-199809

MARK 48511-35520

sub48511-39697

main48511-39697iYN140;RZN147..DCB..SA199809-200511

MARK 48511-3D200

main48511-80043iRZN169..RHD..GEN;LN192,RZN194..SCB;RZN169..DLX..(ARL,GCC,SA);LN16#,172,191,RZN174..DLX199708-199812

MARK 48511-3D100

sub48511-80065

main48511-80052iLN166..DCB..GEN;RZN169..RHD..DCB..GEN199708-199812

MARK 48511-3D150,W(15 INCHES DISC WHEEL)

sub48511-80066

main48511-80052iLN166..DCB..GEN;RZN169..RHD..DCB..GEN199708-199812

MARK 48511-3D150

sub48511-80066

main48511-80065iLN167,192..SCB..SA199812-200508

MARK 48511-3D101

main48511-80066iRZN168..CO;LN166..DCB..MA199812-200511

MARK 48511-3D151

main48511-80066iLN171,RZN169,193..LHD..GEN199812-200402

MARK 48511-3D151,W(15 INCHES DISC WHEEL)

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-09100iLN147,152..ARL199808-200502

MARK 48511-04110

main48511-09110iKZN165..SCB..DLX;KZN165..(DCB,THDCB)..ARL;LN167,172,RZN169,174..(DEFI,EFI)..ARL199907-200502

MARK 48511-04120

main48511-39686iLN141,146,RZN142,144,147,149..GCC199708-199809

MARK 48511-35350

sub48511-39687

main48511-39687iLN141,146,RZN142,144,147,149..GCC199809-200508

MARK 48511-35351

main48511-39696iLN140,145,147,152,RZN142,147,148,149,154,YN140..ARL,GEN,SA199708-199809

MARK 48511-35520

sub48511-39697

main48511-39697iLN147,152..ARL199809-200511

MARK 48511-3D200

main48511-80043iRZN169..RHD..GEN;LN192,RZN194..SCB;RZN169..DLX..(ARL,GCC,SA);LN16#,172,191,RZN174..DLX199708-199812

MARK 48511-3D100

sub48511-80065

main48511-80052iRZN16#..LHD..GEN;LN167,171,192,RZN169,193..(DCB,XTR)..(DSL,EFI)..(GEN,SA)199708-199812

MARK 48511-3D150,W(15 INCHES DISC WHEEL)

sub48511-80066

main48511-80052iLN166..DCB..GEN;RZN169..RHD..DCB..GEN199708-199812

MARK 48511-3D150

sub48511-80066

main48511-80065iKZN165..SCB199812-200508

MARK 48511-3D101

main48511-80066iLN166..LHD..DCB..GEN;RZN169..RHD..DCB..GEN199812-200402

MARK 48511-3D151,W(15 INCHES DISC WHEEL)

main48511-80066iRZN168..DLX..GEN199812-200511

MARK 48511-3D151

48660BAR ASSY, STRUT, RH

main48661-35030iLN141,146,RZN14#..CO,GCC199708-200506

48667RETAINER, STRUT BAR

main48667-35030iRZN147..ARL199708-200506

48670BAR ASSY, STRUT, LH

main48671-35030iLN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN199708-200506

48674CUSHION, STRUT BAR

main48674-04010iLN147,152,RZN147,149,154..ARL200103-200502

(L)

sub48674-30040

main48674-30040iLN141,146,RZN14#..CO,GCC199806-200506

main48674-30040iRZN149..SR..GEN199708-200402

(J)

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02030iLN140,145,RZN142,147..SCB..SA199708-200506

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18002iLN147,152,157199708-200506

48811BAR, STABILIZER, FRONT

main48811-04050iKZN165..TH;KDN165,190..IV1;LN167..THDCB..SR;LN167..THSCB..CBU;KZN165,RZN169,174..THDCB,THSCB,THXTR199806-200503

main48811-04050iLN166..RHD..GEN199909-200402

MALAYSIA CKD SPEC

main48811-04080iRZN147..THSCB200109-200502

main48811-04080iRZN147..DCB..SA199907-200402

(L)

main48811-35330iKZN165..SCB..DLX;LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..ARL;KZN165,LN172,RZN174..(DCB,XTR)..(DEFI,EFI,TDE)..ARL199708-200506

main48811-35420iRZN149,154..(DCB,SCB,XTR)..ARL199708-200506

main48811-35420iRZN147..RHD..SCB..GEN199907-200402

(J)

main48811-35430iYN140199806-200504

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-04060iLN167,172,RZN149,154..THDCB,THSCB,THXTR200305-200502

main48815-14160iLN166,RZN14#,16#..CO,GCC199708-200506

48817CUSHION, FRONT STABILIZER

main48817-30010iRZN142,147..SCB..SA199708-200506

48819ABOLT, FRONT STABILIZER

main48819-35020iRZN149..SR..GEN199708-200506

48823BCOVER, FRONT STABILIZER BRACKET

main48823-35050iRZN149..SR..GEN199708-200506

9010612006

main90106-12006

9011908686

main90119-08686

90119T0027

main90119-T0027

9017012004

main90170-12004

9017018001

main90170-18001

9094801002

main90948-01002

9094802005

main90948-02005

9094802015

main90948-02015

9094802038

main90948-02038

9094802069

main90948-02069

9094802191

main90948-02191

91651B0825

main91651-B0825

9418210800

main94182-10800

9418461000

main94184-61000

34 parts on this diagram · 2 diagrams in section
