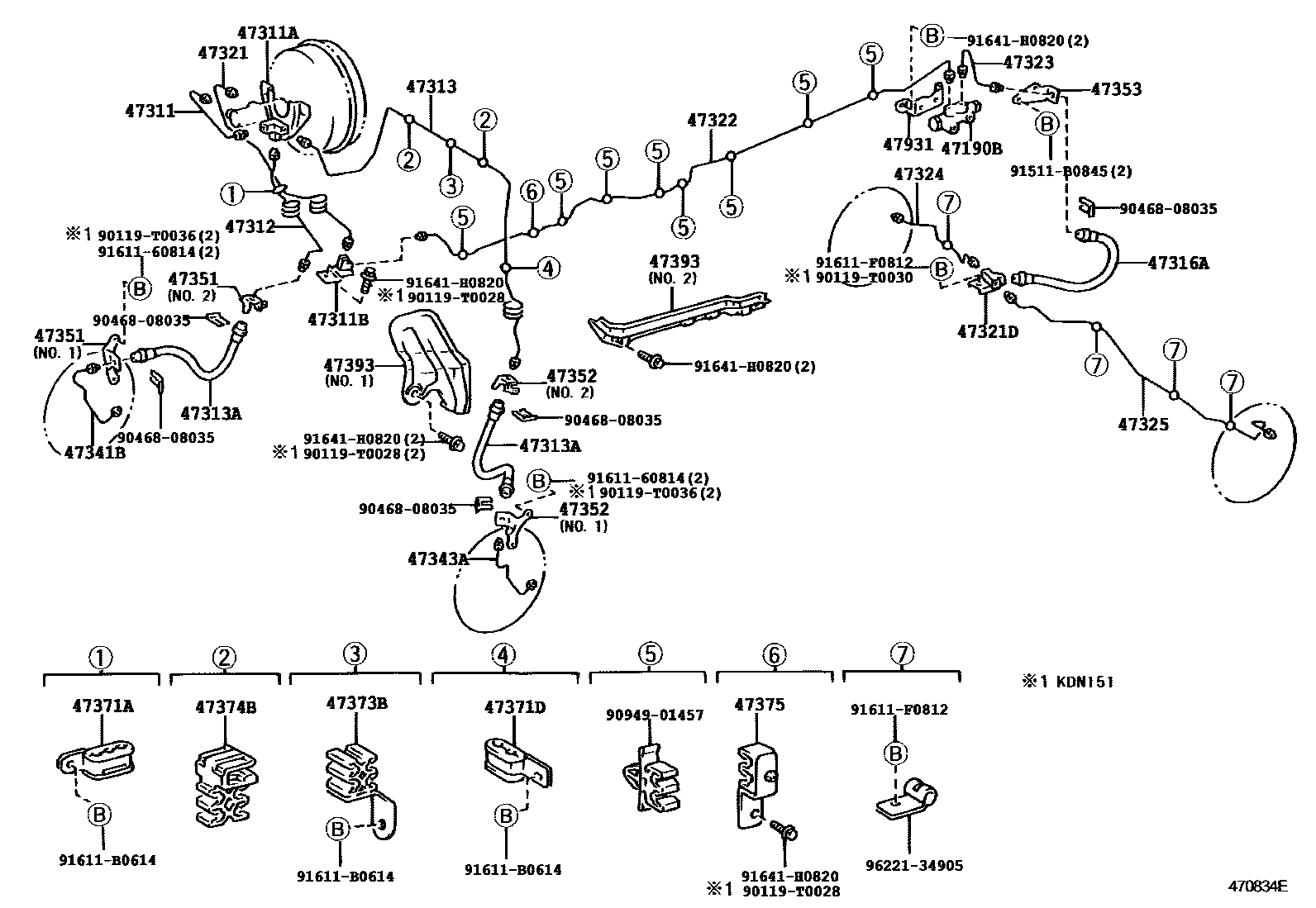

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1W(LSPV) 0007 1 0008 1W(LSPV) 0009 1W(ABS) 0010 1W(ABS) 0012 1W(ABS) 0013 1W(ABS) 0014 1W(ABS) 0016 1W(ABS) 0017 1W(LSPV) 0020 1W(LSPV)

47190BVALVE ASSY, BLEND PROPORTIONING

main47150-35050iLN145..LHD..IV3;LN145,RZN142,147,148..GEN..CBU200108-200506

main47150-35060iLN166,171,191,RZN16#,193..GEN,MA200108-200506

main47150-35070iRZN154..GEN199711-200108

47311TUBE, FRONT BRAKE, NO.1

main47311-04010iLN147,150..THDCB,THSCB,XTR;LN145,152,155..RHD..(DCB,SCB,THXTR)..(ARL,TH)200109-200502

main47311-35450iKZN165..SA200007-200203

W/O(ABS)

main47311-35470iLN141,146,166,RZN142,144,147,149,169..GCC199708-200108

W(ABS)

main47311-35480iRZN148..GEN..CBU;RZN148,149..CO,GCC;LN141,145,146,155,166,171,191,RZN142,144,147,154,16#,193..LHD200108

main47311-60490iLN147..DCB..DLX;RZN169..DCB..SA;RZN169..DLX..ARL;KZN165..THDCB..SR;LN167..(DCB,SCB)..DLX;RZN149..ATM..DLX..ARL;RZN149..THDCB..MTM..DLX;RZN149..(DCB,SCB,THSCB)..MTM.200109-200504

W(ABS)

47311AWAY(FOR FRONT BRAKE TUBE)

main47391-35060iKDN155200110-200408

main90904-13021iRZN148..GEN..CBU;RZN148,149..CO,GCC;LN141,145,146,155,166,171,191,RZN142,144,147,154,16#,193..LHD200108

main90904-13041iKZN165..SA200007-200203

main90904-13043iLN147..IV3;LN167..ARL,SA;RZN169..SCB..SA;KZN190,RZN194..SR;LN145,152..RHD..(ARL,GEN,SA)..CBU;LN145,147..RHD..(DCB,THDCB)..(ARL,TH);LN140,150,155,192,RZN142,147..RHD200108-200506

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90904-12053iRZN144,149..GCC200108

W(ABS) & W(LSP & BV)

main90904-12054iLN155200108-200409

main90904-12055iLN166..GCC200108

W(ABS) & W(LSP & BV)

main90904-12056iKZN165,LN171,192..XTR;LN166,RZN168,193..DLX..(GCC,GEN);LN167,191,RZN169..(CBR,DEFI,DSL)..(GCC,GEN,TH)199708

main90904-13037iRZN144,149..GCC200108

W(LSPV)

main90904-13038iLN167..IV3;LN167..(DCB,THDCB)..DLX..ARL;KZN165,LN172,VZN167,172..(DCB,SCB,THXTR,XTR)..ARL200109-200502

47312TUBE, FRONT BRAKE, NO.2

main47312-04160iLN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX200109-200502

main47312-04170iLN147,152,RZN149,154..THDCB,THSCB,THXTR200109-200502

main47312-3D330iLN166..GCC200108

W(LSPV)

main47312-3D340iKDN165,190,LN166..MA200108-200503

main47312-3D350iRZN169..SA;LN167..DLX..DEFI;RZN169..DLX..ARL;LN167..DSL..(ARL,SA);LN172,192,RZN174,194..ARL,SA199708-200203

main47312-3D360iRZN169..LHD..CBR;LN166,171,191,RZN168,193..LHD..DLX..(GCC,GEN)199708

main47312-3D370iLN150,152..SR;RZN147..RHD..GEN;LN145..RHD..DCB..GEN;LN145,155,157..RHD..SCB..(GEN,TH)199708

main47312-3D380iRZN147..SCB..ARL200109-200208

main47312-3D390iLN141,146,RZN14#..CO,GCC200108

main47312-3D400iRZN144,149..GCC200108

W(LSPV)

main47312-3D410iKZN190..SR;KZN165..(DCB,SCB)..(ARL,SA)200109-200502

47313TUBE, FRONT BRAKE, NO.3

main47313-04150iLN155..RHD200109-200409

main47313-04160iLN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX200109-200502

main47313-3D061iLN167..DCB..SR..ARL;RZN169..(DCB,SCB)..ARL;LN167,RZN174..(SCB,XTR)..ARL..CBU200108-200208

main47313-3D070iLN166,171,191,RZN16#,193..LHD..GEN200108-200506

main47313-3D081iLN145,RZN147..RHD..GEN..CBU200108-200506

main47313-3D090iLN145,RZN148,149..LHD..DLX..(DSL,EFI)..(GEN,TH);LN141,146,155,RZN142,144,147,149,154..LHD..(CBR,DSL)199708

main47313-3D110iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

main47313-3D140iKDN165,190..MA200303-200503

main47313-3D150iVZN167,172200208-200502

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94127×2iLN147,152,RZN147,149,154..THDCB,THSCB,THXTR200103-200106

(L)

main90080-94153×2iKZN165..TH;KDN165,190..IV1;LN167..THDCB..SR;LN167..THSCB..CBU;KZN165,RZN169,174..THDCB,THSCB,THXTR200109-200208

main90080-94158×2iLN147,152,RZN147,149,154..THDCB,THSCB,THXTR200106-200109

main90947-02952×2iLN140,145,RZN142,147..SA200108-200504

main90947-02957×2iRZN168..DLX;RZN169..CBR;RZN169..(DCB,SCB)..(ARL,SA);KZN165,190,LN16#,17#,19#,RZN174,19#..(DCB,SCB,XTR)..(DEFI,DSL,EFI,TDE)200106-200109

(J)

47316TUBE, FRONT BRAKE, NO.6

main47316-35230iLN167..SR;RZN147,169..ARL;LN167..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THDCB,THSCB,THXTR,XTR)..ARL200109-200208

main47316-35240iRZN142,144,147,149,169..GCC200108

main47316-35260iLN141,146,166..GCC199708-200108

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90080-94129iLN145,15#..TH;LN147,152,RZN147,149,154..THDCB,THSCB,THXTR200103-200106

(L)

main90080-94152iKDN16#,190..(DCB,XTR)..TH..CBU200109-200408

main90080-94159iKDN145,15#,LN145,150..TH200109-200408

main90947-02955iRZN148..SR200108-200309

W(LSPV)

main90947-02956iLN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU200108-200506

main90947-02958iLN167..DCB..SR..ARL;RZN169..(DCB,SCB)..ARL;LN167,RZN174..(SCB,XTR)..ARL..CBU200108-200208

47321TUBE, REAR BRAKE, NO.1

main47321-04120iRZN147..THSCB200109-200208

main47321-04130iLN167,172,RZN169,174..THDCB,THSCB,THXTR200103-200109

main47321-35780iLN167..DCB..DLX..DEFI..ARL;LN167,172..(SCB,XTR)..DLX..DEFI;LN167,172,RZN169..RHD..(CBR,DSL);RZN169..(DCB,SCB)..DLX..(ARL,SA);LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)199708

main47321-35790iLN166,171,191,RZN16#,193..LHD..GEN200108-200506

main47321-35800iLN150..SR;LN147,152..DSL;LN152..DEFI..TH;LN145..RHD..DCB..GEN;LN152..XTR..DEFI..IV3;LN140,145,155,157,RZN142,154,YN140..RHD..(SCB,XTR);LN147,RZN147,149..RHD..(DCB,S199708

main47321-35810iLN145,RZN148,149..LHD..DLX..(DSL,EFI)..(GEN,TH);LN141,146,155,RZN142,144,147,149,154..LHD..(CBR,DSL)199708

main47321-35820iKZN165..THDCB,THSCB200109-200208

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90413-10198iRZN147..ARL200108-200208

main90904-13036iLN167,192,RZN169..SA;KZN165,190,RZN194..SR..SA200108-200504

main90904-13516iKDN190..(DCB,XTR)..TH..CBU200112-200408

47322TUBE, REAR BRAKE, NO.2

main47322-04160iLN152,RZN154..THXTR200109-200502

main47322-04170iRZN147..THSCB200109-200208

main47322-04220iKZN165..DCB..TH;LN167..THDCB..SR;LN167..THSCB..CBU;KZN165,RZN169..THDCB,THSCB200109-200208

main47322-04230iLN172..THXTR200109-200502

main47322-35740iRZN169..CBR..GEN;LN166,191,RZN168,193..DLX..GEN199708

main47322-35750iRZN168..DCB..DLX..GEN200108-200309

W(LSPV)

main47322-35760iLN171200108-200506

main47322-35770iRZN174..XTR200109-200208

main47322-35790iRZN142..GEN199708-200108

main47322-35800iLN140,RZN142..SA200108-200504

main47322-35810iRZN148..DLX..GEN;LN145,RZN147,149..GEN199708

main47322-35820iRZN148..SR200108-200309

W(LSPV)

main47322-35830iRZN154..GEN199711-200108

main47322-35840iLN150200009-200109

47323TUBE, REAR BRAKE, NO.3

main47323-04090iKDN145,150,151,LN145,150,155..TH;LN147,152,RZN147,149,154..THDCB,THSCB,THXTR200109-200502

main47323-04130iKZN165..DCB..TH;KZN165,LN167,RZN169..THDCB,THSCB;KDN16#,190,LN172,RZN174..(DCB,THXTR)..(ARL,TH)200109-200502

main47323-35180iRZN169..CBR..GEN;LN166,171,191,RZN168,193..DLX..GEN199708

main47323-35190iKZN165..(THDCB,THSCB)..SR;LN167,RZN169..(THDCB,THSCB)..DLX;LN167,RZN169..(DCB,SCB)..(SA,TH);LN167,172..(DCB,SCB,XTR)..DLX..DEFI..ARL;KZN165,190,LN172,192,RZN174,194199807-200203

main47323-35200iRZN154..CBR;RZN148..DLX..GEN;LN145,RZN142,147,149..GEN199708

main47323-35210iRZN148..SR200108-200312

W(LSPV)

47324TUBE, REAR BRAKE, NO.4

main47324-04050iLN155200109-200409

main47324-04070iKDN16#,190..SRWGN200109-200411

main47324-35250iLN167..DCB..SR..ARL;RZN169..(DCB,SCB)..ARL;LN167,RZN174..(SCB,XTR)..ARL..CBU200108-200208

main47324-35260iLN14#,RZN14#,154199708-199805

main47324-35270iLN147..SCB..IV3;RZN149..(DCB,SCB)..ARL;LN147,152,RZN154..(DCB,XTR)..ARL..CBU200108-200502

47325TUBE, REAR BRAKE, NO.5

main47325-04060iLN147,152,RZN149,154..THDCB,THSCB,THXTR200109-200502

main47325-04110iLN167..TH;LN167,172,RZN174..THDCB,THSCB,THXTR;KZN165,LN192,RZN169..THDCB,THSCB,XTR200009-200109

main47325-35290iLN167,RZN169..SA;RZN169..(DCB,SCB)..DLX..ARL;KZN165,RZN169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC,GEN,SA);LN16#,17#,191,RZN168,174,193..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN)200009-200203

main47325-35300iLN140,145,RZN147,YN140..SA199807-200010

main47325-35310iLN141,146,RZN142,144,147,149..GCC199708-199908

main47325-35311iLN141,146,RZN142,144,147,149..GCC199908-200108

main47325-35320iRZN148,149..DLX..GEN;RZN147..RHD..SCB..CBR;LN140,145,RZN142..RHD..(GEN,SA)200109

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-04030iLN145,15#..TH;LN147,152,RZN147,149,154..THDCB,THSCB,THXTR200009-200109

main47341-04040iKDN16#,190,KZN165..TH;KZN165,LN167,172,RZN169,174..THDCB,THSCB,THXTR200109-200502

main47341-35150iLN14#,15#,RZN14#,154,YN140199708-200009

main47341-35170iKZN190..SR;KDN165,190,KZN165,LN16#,17#,19#,RZN16#,174,19#,VZN167,172..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)200108

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-04030iKDN145,15#,LN145,150,155..TH;LN147,152,RZN147,149,154..THDCB,THSCB,THXTR200109-200502

main47343-04040iKDN16#,190,KZN165..TH;KZN165,LN167,172,RZN169,174..THDCB,THSCB,THXTR200109-200502

main47343-35150iLN14#,15#,RZN14#,154,YN140199708-200009

main47343-35170iKZN165,190,LN16#,17#,19#,RZN16#,174,19#199708-200009

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-35280iLN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN1200108-200511

NO.1

main47351-35290iRZN154..CBR199808-200603

NO.2

main47351-35300iKZN165..SA200007-200203

W/O(ABS)

main47351-35310iKZN165..SA200007-200203

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-35320iLN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..199708-200603

NO.1

main47352-35350iLN192,RZN194;LN167,RZN169..SCB..DLX..SA;LN167,RZN169..DCB..SR..ARL200109-200504

W/O(ABS)

main47352-35360iKZN165..SA200007-200203

main47352-35380iKDN155200108-200408

NO.2

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47352-04010iKDN145,150,151,LN145,150,155..TH;LN147,152,RZN147,149,154..THDCB,THSCB,THXTR200109-200502

main47352-35330iRZN148,149..CO;LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU200108-200511

main47352-35340iLN140,145,RZN142,147..SA200203-200504

47371ACLAMP, BRAKE TUBE, NO.1

main47371-35230iKZN165..TH;LN167..SR..ARL;KDN165,190..IV1;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU200108-200208

47371DCLAMP, BRAKE TUBE, NO.8

main47372-35080iLN145,166,RZN147,169..RHD..GEN..CBU200108-200506

main47374-35030iKZN165..TH;KZN165..THDCB,THSCB200109-200208

47373BCLAMP, BRAKE TUBE, NO.3

main47373-35060iLN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI.199708

47374BCLAMP, BRAKE TUBE, NO.4

main47372-35150×2iLN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI.199708

47375CLAMP, BRAKE TUBE, NO.5

main47372-35030×2iRZN147..ARL200108-200208

47393INSULATOR, BRAKE TUBE HEAT

main47393-35160iRZN16#,193..GEN200108-200506

main47393-35170iRZN142,147..SA200108-200504

NO.1

main47393-35180iRZN142,147,148,154..GEN..CBU200108-200506

NO.2

main47393-35200iKZN165..(DCB,SCB)..ARL200109-200502

47931BRACKET, LOAD SENSING VALVE

main47931-04010iKZN165..TH200110-200502

main47931-35110iRZN194..SCB;LN140,145,RZN147,169..SA200109-200203

W(ABS)

main47931-35120iRZN148,168..DLX..GEN;LN166,RZN154,169..DLX..(CBR,DSL)..GEN;LN145,171,191,RZN142,147,149,193..GEN199708

90119T0028

main90119-T0028

90119T0030

main90119-T0030

90119T0036

main90119-T0036

9046808035

main90468-08035

9094901457

main90949-01457

91511B0845

main91511-B0845

9161160814

main91611-60814

91611B0614

main91611-B0614

91611F0812

main91611-F0812

91641H0820

main91641-H0820

9622134905

main96221-34905

38 parts on this diagram · 16 diagrams in section
