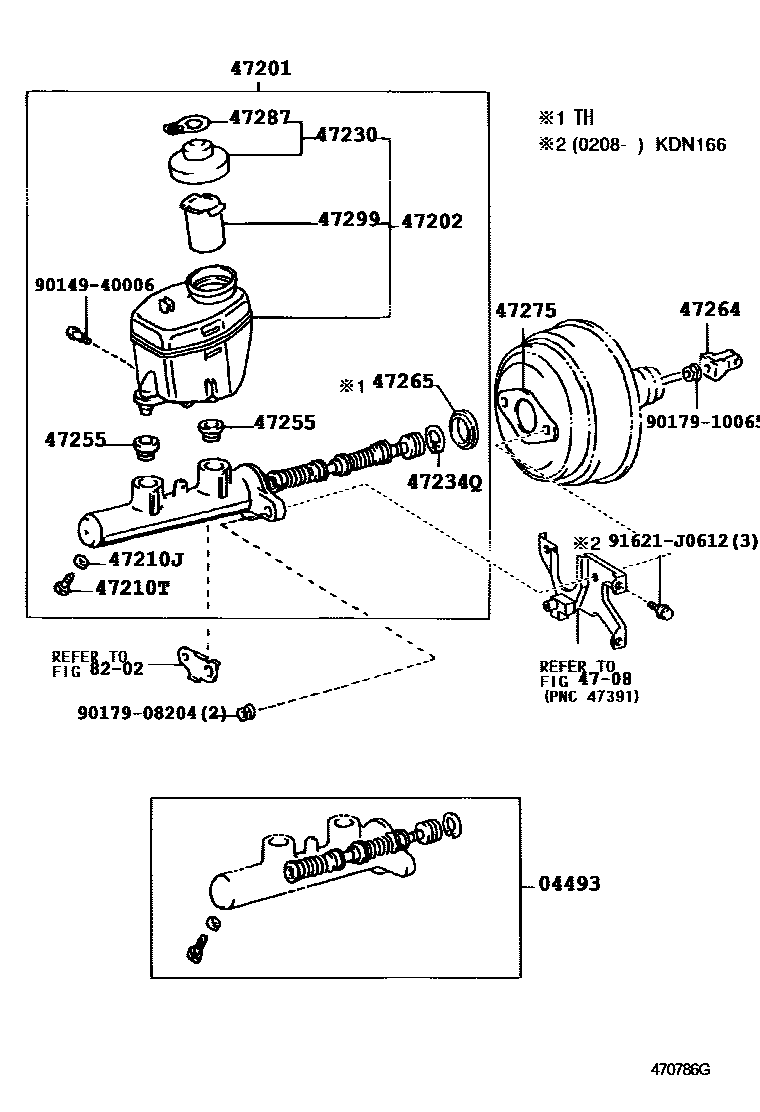

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-3D010iLN147,152..ARL199708-200508

W(ABS)

main04493-3D010iKDN145,150,151200110-200408

main04493-60280iRZN149..SR..GEN199708-200511

main04493-60290iKZN165..SCB199708-200508

W(ABS)

main04493-60300iLN167..ARL;KZN165,LN172..THSCB,THXTR,XTR199708-200603

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-04040iLN147,152..THDCB,THSCB,THXTR200109-200502

main47201-3D320iLN167,192..ARL,SA;KZN165,190,LN166,172,RZN142,147,169,174,194,YN140..RHD199708-200506

main47201-3D340iRZN169..SR..SA;RZN169..DLX..ARL;KZN165..THDCB..SR;LN167,172,RZN174..DLX;KZN165..(DCB,SCB)..(ARL,SA)199708-200504

W(ABS)

main47201-3D350iRZN144,148,149,154..LHD199708-200104

main47201-3D390iLN166,171,191,RZN142,147..LHD199708-200108

main47201-3D410iLN166,RZN169..GCC199708-200108

W(ABS)

main47201-3D420iLN140,145,147,152..ARL,SA199708-200506

W(PNC 47287)

main47201-3D430iLN147,152..ARL199708-200502

W(PNC 47287) & W(ABS)

main47201-3D460iRZN148,149..CO200206

main47201-3D460iLN141,145,146,155..LHD199708-200104

W(PNC 47287)

main47201-3D470iLN141,146199708-200108

W(PNC 47287) & W(ABS)

main47201-3D520iKZN165..TH200103-200109

main47201-3D530iKDN166;KZN165..DCB..TH200109-200411

main47201-3D530iKZN165..TH200103-200208

W(ABS)

main47201-60650iRZN169..GCC199708-200108

W(PNC 47287) & W(ABS)

main47201-60660iRZN16#,193..LHD..(GCC,GEN)199708

W(PNC 47287)

main47201-60660iRZN168..CO200206

main47201-60680iRZN147,149,154..ARL199708-200502

W(ABS)

main47201-60690iLN145,RZN149,154..RHD..(ARL,GEN)199708-200502

main47201-60700iRZN142,144,147,149..GCC199708-200108

W(ABS)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-35010iKZN190..SR;KDN166,KZN165;KDN165,190,LN16#,172,192,RZN142,147,149,154,169,174,194,VZN167,172..RHD..(ARL,GEN,MA,SA)199708-200506

sub47220-60080

main47220-35040iRZN149,169..GCC;LN141,146,166,171,191,RZN142,144,147..LHD199708-200508

main47220-60080iLN140,145,147,152..ARL,SA199708-200506

W(PNC 47287)

main47220-60090iLN141,145,146,155,RZN16#,193..LHD199708-200508

W(PNC 47287)

main47220-60090iRZN148,149,168..CO200206-200511

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iKDN145,150,151,16#,190,KZN165..TH200109-200411

main90029-43001iLN167,172..THDCB,THSCB,THXTR200109-200502

W(ABS)

main90430-06104iRZN169..DCB..SA;RZN169..DLX..SA;LN167,RZN147..RHD..SCB..(GEN,SA);KZN190,RZN148,149,168..DLX..(GEN,SA);KZN165,LN140,145,166,192,RZN142,194..RHD..(GEN,SA)199708-200511

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iKZN190..SR;LN147..IV3;LN145..LHD..IV3;LN147..DCB,THDCB;LN145,155,RZN148..LHD..(CO,TH);LN167,192,RZN149..ARL,CO,GCC,SA;LN145,152,RZN148..(ARL,GEN,SA)..CBU;KDN145,150199708-200511

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-04040iLN147,152..THDCB,THSCB,THXTR200109-200502

sub47230-0D221

main47230-12040iLN167..SCB..SA;LN166..RHD..GEN;LN191,RZN144,149..LHD..MTM;LN167..(DCB,THDCB,THSCB)..DLX..ARL200104-200508

W(ABS)

main47230-12040iRZN194..SCB;LN145..RHD..IV3;LN166..LHD..DSL;RZN169..CBR..GCC;RZN169..RHD..CBR;RZN149,154,169..ARL,SA;LN167,RZN142,174..(SCB,THXTR,XTR)..(ARL,GCC,GEN);KZN165,190,LN1199708-200411

main47230-12040iLN167..SCB..SA;LN166..RHD..GEN;RZN149..CBR..GCC;LN191,RZN144..CBR,DSL;LN167..(DCB,THDCB,THSCB)..DLX..ARL200104

THAILAND PRODUCT

main47230-20140iLN147..SCB..IV3;LN147..DCB..DLX;RZN148..DLX..GEN..CBU199708-200508

W(ABS)

main47230-20140iLN147,152..(DCB,SCB,THXTR)..DEFI;LN147,152..(THDCB,THSCB,XTR)..ARL199811-200511

main47230-20140iLN147..SCB..IV3;LN147..DCB..DLX;RZN148..DLX..GEN..CBU200108-200506

PLANT NO.P11

main47230-20140iLN145..SA;LN147..THDCB;LN147..THSCB..IV3;LN145,155..LHD..DLX;LN140,141,146,152,RZN168,193..(DCB,SCB,THXTR)..DLX..(ARL,GCC,GEN,SA)..CBU200108-200508

W(ABS) & W(LSP & BV)

47234QRING, SNAP(FOR RESERVOIR TUBE)

main96151-02800iKDN145,150,151200110-200408

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iKZN190..SR;LN147..IV3;LN145..LHD..IV3;LN147..DCB,THDCB;LN145,155,RZN148..LHD..(CO,TH);LN167,192,RZN149..ARL,CO,GCC,SA;LN145,152,RZN148..(ARL,GEN,SA)..CBU;KDN145,150199708-200511

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-04010iKDN145,151200109-200502

W(ABS)

main47264-28010iLN152..IV3;RZN169..DCB..SA;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN147..THSCB..DEFI..CBU;RZN149..DLX..EFI..(ARL,GEN);LN147..(DCB,SCB)..DLX..DEFI;KZN165,RZN194..199708

main47264-28010iLN147..THDCB,THSCB200109-200502

W(ABS)

47265BOOT, MASTER CYLINDER

main47265-20050iLN150,152,167,192..TH200103-200108

W(ABS)

main47265-20050iKZN165,LN145,15#,167,192..RHD..TH200103-200411

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iRZN169..CBR;RZN169..DCB..SA;KZN165..THDCB..SR;LN145..LHD..DLX..TH;LN167..DCB..DLX..ARL;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..D199708-200103

main47275-26010iLN167,172..THDCB,THSCB,THXTR200109-200502

W(ABS)

main47275-26010iKDN166,KZN165,LN145,150,155..RHD..TH200103-200411

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iLN140,145..SA199708-200502

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iLN152..IV3;KZN165..XTR;RZN169..DCB..SA;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..D199708-200511

8202

9014940006

main90149-40006

9017908204

main90179-08204

9017910065

main90179-10065

91621J0612

main91621-J0612

19 parts on this diagram · 2 diagrams in section
