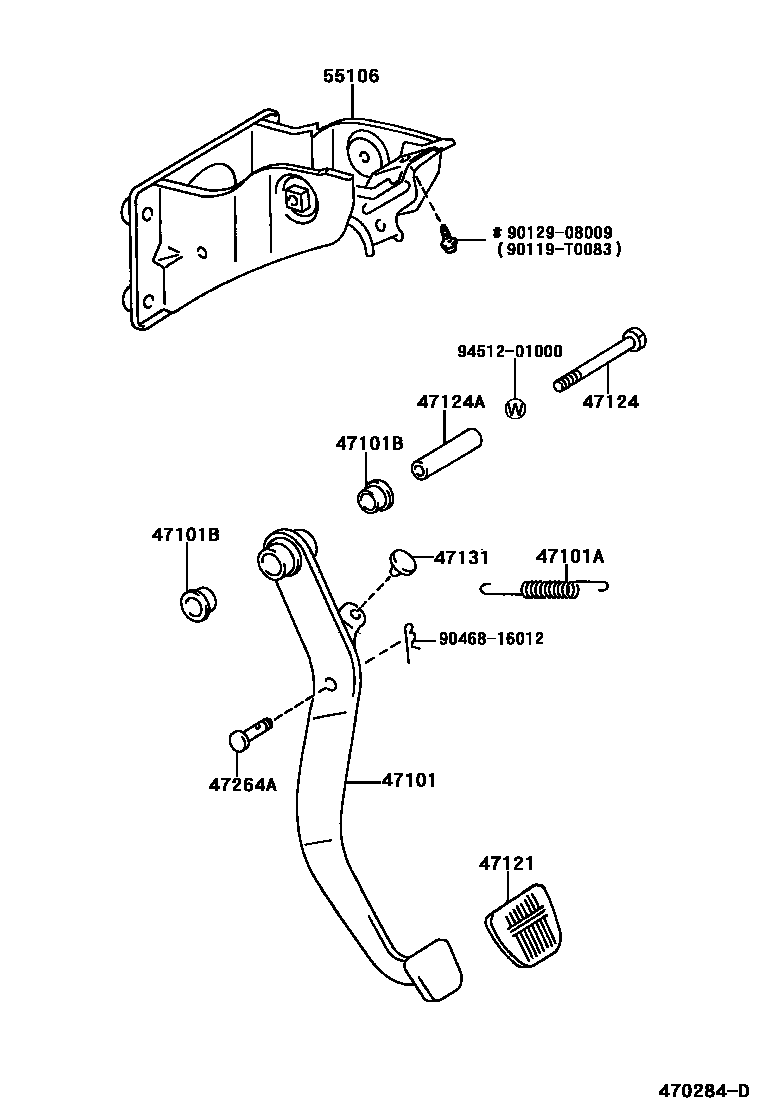

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-04010iKDN145,150,151,16#,KZN165,LN145,150,155..RHD..(DCB,SCB,XTR)..MTM..TH;KZN165,LN147,152,167,172,RZN147,149,154,169,174..(THDCB,THSCB,THXTR)..MTM200109-200502

main47101-35340iLN152,RZN149,154..RHD..ATM199708-200503

main47101-35350iRZN169..ARL,SA;RZN169..RHD..CBR;KZN165,190,LN140,145,147,15#,16#,172,192,RZN142,147,149,154,174,194,YN140..RHD..MTM199708-200506

main47101-35360iLN141,145,146,155,166,171,191,RZN14#,154,16#,193..LHD199708-200009

main47101-35361iRZN148..CO;RZN148..GEN..CBU;LN141,145,146,155,166,171,191,RZN142,144,147,149,154,16#,193..LHD..MTM200009-200511

main47101-35370iRZN149..CO200009-200511

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-17002iKDN16#,190,LN155..SCB,SRWGN199708-200506

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iLN141,146,166,RZN14#,16#..CO,GCC199804-200506

main90386-13020iLN14#,16#,17#,191,RZN14#,154,16#,174,193199708-199804

47121PAD, BRAKE PEDAL

main31321-14020iKZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM199708-200506

main31321-52010iLN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)200009-200511

main47121-14010iKDN190,RZN149,154,VZN167,172..ATM..(ARL,MA)199708-200503

main47121-52010iRZN149..EFI..GEN200009-200511

47124SHAFT, BRAKE PEDAL

main90101-10039iLN145,166,RZN147,169..RHD..GEN..CBU199708-200506

main90101-10194iRZN148..GEN..CBU;LN145,166,171,191,RZN142,147,154,16#,193..LHD..GEN199708-200506

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-35030iLN141,146,166,RZN14#,16#..CO,GCC199708-200506

main90387-10003iLN145,150..RHD..(DCB,XTR)..DLX..TH;KDN145,15#,16#,190..(DCB,SCB,XTR)..TH..CBU199708-200506

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iKZN165..TH;KDN165,190..IV1;LN167..THDCB..SR;LN167..THSCB..CBU;KZN165,RZN147,169,174..THDCB,THSCB,THXTR199708-200506

47264APIN(FOR PUSH ROD)

main47148-35010iLN147,167..IV3;KZN165..(DCB,SCB)..ARL;LN167..(DCB,THDCB)..DLX..ARL;LN172,RZN149,154,VZN167,172..ARL;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU199708-200506

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-04010iKDN166,190..SRWGN199903-200411

main55106-35100iLN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA)199708-200506

main55106-35120iLN141,146,166,RZN14#,16#..CO,GCC199708-200506

90119T0083

main90119-T0083

9012908009

main90129-08009

9046816012

main90468-16012

9451201000

main94512-01000

13 parts on this diagram · 2 diagrams in section
