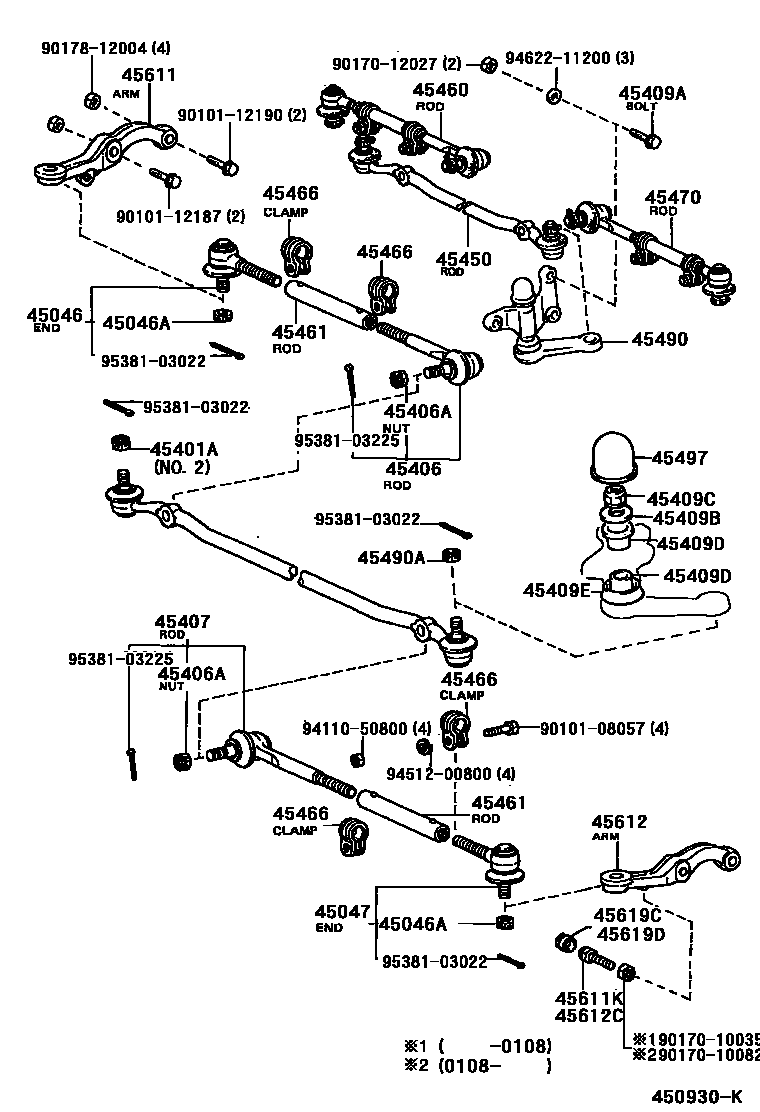

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1MANUAL STEERING 0006 1MANUAL STEERING 0008 1POWER STEERING 0010 1

45046END SUB-ASSY, TIE ROD, RH

main45046-39375iLN147..IV3;LN145..LHD..IV3;RZN148,149..ARL,CO;LN150,152..DLX..CBU;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,155,RZN142,147,154..200108

main45046-39385iLN167..DSL;RZN169..DLX..ARL;KZN165..(THDCB,THSCB,XTR)..SR;LN167,RZN169..(DEFI,EFI)..(SA,TH);LN167,RZN168..DLX..(DEFI,EFI)..(ARL,GEN);KZN190,LN166,17#,19#,RZN174,19#199708-200203

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042×2iKDN155,LN155200108-200409

45047END SUB-ASSY, TIE ROD, LH

main45046-39375iLN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..199708

main45046-39385iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172..ARL,CO,GEN,MA,SA,TH200108

45401ARM SUB-ASSY, PITMAN

main45401-35260iKZN165..TH;LN167..SR..ARL;KDN165,190..IV1;RZN169,174..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU200108-200208

main45401-35270iRZN169..LHD..CBR;LN166,171,191,RZN168,193..LHD..DLX..(GCC,GEN)199708

main45411-35320iRZN149..EFI..GEN200009-200402

main45411-35330iLN145..DCB..IV3;LN145..RHD..(CBU,IV1);LN140,147,15#,RZN147,149,154..RHD199708-200108

W(POWER STEERING)

main45411-35340iLN145,RZN147..RHD199708-199709

main45411-35350iRZN149..GEN;RZN149..DLX..GCC;LN141,145,146,RZN142,144,147,148..LHD..DLX199708-199709

main45411-35440iLN152..MTM..CBU;LN140,145,150,155,157,RZN142,147,YN140..RHD199709-200108

main45411-35450iRZN149..GEN;RZN149..DLX..GCC;LN141,145,146,155,RZN142,144,147,148,154..LHD..DLX199709-200008

main45411-35460iLN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN200108-200109

W(POWER STEERING)

main45411-35470iLN155..LHD200108-200409

W(POWER STEERING)

main45411-35480iRZN147..ARL200108-200208

main45411-35490iRZN148..DLX..GEN..CBU;LN145,RZN142,147,154..LHD..GEN200108-200506

45401ANUT, CASTLE(FOR PITMAN ARM)

main90170-20147iLN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN200109-200203

W(MANUAL STEERING),NO.1

main90170-22058iRZN148..DLX..CBU;KZN165,190,LN167,192,RZN169,194..SA200111-200203

W(POWER STEERING)

main90171-14042iLN141,146,166,RZN14#,16#..CO,GCC200108

NO.2

45406ROD SUB-ASSY, TIE, RH

main45406-39115iLN141,146,RZN142,144,147,149..GCC200509

main45406-39185iLN166,RZN169..GCC200108-200508

45406ANUT, CASTLE(FOR TIE ROD)

main90171-14042×2iLN147..IV3;RZN149,154..ARL;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU200108-200502

45407ROD SUB-ASSY, TIE, LH

main45406-39115iLN141,146,RZN142,144,147,149..GCC200509

main45406-39185iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172..ARL,CO,GEN,MA,SA,TH200108

45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)

main90101-12152×2iKDN155200108-200408

*12-1.25PX95-25

main90101-12153iLN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..199708

*12-1.25PX35-26

45409BWASHER, PLATE(FOR IDLER ARM RUBBER BUSH)

main90201-14010iLN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI.199708

45409CNUT(FOR IDLER ARM SUPPORT)

main94184-61400iKDN145,15#,LN145,150..TH200206-200408

main94184-61401iKDN165,190,LN166..MA200206-200503

45409DBUSH(FOR IDLER ARM)

main90386-18002×2iLN140,145,RZN142,147..SA200206-200504

main90389-21004×2iLN167..IV3;LN167..(DCB,THDCB)..DLX..ARL;KZN165,LN172,VZN167,172..(DCB,SCB,THXTR,XTR)..ARL200206-200502

45409ESEAL, DUST(FOR IDLER ARM SUPPORT)

main90304-31012iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU200206-200506

45450ROD ASSY, STEERING RELAY

main45450-39245iLN140,145,147,15#,RZN142,147,149,154,YN140..RHD199708-200107

main45450-39255iLN141,145,146,155,RZN14#,154..LHD199708-200107

main45450-39295iLN140,145,147,15#,RZN142,147,149,154..RHD200107-200108

main45450-39305iLN145,RZN148,149..LHD..DLX..(DSL,EFI)..(GEN,TH);LN141,146,155,RZN142,144,147,149,154..LHD..(CBR,DSL)200107

main45451-39175iLN16#,172..RHD199708-199805

main45451-39185iLN166,171,191..LHD199708-199805

main45451-39195iRZN169,174..RHD199708-199805

main45451-39205iRZN16#,193..LHD199708-199805

main45451-39305iRZN174,194;RZN169..SA;RZN169..RHD..CBR;RZN169..DLX..ARL199805-200203

main45451-39405iRZN16#,193..LHD..(CO,GEN)200108

main45451-39505iLN192;LN167..DSL;KZN165..XTR;LN167..DEFI..TH;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN190,LN166,172..RHD..DLX..(ARL,GEN,SA);KZN1199805

main45451-39605iLN166..GCC200509

45460ROD ASSY, TIE, RH

main45460-39485iLN141,146,RZN142,144,147,149..GCC200108-200508

main45460-39505iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172..ARL,CO,GEN,MA,SA,TH200108

45461ROD, STEERING TIE

main45465-35040×2iLN166,RZN16#..CO,GCC200108

main45465-35060×2iLN147..IV3;RZN149,154..ARL;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU200108-200502

45466CLAMP, TIE ROD END

main45466-30020×4iLN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI.199708

45470ROD ASSY, TIE, LH

main45460-39485iLN147..IV3;LN145..LHD..IV3;RZN148,149..ARL,CO;LN150,152..DLX..CBU;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,155,RZN142,147,154..200108

main45460-39505iLN166,RZN169..GCC200509

45490ARM ASSY, STEERING IDLER

main45490-39305iLN145..RHD..IV3;LN140,145,RZN142,147..SA200109-200110

main45490-39306iLN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN200206-200402

THAILAND PRODUCT

main45490-39315iRZN148..IV3;LN145..DCB..TH;LN155,RZN149..LHD..(GEN,TH)200108-200109

main45490-39316iRZN149..GEN;RZN148..GEN..IV3200206-200402

THAILAND PRODUCT

main45490-39445iKZN190..SR;LN167,192..ARL,SA;KDN165,190,KZN165,LN166,172,RZN169,174,194..RHD200108-200206

main45490-39446iLN166..RHD..GEN200206-200402

main45490-39455iLN166,171,191,RZN16#,193..LHD200108-200206

main45490-39456iLN166,171,191,RZN16#,193..LHD..(CO,GEN)200206

main45490-39465iLN145..SA;LN147..IV3;LN147,RZN147..RHD..(DCB,THDCB);LN145,150,152..RHD..(DCB,THXTR,XTR)..DLX..(ARL,TH)..CBU;KDN145,15#,LN140,155,RZN142,147,149,154..RHD..(ARL,SA,TH200108-200206

PLANT NO.P11

main45490-39466iRZN147..RHD..DCB;KDN145,15#,LN140,145,147,15#,RZN142,147,149,154..RHD..(ARL,SA,TH)200206-200506

PLANT NO.P11

main45490-39475iRZN148..SR;LN141,145,146,155,RZN142,144,147,149,154..LHD..MTM200108-200206

PLANT NO.P11

main45490-39476iRZN148..SR;RZN148,149..CO;LN145,155,RZN142,147,154..LHD..(GEN,TH)200206

PLANT NO.P11

45490ANUT, CASTLE(FOR IDLER ARM)

main90171-12028iKZN165,190,RZN194..SR..SA;LN140,145,167,192,RZN142,147,169..SA200108-200504

45497CAP, IDLER ARM BRACKET

main45497-28010iLN167..SR;KZN165..TH;KDN165,190..IV1;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU200206-200208

45611ARM, STEERING KNUCKLE, RH

main45611-04010iKDN145,15#,LN145,150,155..TH;LN147,152,RZN147,149,154..THDCB,THSCB,THXTR200109-200502

main45611-04020iLN167,172..THDCB,THSCB,THXTR200305-200502

main45611-35130iRZN169..DCB..SA;LN167,RZN169..SCB..DLX..SA;KZN190,RZN168..DLX..(GEN,SA);KZN165,LN166,192,RZN194..RHD..(GEN,SA)200109-200305

main45611-35230iLN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,G200108-200511

45611KBOLT(FOR STEERING KNUCKLE STOPPER RH)

main90106-10003iLN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN1200108-200511

main90106-10032iLN14#,15#,RZN14#,154199708-199808

45612ARM, STEERING KNUCKLE, LH

main45612-04010iKDN145,15#,LN145,150,155..TH;LN147,152,RZN147,149,154..THDCB,THSCB,THXTR200109-200502

main45612-04020iLN167,172..THDCB,THSCB,THXTR200305-200502

main45612-35150iLN166..RHD..GEN;RZN168..DLX..GEN200305

main45612-35250iLN152,157..DSL;LN152..DEFI..IV3;LN14#,150,155,RZN14#,154,YN140199708-200103

45612CBOLT(FOR STEERING KNUCKLE STOPPER LH)

main90106-10003iLN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN1200108-200511

main90106-10032iLN14#,15#,RZN14#,154199708-199808

45619CCOVER, STEERING KNUCKLE STOPPER, RH

main45619-35030iLN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN;RZN148..DLX..GEN..CBU200203

45619DCOVER, STEERING KNUCKLE STOPPER, LH

main45619-35030iLN14#,15#,RZN14#,154,YN140199708-200108

9010108057

main90101-08057

9010112187

main90101-12187

9010112190

main90101-12190

9017010035

main90170-10035

9017010082

main90170-10082

9017012027

main90170-12027

9017812004

main90178-12004

9411050800

main94110-50800

9451200800

main94512-00800

9462211200

main94622-11200

9538103022

main95381-03022

9538103225

main95381-03225

39 parts on this diagram · 8 diagrams in section
