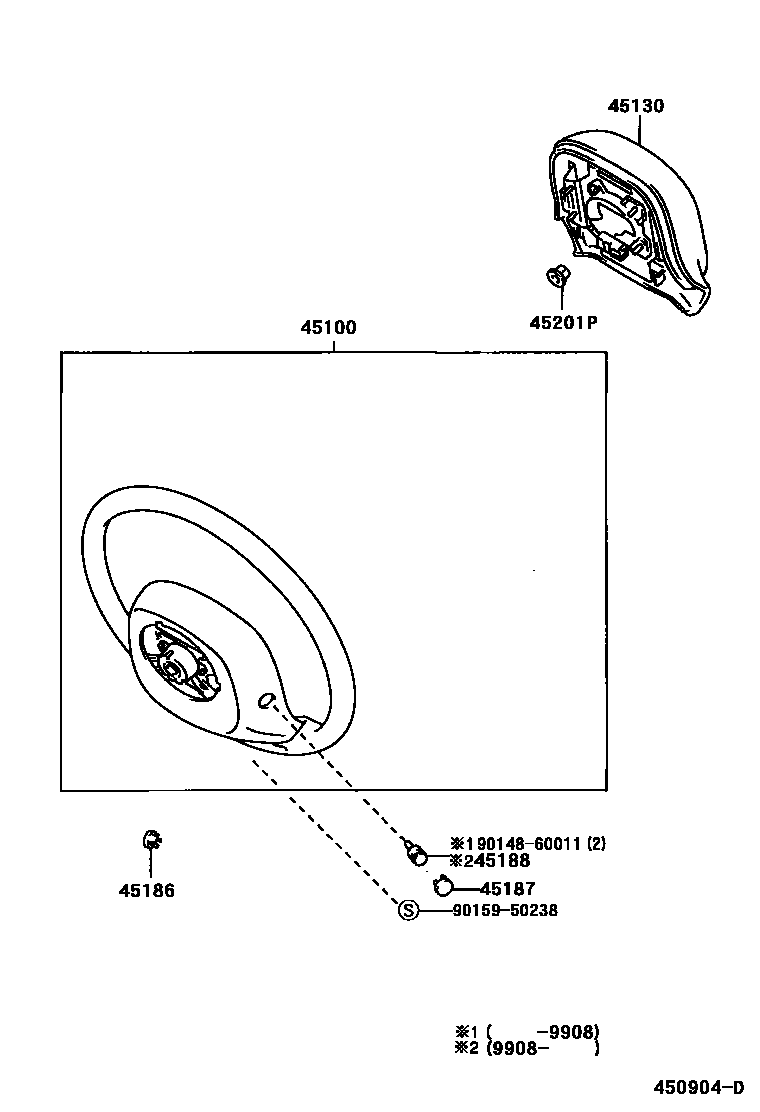

STEERING WHEEL

0001 12-SPOKE,W(*80) 0002 13-SPOKE 0003 12-SPOKE 0004 14-SPOKE,W(AIR BAG)

45100WHEEL ASSY, STEERING

main45100-04200-C0iRZN169..SCB..SA;KZN190,LN140,145,167,192,RZN147,194..SA200208-200504

3-SPOKE,URETHANE,BLACK,TRIM10

main45100-04200-C0iKDN155,LN145,150..RHD..TH200208-200408

3-SPOKE,URETHANE,BLACK,TRIM40

main45100-04200-C0iLN145..SR200109-200408

3-SPOKE,URETHANE,BLACK,TRIM1#

main45100-04200-E0iRZN169..SCB..SA;KZN190,LN140,145,167,192,RZN147,194..SA200208-200504

3-SPOKE,URETHANE,SANDAL WOOD,TRIM10

main45100-04200-E0iKDN145,150,165,190..CBU200110-200208

3-SPOKE,URETHANE,SANDAL WOOD,TRIM4#

main45100-04200-E0iKDN155,LN145,150..RHD..TH200208-200408

3-SPOKE,URETHANE,SANDAL WOOD,TRIM40

main45100-26220-C0iKZN165,190,LN140,145,167,192,RZN147,169,194..SA199708-200203

2-SPOKE,URETHANE,BLACK,TRIM1#

sub45100-26220

main45100-26220-C0iLN141,146,166,RZN142,144,147,149,169..GCC199708-200108

2-SPOKE,URETHANE,BLACK,TRIM1#,3#

sub45100-26220

main45100-26230-C0iRZN148,149,168..DLX..CO199708-200108

2SPOKE,POLYPROPYLENE,BLACK,TRIM1#,3#

sub45100-26230

main45100-26230-C0iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU199708-200506

2SPOKE,POLYPROPYLENE,BLACK,TRIM1#

sub45100-26230

main45100-26250-C0iRZN149..ARL;RZN169..SCB..ARL;LN167..(SCB,THSCB)..ARL;RZN169..(DCB,THDCB,THSCB)..EFI;LN147,RZN147,154,174,194..(SCB,THSCB,THXTR,XTR)..(DSL,EFI)199708-199908

2-SPOKE,URETHANE,W(*80),BLACK,TRIM1#,3#

sub45100-26250

main45100-26250-C0iRZN169,194..(DCB,SCB)..SR199708-200010

2-SPOKE,URETHANE,W(*80),BLACK,TRIM1#

sub45100-26250

main45100-26290-C0iRZN169..SCB..ARL;LN147,167..(SCB,THSCB)..ARL;RZN169..(DCB,THDCB,THSCB)..(ARL,SA);KZN165,RZN147,149,154,174,194..RHD..(EFI,TDE)199908-200504

4-SPOKE,URETHANE,BLACK,TRIM1#

sub45100-26290

main45100-26290-C0iLN141,RZN142,144,147,149,169..GCC199908-200108

4-SPOKE,URETHANE,BLACK,TRIM1#,3#

sub45100-26290

main45100-26300-C0iLN146,166..GCC199908-200108

4-SPOKE,URETHANE,BLACK,TRIM1#,3#

sub45100-26300

main45100-26300-C0iLN147,152,167,172..(DCB,THDCB,THXTR,XTR)..ARL199908-200502

4-SPOKE,URETHANE,BLACK,TRIM1#

sub45100-26300

main45100-35380-C0iLN146,166..GCC199708-199908

2-SPOKE,URETHANE,W(ABS),BLACK,TRIM1#,3#

main45100-35380-C0iLN167..SR..SA199708-200010

2-SPOKE,URETHANE,W(ABS),BLACK,TRIM1#

main45100-60250-C0iRZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,149,168..DLX..GEN199708-200506

3-SPOKE,URETHANE,BLACK,TRIM1#

sub45100-60250

main45100-60250-C0iLN141,146,166,RZN142,144,147,149,169..GCC200108

3-SPOKE,URETHANE,BLACK,TRIM1#,3#

sub45100-60250

45130BUTTON ASSY, HORN

main45130-04080-C0iLN145..SR200109-200408

BLACK,TRIM1#

main45130-04080-C0iKDN145,150,165,190..(DCB,XTR)..TH200208-200408

BLACK,TRIM40

main45130-04080-C0iKDN145,150,165,190..(DCB,XTR)..TH200208-200504

BLACK,TRIM10

main45130-04080-E0iKDN145,150,165,190..(DCB,XTR)..TH200208-200504

SANDAL WOOD,TRIM10

main45130-04080-E0iKDN155,LN145,150..RHD..TH200208-200408

SANDAL WOOD,TRIM40

main45130-04080-E0iKDN145,150,165,190..CBU200110-200208

SANDAL WOOD,TRIM4#

main45130-26240-C0iLN166,RZN169..GCC;RZN144,149..SR..GCC199708-200108

BLACK,TRIM1#,3#

sub45130-26240

main45130-26240-C0iLN141,146,RZN142,144,147,149..DLX..GCC199708-200108

W(URETHANE STEERING WHEEL),BLACK,TRIM1#,3#

sub45130-26240

main45130-26240-C0iKZN165,190,LN140,145,147,152,167,172,192,RZN147,149,154,169,174,194..ARL,SA199708-200203

BLACK,TRIM1#

sub45130-26240

main45130-26260-C0iRZN148,149,168..DLX..CO199708-200506

W(2-SPOKE STEERING WHEEL),BLACK,TRIM1#

sub45130-26260

main45130-26260-C0iLN141,146,RZN142,144,147,149..DLX..GCC199708-200108

BLACK,TRIM1#,3#

sub45130-26260

main45130-26260-C0iLN166..SCB..MA200209-200502

BLACK,TRIM1#

sub45130-26260

main45130-35350-C0iLN150,152,167,192,RZN169,194..(DCB,SCB,XTR)..SR199708-200010

W(AIR BAG),BLACK,TRIM1#

main45130-35350-C0iRZN194;LN167,RZN169..SCB..ARL;LN167,RZN169..(DCB,THDCB,THSCB,XTR)..(DSL,EFI);LN147,150,152,172,192,RZN147,149,154,174..ARL,TH199708-199908

W(AIR BAG),BLACK,TRIM1#,3#

main45130-35380-C0iKZN165,RZN169,194..SR..SA199908-200504

W(AIR BAG),BLACK,TRIM1#

sub45130-35380

main45130-35380-C0iLN141,146,166,RZN142,144,147,149,169..GCC199908-200108

W(AIR BAG),BLACK,TRIM1#,3#

sub45130-35380

main45130-43010-C0iRZN144,149..DLX..GCC200108

W(3-SPOKE,URETHANE),BLACK,TRIM1#,3#

sub45130-43010

main45130-43010-C0iLN145..DCB..IV3;LN145..RHD..(GEN,TH)..(CBU,IV1);LN145,RZN148,168..LHD..DLX..GEN;LN166,RZN154,169..DLX..(CBR,DSL)..GEN;KZN165,LN15#,167,171,19#,RZN142,147,149,193..G199708-200506

W(3-SPOKE STEERING WHEEL),BLACK,TRIM1#

sub45130-43010

main45130-43010-C0iLN166,RZN169..GCC;RZN144,149..SR..GCC200108

BLACK,TRIM1#,3#

sub45130-43010

main45130-43010-C0iLN166,RZN169..GCC;RZN144,149..SR..GCC200108

W(3-SPOKE STEERING WHEEL),BLACK,TRIM1#,3#

sub45130-43010

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-26010-C0iLN167,RZN169,194..(DCB,SCB)..SR199708-200010

BLACK,TRIM1#

sub45186-26010

main45186-26010-C0iRZN194;LN167,RZN169..SCB..ARL;LN167,RZN169..(DCB,THDCB,THSCB,XTR)..(DSL,EFI);LN147,150,152,172,192,RZN147,149,154,174..ARL,TH199708-199908

BLACK,TRIM1#,3#

sub45186-26010

main45186-33050-C0iLN141,146,166,RZN142,144,147,149,169..GCC199908-200108

BLACK,TRIM1#,3#

sub45186-33050

main45186-33050-C0iLN167,RZN169..ARL;KZN165,LN147,152,172,RZN147,149,154,174..(DSL,EFI,TDE)..(ARL,SA)199908-200504

BLACK,TRIM1#

sub45186-33050

main45186-33050-C0iKDN145,150,151,16#,190..(DCB,XTR)..TH200208-200404

BLACK,TRIM40

sub45186-33050

main45186-33050-E3iKDN16#,190..SRWGN200110-200404

.,SANDAL WOOD,TRIM4#

sub45186-33050

main45186-33050-E3iKDN145,150,151,16#,190..(DCB,XTR)..TH200208-200404

SANDAL WOOD,TRIM40

sub45186-33050

45187COVER, STEERING WHEEL, LOWER NO.3

main45186-26010-C0iLN141,146,166,RZN142,144,147,149,169..GCC199708-199908

BLACK,TRIM1#,3#

sub45186-26010

main45186-26010-C0iLN141,146,166,RZN142,144,147,149,169..GCC199708-200010

BLACK,TRIM1#

sub45186-26010

main45186-33050-C0iLN167,192,RZN169..ARL,TH;KZN165,LN147,150,152,172,RZN147,149,154,174..RHD..(DEFI,DSL,EFI,TDE)199908-200504

BLACK,TRIM1#

sub45186-33050

main45186-33050-C0iLN141,146,166,RZN142,144,147,149,169..GCC199908-200108

BLACK,TRIM1#,3#

sub45186-33050

main45186-33050-C0iKDN145,150,151,16#,190..(DCB,XTR)..TH200208-200404

BLACK,TRIM40

sub45186-33050

main45186-33050-E3iKDN145,150,165,190..CBU200110-200404

.,SANDAL WOOD,TRIM4#

sub45186-33050

main45186-33050-E3iKDN145,150,151,16#,190..(DCB,XTR)..TH200208-200404

SANDAL WOOD,TRIM40

sub45186-33050

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010iKDN16#,190..SRWGN199908-200508

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iKZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140199708-200506

9014860011

main90148-60011

9015950238

main90159-50238

8 parts on this diagram · 4 diagrams in section
