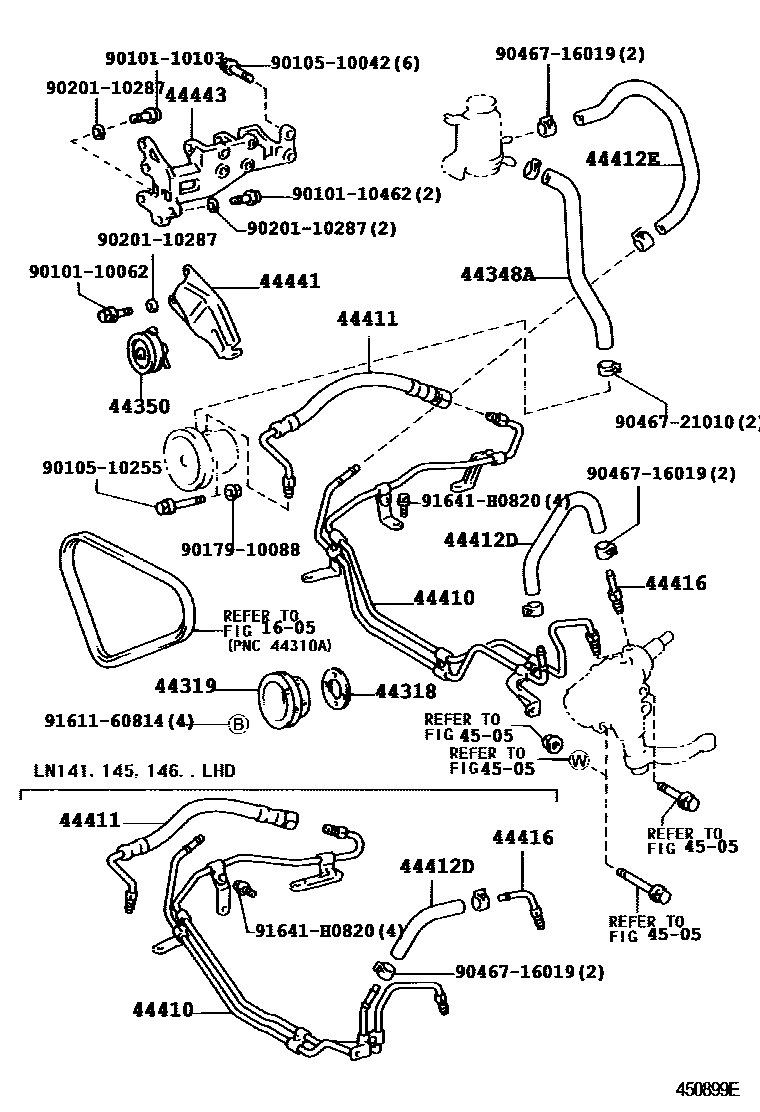

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

1605

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-26010iLN167..SR..ARL;LN145,166..RHD..GEN..CBU;LN167..(SCB,THSCB)..ARL..CBU200108-200506

main44318-26020iRZN149..GCC;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);RZN142,144,154,169,193..GCC,GEN199708-200108

main44318-35010iLN155..LHD199708-200109

44319PULLEY, VANE PUMP DRIVE

main44319-22010iLN147,167..THSCB..IV3200108-200208

main44319-26020iRZN147..SCB..SA199708-200203

main44319-34010iRZN169,194..(DCB,SCB)..SA199708-200203

main44319-35030iLN141,145,146,166,171,191..LHD..(GCC,GEN)199708-200108

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-04010iLN147,152,167,172..THDCB,THSCB,THXTR199903-199909

main44348-35190iRZN147..RHD..SCB..GEN200203

main44348-35200iLN141,145,146,155,166,171,191..LHD..DSL199708-200109

main44348-35210iLN145..SA;LN145..DCB..IV3;LN140,147,152,16#,172,192..RHD..(DCB,SCB,XTR)..(ARL,GEN,SA)199903-199908

THAILAND PRODUCT

main44348-35211iLN145..RHD..TH200109-200408

main44348-35240iKZN165..TH;KZN165..THDCB,THSCB200109-200208

main44348-35260iKDN145,15#,165,190200110-200203

44350PULLEY ASSY, POWER STEERING IDLE

main44350-26010iRZN142,147..GCC200108

main44350-34010iRZN149..SR..GEN199708-200008

main44350-60020iLN145,155..LHD..TH199708-200109

main44350-60021iLN141,146,166..GCC200111

44410TUBE ASSY, PRESSURE FEED

main44410-04060iLN147,152..THDCB,THSCB,THXTR199903-200012

main44410-04070iLN167,172..THDCB,THSCB,THXTR199903-200012

main44410-04080iRZN149,154..THDCB,THSCB,THXTR200109-200502

main44410-04090iRZN169,174..THDCB,THSCB,THXTR199903-200109

main44410-04150iLN147,152..THDCB,THSCB,THXTR200109-200502

main44410-04160iLN167,172..THDCB,THSCB,THXTR200012-200109

main44410-35450iLN147..(DCB,SCB)..DLX;LN145,152..(DCB,XTR)..IV3;LN140,145..RHD..(GEN,SA)..CBU199903

main44410-35460iLN155..LHD200108-200409

main44410-35470iRZN147..RHD..GEN200108-200506

main44410-35480iRZN147..ARL200109-200208

main44410-35490iRZN149,154..(DCB,SCB,XTR)..ARL199903-200109

main44410-35500iLN167..SCB..DEFI;LN167..(DCB,SCB)..DSL;LN167..DCB..DLX..DEFI..ARL;LN166,172,192..RHD..(DCB,SCB,XTR)..(ARL,GEN,SA)199903

main44410-35510iLN166,171,191..LHD199708-199908

main44410-35511iLN166,171,191..LHD..GEN200108-200506

main44410-35530iRZN169,174,194..(DCB,SCB,XTR)..EFI199903-199908

main44410-35531iRZN169..SA;RZN169..(DCB,SCB)..DLX..ARL;RZN174,194..DCB,SADCB,SCB,XTR199908-200203

main44410-35540iRZN169..RHD..GEN199708-200108

main44410-35580iKZN165..(DCB,SCB)..ARL200109-200502

main44410-35610iKDN145,15#200110-200203

main44410-35630iRZN169..RHD..GEN200108-200506

main44410-35670iKDN165,190200110-200203

main44410-35680iVZN167,172200208-200502

44411HOSE, PRESSURE FEED

main44411-04070iLN147,152..THDCB,THSCB,THXTR199903-199909

main44411-04080iLN167,172..THDCB,THSCB,THXTR199903-199909

main44411-35480iLN145..RHD..GEN..CBU199903-199908

THAILAND PRODUCT

main44411-35481iLN145..RHD..GEN..CBU199908

PLANT NO.P11

main44411-35490iLN145..LHD..GEN200108-200506

main44411-35500iRZN144,148,149..CO,GCC200108

main44411-35510iRZN144,149,154..CBR199708-199908

main44411-35511iRZN144,149,154..CBR199908-200108

main44411-35520iLN166,192..RHD..DLX199903-199908

W(POWER STEERING)

main44411-35521iLN166..RHD..GEN200108-200506

main44411-35530iLN166,171,191..LHD199708-200108

main44411-35540iRZN168,193199708-199908

main44411-35541iRZN168,193..GEN200108-200506

main44411-35550iRZN169..LHD199708-199908

main44411-35551iRZN169..LHD199908-200108

main44411-35560iRZN142,147..LHD199708-199908

main44411-35561iRZN142,147..GCC200108

main44411-35580iKZN165,190..SR..SA200109-200504

main44411-35620iRZN154..GEN200108-200506

main44411-35630iKDN145,15#200110-200203

main44411-35640iRZN169..LHD..GEN200108-200506

main44411-35650iKDN165,190200110-200203

44412DHOSE, RETURN, NO.1

main44412-04030iLN167..THDCB,THSCB;KZN165,LN172..THSCB,THXTR199903-200009

main44412-35100iLN166..GCC200108

main44412-35110iLN167,172..(DCB,SCB,XTR)..ARL199708-200009

main44412-35300iRZN16#..CO,GCC200108

main44412-35310iVZN167,172200208-200502

main44412-35330iRZN142,147..GCC200108

main90080-44100iLN147,152..THDCB,THSCB,THXTR199903-200009

main90445-18147iLN147..SCB..IV3;RZN149..(DCB,SCB)..ARL;LN147,152,RZN154..(DCB,XTR)..ARL..CBU200108-200502

main90445-18156iLN145..LHD..TH200108-200408

44412EHOSE, RETURN, NO.2

main44412-04040iLN167,192..DEFI..TH;LN147,152,167,172..(THDCB,THSCB,THXTR)..DEFI199903-200109

main44412-35180iRZN148,149,168..DLX..EFI..GEN199708-200402

main44412-35190iLN145,166..RHD..GEN..CBU199708

main44412-35200iLN155..LHD200108-200409

main44412-35320iRZN142,147..LHD..GEN200108-200506

main44412-35340iRZN149..GCC;RZN144,154,169..LHD;RZN149..DLX..CBR..GEN199708-200108

main44412-35350iKDN145,15#200110-200203

main90445-18089iRZN149,154..THDCB,THSCB,THXTR199708-199903

main90445-18153iRZN147..RHD..SCB..GEN199708

main90445-18154iRZN169,194..(DCB,SCB)..SA199708-200203

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-04040iLN147,152..THDCB,THSCB,THXTR199903-200009

main44416-04050iLN167,RZN169..(THDCB,THSCB)..(DEFI,EFI);KZN165,LN172,RZN174..(THDCB,THXTR)..(DEFI,EFI,TDE)199903-200109

main44416-35020iLN166,171,191,RZN16#,193..LHD..GEN200108-200506

main44416-35070iRZN142,147,148,154..LHD..GEN..CBU200108-200506

main44416-35100iKZN165,190,LN167,192,RZN169,194..(DCB,SCB)..(DEFI,EFI,TDE)..SA199708-200203

main44416-35150iLN141,146200108

main44416-35160iLN145,RZN147..RHD..GEN..CBU200108-200506

44441BRACKET, PUMP, FRONT

main44441-26010iRZN147;RZN142..LHD199708-200203

main44441-35040iLN155..LHD200111-200409

44443BRACKET, PUMP

main44443-26031iRZN142,147..GCC200108

main44443-26041iLN145,166..RHD..GEN..CBU199708-200206

main44443-26090iLN140,145..SA199905-200203

W(TACHOMETER)

main44443-26091iLN145,166..RHD..GEN..CBU200206

main44443-34010iRZN148,168,193..GEN..CBU200108-200506

main44443-34020iRZN149..GCC;RZN144,154,169..CBR;RZN149..DLX..CBR..GEN199708-200108

main44443-35040iRZN194..SADCB199708-200010

main44443-35050iLN141,145,146,166,171,191..LHD199708-199803

main44443-35051iLN141,145,146,155,166,171,191..LHD199803-199908

W(TACHOMETER)

main44443-35070iLN141,145,146,166,171,191..LHD..(GCC,GEN)199908-200108

main44443-35080iVZN167,172200208-200502

4505

9010110062

main90101-10062

9010110103

main90101-10103

9010110462

main90101-10462

9010510042

main90105-10042

9010510255

main90105-10255

9017910088

main90179-10088

9020110287

main90201-10287

9046716019

main90467-16019

9046721010

main90467-21010

9161160814

main91611-60814

91641H0820

main91641-H0820

24 parts on this diagram · 11 diagrams in section
