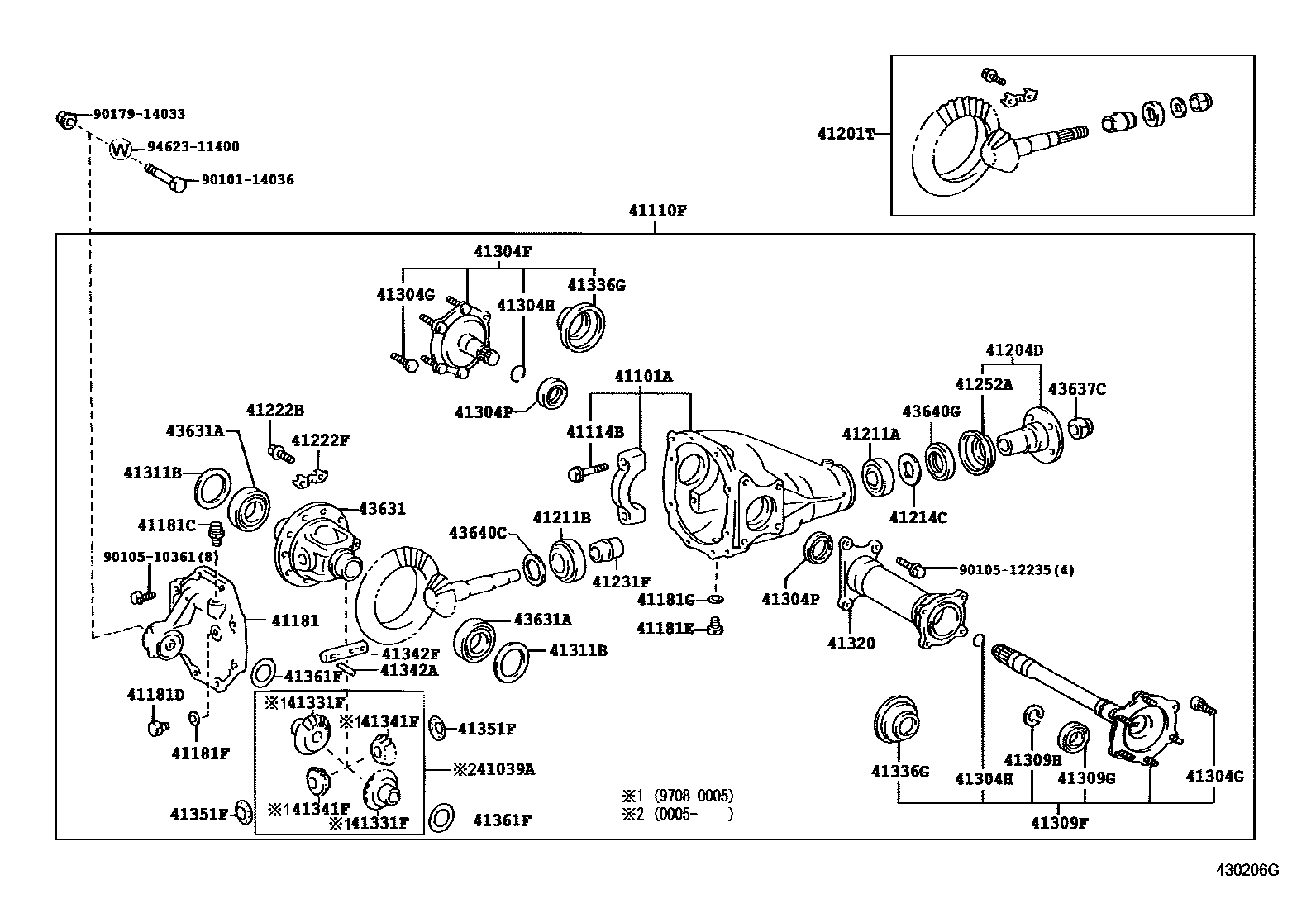

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0003 1A.D.D 0008 1A.D.D 0009 1A.D.D 0010 1A.D.D 0011 1A.D.D

41039AGEAR KIT, DIFFERENTIAL

main41039-34030iLN167..ARL,SA;KDN16#,KZN165,LN166,17#,RZN16#,174,VZN167,172200005

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-35060iKZN165,LN167,RZN169..SA199708-200506

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-34250iKDN165..SRWGN200110-200503

*FGR=43:11=3.909

main41110-35350iVZN167,172..DLX200208-200502

*FGR=41:10=4.100

main41110-35360iRZN16#..GEN199708-200506

*FGR=43:10=4.300

main41110-35370iLN166,RZN168..CO,GCC199708-200506

*FGR=41:9=4.555

main41110-35380iLN167..SR..SA199807-200002

*FGR=39:8=4.875

main41110-35440iVZN172200208-200502

*FGR=41:10=4.100,W(A.D.D)

main41110-35450iRZN174200109-200208

*FGR=43:10=4.300

main41110-35450iRZN169,174..(DCB,THDCB,THXTR,XTR)..ARL199708-200109

*FGR=43:10=4.300,W(A.D.D)

main41110-35460iRZN169..SA;LN167,172..(DCB,THDCB,THXTR,XTR)..(ARL,TH)..(CBU,IV1)199708-200502

*FGR=41:9=4.555,W(A.D.D)

main41110-35460iLN167..SR200009-200208

*FGR=41:9=4.555

main41110-35470iLN167..SR..SA199807-200010

*FGR=39:8=4.875,W(A.D.D)

main41110-3D300iKZN165..SR..(ARL,TH)199909-200502

*FGR=41:11=3.727

main41110-3D310iKZN165..(THDCB,THSCB)..DLX200007-200504

*FGR=41:11=3.727

41114BBOLT, FRONT DIFFERENTIAL BEARING CAP

main90105-12053iLN166,171,RZN16#..GEN199708-200506

41181COVER, FRONT DIFFERENTIAL CARRIER

main41108-35010iLN167..IV3;LN167..(DCB,THDCB)..DLX..ARL;KZN165,LN172,VZN167,172..(DCB,SCB,THXTR,XTR)..DLX199708-200506

main41108-35020iRZN174199708-200502

W(A.D.D)

main41108-35020iKDN16#..(DCB,XTR)..TH..CBU199909-200503

main41108-35020iLN167..(DCB,THDCB)..ARL200009-200109

SP PACKAGE

41181CPLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER)

main90930-03031iKZN165..SCB199708-200404

main90930-03077iLN166..RHD..GEN200404-200506

41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)

main90341-18006iKZN165..TH;KDN165..IV1;LN167..SR..ARL;RZN169,174..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU199708-200506

41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)

main90341-18030iLN166,RZN16#..CO,GCC199807-200506

main90341-18057iLN16#,17#,RZN16#,174199708-199807

41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)

main12157-10010iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ199708-200506

41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)

main12157-10010iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ199708-200208

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-39745iLN167..SR..SA199807-200009

*FGR=39:8=4.875

main41201-80004iRZN169..GCC199708-200506

*FGR=43:10=4.300

main41201-80010iKZN165..SA;KZN165..(DCB,SCB)..DLX200007-200203

*FGR=41:11=3.727

sub41201-80107

main41201-80015iLN166..GCC199708-200603

*FGR=41:9=4.556

main41201-80107iKZN165..SA199909-200506

*FGR=41:11=3.727

main41201-80109iKDN165200208-200502

*FGR=43:11=3.909

main41201-80110iVZN167,172200208-200502

*FGR=41:10=4.100

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-35050iKDN16#..SRWGN199708-200506

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-30022iLN167..DSL;RZN169..DLX..(ARL,SA);LN166,17#,RZN168,174..DLX;LN167..DCB..DLX..DEFI..ARL;KZN165..(THDCB,THSCB,XTR)..SR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZN169199708-200206

sub90366-30078

main90366-30078iLN166..RHD..GEN;RZN168..DLX..GEN200206-200506

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-35023iLN166,RZN16#..CO,GCC199708-200506

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-30021iKZN165,LN16#,17#,RZN16#,174199805-200011

main41214-35020iLN167..DCB..DLX..ARL;RZN169..DLX..(ARL,SA);KZN165..(SCB,XTR)..(IV1,IV3);KZN165..(THDCB,XTR)..SR..CBU;LN167..(SCB,THDCB,THSCB)..DLX;LN167,RZN169..(DCB,XTR)..SR..(SA,199708-200506

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ199708-200506

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35030iLN166,RZN16#..CO,GCC199708-200506

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ199708-200506

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-30010iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ199708-200506

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41304-35020iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ199708-200506

41304GBOLT, SERRATION (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90114-12011iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ199708-200506

41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90521-29002iLN167..(DCB,THDCB)..ARL200009-200109

SP PACKAGE

main90521-29002iRZN169..SA;RZN169..(DCB,THDCB)..ARL;LN167,172,RZN174..(DCB,THDCB,THXTR,XTR)..(CBU,IV1)199708-200502

W(A.D.D)

main90521-29002iLN167..XTR..DEFI;LN167..DCB,SCB,THDCB,THSCB;KZN165,LN166,17#,RZN16#,174199708-200506

41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-35032iLN167..ARL,SA;KDN16#,KZN165,LN166,17#,RZN16#,174,VZN167,172199708-200603

41309FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH

main41309-35010iRZN169..DLX..ARL;LN167..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THDCB,THSCB,THXTR,XTR)..DLX199708-200506

main41309-35021iLN172,VZN172..CBU199708-200502

W(A.D.D)

main41309-35021iKZN165,LN167..SR..(DEFI,TDE)..(ARL,TH)199909-200503

main41309-35021iLN167..(DCB,THDCB)..ARL200009-200109

SP PACKAGE

41309GBEARING (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90369-36009iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ199708-200506

41309HRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90520-33008iLN166,RZN16#..CO,GCC200008-200506

main90520-33008iLN16#,17#,RZN16#,174199708-200503

OUTER

main90520-33008iVZN172200208-200502

W(A.D.D),OUTER

main96152-00300iKDN16#..SRWGN199708-200503

INNER

main96152-00300iLN167..(THDCB,XTR)..DSL;LN172,RZN169,174..(THDCB,THXTR)..(DSL,EFI)..CBU199808-200109

W(A.D.D),INNER

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90201-50003iKDN16#..(DCB,XTR)..TH..CBU199708-200506

T=2.58

main90201-50004iKZN165,LN167,RZN169..SA199708-200506

T=2.61

main90201-50005iLN166,171,RZN16#..GEN199708-200506

T=2.64

main90201-50006iLN166,171,RZN16#..GEN199708-200506

T=2.67

main90201-50007iKZN165..TH;KDN165..IV1;LN167..SR..ARL;RZN169,174..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU199708-200506

T=2.70

main90201-50008iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ199708-200506

T=2.73

main90201-50009iKZN165,LN167,RZN169..SA199708-200506

T=2.76

main90201-50010iKDN16#..(DCB,XTR)..TH..CBU199708-200506

T=2.79

main90201-50011iKZN165,LN167,RZN169..SA199708-200506

T=2.82

main90201-50012iLN167..IV3;LN167..(DCB,THDCB)..DLX..ARL;KZN165,LN172,VZN167,172..(DCB,SCB,THXTR,XTR)..ARL199708-200506

T=2.85

main90201-50013iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ199708-200506

T=2.88

main90201-50014iKZN165..TH;KDN165..IV1;LN167..SR..ARL;RZN169,174..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU199708-200506

T=2.91

main90201-50015iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ199708-200506

T=2.94

main90201-50016iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ199708-200506

T=2.97

main90201-50017iKDN16#..SRWGN199708-200506

T=3.00

main90201-50018iKZN165..TH;KDN165..IV1;LN167..SR..ARL;RZN169,174..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU199708-200506

T=3.03

main90201-50019iKDN16#..SRWGN199708-200506

T=3.06

main90201-50020iLN166,RZN16#..CO,GCC199708-200506

T=3.09

main90201-50021iKDN16#..(DCB,XTR)..TH..CBU199708-200506

T=3.12

main90201-50022iLN166,171,RZN16#..GEN199708-200506

T=3.15

main90201-50023iLN166,RZN16#..CO,GCC199708-200506

T=3.18

main90201-50024iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ199708-200506

T=3.21

main90201-50025iKZN165,LN167,RZN169..SA199708-200506

T=3.24

41320TUBE ASSY, FRONT DIFFERENTIAL

main41320-35011iRZN169..DCB..SA;RZN168..DLX..GEN;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN166..(DSL,TDE)..(GCC,GEN,SA);KZN165,LN17#,RZN174..(SCB,THXTR,XTR199708-200506

main41320-35020iRZN174199708-200502

W(A.D.D)

main41320-35020iKZN165,LN167..SR..(DEFI,TDE)..(ARL,TH)199909-200503

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-14040iKZN165,LN16#,17#,RZN16#,174199708-200005

sub41331-14041

41336GCOVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT)

main41336-22010iKDN16#..SRWGN199708-200506

RH

main41336-28010iLN166..MA199708-200506

LH

main41336-35010iVZN167..SR;LN172,VZN172..CBU199909-200503

LH

main41336-35010iRZN169..SA;RZN169..(DCB,THDCB)..ARL;LN167,172,RZN174..(DCB,THDCB,THXTR,XTR)..(CBU,IV1)199708-200109

W(A.D.D),LH

main41336-35010iLN167..(DCB,THDCB)..ARL200009-200109

SP PACKAGE,LH

41341FPINION, FRONT DIFFERENTIAL

main41341-30020iKZN165,LN16#,17#,RZN16#,174199708-200005

sub41341-30050

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iLN167..ARL,SA;KDN16#,KZN165,LN166,17#,RZN16#,174,VZN167,172199708

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-22020iKZN165,LN16#,17#,RZN16#,174199708-200005

sub41342-22021

main41342-22021iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ200005

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-30060iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ199708

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-30040iLN167..ARL,SA;KDN16#,KZN165,LN166,17#,RZN16#,174,VZN167,172199708

T=1.0

main41361-30050iLN167..ARL,SA;KDN16#,KZN165,LN166,17#,RZN16#,174,VZN167,172199708

T=1.1

main41361-30060iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ199708

T=1.2

main41361-30070iLN167..ARL,SA;KDN16#,KZN165,LN166,17#,RZN16#,174,VZN167,172199708

T=1.3

main41361-30080iLN167..DEFI..(SA,TH);KZN165..(THDCB,THSCB,XTR)..SR;LN167,RZN169..(CBR,DSL)..(CBU,IV3);LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,LN172,RZN174..(DCB,SCB,THXTR,XTR)..A199708-200203

T=1.4

main41361-30090iLN167..ARL,SA;KDN16#,KZN165,LN166,17#,RZN16#,174,VZN167,172199708-200203

T=1.5

main41361-30100iLN167..DEFI..(SA,TH);KZN165..(THDCB,THSCB,XTR)..SR;LN167,RZN169..(CBR,DSL)..(CBU,IV3);LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,LN172,RZN174..(DCB,SCB,THXTR,XTR)..A199708-200203

T=1.6

43631CASE, FRONT AXLE DIFFERENTIAL

main41311-22060iRZN169..DLX..ARL;KZN165,LN167,VZN167..DLX;KZN165,RZN169..GCC,GEN,SA;LN166,17#,RZN168,174,VZN172199708

main41311-35060iKZN165,LN167..SR..(DEFI,TDE)..(ARL,TH)199909-200503

sub41311-34020

main41311-35060iRZN169..SA;RZN169..(DCB,THDCB)..ARL;LN167,172,RZN174..(DCB,THDCB,THXTR,XTR)..(CBU,IV1)199708-200502

W(A.D.D)

sub41311-34020

43631ABEARING, FRONT AXLE DIFFERENTIAL

main90364-33009iKDN16#,LN172,RZN174..CBU,IV1;KZN165,LN167,RZN169,VZN167..SR..(ARL,TH)199909-200503

INNER

main90364-33009iRZN169..SA199708-200502

W(A.D.D),INNER

main90368-50006iRZN169,174..(SCB,THDCB,THXTR,XTR)..ARL199708-200203

OUTER

main90368-50006iRZN169..DLX..SA;LN167,RZN169..DCB..SR..SA;LN167..(SCB,THDCB,XTR)..DSL;LN166,17#,RZN169..DLX..(CBR,DSL)..(ARL,GCC,GEN)199708

W(A.D.D),OUTER

43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)

main90179-18020iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ199708-200506

43640CSPACER OR WASHER, FRONT AXLE DRIVE PINION THRUST

main90201-35396iKZN165..TH;KDN165..IV1;LN167..SR..ARL;RZN169,174..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU199708-200506

T=2.36,MARK 05

main90201-35397iKZN165..TH;KDN165..IV1;LN167..SR..ARL;RZN169,174..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU199708-200506

T=2.39,MARK 06

main90201-35398iKDN16#..SRWGN199708-200506

T=2.42,MARK 07

main90201-35399iLN166,171,RZN16#..GEN199708-200506

T=2.43,MARK 08

main90201-35400iLN167..IV3;LN167..(DCB,THDCB)..DLX..ARL;KZN165,LN172,VZN167,172..(DCB,SCB,THXTR,XTR)..ARL199708-200506

T=2.48,MARK 09

main90201-35401iKDN165,LN166..MA199708-200506

T=2.51,MARK 10

main90201-35402iKDN165,LN166..MA199708-200506

T=2.54,MARK 11

main90201-35403iKZN165,LN167,RZN169..SA199708-200506

T=2.57,MARK 12

main90201-35404iKZN165..TH;KDN165..IV1;LN167..SR..ARL;RZN169,174..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU199708-200506

T=2.60,MARK 13

main90201-35438iKZN165,LN167,RZN169..SA199708-200506

T=2.63,MARK 14

main90201-35439iKDN16#..SRWGN199708-200506

T=2.66,MARK 15

main90201-35440iKZN165..TH;KDN165..IV1;LN167..SR..ARL;RZN169,174..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU199708-200506

T=2.69,MARK 16

main90201-35441iLN166,171,RZN16#..GEN199708-200506

T=2.72,MARK 17

main90201-35515iLN166,RZN16#..CO,GCC199708-200506

OD=47,T=2.24,MARK 01

main90201-35516iKDN16#..SRWGN199708-200506

OD=47,T=2.27,MARK 02

main90201-35517iKDN165,LN166..MA199708-200506

OD=47,T=2.30,MARK 03

main90201-35518iKDN16#..SRWGN199708-200506

OD=47,T=2.33,MARK 04

43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)

main90311-38047iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZ199708-200506

9010114036

main90101-14036

9010510361

main90105-10361

9010512235

main90105-12235

9017914033

main90179-14033

9462311400

main94623-11400

45 parts on this diagram · 6 diagrams in section
