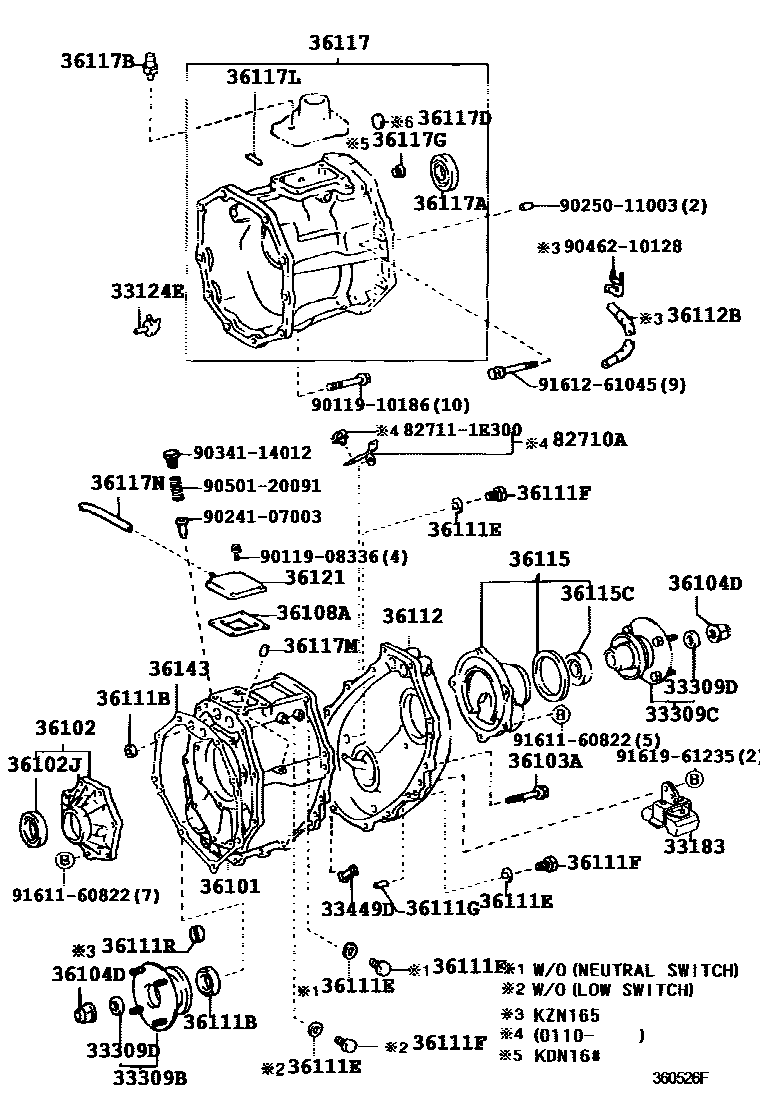

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1 0005 1

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33106-35020iRZN16#,174199708-200511

main33124-35020iLN166..RHD..GEN199708-200506

main33124-35070iLN166..GCC199708-200508

NO.1

main33124-35100iKZN165..SR;KDN16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

main33124-36010iLN167,172..DEFI..(ARL,TH)199708-200508

NO.2

33183DAMPER, TRANSFER DYNAMIC

main33183-34031iLN166..GCC199708-200502

main33183-35050iVZN167,172..MTM200208-200502

main33183-35060iVZN167,172..ATM200306-200502

main33183-60021iVZN167,172..ATM200208-200306

sub33183-35060

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35030iLN166,171..DSL..GEN199708-200506

main33309-35061iKZN165..SA,TH;LN167..SR..ARL;LN167..DCB..SA;RZN16#..ARL,GCC,GEN,SA;LN167..(SCB,THSCB)..CBU;KZN165..(THDCB,THSCB)..DLX;KDN16#,LN166,RZN174..ARL,GCC,TH199708-200508

sub33309-35063

sub90311-41017

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35040iLN166,171..DSL..GEN199708-200506

main33309-35100iLN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX199708-200508

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iLN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX199708-200508

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iKDN165..MA199708-200508

36101CASE SUB-ASSY, TRANSFER

main36101-35110iVZN167,172..ATM..DLX200208-200501

sub36101-35111

sub33309-35062

main36101-35120iLN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX199708-200508

sub36101-35121

sub33309-35062

main36101-35130iKZN165..TH;LN167,RZN169..(DCB,THDCB,XTR)..(ARL,TH)199708-200109

W(2-4 SELECTOR)

sub36101-35131

sub33309-35062

main36101-35130iKZN165..SR..ARL199909-200502

sub36101-35131

sub33309-35062

main36101-35140iVZN167..SR200208-200411

sub36101-35141

sub33309-35062

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35050iRZN16#;KZN165,LN16#,172,RZN174..ARL,GCC,SA,TH199708-200011

sub36102-35051

main36102-35051iRZN168..DLX..GEN;RZN169..DLX..(ARL,SA);KZN165..(SCB,XTR)..(IV1,IV3);KZN165..(THDCB,XTR)..SR..CBU;LN167..(SCB,THDCB,THSCB)..DLX;LN167,RZN169..(DCB,XTR)..SR..(SA,TH);200011-200508

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-40021iLN167..SCB..IV3;VZN167..MTM..DLX;LN167..DCB..DLX..ARL;KZN165,LN172,VZN172..(DCB,SCB,XTR)..MTM..ARL199708-200508

36103CASE SUB-ASSY, TRANSFER

main36103-35014iLN166,171..GEN,MA199708

main36103-35024iLN166,171..GEN199708-200309

W(POWER TAKE OFF)

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28iLN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX199708-200508

*8-1.25PX55-30

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-20001iLN166,171..DSL..GEN199708-200506

main90179-22016iKDN165..MA199708-200508

36108ADEFLECTOR SUB-ASSY, BREATHER OIL

main36108-35030iRZN16#;LN16#,172,RZN174..ARL,GCC199708-199803

sub36108-35031

main36108-35031iRZN168..DLX..GEN;LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;KZN165..(THDCB,THSCB,XTR)..SR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZN1199803-200208

sub36128-35060

main36108-35040iVZN167..MTM..SR200411-200502

main36128-35060iRZN169..SA;RZN168..GEN;KDN16#,KZN165,LN16#..GCC,SA,TH200208-200508

main36128-60061iVZN167,172..ATM..DLX200411-200502

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-15008iLN167..SCB..IV3;LN167..DCB..DLX..ARL;KZN165,LN172..(DCB,SCB,XTR)..DLX199708-200508

FORK SHAFT SIDE

main90311-15008iKZN165..TH;LN167..THDCB..DEFI;LN167,RZN169..(DCB,XTR)..(ARL,TH)199708-200109

W(2-4 SELECTOR),FORK SHAFT SIDE

main90311-15008iLN167,RZN169..THDCB..(DSL,EFI)199902-200109

main90311-15008iVZN167,172..ATM200411-200502

W(A.D.D),FORK SHAFT SIDE

main90311-41008iRZN168..DLX..GEN;LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;KZN165..(THDCB,THSCB,XTR)..SR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZN1199708-200207

FRONT OUTPUT SIDE

sub90311-41011

main90311-41010iVZN167..MTM..SR200209-200508

FRONT OUTPUT SIDE

sub90311-41012

main90311-41011iKZN165..DLX;KZN165..SA,TH;RZN169..ARL,GCC,GEN;KDN16#,LN16#,172,RZN174..ARL,GCC,SA,TH200207-200209

FRONT OUTPUT SIDE

sub90311-41010

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iRZN16#;LN167..DLX..SA;KZN165,LN16#,172,RZN174..ARL,GCC,TH199708-200508

W/O(NEUTRAL & LOW SWITCH)

main90430-18008iLN167..DSL;KZN165..XTR;LN167,RZN169..(DEFI,EFI)..(SA,TH);KZN165,RZN169..(CBR,TDE)..(GCC,SA);LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,LN166,172,RZN174..(DCB,SCB,THX199708-200506

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iRZN174;VZN167..ATM..DLX;KDN166,VZN172..ATM;LN167,RZN169..SR..ARL199708-200502

main90341-18006iRZN16#;LN167..DLX..SA;KZN165,LN16#,172,RZN174..ARL,GCC,TH199708-200508

W/O(NEUTRAL & LOW SWITCH)

main90341-18006iLN166,171..DSL..GEN199708-200506

FILLER

main90341-18057iLN166,171..DSL..GEN199708-200506

DRAIN

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iVZN167..MTM..SR199708-200508

L=14,OD=10

main90250-10232iLN166,171..GEN,MA199708-200506

L=15,OD=8

36111RPLUG, TIGHT (FOR TRANSFER CASE)

main90331-25005iKZN165..SR..(ARL,TH);LN167,RZN169..(DCB,THDCB,XTR)..(ARL,TH)199708-200502

36112CASE, TRANSFER, REAR

main36112-35070iLN167..DCB..SA;RZN169..DLX..ARL;VZN167,172..ATM..DLX;LN167..(SCB,THSCB)..CBU;KZN165..(THDCB,THSCB)..DLX;KZN165,RZN16#..GCC,GEN,SA,TH;KDN16#,LN166,RZN174..ARL,GCC,TH199708-200508

main36112-35080iKZN165..SR..ARL199909-200502

main36112-35080iLN167,RZN169..(DCB,THDCB,XTR)..(DSL,EFI)..(ARL,TH)199708-200109

W(POWER TAKE OFF)

main36112-35080iKZN165..TH;LN167..(DCB,THDCB,XTR)..DEFI200009-200109

W(2-4 SELECTOR)

36112BHOSE, NO.1 (FOR TRANSFER REAR CASE)

main90445-08268iKZN165..SR..(ARL,TH);LN167,RZN169..(DCB,THDCB,XTR)..(ARL,TH)199708-200502

36115HOUSING, TRANSFER EXTENSION

main36105-35020iRZN16#;LN16#,172,RZN174..ARL,GCC,SA,TH199708-199901

sub36105-35040

main36105-35040iVZN167..MTM..SR199901-200508

main36115-35010iLN166,171..DSL..GEN199708-200506

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38140iLN166,171..DSL..GEN199708-200506

main90311-41007iKZN165..SA,TH;LN167..SR..ARL;LN167..DCB..SA;RZN16#..ARL,GCC,GEN,SA;LN167..(SCB,THSCB)..CBU;KZN165..(THDCB,THSCB)..DLX;KDN16#,LN166,RZN174..ARL,GCC,TH199708-200508

sub90311-41020

36117ADAPTER, TRANSFER

main36107-35092iLN166..RHD..GEN199708-200506

main36107-35100iLN166..GCC199708-200508

main36107-35120iLN167..DEFI..TH199708-200109

W(2-4 SELECTOR)

main36107-35120iLN167..SR200109-200208

main36107-35120iLN167..(DCB,THDCB)..ARL200009-200109

SP PACKAGE

main36107-35180iVZN167,172..MTM200208-200501

main36107-35190iKZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH)199909-200504

main36107-35210iRZN169..SR..ARL200109-200208

main36107-35210iRZN169..(DCB,THDCB)..ARL199708-200109

W(2-4 SELECTOR)

main36107-35220iRZN169..SA199708-200511

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-32009iLN166..RHD..GEN199708-200506

main90311-40007iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199708-200511

main90311-40023iLN16#,172..ARL,GCC,SA199909-200508

36117BPLUG, BREATHER(FOR TRANSFER ADAPTER)

main90930-03075iVZN167,172..MTM199909-200504

36117DPLUG(FOR TRANSFER ADAPTER)

main90331-21003iVZN167,172..MTM200208-200501

main90341-18006iLN166..RHD..GEN199708-200506

FILLER

main90341-30003iLN166..RHD..GEN199708-200506

DRAIN

main90930-03085iLN16#,172..ARL,GCC,SA199708-200508

main90930-03114iRZN16#,174199708-200511

36117GPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90341-20010iRZN16#;LN16#,172,RZN174..ARL,GCC,SA199708-200511

main90341-24006iKZN165..SR;KDN16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iLN167..(DCB,THDCB,XTR)..(ARL,TH)199708-200109

W(2-4 SELECTOR)

sub90406-T0007

main90441-05001iKZN165..SCB199708-200511

sub90406-T0007

main90441-05001iLN167..(DCB,THDCB)..ARL200009-200109

SP PACKAGE

sub90406-T0007

36117MCAP(FOR TRANSFER ADAPTER)

main90339-04024iKZN165..TH;KDN165..IV1;KZN165..THDCB,THSCB199909-200504

36117NHOSE(FOR TRANSFER ADAPTER)

main90904-45005iLN167..SR..SA;RZN16#..GCC,GEN,SA;LN167..SCB,THDCB,THSCB,XTR;RZN169..(SCB,THDCB,THSCB)..ARL;KZN165,LN166,172,RZN174..ARL,GCC,SA199708-200109

36121COVER, TRANSFER CASE, NO.1

main36102-35020iRZN16#;LN16#,172,RZN174..ARL,GCC,SA,TH199708-199901

sub36102-35040

main36102-35040iKZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..D199901-200508

main36121-35010iLN166,171..DSL..GEN199708-200506

36143GASKET, TRANSFER CASE, FRONT

main36143-35010iLN166,171..DSL..GEN199708-200506

main36143-35030iVZN167,172200208-200502

82710ACLAMP ASSY, WIRING HARNESS

main82710-35040iLN167..SCB..IV3;VZN167..MTM..DLX;LN167..DCB..DLX..ARL;KZN165,LN172,VZN172..(DCB,SCB,XTR)..MTM..ARL200110-200502

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

9011908336

main90119-08336

9011910186

main90119-10186

9024107003

main90241-07003

9025011003

main90250-11003

9034114012

main90341-14012

9046210128

main90462-10128

9050120091

main90501-20091

9161160822

main91611-60822

9161261045

main91612-61045

9161961235

main91619-61235

44 parts on this diagram · 5 diagrams in section
