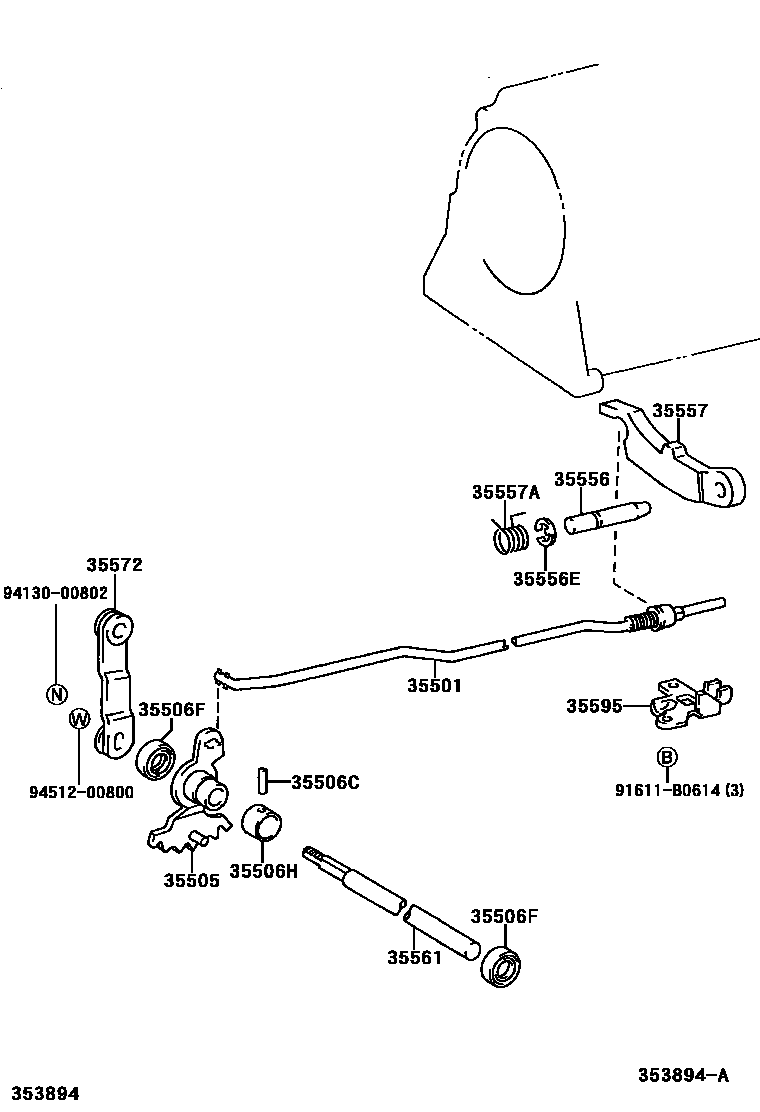

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A340E,A340F 0002 1A43D 0003 1A340E 0004 1A43D 0005 1A340F

35501ROD SUB-ASSY, PARKING LOCK

main35501-26020iLN152..ATM199806-200108

main35501-60010iRZN149,154..ATM..DLX199708-200511

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22040iLN152..ATM199806-200108

main35505-30020iRZN149,154..ATM..DLX199807-200511

main35505-50010iRZN149,154..ATM199708-199807

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iKDN166,190,RZN149,154,VZN167,172..ATM..(ARL,CO,MA,TH)199708-200511

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003iLN152..ATM199806-200108

main90311-12002iRZN149,154..ATM..DLX199708-200511

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iLN152..ATM199806-200108

sub90560-20025

main90560-20006iRZN149,154..ATM..DLX199708-200302

main90560-20025iKDN166,190,RZN149,154,VZN167,172..ATM200302-200511

35556SHAFT, PARKING LOCK PAWL

main35556-26010iLN152..ATM199806-200108

main35556-30020iRZN149,154..ATM..DLX199708-200511

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iKDN166,190,RZN149,154,VZN167,172..ATM..(ARL,CO,MA,TH)199708-200511

35557PAWL, PARKING LOCK

main35557-26031iLN152..ATM199806-200108

main35557-60020iRZN149,154..ATM..DLX199708-200511

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21001iLN152..ATM199806-200108

main90508-21002iRZN149,154..ATM..DLX199708-200511

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iKDN166,190,RZN149,154,VZN167,172..ATM..(ARL,CO,MA,TH)199708-200511

main35561-40010iLN152..ATM199806-200108

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-35020iKDN166,VZN167,172..ATM200208-200502

main35572-35030iLN152,RZN149,154..RHD..ATM199708-200502

main35572-35040iRZN149..EFI..GEN200009-200511

35595BRACKET, PARKING LOCK PAWL

main35595-26010iLN152..ATM199806-200108

main35595-60010iRZN149,154..ATM..DLX199708-200511

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

15 parts on this diagram · 5 diagrams in section
