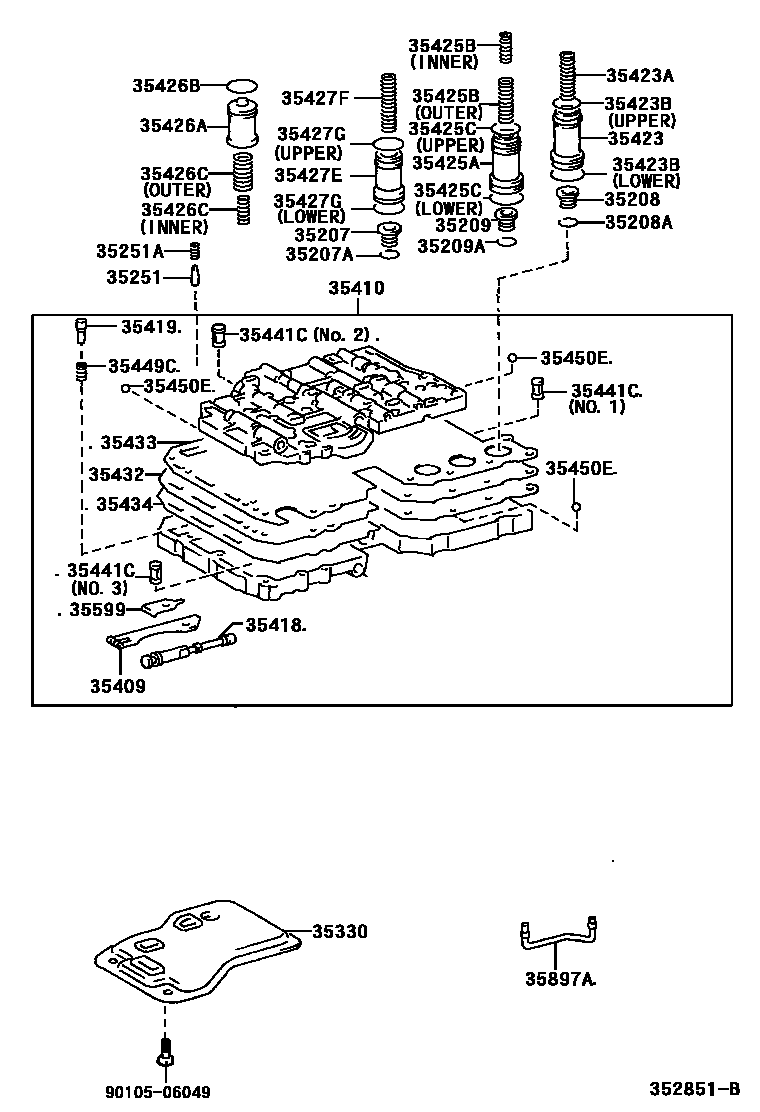

VALVE BODY & OIL STRAINER (ATM)

0001 1A340E 0002 1A340E 0003 1A340E 0004 1A340E 0005 1A340E 0006 1A340E 0007 1A340E 0008 1A340E 0009 1A340E 0010 1A340E 0011 1A340E 0012 1A340F 0013 1A340E,A340F 0014 1A43D 0015 1A43D 0016 1A43D 0017 1A43D 0018 1A43D 0019 1A340E,A340F 0020 1A340E,A340F

35207SPRING SUB-ASSY, B-0 ACCUMULATOR

main35207-22010iKDN166,190,RZN149,154,VZN167,172..ATM..(ARL,CO,MA,TH)200109-200511

35207ARING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)

main90521-22004iRZN149,154..ATM..DLX199708-200203

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-22010iVZN167,172..ATM200208-200502

main35208-30010iRZN149,154..ATM..DLX199708-200203

main35208-35010iKDN190200112-200503

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iRZN149,154..ATM..DLX199708-200203

35209SPRING SUB-ASSY, C-2 ACCUMULATOR

main35209-22020iKDN166..ATM200208-200411

main35209-24010iKDN190200112-200503

main35209-30010iRZN149,154..ATM..(ARL,CO)200109-200511

main35209-50010iVZN167,172..ATM200208-200502

35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

main90521-22004iRZN149,154..ATM..DLX199708-200203

35251BODY, CHECK BALL

main35251-30020iRZN149,154..ATM..DLX199708-200203

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iKDN166,190,RZN149,154,VZN167,172..ATM..(ARL,CO,MA,TH)200109-200511

35330STRAINER ASSY, VALVE BODY OIL

main35330-30011iRZN149,154..ATM..ARL200109-200308

main35330-30020iRZN149..EFI..GEN200009-200108

main35330-60030iKDN166,190,VZN167,172..ATM200112-200503

35410BODY ASSY, TRANSMISSION VALVE

main35410-35411iRZN149,154..ATM..ARL199708-200109

main35410-35540iRZN149..EFI..GEN200009-200108

main35410-35640iKDN190200112-200503

main35410-35710iVZN167,172..ATM200208-200502

main35410-60490iKDN166..ATM200208-200411

35423PISTON, B-2 ACCUMULATOR

main35423-30030iKDN166,190,RZN149,154,VZN167,172..ATM..(ARL,CO,MA,TH)200109-200511

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-24015iRZN149,154..ATM..(ARL,CO)200109-200511

main90501-25026iVZN167,172..ATM200208-200502

main90501-25028iKDN166..ATM200208-200411

main90501-27019iKDN190200112-200503

main90501-28002iLN152..ATM199806-200108

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23010iRZN149,154..ATM..DLX199708-200203

UPPER

main90301-31010iRZN149,154..ATM..ARL200308-200511

LOWER

35425SEAT, PRESSURE REGULATOR VALVE SLEEVE

main35425-14010iLN152..ATM199806-200108

35425APISTON, C-2 ACCUMULATOR

main35425-30020iKDN166,190,RZN149,154,VZN167,172..ATM..(ARL,CO,MA,TH)200109-200511

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-21008iRZN149,154..ATM..ARL200308-200511

OUTER

main90501-22015iKDN166..ATM200208-200411

OUTER

main90501-23093iVZN167,172..ATM200109-200502

OUTER

main90501-23135iKDN190200112-200503

OUTER

main90501-25002iLN152..ATM199806-200108

main90501-25027iRZN149,154..ATM..DLX199708-200203

INNER

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-25010iRZN149,154..ATM..DLX199708-200203

UPPER

main90301-31010iKDN166,190,RZN149,154,VZN167,172..ATM..(ARL,CO,MA,TH)200109-200511

LOWER

35426APISTON, C-0 ACCUMULATOR

main35426-30010iRZN149,154..ATM..ARL200109-200308

main35426-40010iVZN167,172..ATM;KDN166,190,RZN149..ATM..(CO,MA,TH)200112-200511

35426BRING, O (FOR C-0 ACCUMULATOR PISTON)

main90301-24010iKDN166,190,RZN149,154,VZN167,172..ATM..(ARL,CO,MA,TH)200109-200511

35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

main90501-22008iRZN149,154..ATM..DLX199708-200203

INNER

main90501-23073iRZN149,154..ATM..DLX199708-200203

OUTER

35427EPISTON, B-0 ACCUMULATOR

main35427-30030iRZN149,154..ATM..ARL199708-200109

main35427-30040iRZN149,154..ATM..ARL200308-200511

35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)

main90501-21006iRZN149,154..ATM..DLX199708-200203

main90501-23095iKDN166,190..ATM200112-200503

35427GRING, O (FOR B-0 ACCUMULATOR PISTON)

main90301-20008iKDN166,190,RZN149,154,VZN167,172..ATM..(ARL,CO,MA,TH)200109-200511

UPPER

main90301-26011iRZN149,154..ATM..DLX199708-200203

LOWER

35432PLATE, VALVE BODY, NO.1

main35432-22071iLN152..ATM199806-200002

main35432-28060iLN152..ATM200002-200009

main35432-34030iRZN149,154..ATM..ARL199708-200109

main35432-35230iRZN149..EFI..GEN200009-200108

main35432-35240iLN152..ATM200009-200108

9010506049

main90105-06049

25 parts on this diagram · 20 diagrams in section
