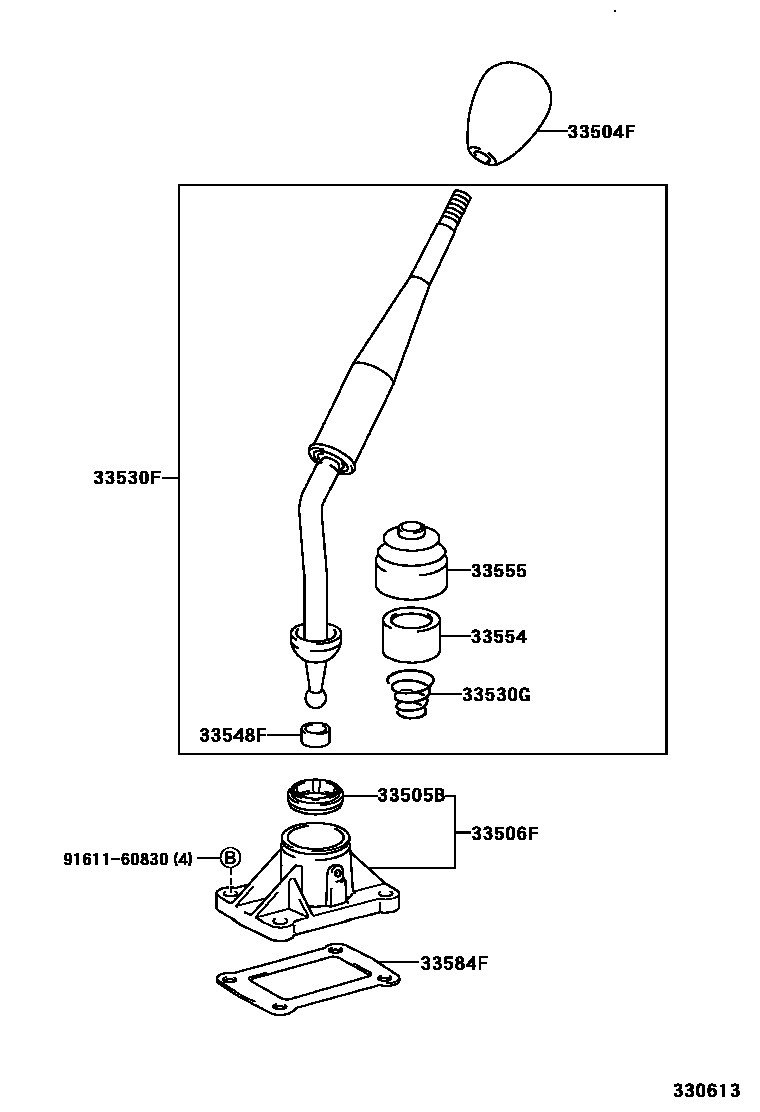

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1W(2-4SELECTOR) 0007 1 0008 1 0009 1 0010 1 0011 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-04010iLN145..IV1199902-200109

main33504-04010-B0iLN145,150,155..TH;RZN147,149,154,169,174..(THDCB,THSCB,THXTR)..MTM199902-200403

MD.MOON MIST,TRIM1#

sub33504-04010

main33504-0D050-B1iLN167..THDCB..DLX;LN167..THSCB..IV3;LN147..THDCB,THSCB;KDN155,LN152,172..SCB,THXTR200207-200403

THAILAND SPEC,MD.MOON MIST,TRIM1#

sub33504-0D050

main33504-0D050-E0iKDN145,150,151,16#..MTM..TH..CBU200207-200403

SANDAL WOOD,TRIM4#

sub33504-0D050

main33504-12180-B2iKZN165..THDCB,THSCB199708-200504

MD.MOON MIST,TRIM1#

sub33504-12180

main33504-12180-C0iLN167..IV1199808-200009

BLACK,TRIM1#

sub33504-12180

main33504-12180-D2iRZN144,149,169..GCC199708-200108

RED,TRIM3#

sub33504-12180

main33504-20100-B1iRZN148,168..DLX..GEN199708-200504

MD.MOON MIST,TRIM1#

sub33504-24010

sub33504-20100

main33504-20100-D0iLN141,146,166,RZN142,144,147,149,169..GCC199708-200108

RED,TRIM3#

sub33504-24010

sub33504-20100

main33542-20100-B1iLN152,RZN149,154..RHD..ATM199708-200502

MD.MOON MIST,TRIM1#

sub33542-20100

main33542-20100-E6iKDN190..TH..CBU200112-200411

SANDAL WOOD,TRIM4#

sub33542-20100

main33542-20150-B1iRZN149..CO200009

MD.MOON MIST,TRIM1#

sub33542-20150

main33542-35170-B0iVZN167,172..ATM200208-200502

MD.MOON MIST,TRIM1#

sub33542-35170

main33542-35170-E0iKDN166..ATM200208-200411

SANDAL WOOD,TRIM4#

sub33542-35170

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-35020iLN147..SCB..IV3;RZN149..(DCB,SCB)..MTM..ARL;LN147,152,RZN154..(DCB,XTR)..MTM..ARL..CBU199708-200603

main33505-35030iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-0W040iLN150..SR;LN145..LHD..SCB;LN152..THXTR..IV3;LN145..SCB..(SA,TH);LN145..LHD..DLX..TH;LN147..(THDCB,THSCB)..DLX;LN145,RZN147..(DCB,THSCB)..(DSL,EFI)..(ARL,GEN);LN140,199812-200603

PHILIPPINES SPEC

sub33506-35070

main33506-35070iLN145..LHD..IV3;LN145..(GEN,SA)..CBU;LN140,141,146,19#,RZN142,147..DLX199708-200603

main33506-35100iLN16#,17#,RZN16#,174199708-200106

main33506-35140iKZN165..SR;KDN16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

main33506-35160iLN16#,17#,RZN16#,174..ARL,CO,GCC,GEN,MA,SA200106-200603

main33570-34010iRZN144,149,154..CBR;RZN154,194..RHD..MTM;RZN148,149,193..MTM..DLX..EFI..(ARL,GEN)199708-200511

main33570-35080iKZN190200007-200504

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-04050iLN147,152200303-200502

sub33530-35460

main33530-04070iLN167,172..ARL200303-200502

sub33530-35500

main33530-04090iRZN149,154..(THDCB,THSCB,THXTR)..MTM200303-200504

sub33530-35370

main33530-35330iRZN194199807-200504

main33530-35340iRZN144,149,154..CBR199708-200508

main33530-35350iRZN193199708-200506

main33530-35360iRZN148..CO;RZN142,147,148..LHD..(GCC,GEN)..CBU199708-200511

main33530-35370iRZN142,147,149,154..RHD..MTM..DLX199708-200303

main33530-35380iRZN169..SA;RZN169..RHD..CBR199708-200504

main33530-35390iRZN169..LHD199708-200508

main33530-35420iLN166,171,RZN168..LHD199708-200511

main33530-35430iRZN169..DLX..ARL;LN166,RZN174..RHD..(ARL,GEN)199708-200506

main33530-35440iLN141,145,146,155..LHD199708-200303

main33530-35450iLN150..SR;LN145..RHD..DCB..GEN;LN140,145,155,YN140..RHD..SCB199708-200504

main33530-35460iLN147,152199708-200303

main33530-35470iLN191199708-200506

main33530-35480iLN192199806-200504

main33530-35500iLN172;LN167..DSL;LN167..DEFI..(SA,TH);LN167..DLX..DEFI..ARL199708-200504

main33530-35520iKZN190200007-200203

sub33530-35521

main33530-35530iKZN165..(DCB,SCB)..(ARL,SA);KZN165..(THDCB,THSCB,XTR)..SR199909-200504

sub33530-35531

main33530-35570iKDN145,150,155200110-200303

main33530-35620iKZN190200203-200504

sub33530-35621

33530GSPRING, CONICAL (FOR SHIFT LEVER)

main90502-26007iLN147,167..IV3;LN145..LHD..IV3;LN145..GEN..CBU;RZN149..MTM..ARL;LN167..(DCB,THDCB)..DLX..ARL;LN145,147..(DCB,THDCB)..(ARL,TH);LN150,152,RZN142,147..RHD..DLX..(CBR,D199708-200511

main90502-26008iKDN151199909-200504

sub90502-26009

main90502-T0001iLN147,152,167,172..ARL;RZN142,147,149,154..RHD..(DCB,SCB,XTR)..MTM200303-200504

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-04010iRZN149,154..(THDCB,THSCB,THXTR)..MTM200303-200504

main33548-31010iLN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(199708-200511

33554CAP, SHIFT LEVER

main33554-04030iRZN149,154..(THDCB,THSCB,THXTR)..MTM200303-200504

main33554-30012iRZN148,168..DLX..GEN199708-200511

33555BOOT, SHIFT LEVER

main33555-04010iRZN149,154..(THDCB,THSCB,THXTR)..MTM200303-200504

sub33555-35040

main33555-04020iLN167,172..ARL200303-200502

main33555-35040iLN145..DCB..GEN;LN150,RZN194..SR;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152..MTM..DEFI..TH;RZN149,154..MTM..DLX..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN145,152..(199708-200511

main33555-35100iKDN190..MA199708-200511

main33555-35210iKDN166,VZN167,172..ATM200208-200502

main33555-35240iKZN190200203-200504

main33555-60030iRZN169..RHD..GEN199708-200511

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33182-35020iKDN151,KZN190200007-200504

sub33584-71010

main33584-60010iLN192;LN150..SR;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152..MTM..DEFI..TH;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,191,RZN142,199708-200603

9161160830

main91611-60830

10 parts on this diagram · 10 diagrams in section
