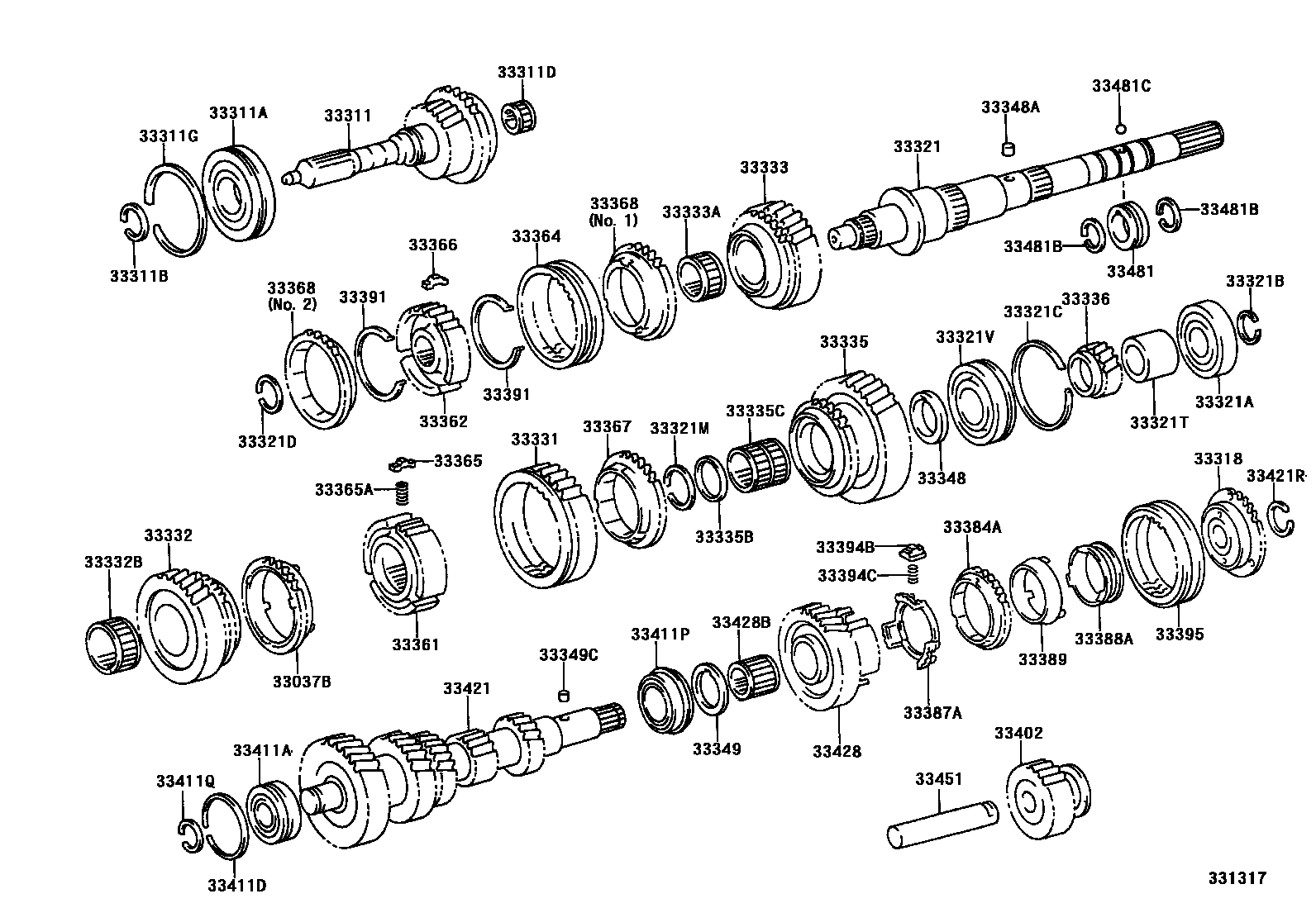

TRANSMISSION GEAR (MTM)

0001 1R151 0002 1R150,R151 0003 1G50,G52,G54 0005 1G52 0006 1G52 0007 1W56 0008 1W56 0009 1W56 0010 1W56 0011 1G50,G52

33037BRING SET, SYNCHRONIZER, NO.1

main33037-30011iRZN194199708-200508

main33037-60040iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

sub33037-35030

33311SHAFT, INPUT

main33301-0W010iLN145..SA;LN145..DCB;LN145..LHD..SCB;LN140,150,155..DLX199806-200603

PHILIPPINES SPEC

main33301-0W060iLN167..DSL..SA199806-200504

PHILIPPINES SPEC

sub33301-35080

main33301-30080iRZN169..DCB..SA;RZN154,194..RHD..MTM;RZN144,149,154,169..CBR;RZN148,168,174,193..DLX..CBU;RZN149,169..MTM..DLX..(ARL,SA)199708-200307

sub33301-30H00

sub33301-30H10

sub33301-30H20

sub33301-30H30

sub33301-30H40

sub33301-30H50

sub33301-30H60

sub33301-30H70

sub33301-30H80

sub33301-30H90

main33301-30081iRZN149,154..(THDCB,THSCB,THXTR)..MTM;RZN144,148,149,154,16#,193..MTM..(CO,GCC,GEN,SA)200307-200511

sub33301-30082

main33301-35070iRZN142,147199708-199806

sub33301-35071

main33301-35071iRZN142,147199806-200603

main33301-35080iLN150..DLX;LN145..DCB..TH;KDN145,150,155,LN155199708-200603

main33301-35090iVZN167,172..MTM200208-200501

sub33301-60120

main33301-35110iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

sub33301-60050

main33301-60050iKZN165..(DCB,SCB)..DLX200202-200504

sub33301-26050

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-32024iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

main90363-35033iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

main90363-40050iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

sub90363-40092

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-30214iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

T=2.05,MARK 0

main90520-30215iLN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,14199708-200603

T=2.10,MARK 1

main90520-30216iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

T=2.15,MARK 2

main90520-30217iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D199708-200603

T=2.20,MARK 3

main90520-30218iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

T=2.25,MARK 4

main90520-30219iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

T=2.30,MARK 5

main90520-33107iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

T=2.30-2.35,MARK 11

main90520-33132iRZN149,154..(DCB,SCB,XTR)..MTM..ARL199708-200511

T=2.35-2.40,MARK 12

main90520-33168iRZN194199708-200511

T=2.05,MARK 1

main90520-33169iRZN169..DCB..SA;RZN154,194..RHD..MTM;RZN169..DLX..(ARL,SA);RZN144,149,154,169..CBR;RZN148,149,168,174,193..MTM..DLX..EFI..(ARL,GEN)199708-200511

T=2.10,MARK 2

main90520-33170iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

T=2.15,MARK 3

main90520-33171iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

T=2.20,MARK 4

main90520-33172iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

T=2.25,MARK 5

main90520-38008iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=2.10,MARK A

main90520-38009iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=2.15,MARK B

main90520-38010iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

T=2.20,MARK C

main90520-38011iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

T=2.25,MARK D

main90520-38012iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

T=2.30,MARK E

main90520-38013iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=2.35,MARK F

main90520-38014iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=2.40,MARK G

33311DBEARING, INPUT SHAFT

main90361-06002iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

main90364-19006iRZN194199708-200511

main90364-25012iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

33311GRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-76001iRZN149,154..(DCB,SCB,XTR)..MTM..ARL199708-200511

main90520-76002iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

main90520-88001iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

33318PIECE, GEAR SPLINE, NO.5

main33318-0K020iKDN145,150,155,LN145,150,155..TH200311-200409

sub33318-71010

main33318-0W010iLN145..LHD..SCB;LN167..DEFI..TH;LN152..THXTR..IV3;LN150,152..MTM..SR;LN145..LHD..DLX..TH;LN192,RZN147..SA,TH;LN167..SCB..DEFI..SA;LN147..(THDCB,THSCB)..DLX;LN167..(199806-200603

PHILIPPINES SPEC

main33318-0W010iRZN147..THSCB200108-200506

PHLIPPINES SPEC

main33318-35030iLN145..LHD..IV3;LN167..THDCB..SR;LN167..THSCB..CBU;LN145..(GEN,SA)..CBU;LN167..(DCB,SCB)..(ARL,SA);LN140,141,146,166,17#,19#,RZN142,147..(DCB,SCB,THSCB,XTR)..(ARL,G199708-200603

main33318-35040iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

33321SHAFT, OUTPUT

main33321-0B020iLN145..DCB..GEN;LN145..LHD..SCB;LN147,152..THDCB,THSCB,THXTR;KDN145,150,155,LN140,145,150,155,192,RZN142,147..SA,TH200208-200603

PHILIPPINES SPEC

sub33321-35092

main33321-0W020iLN150..SR;LN145..LHD..SCB;LN152..THXTR..IV3;LN145..SCB..(SA,TH);LN145..LHD..DLX..TH;LN147..(THDCB,THSCB)..DLX;LN145,RZN147..(DCB,THSCB)..(DSL,EFI)..(ARL,GEN);LN140,199806-200208

PHILIPPINES SPEC

sub33321-0B020

main33321-0W040iLN167..SA,TH;LN167,172..(THDCB,THSCB,THXTR)..DLX200101-200504

PHILIPPINES SPEC

sub33321-60090

main33321-30120iRZN194199708-200511

sub33321-35210

sub33362-35060

sub90520-26072

sub90520-26073

sub90520-26074

sub90520-26075

sub90520-26076

sub90520-26077

sub90520-26078

main33321-35092iLN192;LN150..SR;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152..MTM..DEFI..TH;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,191,RZN142,199708-200603

main33321-35111iLN166,171..GEN,MA199708-200603

main33321-35130iKDN151200007-200408

sub33321-35190

main33321-35140iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

sub33321-35141

main33321-35160iRZN169..CBR;RZN168,174..DLX;RZN169..DCB..SA;RZN169..DLX..(ARL,SA)199708-200511

sub33321-35220

sub33362-35060

sub90520-26072

sub90520-26073

sub90520-26074

sub90520-26075

sub90520-26076

sub90520-26077

sub90520-26078

main33321-35190iKZN190200407-200504

sub33321-35191

main33321-60090iLN167..DSL;LN166,172..ARL,GCC;LN167..DEFI..(SA,TH);LN167..DLX..DEFI..ARL199708-200508

33321ABEARING (FOR OUTPUT SHAFT REAR)

main33350-30010iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

main90363-30075iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-25003iRZN194199708-200511

T=2.68,MARK 14

main90520-25004iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

T=2.74,MARK 15

main90520-25005iLN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,14199708-200603

T=2.67-2.72,MARK A

main90520-25006iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D199708-200603

T=2.73-2.78,MARK B

main90520-25009iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D199708-200603

T=2.79-2.84,MARK C

main90520-25010iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D199708-200603

T=2.85-2.90,MARK D

main90520-25011iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D199708-200603

T=2.91-2.96,MARK E

main90520-25012iLN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,14199708-200603

T=2.97-3.02,MARK F

main90520-25013iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D199708-200603

T=3.03-3.08,MARK G

main90520-25014iLN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,14199708-200603

T=3.09-3.14,MARK H

main90520-25015iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D199708-200603

T=3.15-3.20,MARK J

main90520-25016iLN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,14199708-200603

T=3.21-3.26,MARK K

main90520-25017iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

T=3.27-3.32,MARK L

main90520-25270iRZN194199708-200511

T=2.43-2.48,MARK 10

main90520-25271iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

T=2.49-2.54,MARK 11

main90520-25272iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

T=2.55-2.60,MARK 12

main90520-25273iRZN149,154..(DCB,SCB,XTR)..MTM..ARL199708-200511

T=2.61-2.66,MARK 13

main90520-25284iRZN169..DCB..SA;RZN154,194..RHD..MTM;RZN169..DLX..(ARL,SA);RZN144,149,154,169..CBR;RZN148,149,168,174,193..MTM..DLX..EFI..(ARL,GEN)199708-200511

T=2.31-2.36,MARK 8

main90520-25285iRZN149,154..(DCB,SCB,XTR)..MTM..ARL199708-200511

T=2.37-2.42,MARK 9

main90520-28031iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

T=2.65,MARK A

main90520-28032iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

T=2.70,MARK B

main90520-28033iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

T=2.75,MARK C

main90520-28034iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=2.80,MARK D

main90520-28035iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

T=2.85,MARK E

main90520-28037iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

T=2.90,MARK F

main90520-28039iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

T=2.95,MARK G

main90520-28042iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=3.00,MARK H

main90520-28043iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=3.05,MARK J

main90520-28045iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

T=3.10,MARK K

main90520-28046iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

T=3.15,MARK L

main90520-28047iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

T=3.20,MARK M

main90520-28048iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

T=3.25,MARK N

main90520-28049iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

T=3.30,MARK P

main90520-28050iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=3.35,MARK Q

main90520-28051iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

T=3.40,MARK R

main90520-28052iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

T=3.45,MARK S

main90520-54003iRZN169..DCB..SA;RZN154,194..RHD..MTM;RZN169..DLX..(ARL,SA);RZN144,149,154,169..CBR;RZN148,149,168,174,193..MTM..DLX..EFI..(ARL,GEN)199708-200511

T=0.95-1.05,NO MARK

33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-71221iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

T=1.65,ID=71.1

main90520-81001iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=1.65,ID=81.4

main90521-22003iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

T=2.2,ID=17.7

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-28010iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D199708-200603

T=1.85-1.90,MARK D-1

main90520-28011iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

T=1.95-2.00,MARK E-1

main90520-28012iLN147..SCB..IV3;RZN149..(DCB,SCB)..MTM..ARL;LN147,152,RZN154..(DCB,XTR)..MTM..ARL..CBU199708-200603

T=1.75-1.80,MARK C-1

main90520-28013iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

T=2.05-2.10,MARK F-1

main90520-28014iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

T=1.86,MARK 11

main90520-28015iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

T=1.92,MARK 12

main90520-28016iRZN169..DCB..SA;RZN154,194..RHD..MTM;RZN169..DLX..(ARL,SA);RZN144,149,154,169..CBR;RZN148,149,168,174,193..MTM..DLX..EFI..(ARL,GEN)199708-200511

T=1.98,MARK 13

main90520-28017iRZN194199708-200511

T=2.04,MARK 14

main90520-28018iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

T=2.10,MARK 15

main90520-28245iRZN194199708-200603

T=1.80-1.85,MARK D

main90520-28246iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

T=1.90-1.95,MARK E

main90520-28248iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D199708-200603

T=2.00-2.05,MARK F

main90520-30014iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

T=1.80,MARK A

main90520-30015iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

T=1.85,MARK B

main90520-30016iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=1.90,MARK C

main90520-30017iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

T=1.95,MARK D

main90520-30018iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

T=2.00,MARK E

main90520-30019iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

T=2.05,MARK F

main90520-30020iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=2.10,MARK G

33321MRING, SHAFT SNAP (FOR BEARING)

main90520-36007iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=2.30,MARK A

main90520-36008iKZN165..TH;KDN165..IV1;KZN165..THDCB,THSCB199909-200504

T=2.35,MARK B

main90520-36009iKZN165,190..SR..SA199909-200504

T=2.40,MARK C

main90520-36010iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=2.45,MARK D

main90520-36011iKDN165..SRWGN199909-200504

T=2.50,MARK E

main90520-36012iKZN165..DCB..SR..ARL199909-200504

T=2.55,MARK F

main90520-36013iKDN165..MA199909-200504

T=2.60,MARK G

33321TSPACER (FOR OUTPUT SHAFT)

main90561-30005iKZN165..DCB..SR..ARL199909-200504

33321VBEARING (FOR OUTPUT SHAFT CENTER)

main90363-30059iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D199708-200603

main90363-35036iRZN194199708-200511

main90363-35039iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

sub90363-35078

33331GEAR, REVERSE

main33331-0K020iKDN145,150,155,LN145,150,155..TH200311-200409

sub33331-71010

main33331-0K020iLN167..THSCB;LN167..DCB..SA;LN167,192..(SCB,THDCB)..CBU;LN147,152,172..THDCB,THSCB,THXTR200311-200504

PHILIPPINES SPEC

sub33331-71010

main33331-0K020iLN167,192..SA200203-200311

(L)

sub33331-71010

main33331-0W010iRZN147..THSCB200108-200506

(L)

sub33331-0K020

main33331-0W010iLN150..SR;LN145..LHD..SCB;LN145..LHD..DLX..TH;LN140,145,155,RZN142,YN140..SCB..(SA,TH);LN145,RZN147..(DCB,THSCB)..(DSL,EFI)..(ARL,GEN)199806-200603

PHILIPPINES SPEC,(L)

sub33331-0K020

main33331-0W020iLN167..DSL..SA199806-200311

PHILIPPINES SPEC,(L)

sub33331-0K020

main33331-30061iRZN169..DCB..SA;RZN154,194..RHD..MTM;RZN169..DLX..(ARL,SA);RZN144,149,154,169..CBR;RZN148,149,168,174,193..MTM..DLX..EFI..(ARL,GEN)199708-200511

main33331-35061iLN167..SR..ARL;LN145..LHD..IV3;LN140,RZN142,147;LN145..(GEN,SA)..CBU;LN167..(SCB,THSCB)..ARL..CBU199708-200603

sub33331-35062

main33331-35062iLN141,146,16#,17#,19#..DCB,SCB,XTR200501-200603

sub33331-71010

main33331-60040iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

sub33331-60H00

sub33331-60H01

33332GEAR, 2ND

main33033-0W010iLN192;LN145..DCB..GEN;LN145..LHD..SCB;LN167..DEFI..TH;LN152..THXTR..IV3;LN150,152..MTM..SR;LN145..LHD..DLX..TH;LN167..SCB..DEFI..SA;LN147..(THDCB,THSCB)..DLX;LN167.199806-200603

PHILIPPINES SPEC

sub33033-35011

main33033-0W010iLN145..DCB..GEN;LN145..LHD..SCB;LN140,145,192..SA;LN167..THSCB..CBU200108-200506

PHLIPPINES SPEC

sub33033-35011

main33033-26021iRZN142,147199708-200603

main33033-26030iKDN165,KZN165..ARL,TH199909-200203

sub33033-60050

main33033-28011iRZN149,154..(DCB,SCB,XTR)..MTM..ARL199708-200508

main33033-35011iLN145..LHD..IV3;LN167..THDCB..SR;LN167..THSCB..CBU;LN145..(GEN,SA)..CBU;LN140,141,146,16#,17#,19#..(DCB,SCB,XTR)..(ARL,GCC,GEN,MA,SA)199708-200603

main33033-35090iRZN168,193;RZN148..CO;RZN148..GEN..CBU199708-200511

main33033-60040iVZN167,172..MTM200208-200501

main33033-60050iKZN165..(DCB,SCB)..DLX200202-200504

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-38002iLN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,14199708-200603

main90364-38002iLN145..DCB..GEN;LN145..LHD..SCB199806-200603

(J)

main90364-43006iRZN149,154..(DCB,SCB,XTR)..MTM..ARL199708-200511

main90364-47003iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

sub90364-47014

33333GEAR, 3RD

main33034-0W010iLN167..SA199806-200504

PHILIPPINES SPEC

sub33034-0W070

main33034-0W010iLN145..DCB..GEN;LN145..LHD..SCB200108-200506

PHLIPPINES SPEC

sub33034-0W070

main33034-0W070iKDN145,150,155200311-200409

sub33034-35100

main33034-30011iRZN144,149,154,169,174,194..MTM199708-200405

main33034-35030iLN150..SR;LN145..DCB..GEN;LN166..DSL..GEN;LN145..LHD..DLX..TH;LN140,145,155,171,YN140..SCB,XTR199708-200603

main33034-35050iRZN142,147199708-200603

main33034-35070iRZN168,193;RZN148..CO;RZN148..GEN..CBU199708-200511

main33034-35090iKDN165,KZN165..ARL,TH199909-200203

sub33034-60030

main33034-35100iKDN145,150,155200008-200508

main33034-53010iRZN149,154..(DCB,SCB,XTR)..MTM..ARL200405-200508

main33034-60030iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX200202-200504

sub33034-60090

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-32023iRZN194199708-200511

main90364-35005iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

main90364-35005iLN145..DCB..GEN;LN145..LHD..SCB199806-200603

(J)

main90364-38011iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

33335GEAR, 1ST

main33032-0W010iLN145..LHD..SCB;LN150,192..SR..DSL;LN145..LHD..DLX..TH;LN147,167..(THDCB,THSCB,XTR)..DSL;LN145,152,172..(DCB,THXTR)..DSL..(ARL,GEN);LN140,145,152,155,157,YN140..(SC199806-200603

PHILIPPINES SPEC

sub33032-0W050

main33032-0W050iKDN145,150,155200311-200409

sub33032-26020

main33032-26020iLN150..DLX;LN145..DCB..TH;KDN145,150,155,LN155199708-200603

main33032-26030iRZN142,147199806-200603

main33032-28030iRZN144,148,149,154,16#,174,19#..MTM199708-200107

main33032-28031iRZN194200107-200511

main33032-35041iKDN165,KZN165..ARL,TH199909-200203

sub33032-60080

main33032-35060iRZN142,147199708-199806

sub33032-26030

main33032-60050iVZN167,172..MTM200208-200501

sub33032-60051

main33032-60080iKZN165..(DCB,SCB)..DLX200202-200504

sub33032-60081

33335BSPACER(FOR 1ST GEAR BEARING)

main90560-39002iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-39005iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

sub90364-39016

main90364-39011iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D199708-200603

main90364-39011iLN145..DCB..GEN;LN145..LHD..SCB199806-200603

(J)

main90364-43006iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

33336GEAR, 5TH

main33336-0W010iRZN147..THSCB200108-200506

PHLIPPINES SPEC

sub33336-28020

main33336-0W010iLN192..DSL;LN145..LHD..SCB;LN152..THXTR..IV3;LN150,152..MTM..SR;LN167,192..DEFI..TH;LN145..LHD..DLX..TH;LN147..(THDCB,THSCB)..DLX;LN167..(THDCB,THSCB,XTR)..DSL;LN16199806-200603

PHILIPPINES SPEC

sub33336-28020

main33336-0W030iKDN145,150,155200311-200409

sub33336-28010

main33336-28010iKDN145,150,155200010-200504

main33336-28020iLN145..LHD..IV3;LN167..THDCB..SR;LN167..THSCB..CBU;LN145..(GEN,SA)..CBU;LN167..(DCB,SCB)..ARL;LN140,141,146,166,17#,191,RZN142,147..DCB,SCB,THSCB,XTR199708-200603

main33336-30030iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

main33336-35100iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

sub33336-35101

33348WASHER, 1ST GEAR THRUST

main33348-35010iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)

main90250-05026iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

33349WASHER, 5TH GEAR THRUST

main33346-35020iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

sub33346-71010

33349CPIN (FOR 5TH GEAR THRUST WASHER)

main90250-05026iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-0W010iLN167..DSL..SA199806-200603

PHILIPPINES SPEC

sub33361-35020

main33361-0W010iLN145..DCB..GEN;LN145..LHD..SCB;LN167..THSCB..CBU;LN140,145,192,RZN142,147..SA200108-200506

PHLIPPINES SPEC

sub33361-35020

main33361-30030iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

main33361-35020iLN147,167..THSCB..IV3;LN147,172..THDCB,THXTR;LN152,167..(THDCB,THXTR)..DLX..CBU199708-200603

main33361-35040iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

sub33361-71010

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-0K010iLN145..RHD..DCB200410-200510

PHILIPPINES SPEC

sub33362-0W010

main33362-0W010iLN145..RHD..DCB..GEN..CBU199806-200603

PHILIPPINES SPEC

sub33362-35040

main33362-30051iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

main33362-35030iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

main33362-35040iLN145..LHD..IV3;LN167..THDCB..SR;LN167..THSCB..CBU;LN145..(GEN,SA)..CBU;LN167..(DCB,SCB)..(ARL,SA);LN140,141,146,166,17#,19#,RZN142,147..(DCB,SCB,THSCB,XTR)..(ARL,G199708-200603

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-0W010iRZN147..THSCB200108-200506

PHLIPPINES SPEC

sub33364-26020

main33364-0W010iLN167..DSL..SA199806-200603

PHILIPPINES SPEC

sub33364-26020

main33364-26020iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

main33364-30031iRZN169..SA;RZN169..CBR;RZN154,174,194..RHD..MTM;RZN149,169..MTM..DLX..ARL199708-200508

main33364-35040iRZN168,193;RZN148..CO;RZN148..GEN..CBU199708-200511

main33364-35050iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-30060iRZN194199708-200511

main33365-35020iLN147..IV3;LN167..ARL,SA;LN145..LHD..IV3;LN145..(GEN,SA)..CBU;LN150,152,192..DLX..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,155,LN140,141,146,155,166,17#,191,199708-200312

sub33365-35021

main33365-35021iLN145..CBU;LN145..LHD..IV3;LN147,152..THDCB,THSCB,THXTR;KDN145,150,155,LN140,141,146,150,155,16#,17#,19#,RZN142,147200312-200603

main33365-35040iKDN165..MA;KDN165..SRWGN199909-200504

sub33365-35060

main33365-35060iKDN165200408-200503

33365ASPRING, COMPRESSION

main90501-08134iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

main90501-08158iKZN165,190199909-200106

main90501-08212iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX200106-200504

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33365-30060iRZN149,154..(DCB,SCB,XTR)..MTM..ARL199708-200511

main33366-35030iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

main33366-35040iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D199708-200312

sub33366-35041

main33366-35041iLN145,166..RHD..GEN;RZN147..RHD..SCB..GEN200312-200603

33367RING, SYNCHRONIZER, NO.1

main33367-30060iRZN169,174,194;RZN149,154..MTM..ARL199708-200107

1ST GEAR SIDE

main33367-35020iRZN168,193;RZN148..CO;RZN148..GEN..CBU199708-200511

2ND GEAR SIDE

main33367-35080iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

main33367-53030iRZN144,149,154..CBR;RZN148,168,193..DLX200107-200511

1ST GEAR SIDE

main33367-53030iRZN169..SA;RZN169..CBR;RZN154,174,194..RHD..MTM;RZN149,169..MTM..DLX..ARL200107-200508

main33368-20012iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D199708-200603

33368RING, SYNCHRONIZER, NO.2

main33367-14010iKDN145,150,155,LN145,150,155..TH199708-200603

main33368-30120iRZN194199708-200511

main33368-35030iKZN165,190..SR;KZN165..(THDCB,THSCB)..DLX199909-200504

NO.1

main33368-35030iKDN151,16#..MTM200110-200503

1ST GEAR SIDE

main33368-35040iKZN165,190..SR;KZN165..(THDCB,THSCB)..DLX199909-200504

NO.2

main33368-35040iKDN151,16#..MTM200110-200503

2ND GEAR SIDE

33384ARING, SYNCHRONIZER, OUTER NO.3

main33384-30010iRZN149,154..(DCB,SCB,XTR)..MTM..ARL199708-200511

main33384-35011iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

main33384-71010iKDN145,150,155,LN145,150,155..TH200311-200409

33387ARING, REVERSE SYNCHRONIZER

main33387-30010iRZN144,148,149,154,16#,174,19#..MTM199708-200005

sub33387-30011

sub33394-30021

main33387-30011iRZN149,154..(DCB,SCB,XTR)..MTM..ARL200005-200511

main33387-34010iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

33388ARING, REVERSE SYNCHRONIZER PULL

main33388-30010iRZN144,148,149,154,16#,174,19#..MTM199708-200005

main33388-30011iRZN194200005-200511

main33388-60010iKDN16#..MTM199909-200504

33389RING, SYNCHRONIZER CONE

main33389-30010iRZN144,148,149,154,16#,174,19#..MTM199708-200005

main33389-30011iRZN174,19#;RZN169..DCB..SA;RZN144,149,154,169..CBR;RZN154,169..MTM..DLX..(ARL,SA);RZN148,149,168..MTM..DLX..EFI..(ARL,GEN)200005-200511

main33389-60010iKDN151,KZN165,190..SR;KZN165..(THDCB,THSCB)..DLX199909-200504

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-14010iRZN147..DCB..SA;LN167,192,YN140..SA199708-200508

main33391-25030iKZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH)199909-200504

33394KEY, SYNCHROMESH SHIFTING, NO.3

main33394-71010iKDN145,150,155,LN145,150,155..TH200311-200409

33394BKEY, SYNCHROMESH SHIFTING, NO.3

main33394-30020iRZN144,148,149,154,16#,174,19#..MTM199708-200005

main33394-30021iRZN174,19#;RZN169..DCB..SA;RZN144,149,154,169..CBR;RZN154,169..MTM..DLX..(ARL,SA);RZN148,149,168..MTM..DLX..EFI..(ARL,GEN)200005-200511

main33394-35030iKDN151,KZN165,190..SR;KZN165..(THDCB,THSCB)..DLX199909-200504

33394CSPRING, COMPRESSION

main90501-07104iRZN144,16#,174,193;RZN148,154..GEN..CBU;KDN151,KZN165,190..SR;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;KZN165,RZN154..(THDCB,THSCB,THXTR)..MTM..DLX199708-200511

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-0K020iKDN145,150,155,LN145,150,155..TH200311-200409

sub33395-71010

main33395-0W010iKDN145,150,155199806-200603

PHILIPPINES SPEC

sub33395-35020

main33395-0W010iLN145..DCB..GEN;LN145..LHD..SCB;LN167..THSCB..CBU;LN140,145,192,RZN142,147..SA200108-200506

PHLIPPINES SPEC

sub33395-35020

main33395-30021iRZN194199708-200511

main33395-35020iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D199708-200603

main33395-35031iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-0K020iKDN145,150,155,LN145,150,155..TH200311-200409

sub33402-71010

main33402-0W010iLN145..DCB..GEN;LN145..LHD..SCB;LN140,145,RZN142,147..SA200108-200506

PHLIPPINES SPEC

sub33402-0W020

main33402-0W010iLN150..SR;LN145..LHD..SCB;LN145..LHD..DLX..TH;LN140,145,155,RZN142,YN140..SCB..(SA,TH);LN145,RZN147..(DCB,THSCB)..(DSL,EFI)..(ARL,GEN)199806-200603

PHILIPPINES SPEC

sub33402-0W020

main33402-0W020iLN167..DSL..SA199806-200504

PHILIPPINES SPEC

sub33402-60040

main33402-30031iRZN144,148,149,154,16#,174,19#..MTM199708-200010

TYPE A:REFER ILLUST.

main33402-30032iRZN144,148,149,154,16#,174,19#..MTM200010-200107

TYPE B:REFER ILLUST.

sub33402-53020

main33402-35050iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

sub33402-60040

main33402-35060iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

main33402-53020iRZN169..DCB..SA;RZN154,194..RHD..MTM;RZN169..DLX..(ARL,SA);RZN144,149,154,169..CBR;RZN148,149,174,193..MTM..DLX..EFI..(ARL,GEN)200107-200206

TYPE B:REFER ILLUST.

main33402-53020iRZN149,154..(DCB,SCB,XTR)..MTM..ARL200108-200511

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90365-25014iRZN149,154..(DCB,SCB,XTR)..MTM..ARL199708-200511

main90365-25019iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

main90365-25023iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D199708-200603

33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1

main90520-49222iLN147..THDCB;LN145..DCB..TH;LN145..LHD..IV3;LN147..THSCB..IV3;RZN149,154..LHD..MTM;RZN149..(THDCB,THSCB)..MTM;LN150,192,RZN148..DLX..(CO,SA,TH);LN145,152,RZN148..(D199708-200603

T=1.07,OD=55.6

main90520-56002iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

T=1.07,OD=62

33411PBEARING, COUNTERSHAFT CENTER

main33430-30010iRZN194199708-200511

main90365-31006iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

main90365-34005iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2

main90520-23057iKZN165..(DCB,SCB)..DLX;RZN149,154,VZN167,172..(DCB,SCB,XTR)..MTM..ARL199708-200511

T=2.10,MARK A

main90520-23058iKZN165,190..SR;RZN148,154..GEN..CBU;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;KDN151,16#,RZN144,16#,174,193..MTM;KZN165,RZN154..(THDCB,THSCB,THXTR)..MTM.199708-200511

T=2.15,MARK B

main90520-23059iRZN194199708-200511

T=2.20,MARK C

main90520-23060iKZN165,190..SR;RZN148,154..GEN..CBU;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;KDN151,16#,RZN144,16#,174,193..MTM;KZN165,RZN154..(THDCB,THSCB,THXTR)..MTM.199708-200511

T=2.25,MARK D

main90520-23061iKZN165,190..SR;RZN148,154..GEN..CBU;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;KDN151,16#,RZN144,16#,174,193..MTM;KZN165,RZN154..(THDCB,THSCB,THXTR)..MTM.199708-200511

T=2.30,MARK E

main90520-23062iRZN194199708-200511

T=2.35,MARK F

main90520-23089iLN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,14199708-200603

T=2.10-2.15

main90520-23090iLN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,14199708-200603

T=2.20-2.25

main90520-23115iLN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,14199708-200603

T=2.05-2.10

main90520-23143iLN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,14199708-200603

T=2.15-2.20

main90520-23144iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

T=2.25-2.30

main90520-23145iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

T=2.30-2.35

33421GEAR, COUNTER

main33421-0K030iKDN145,150,155,LN145,150,155..TH200311-200409

sub33421-71050

main33421-0W010iLN150,155..DLX;LN145..DCB..TH200108-200506

PHILIPPINES SPEC

main33421-0W090iLN152,157,172..SCB,THXTR;LN152,192..MTM..(CBU,IV1);LN147,167..THDCB,THSCB,XTR199806-200009

PHILIPPINES SPEC

main33421-26140iRZN142,147199806-200603

main33421-28051iRZN144,148,149,154,16#,174,19#..MTM199708-200010

PNC 33402=TYPE A

sub33301-30H30

main33421-28052iRZN169..DCB..SA;RZN154,194..RHD..MTM;RZN169..DLX..(ARL,SA);RZN144,149,154,169..CBR;RZN148,149,168,174,193..MTM..DLX..EFI..(ARL,GEN)200010-200206

PNC 33402=TYPE B

sub33301-30H50

main33421-28052iRZN148..GEN..CBU;RZN144,149,154,16#,174,193..MTM200108-200307

sub33301-30H50

main33421-28053iRZN194200307-200511

sub33421-28054

main33421-35160iRZN142,147199708-199806

sub33421-26140

main33421-35170iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

main33421-35220iKDN165,KZN165..ARL,TH199909-200203

sub33421-60170

main33421-60170iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX200202-200504

sub33421-71010

main33421-60180iVZN167,172..MTM200208-200501

sub33421-60181

33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)

main90520-19008iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

T=2.85

main90520-19009iLN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,14199708-200603

T=2.90

main90520-19010iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

T=2.95

main90520-19011iLN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,14199708-200603

T=3.00

main90520-19012iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

T=3.05

main90520-19013iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

T=3.10

main90520-19014iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D199708-200603

T=3.15

main90520-22016iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=2.85,MARK A

main90520-22017iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=2.90,MARK B

main90520-22018iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

T=2.95,MARK C

main90520-22019iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=3.00,MARK D

main90520-22020iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=3.05,MARK E

main90520-22021iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX199909-200504

T=3.10,MARK F

main90520-22022iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=3.15,MARK G

33428GEAR, COUNTERSHAFT 5TH

main33046-0W010iLN167,RZN147..(CBR,DSL)..SA199806-200603

PHILIPPINES SPEC

main33046-28032iKDN145,150,155200010-200504

main33046-35062iLN150,155..DLX;LN145..DCB..TH199708-200603

main33046-35090iKDN165,KZN165..ARL,TH199909-200203

sub33428-60030

main33428-0K020iKDN145,150,155200311-200409

sub33428-71030

main33428-0K040iLN145,150,155..TH200311-200409

sub33428-71010

main33428-30040iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU199708-200511

main33428-60030iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX200202-200504

sub33428-60031

33428BBEARING (FOR COUNTER 5TH GEAR)

main90364-26002iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

main90364-26002iLN145..DCB..GEN;LN145..LHD..SCB199806-200603

(J)

main90364-30009iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

33451SHAFT, REVERSE IDLER GEAR

main33451-28010iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200502

sub33451-28011

main33451-28011iLN145,166..RHD..GEN;RZN147..RHD..SCB..GEN200502-200603

main33451-30060iRZN194199708-200511

main33451-35030iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX199909-200504

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-20090iLN157199806-200109

N=6

main33481-22010iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

N=6,MARK 6X18-20

main33481-22020iRZN149,154..(THDCB,THSCB,THXTR)..MTM;RZN144,148,149,154,193..MTM..(GCC,GEN)..CBU199708-200508

N-11

main33481-22030iRZN194199807-200511

N=10,MARK 10X31-33

main33481-30040iYN140199808-200010

N=6,MARK 6X21-23

main33481-35070iKZN190200007-200504

N=11,MARK 11X28-30

33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

main90520-26061iLN192;LN150..SR;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152..MTM..DEFI..TH;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,191,RZN142,199708-200603

T=1.50,OD=31.3

main90520-28030iKZN190200007-200504

T=1.5

33481CBALL, REVERSE SHIFT RESTRICT

main90360-06004iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU199708-200603

58 parts on this diagram · 10 diagrams in section
