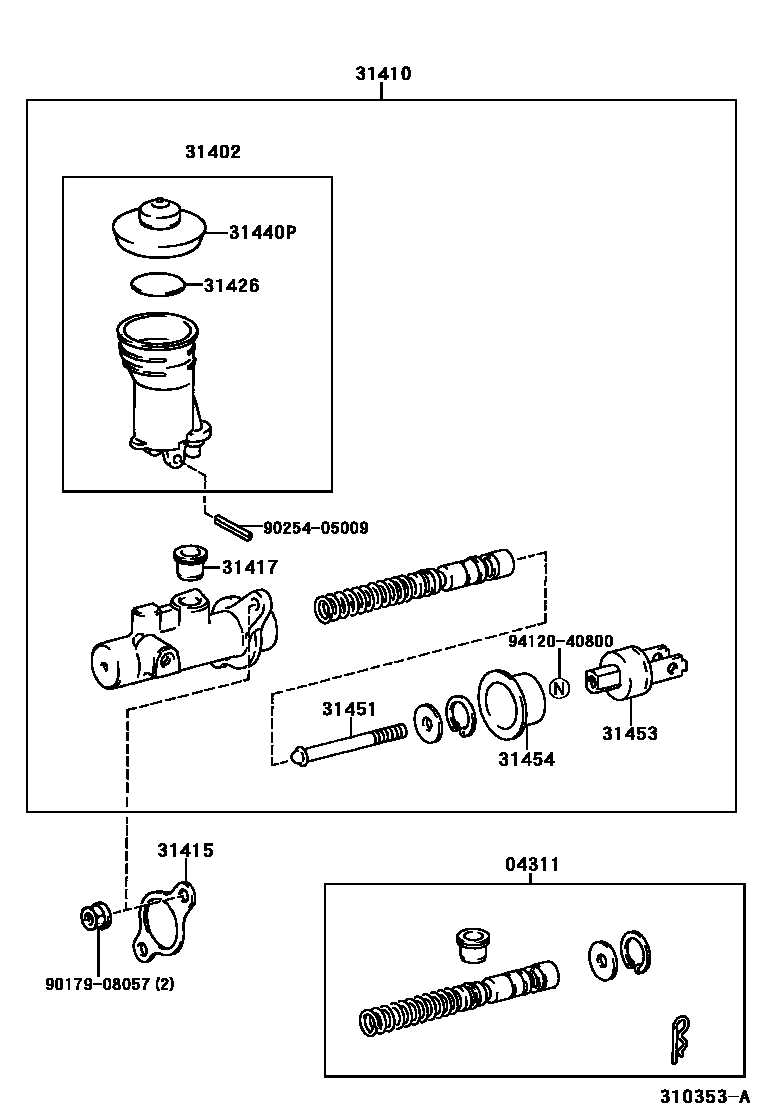

CLUTCH MASTER CYLINDER

0001 1 0002 1 0004 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-04010iLN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..(THDCB,THSCB,THXTR)..MTM199806-200502

main04311-12110iKZN165,190200007-200203

main04311-26070iLN155..LHD199708-200504

main04311-34020iLN141,146,166,RZN14#,16#..MTM..(CO,GCC)200208-200502

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-35120iLN152..XTR..IV3;RZN169..DCB..SA;LN145..LHD..DLX..TH;LN167..DCB..DLX..ARL;LN147,166..(DCB,SCB)..DLX..(ARL,GCC,GEN);LN155,RZN148,168,193..LHD..DLX..(GEN,TH);RZN149,16199708-200502

main31402-35130iKDN165..IV1200110-200502

sub31402-60070

main31402-35140iVZN167,172..MTM200208-200502

main31402-60070iKZN165,190..SR..SA200007-200502

31410CYLINDER ASSY, CLUTCH MASTER

main31410-34012iLN145,166,RZN169..RHD..GEN..CBU;RZN142,147,148,168,193..GEN..CBU199708-200603

main31410-35360iKDN145,15#,165..CBU200110-200502

main31410-60560iKZN165..TH;KZN165..THDCB,THSCB200007-200502

main31410-60571iLN166..LHD..DSL;KZN165..(SCB,THSCB)..SR;LN141,145,146,155,171,191,RZN144,149,154,169..LHD..(CBR,DSL)199708-200408

main31410-60580iVZN167,172..MTM200208-200502

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iLN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(199708-200506

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iLN141,146,166,RZN14#,16#..MTM..(CO,GCC)199708-200502

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iLN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB).199708-200502

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-35020iRZN148..IV3;LN145..RHD..IV3199708-200502

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-0A010iLN167..THDCB..SR;LN167..THSCB..CBU;RZN147,169,174..THDCB,THSCB,THXTR200109-200408

main31451-35070iVZN167,172..MTM200208-200502

main31451-35080iLN141,146,166,RZN14#,16#..MTM..(CO,GCC)199708-200502

main31451-36040iKZN165,190..SR..SA200007-200502

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iKDN165..IV1;LN167..SR..ARL;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU199708-200502

main31404-35011iKZN165..(THDCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)200007-200310

sub31404-35013

main31404-35013iKZN165..ARL200310-200502

main31453-35010iVZN167,172..MTM200208-200502

31454BOOT, CLUTCH MASTER CYLINDER

main31454-0A010iLN167..THDCB..DLX;LN167..THSCB..IV3;LN147,150,RZN149..(THDCB,THSCB,XTR)..MTM;LN145,152,155,172,RZN154..RHD..(DCB,SCB,THXTR)..MTM..(ARL,TH)200109-200408

main31454-16010iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU199708-200502

9017908057

main90179-08057

9025405009

main90254-05009

9412040800

main94120-40800

13 parts on this diagram · 3 diagrams in section
