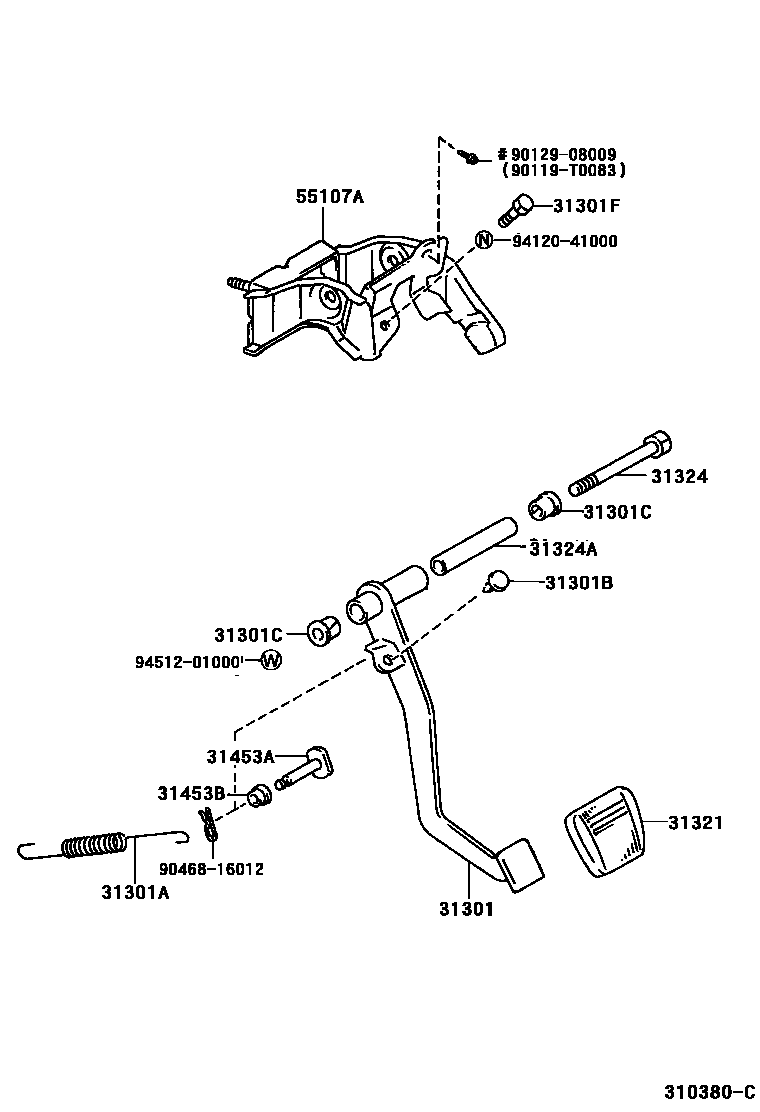

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-35240iLN145..DCB..IV3;RZN147..RHD..DCB..GEN199708-200506

main31301-35250iRZN149..GCC;RZN149..DLX..GEN;LN141,145,146,155,166,171,191,RZN142,144,147,148,154,168,193..LHD199708-200009

main31301-35251iLN141,145,146,166,171,191,RZN142,144,147,149,154,193..LHD..MTM..(GCC,GEN)200009-200511

main31310-35050iRZN169..LHD199708-200009

main31310-35051iRZN169..LHD200009-200508

main31310-35060iKZN165..SCB199708-200506

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14030iKDN155199708-200511

main90949-03017iKZN190..SR;KDN165,KZN165..MA,SA199708-200506

NO.2

main90949-03035iRZN169,194..RHD;KZN165,RZN149,154,174..MTM..ARL199708-200506

NO.1

main90949-03036iKZN165,190..SA200007-200502

NO.1

main90949-03036iKZN165..SR..ARL200008-200109

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iRZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)199708-200511

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iKDN190,LN166..MA199708-200511

main90386-13015iKZN190..SR;KDN165,KZN165..MA,SA199708-200506

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iLN147..IV3;RZN148..CO;LN145..LHD..IV3;LN140,150,192,RZN142,147..DLX;LN145,147..(DCB,THDCB)..(ARL,TH);LN167,RZN169,194..ARL,GCC,GEN,SA;LN145,152,RZN148..(ARL,GEN,SA)199708-200511

31321PAD, CLUTCH PEDAL

main31321-14020iLN145..DCB..IV3;RZN169..RHD..GEN;RZN147..RHD..DCB..GEN199708-200506

main31321-52010iLN145,155..LHD..TH200009-200511

31324SHAFT, CLUTCH PEDAL

main90101-10177iKDN155199708-200506

main91121-51090iRZN144,149,154,169..LHD..MTM199708-200508

main91121-61070iRZN148..CO;RZN148..GEN..CBU;LN141,145,146,155,166,171,191,RZN142,147,168,193..LHD199708-200511

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10027iRZN148..CO;RZN148..GEN..CBU;LN141,145,146,155,166,171,191,RZN142,147,168,193..LHD199708-200511

main90387-10082iKZN190..SR;KDN165,190,KZN165,LN166..MA,SA199708-200506

main90387-10121iRZN144,149,154,169..LHD..MTM199708-200508

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-34010iLN147..IV3;RZN148..CO;LN145..LHD..IV3;LN140,150,192,RZN142,147..DLX;LN145,147..(DCB,THDCB)..(ARL,TH);LN167,RZN169,194..ARL,GCC,GEN,SA;LN145,152,RZN148..(ARL,GEN,SA)199708-200511

L=27

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iLN147..IV3;LN145..LHD..IV3;LN167,RZN148..ARL,CO,SA;LN145,152..(ARL,GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);LN150,192,RZN154..DLX..(GEN,SA,TH);RZN148,149,169..199708-200511

main90386-08033iRZN169,194..RHD;KDN151,16#,KZN165,RZN149,154,174,VZN167,172..MTM..(ARL,TH)199708-200506

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-35070iKZN165,190,RZN149,154,169,174,194..RHD..MTM199708-200008

sub55107-60170

main55107-35080iLN155..LHD199708-200506

main55107-35090iRZN154,169..LHD..GEN199708-200506

main55107-35100iLN145,166..RHD..GEN;RZN147..RHD..SCB..GEN200108

THAILAND PRODUCT

sub55107-35110

main55107-35100iRZN147..THSCB;LN167..THDCB..SR;LN167..THSCB..CBU199708-200408

sub55107-35110

main55107-35110iRZN147..RHD..DCB200108-200506

PLANT NO.P11

main55107-35110iLN147,172..DCB,XTR;LN147,167..SCB..IV3;LN152,167..(DCB,XTR)..DLX..ARL..CBU200108-200504

main55107-60110iLN145,15#,167,192..RHD..MTM..TH;LN147,152,167,172..(THDCB,THSCB,THXTR)..DEFI199806-200109

main55107-60170iRZN169..RHD..GEN200008-200506

90119T0083

main90119-T0083

9012908009

main90129-08009

9046816012

main90468-16012

9412041000

main94120-41000

9451201000

main94512-01000

16 parts on this diagram · 13 diagrams in section
