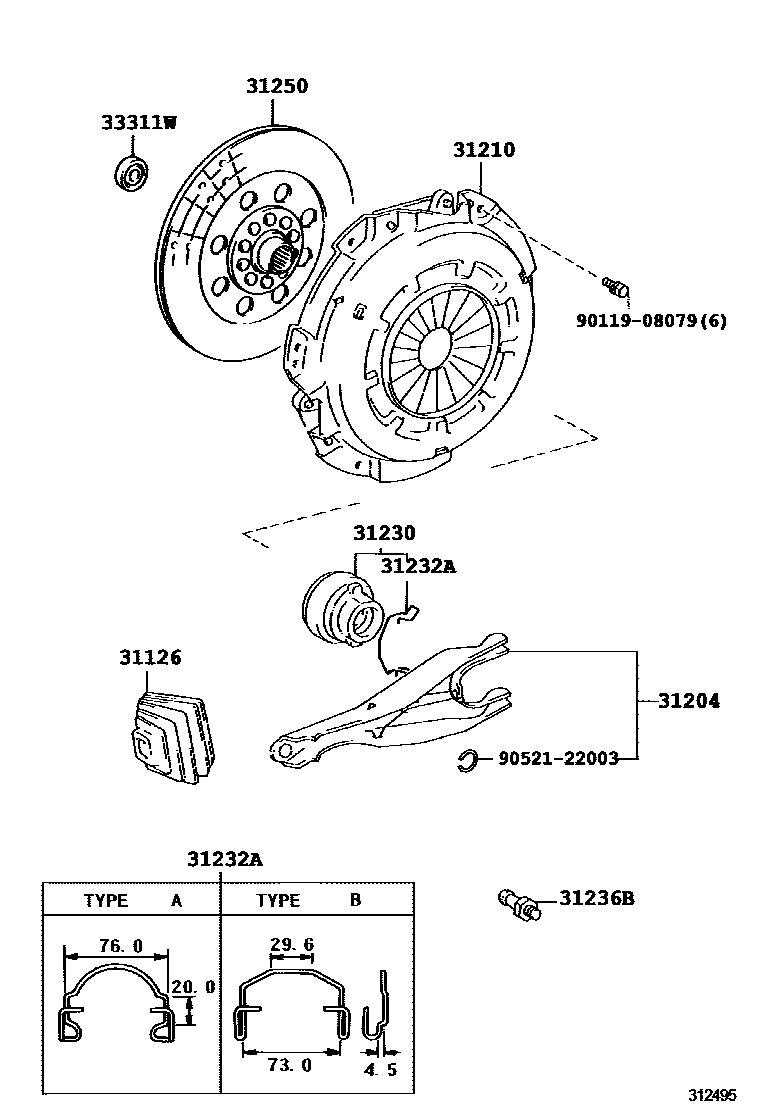

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0W010iLN192;LN145..DCB..GEN;LN145..LHD..SCB;LN167..DEFI..TH;LN152..THXTR..IV3;LN150,152..MTM..SR;LN145..LHD..DLX..TH;LN167..SCB..DEFI..SA;LN147..(THDCB,THSCB)..DLX;LN167.¥1,000199806-200603

(L)

sub31126-20070¥990

main31126-20060iYN140¥940199808-200010

main31126-20070iLN147..THDCB;LN145..LHD..SCB;LN147..THSCB..IV3;LN167..THDCB,THSCB;LN145,172..DCB,THXTR;LN140,150,155,167,192..DLX..(SA,TH);LN145,152..(SCB,THXTR)..(ARL,SA)..CBU¥990199806-200603

(J)

main31126-20070iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D¥990199708-200603

main31126-26020iRZN154..GEN;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN142,144,147,16#,174,193;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU¥530199708-200603

main31126-34010iVZN167,172..MTM¥630200208-200501

main31126-60080iKZN165,190¥1,240199909-200103

sub31126-60081¥770

main31126-60081iKZN165..(DCB,SCB)..DLX¥770200103-200504

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRZN194¥1,420199708-200603

main31204-35031iVZN167,172..MTM¥1,440200208-200501

main31204-35050iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..D¥1,590199708-200603

main31204-60090iKDN165..IV1;KZN165..THDCB,THSCB;KDN145,15#,KZN165..TH¥3,810199909-200504

31210COVER ASSY, CLUTCH

main31210-04050iLN152,157,167,192..MTM..TH;LN147,152,167,172..(THDCB,THSCB,THXTR)..DEFI199806-200408

main31210-22120iYN140¥13,800199808-200010

sub31210-22121¥13,700

main31210-26090iKZN165..(SCB,THDCB,THSCB)..SR¥21,100199909-200208

sub31210-26130¥21,100

main31210-26110iRZN147..ARL¥16,900199708-200208

sub31210-26120¥16,800

main31210-26160iLN147,152,167,172..(DCB,SCB,XTR)..ARL¥16,900200408-200502

sub31210-26161¥16,900

main31210-26170iRZN144,149,154,169,194..MTM¥16,900200502-200508

sub31210-26171¥16,900

main31210-30240iRZN144,149,154..CBR;RZN148,168,193..DLX..GEN¥16,900199708-200506

sub31210-30241¥16,900

main31210-30241iRZN148,168..CO¥16,900200409-200506

sub31210-35280¥16,900

main31210-30251iLN145..GEN¥13,800199708-200506

sub31210-35340¥13,700

main31210-35100iLN141,146,166,171,191,RZN142,147..CBR,DSL¥13,800199708-199911

sub31210-35101¥13,700

main31210-35101iRZN147..DCB..SA;LN141,146,166,171,191,RZN142,147..DLX..(GCC,GEN)¥13,700199911-200508

sub31210-35102¥16,900

main31210-35121iLN147,152,167,172,192..DSL..(ARL,SA);LN147,152,167,172..(DCB,SCB,XTR)..DEFI..ARL¥16,900199708-200102

sub31210-35122¥13,000

main31210-35122iLN147,152,167,172..(DCB,SCB,XTR)..ARL¥13,000200102-200407

sub31210-26160¥16,900

main31210-35200iRZN169..SA;RZN169..CBR;RZN154,174,194..RHD..MTM;RZN149,169..MTM..DLX..ARL¥16,900199708-200501

sub31210-26170¥16,900

main31210-35210iVZN167,172..MTM¥16,900200208-200502

sub31210-35290¥16,900

main31210-35260iKZN190..SR;KDN151,166,KZN165..MTM¥21,100200007-200504

sub31210-35270¥18,300

main31210-35280iRZN148,168..GEN¥16,900200506-200511

sub31210-35281¥13,300

31230BEARING ASSY, CLUTCH RELEASE

main31230-22100iKDN145,150,155¥2,340200110-200409

sub31230-22101¥2,340

main31230-35060iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU¥4,180200108-200508

sub31230-35061¥3,300

main31230-35061iLN192;LN152..DEFI..IV3;LN152,167..MTM..DSL;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN141,146,147,157,166,17#,191..DL¥3,300199708-200603

main31230-35070iLN150..SR;LN145..DCB..GEN;LN140,145,155..SCB;LN145..LHD..DLX..TH¥4,180199708-200603

sub31230-35071¥3,300

main31230-35090iRZN169..SA;RZN147..THSCB;RZN144,149,154,169..CBR;RZN149,169..MTM..DLX..ARL;RZN142,154,174,194,YN140..RHD..MTM¥4,180199708-200203

PNC 31232A=TYPE A

sub31230-35091¥3,300

main31230-35090iRZN169..SR..ARL¥4,180200109-200208

sub31230-35091¥3,300

main31230-35091iRZN142,147,148,168,193..DLX..(ARL,GCC,GEN,SA)¥3,300199708-200603

PNC 31232A=TYPE C

main31230-35091iRZN149,154..(DCB,SCB,XTR)..MTM..ARL¥3,300200108-200511

main31230-35110iVZN167,172..MTM¥5,300200208-200501

main31230-60170iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX¥1,880199909-200504

31232ACLIP, RELEASE BEARING HUB

main31232-22020iKDN145,150,155¥230200110-200409

main31232-35020iRZN194¥190199708-200603

TYPE A:REFER ILLUST.

main31232-35020iRZN147..THSCB;RZN142,147..SA¥190200203-200504

TYPE A:REFER TO ILLUSTRATION

main31232-35030iLN166..RHD..GEN¥190199708-200603

TYPE B:REFER ILLUST.

main31232-35040iRZN154..GEN;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN142,144,147,16#,174,193;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU¥230199708-200603

TYPE C:REFER ILLUST.

main31232-36030iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)¥110199909-200504

TYPE A:REFER ILLUST.

main31232-60030iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)¥200199909-200504

TYPE B:REFER ILLUST.

31236BSUPPORT, RELEASE FORK

main31236-26010iLN147,152..DCB,SCB,XTR¥460200109-200603

TYPE B

main31236-30060iRZN144,148,149,154,16#,193..MTM..(GCC,GEN)..CBU¥740199708-200110

TYPE A

main31236-35030iVZN167,172..MTM¥330200208-200501

main31236-60060iKDN16#..MTM¥580199909-200504

31250DISC ASSY, CLUTCH

main31250-04051iLN147,152,167,172..THDCB,THSCB,THXTR200109-200408

main31250-20241iYN140¥11,700199808-200010

sub31250-20242¥11,700

main31250-25150iKDN145,15#¥23,300200110-200204

sub31250-25180¥23,300

main31250-25160iKDN165..IV1¥19,800200110-200208

sub31250-26210¥19,900

main31250-26171iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)¥24,700199909-200504

sub31250-26172¥24,700

main31250-26181iLN147,152,167,172,192..DSL..(ARL,SA);LN147,152,167,172..(DCB,SCB,XTR)..DEFI..ARL¥23,300199708-200012

sub31250-26182¥18,300

main31250-26182iLN147,152,167,172..(DCB,SCB,XTR)..ARL¥18,300200012-200412

main31250-26220iLN147,152,167,172..(DCB,SCB,XTR)..ARL¥7,900200501-200502

sub31250-26221¥6,100

main31250-26230iRZN144,149,154,169,194..MTM¥19,700200502-200508

sub31250-26231¥15,500

main31250-35201iLN140,145..GEN,SA¥17,400199708-199812

sub31250-35202¥17,400

main31250-35202iLN140,145..GEN,SA¥17,400199812-199911

sub31250-35203¥17,400

main31250-35203iLN145..GEN..CBU;LN145..LHD..IV3¥17,400199911-200510

sub31250-35204¥17,400

main31250-35204iLN145¥17,400200511

sub31250-35205¥17,400

main31250-35221iLN141,146,166,171,191¥17,500199708-199906

sub31250-35222¥17,500

main31250-35222iLN141,146,166,171,191¥17,500199906-199911

main31250-35352iVZN167,172..MTM¥19,700200208-200502

sub31250-35353¥19,700

main31250-35370iRZN142,147..CBR¥13,800199708-199811

sub31250-35371¥13,800

main31250-35371iRZN142,147..GCC,GEN¥13,800199811-200510

sub31250-35372¥13,800

main31250-35372iRZN147..GEN¥13,800200511

sub31250-35373¥14,200

main31250-35380iRZN147,148,168,193..EFI¥18,700199708-199901

sub31250-35381¥18,700

main31250-35381iRZN148..CO;RZN148..GEN..CBU;RZN147,168,193..EFI¥18,700199901-200511

sub31250-35382¥18,700

main31250-35390iRZN144,149,154..CBR¥16,100199708-200108

sub31250-35391¥16,100

main31250-35400iRZN144,169,174,194;RZN149,154..(DCB,SCB,XTR)..MTM¥19,700199708-200501

sub31250-26230¥19,700

main31250-35410iLN166..MA¥17,400199911-200508

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iRZN14#,154,16#,174,19#..MTM¥520199708-200603

sub90363-12024¥520

main90363-12018iRZN147,174,19#;RZN169..DCB..SA;RZN142,144,149,154,169..CBR;RZN154,169..MTM..DLX..(ARL,SA);RZN148,149,168..MTM..DLX..EFI..(ARL,GEN)¥1,050200006-200603

NSK

main90363-12020iRZN142,147,148,154,16#,193..GEN..CBU¥1,050200108-200506

9011908079

main90119-08079¥120

9052122003

main90521-22003¥100

10 parts on this diagram · 3 diagrams in section
