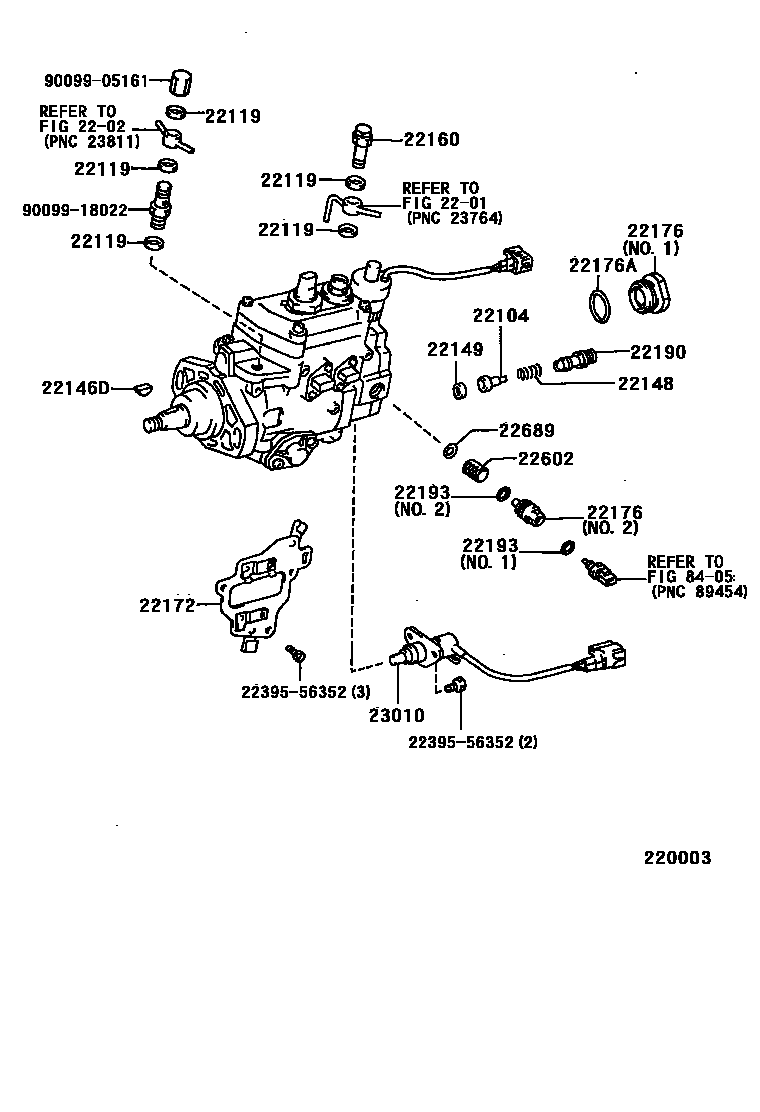

INJECTION PUMP BODY

0001 1 0002 1 0005 1 0006 1W(AUTOMATIC COLD START DIVICE0007 1W(AUTOMATIC COLD START DIVICE0008 1 0009 1W(AUTOMATIC COLD START DIVICE0011 1 0012 1W(AUTOMATIC COLD START DIVICE0013 1W(HIGH ALTITUDE COMPENSATOR) 0014 1W(HIGH ALTITUDE COMPENSATOR) 0015 1W(HIGH ALTITUDE COMPENSATOR) 0016 1 0017 1W(HIGH ALTITUDE COMPENSATOR)

2201

2202

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-17010i1KZTE..KZN165..SR..ARL199909-200009

main22104-5B271i2L..LN145,150,155..RHD..TH200009-200409

main22104-5B321i2L..LN145,150,155..RHD..TH199806-200009

main22104-5B640i5L..LN167,192..SA199708-200010

main22104-67100i1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)200007-200504

main22104-6A290i2L..LN145..LHD..IV3;2L,3L..LN140,141,145,146,166,171,191..(GCC,GEN,MA,SA)..CBU199708-200409

main22104-6A640i5LE..LN167..SCB..IV3;5LE..LN167..DCB..DLX..ARL;5LE..LN147,152,172..DCB,SCB,XTR200009-200504

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109i2L,5LE..LN145,147,15#,167,172,192..ARL,TH199708-200504

22146DKEY(FOR DRIVE GEAR)

main90099-13018i5L..LN147,152,157,167,172,192..ARL,TH199708-200203

22148SPRING, DELIVERY VALVE

main22148-54010i2L,5LE..LN140,145,167,192..SA199708-200504

22149GASKET, DELIVERY VALVE

main22149-56351i5L..LN167,192..SA199708-200504

22160SCREW SUB-ASSY, OVERFLOW

main22160-54271i5LE..LN167..THDCB..DLX;5LE..LN167..THSCB..IV3;5LE..LN147,152,172..THDCB,THSCB,THXTR200009-200504

main22160-64010i2L..LN145..DCB..IV3;2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN)199708-200409

main22160-67100i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

22172CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-54263i2L,3L..LN145,166..RHD..GEN..CBU199708-200203

NO.1

main22172-54263i2L..LN140199708-200506

main22172-54264i2L..LN145,155..LHD..TH199708-200203

NO.2

main22172-67030i1KZTE..KZN165..SR..ARL199909-200009

22176PLUG, DISTRIBUTIVE HEAD

main22176-54020i2L..LN140,145..SA199708-200203

main22176-54640i1KZTE..KZN165;1KZTE..KZN190..SR200007-200504

main22176-54640i1KZTE..KZN165..SR..ARL199909-200009

NO.1

main22176-67030i1KZTE..KZN165..SR..ARL199909-200009

NO.2

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main22193-54772i5L..LN167,192..SA199708-200504

22190VALVE SUB-ASSY, SNUBBER

main22190-5B640i5L..LN147,152,157,167,172,192..ARL,TH199708-200409

main22190-5D180i5LE..LN167..THDCB..DLX;5LE..LN167..THSCB..IV3;5LE..LN147,152,172..THDCB,THSCB,THXTR200009-200504

main22190-6A290i2L..LN145..LHD..IV3;2L,3L..LN140,141,145,146,166,171,191..(GCC,GEN,MA,SA)..CBU199708-200409

main22190-6A680i1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199806-200504

22193RING, O(FOR LEVER CONNECTING PIN)

main22193-55031i2L..LN145..DCB..IV3;2L..LN145..LHD..IV3;2L..LN145..(GEN,SA)..CBU;2L,3L,5L..LN140,147,152,16#,17#,19#..DSL..(ARL,GEN,SA)199708

main22193-5B302i1KZTE..KZN165..SR..ARL199909-200009

NO.2

main22193-67030i1KZTE..KZN165..SR..ARL199909-200009

NO.1

22602FILTER SUB-ASSY, FUEL INJECTION PUMP

main22602-56350i5L..LN147,152,157,167,172,192..ARL,TH199708-200409

main22602-56350i2L..LN145,150,155..RHD..TH200109-200409

NO.1

main22602-5B680i2L..LN145,150,155..RHD..TH200009-200409

NO.2

22689WASHER(FOR SWIVEL NIPPLE)

main22689-56350i2L..LN145,150,155..TH199708-200203

main22689-56350i2L..LN145,150,155..RHD..TH200009-200409

NO.1

main22689-5B680i2L..LN145,150,155..RHD..TH200009-200409

NO.2

23010VALVE ASSY, TIMING CONTROL

main23010-67010i1KZTE..KZN165;1KZTE..KZN190..SR200007-200504

main23010-67030i1KZTE..KZN165..SR..ARL199909-200009

8405

2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56352

9009905161

main90099-05161

9009918022

main90099-18022

20 parts on this diagram · 14 diagrams in section
