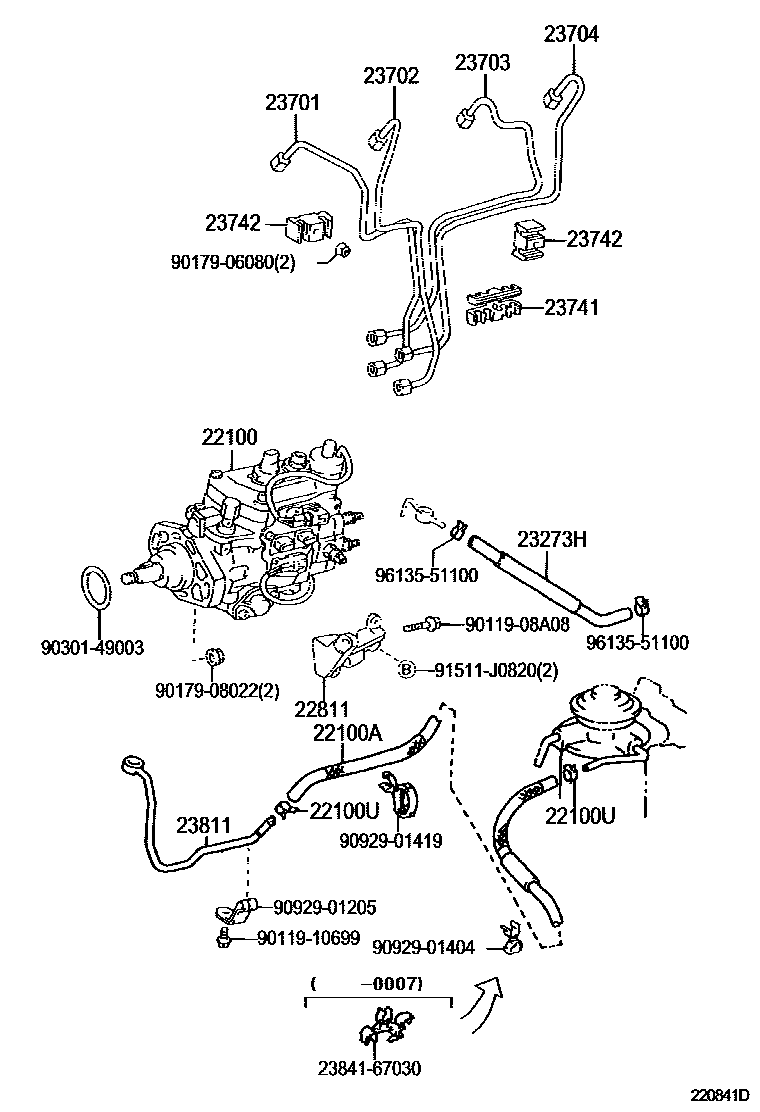

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-0L010i1KDFTV,2KDFTV..KDN145,15#,16#,190200208-200503

(L)

main22100-30020i2KDFTV..KDN145,15#,165,190200110-200202

sub22100-30021¥214,000

main22100-30021i1KDFTV,2KDFTV..KDN145,15#,16#,190¥214,000200208-200503

(J)

main22100-30021i2KDFTV..KDN145,15#,165,190¥214,000200202-200208

main22100-54710i3L..LN166..LHD..DCB..GEN¥279,000199708-200108

W(TACHO METER PICK UP SENSOR),MARK 22100-54710

main22100-54710i3L..LN166..LHD..DCB..GEN¥279,000200108-200506

W(TACHOMETER PICK UP SENSOR),MARK 22100-54710

main22100-54770i2L..LN145..GEN..CBU;2L..LN145..LHD..IV3¥273,000199708-200506

sub22100-54780¥279,000

main22100-54780i2L..LN145..GEN..CBU;2L..LN145..LHD..IV3¥279,000199708-200506

W(TACHO METER PICK UP SENSOR)

main22100-54780i2L..LN155..LHD¥279,000199806-200409

main22100-54860i3L..LN166..CBR¥279,000200108-200506

W(TACHOMETER PICK UP SENSOR)

main22100-54860i3L..LN141,146,166,171,191..DSL..(GCC,GEN)¥279,000199708

W(TACHO METER PICK UP SENSOR)

main22100-5B510i3L..LN166..MA¥307,000200209-200503

main22100-5B510i3L..LN166..RHD..GEN¥307,000199708-200402

W(TACHO METER PICK UP SENSOR & AUTOMATIC COLD START DIVICE)

main22100-5B530i2L..LN145..DCB..TH¥292,000199806-200408

main22100-5B530i2L..LN145..SR;2L..LN145..LHD..GEN¥292,000200108-200506

TURKEY SPEC

main22100-5B590i2L..LN145,150,155..RHD..TH¥306,000199806-200009

main22100-5B700i5L..LN152..ATM¥325,000199806-200009

main22100-5B710i5L..LN152,157,167,192..MTM..TH¥325,000199806-200009

main22100-5B710i5L..LN172..CBU¥325,000199711-199806

W(TACHO METER PICK UP SENSOR & AUTOMATIC COLD START DIVICE)

main22100-5B720i5L..LN172..THXTR;5L..LN147,152,167..(THDCB,THSCB,THXTR,XTR)..ARL¥333,000199808-200009

main22100-5B720i5L..LN147,167,172..(DCB,SCB,XTR)..ARL¥333,000199708-200009

W(HIGH ALTITUDE COMPENSATOR & TACHO MEYER PICK UP SENSOR)

main22100-5B740i3L..LN166,171,191..GEN¥323,000199708-200506

W(HIGH ALTITUDE COMPENSATOR)

main22100-5B740i3L..LN141,146,166..GCC¥323,000200108

main22100-5B750i5L..LN167,192..SA¥323,000199807-200010

main22100-5B770i2L..LN140¥321,000199807-200504

W(TACHOMETER)

main22100-5B770i2L..LN145..GEN..CBU;2L..LN145..DCB..IV3;2L..LN145..LHD..IV3¥321,000199708-200506

W(HIGH ALTITUDE COMPENSATOR & TACHO MEYER PICK UP SENSOR)

main22100-5B800i2L..LN145..GEN..CBU;2L..LN145..DCB..IV3;2L..LN145..LHD..IV3¥310,000199708-200506

W(HIGH ALTITUDE COMPENSATOR)

main22100-5B800i2L..LN140¥310,000199807-199905

W/O(TACHOMETER)

main22100-5B820i2L..LN145,150,155..RHD..TH¥369,000200009-200409

main22100-5D140i3L..LN166..LHD..GEN¥321,000199904-200506

EGYPT SPEC

main22100-5D150i2L..LN145..LHD..GEN¥278,000199904-200506

EGYPT SPEC

main22100-5D180i5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL¥215,000200009-200504

main22100-67070i1KZTE..KZN165..SR..ARL¥273,000199909-200009

main22100-67120i1KZTE..KZN165;1KZTE..KZN190..SR¥342,000200007-200504

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-54100i2L..LN140,145..SA¥2,560199708-200503

main23271-54140i5LE..LN167..SR;5LE..LN167..(SCB,THSCB)..ARL..CBU¥2,790200009-200502

main23271-54150i5LE..LN152,157..CBU¥3,140200009-200108

main23271-54160i5LE..LN167,192..TH¥2,530200009-200108

main23271-54180i2L..LN145,150,155..RHD..TH¥3,500200009-200408

main23271-67120i1KZTE..KZN165..(DCB,SCB)..ARL¥1,680199909-200502

22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)

main90467-13050i2L..LN145,155..LHD..TH;2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA¥240199708-200204

sub96135-51300¥120

main96135-51300i2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU¥120200108-200504

22811STAY, INJECTION PUMP, NO.1

main22811-05010i2L,5L..LN145,152,155,157..RHD..TH;2L,5L..LN147,150,167,192..THDCB,THSCB,XTR¥710199806-200402

(L)

main22811-05020i5LE..LN167,192..SA;5LE..LN167..THDCB..DLX;5LE..LN167..THSCB..IV3;5LE..LN147,152,172..THDCB,THSCB,THXTR¥1,290200009-200504

sub22811-05021

main22811-54041i2L,3L,5L..LN14#,16#,17#,191¥860199708-199804

sub22811-54042¥530

main22811-54042i3L..LN166..RHD..GEN;2L..LN145..RHD..SCB..GEN;2L..LN145..RHD..DCB..GEN..CBU¥530199804-200203

main22811-54042i2L..LN140,145,150,155..RHD..(SA,TH)¥530200109-200402

(J)

main22811-67010i1KZTE..KZN165;1KZTE..KZN190..SR¥2,190199909-200504

23273HHOSE, FUEL, NO.2

main23273-54050i2L,3L,5L..LN145,147,16#,172..RHD¥530199708-199802

main23273-54060i2L..LN150..SR;2L..LN145..RHD..SCB;2L..LN145..RHD..DCB..GEN;2L,3L,5L..LN140,147,152,155,157,16#,172,192..RHD..(ARL,GEN,SA,TH)¥540199802-200506

main23273-54080i5LE..LN167..THDCB..DLX;5LE..LN167..THSCB..IV3;5LE..LN147,152,172..THDCB,THSCB,THXTR¥510200009-200504

main23273-67100i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)¥740199909-200502

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-05010i5L..LN152,172..THXTR;2L,5L..LN145,15#,192..TH;5L..LN147,167..THDCB,THSCB,XTR199806-200402

(L)

main23701-30010i1KDFTV,2KDFTV..KDN145,15#,16#,190¥2,730200110-200503

main23701-54140i5L#..LN152..IV3;5L..LN167..ARL,SA;5LE..LN167..DCB..DLX..ARL;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA)¥1,710199708-200312

main23701-54140i2L..LN145..RHD..IV3¥1,710199806-200402

(J)

main23701-67021i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)¥1,680199909-200504

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-05010i2L..LN145,150,155..TH199806-200402

(L)

main23702-30010i1KDFTV,2KDFTV..KDN145,15#,16#,190¥4,570200110-200503

main23702-54140i2L,3L..LN145,166..RHD..GEN..CBU¥1,710199806-200402

(J)

main23702-54140i2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA¥1,710199708-200312

main23702-67021i1KZTE..KZN165;1KZTE..KZN190..SR¥1,680199909-200504

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-05011i5L..LN147,152,167,172..THDCB,THSCB,THXTR199812-200402

(L)

main23703-30010i1KDFTV,2KDFTV..KDN145,15#,16#,190¥2,730200110-200503

main23703-54100i5LE..LN147,172..DCB,XTR;5LE..LN147,167..SCB..IV3;5LE..LN152,167..(DCB,XTR)..DLX..ARL..CBU¥1,710199708-200312

main23703-54100i5L..LN147,152,167,172..THDCB,THSCB,THXTR¥1,710199812-199905

(J)

main23703-67031i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)¥1,680199909-200504

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-05010i2L,5L#..LN145,15#,167,192..TH199806-200402

(L)

main23704-09020i1KDFTV,2KDFTV..KDN145,15#,16#,190200401-200503

main23704-39015i1KDFTV,2KDFTV..KDN145,15#,16#,190¥2,910200110-200401

main23704-54100i5L..LN152,172..THXTR;2L,5L..LN145,15#,192..TH;5L..LN147,167..THDCB,THSCB,XTR¥1,710199806-200402

(J)

main23704-54100i2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA¥1,710199708-200312

main23704-67020i1KZTE..KZN165;1KZTE..KZN190..SR¥1,680199909-200504

23741CLAMP, INJECTION PIPE, NO.1

main23741-05010i2L,5L..LN145,15#,167,192..TH199806-199905

TYPE B:REFER TO ILLUSTRATION

main23741-0L010i1KDFTV,2KDFTV..KDN145,15#,16#,190200209-200503

(L)

main23741-30010i1KDFTV,2KDFTV..KDN145,15#,16#,190¥300200209-200503

(J)

main23741-30010i1KDFTV,2KDFTV..KDN145,15#,16#,190¥300200110-200209

main23741-54030i5LE..LN167..TH;5LE..LN152..IV3;5L..LN152,167..ARL,SA;5LE..LN152,157,192..SA,TH;5LE..LN167..DCB..DLX..ARL;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,166,17#¥550199708-200312

main23741-54030i2L..LN155;2L..LN145..LHD..DLX..TH¥550199806-200409

TYPE A:REFER TO ILLUSTRATION

main23741-64030i1KZTE..KZN165;1KZTE..KZN190..SR¥550199909-200504

23742CLAMP, INJECTION PIPE, NO.2

main23742-05010i2L,5L..LN145,15#,167,192..TH199806-199905

main23742-0L010i1KDFTV,2KDFTV..KDN145,15#,16#,190200209-200404

(L)

main23742-0L011i1KDFTV,2KDFTV..KDN145,15#,16#,190200404-200503

(L)

sub23742-0L090

main23742-27010i1KDFTV,2KDFTV..KDN145,15#,16#,190¥1,080200110-200209

main23742-27010i1KDFTV,2KDFTV..KDN145,15#,16#,190¥1,080200209-200503

(J)

main23742-67010i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)¥380199909-200504

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-05022i2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU¥1,850199806-200402

(L)

main23811-54151i2L,3L..LN145,166..RHD..GEN..CBU¥2,690199806-200402

(J)

main23811-54151i2L,3L,5L#..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA¥2,690199708-200502

main23811-67050i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)¥2,120199909-200504

2384167030CLAMP, FUEL PIPE(HOSE), NO.1

main23841-67030¥200

9011908A08

main90119-08A08¥170

9011910699

main90119-10699¥90

9017906080

main90179-06080¥80

9017908022

main90179-08022¥220

9030149003

main90301-49003¥170

9092901205

main90929-01205¥380

9092901404

main90929-01404¥200

9092901419

main90929-01419¥280

91511J0820

main91511-J0820¥130

9613551100

main96135-51100¥130

23 parts on this diagram · 9 diagrams in section
