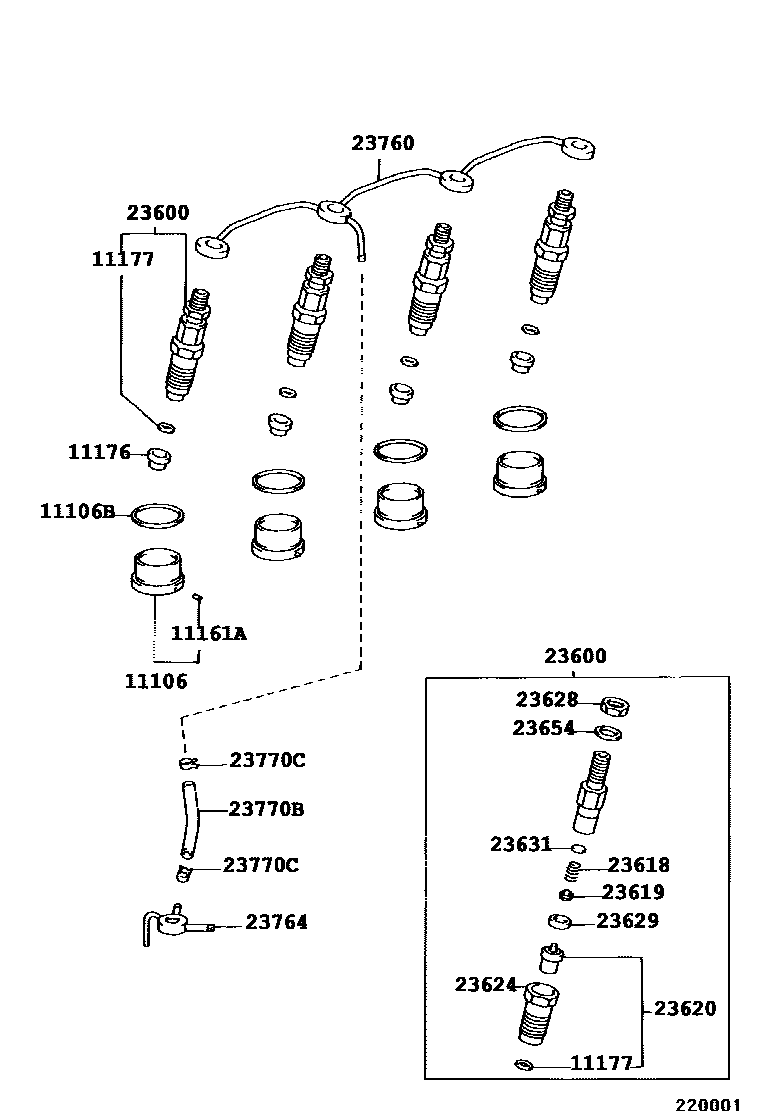

INJECTION NOZZLE

0001 1 0002 1 0003 1

11106CHAMBER SUB-ASSY, COMBUSTION

main11106-05010i5LE..LN167..SCB..IV3;5LE..LN167..DCB..DLX..ARL;5LE..LN147,152,172..DCB,SCB,XTR199806-200402

(L)

main11106-05020i2L..LN140,145..SA;2L..LN145,155..LHD..TH200109-200402

(L)

main11106-54060i5L..LN167..TH;5L..LN172..THXTR;5L..LN152,157,192..ARL,TH199806-199810

(J)

sub11106-54170

main11106-54060i5L..LN147,167,172,192..(DCB,SCB,XTR)..(ARL,SA)199708-199810

sub11106-54170

main11106-54100i2L..LN140,145..GEN,SA;2L..LN145,155..LHD..TH199708-200506

main11106-54100i2L..LN140,145..SA;2L..LN145,155..LHD..TH200109-200402

(J)

main11106-54120i3L..LN141,146,166,171,191199708

main11106-54150i2L..LN145,150,155..RHD..TH200009-200402

main11106-54170i5L..LN152..CBU;5L..LN152,157,172..SCB,THXTR;5L..LN147,167,192..THDCB,THSCB,XTR199810-199909

(J)

main11106-54171i5LE..LN147,152,167,172,192199909-200504

sub11106-54170

main11106-54171i5L..LN167..SA;5L#..LN152..TH;5L#..LN157,192;5LE..LN152..IV3;5LE..LN167..SA,TH;5L..LN167..THDCB,THSCB,XTR;5L..LN147,152,172..THDCB,THSCB,THXTR;5LE..LN147,157,167,172199909-200402

(J)

sub11106-54170

main11106-67021i1KZTE..KZN165..SR..ARL199909-200009

main11106-67052i1KZTE..KZN165..DLX;1KZTE..KZN165,190..SA200007-200504

11106BSHIM(FOR COMBUSTION CHAMBER)

main11165-54030i5L..LN147,152,157,167,172,192..ARL,TH199708-200404

T=0.03

main11165-67030i1KZTE..KZN165,190199909-200504

T=0.05

main11166-67030i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

T=0.10

11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)

main90250-02046i1KZTE..KZN165;1KZTE..KZN190..SR199708-200506

11176SEAT, INJECTION NOZZLE

main11176-05010i5L..LN152,172..THXTR;2L,5L..LN140,145,15#..SA,TH;5L..LN147,167,192..THDCB,THSCB,XTR199806-200109

(L)

main11176-0L010i1KDFTV..KDN166..SRWGN200404-200503

(L)

sub11176-0L011

main11176-30010i1KDFTV..KDN166..SRWGN200404-200503

(J)

sub11176-30011

main11176-30010i1KDFTV,2KDFTV..KDN145,15#,16#,190200110-200404

sub11176-30011

main11176-64010i5L..LN192..SA;2L,3L,5L..LN14#,150,155,16#,17#,191199708-200108

main11176-64010i5L..LN152,157,192..TH199806-200109

(J)

main11176-67011i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

11177GASKET, INJECTION NOZZLE SEAT

main11177-54020i2L,3L,5L..LN14#,15#,16#,17#,19#199708-200109

main11177-64010i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

23600HOLDER & NOZZLE SET, NOZZLE

main23600-59105i3L..LN166..RHD..GEN;2L..LN145..RHD..SCB..GEN;2L..LN145..RHD..DCB..GEN..CBU199708-200109

main23600-59255i2L..LN145,150,155..RHD..TH199806-200009

main23600-59265i5L..LN147,152,157,167,172,192199708-199901

sub23600-59266

main23600-59266i5L..LN152..CBU;5L..LN152..THXTR;5L..LN147,157,167,172,192..(DCB,SCB,THSCB,THXTR,XTR)..(ARL,TH)199711-200010

TYPE A:REFER TO ILLUSTRATION

main23600-59275i2L..LN145,150,155..RHD..TH200009-200409

main23600-59315i5L..LN147,152,167,172..(DCB,SCB,XTR)..ARL199901-200009

TYPE B:REFER TO ILLUSTRATION

main23600-59325i5LE..LN147,152,167,172,192200009-200504

main23600-69105i1KZTE..KZN165..SR..ARL199909-200009

main23600-69165i1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)200007-200504

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-54080i2L..LN145,155..LHD..DLX..TH;2L,3L..LN140,141,145,146,166,171,191..DSL..(GCC,GEN,SA)199708-200508

main23618-54730i5L..LN167,192199708-200409

main23618-64080i1KZTE..KZN165;1KZTE..KZN190..SR200007-200504

23619PIN, NOZZLE HOLDER PRESSURE

main23619-64010i2L..LN145..GEN,SA;2L..LN145,155..LHD..TH;2L,3L,5L#..LN140,141,146,147,152,157,16#,17#,19#..DEFI,DSL199708-200508

23620NOZZLE ASSY

main23620-59045i2L..LN145..LHD..IV3;2L..LN145,155..LHD..TH;2L,3L..LN140,141,145,146,166,171,191..(GCC,GEN,MA,SA)..CBU199708-200109

main23620-59095i2L..LN145,150,155..RHD..TH199806-200009

main23620-59115i5L..LN167,192..SA199708-200010

main23620-59125i2L..LN145,150,155..RHD..TH200009-200409

main23620-69075i5LE..LN147,152,167,172,192199909-200401

main23620-69105i1KZTE..KZN165..DLX;1KZTE..KZN165,190..SA200007-200504

main23620-69115i5LE..LN147,152,167,172,192200401-200504

23624NUT, NOZZLE RETAINING

main23624-64040i1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199708-200603

sub23624-64041

main23624-64041i2L,3L..LN145,166199708-200504

23628NUT(FOR RING PACKING SETTING)

main23628-64010i2L,3L,5L..LN14#,15#,16#,17#,19#199708-200504

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-54080i2L,3L,5L..LN14#,15#,16#,17#,19#199708-200508

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-64010i2L..LN145..GEN,SA;2L..LN145,155..LHD..TH;2L,3L,5L#..LN140,141,146,147,152,157,16#,17#,19#..DEFI,DSL199708-200508

T=0.900

main23631-64012i2L,5LE..LN140,145,147,15#,167,172,192..ARL,SA,TH199708-200508

T=0.950

main23631-64014i5LE..LN167..SCB..SA;2L,3L,5LE..LN140,145,166,192..RHD..(GEN,SA)199708-200508

T=1.000

main23631-64016i2L..LN145..GEN,SA;2L..LN145,155..LHD..TH;2L,3L,5L#..LN140,141,146,147,152,157,16#,17#,19#..DEFI,DSL199708-200508

T=1.050

main23631-64018i2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU199708-200508

T=1.100

main23632-64010i2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU199708-200508

T=1.150

main23632-64012i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199708-200508

T=1.200

main23632-64014i2L,5LE..LN140,145,147,15#,167,172,192..ARL,SA,TH199708-200508

T=1.250

main23632-64016i2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU199708-200508

T=1.300

main23632-64018i2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU199708-200508

T=1.350

main23633-64010i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199708-200508

T=1.400

main23633-64012i2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU199708-200508

T=1.450

main23633-64014i2L..LN145..GEN,SA;2L..LN145,155..LHD..TH;2L,3L,5L#..LN140,141,146,147,152,157,16#,17#,19#..DEFI,DSL199708-200508

T=1.500

main23633-64016i2L,5LE..LN140,145,147,15#,167,172,192..ARL,SA,TH199708-200508

T=1.550

main23633-64018i1KZTE..KZN165;1KZTE..KZN190..SR199708-200508

T=1.600

main23634-64010i2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU199708-200508

T=1.650

main23634-64012i2L..LN145..GEN,SA;2L..LN145,155..LHD..TH;2L,3L,5L#..LN140,141,146,147,152,157,16#,17#,19#..DEFI,DSL199708-200508

T=1.700

main23634-64014i5LE..LN167..SCB..SA;2L,3L,5LE..LN140,145,166,192..RHD..(GEN,SA)199708-200508

T=1.750

main23634-64016i2L,3L,5L..LN14#,15#,16#,17#,19#199708-200508

T=1.800

main23634-64018i2L,3L,5L..LN14#,15#,16#,17#,19#199708-200508

T=1.850

main23635-64010i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199708-200508

T=1.900

main23635-64012i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199708-200508

T=1.950

23654WASHER(FOR RING PACKING)

main23654-64010i2L,3L,5L..LN14#,15#,16#,17#,19#199708-200508

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-05010i2L,3L..LN145,166..RHD..GEN..CBU199806-200402

(L)

main23760-0L010i1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190200209-200503

(L)

main23760-30020i1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190200209-200503

(J)

main23760-30020i1KDFTV,2KDFTV..KDN145,15#,16#,190200110-200209

main23760-54030i2L,5LE..LN140,145,147,152,167,172,192..ARL,SA199806-200402

(J)

main23760-54030i5LE..LN167..DCB..DLX..ARL199708-200402

main23760-67030i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

23764PIPE, NOZZLE LEAKAGE, NO.4

main23764-05010i5LE..LN147,152,157,167,172,192200009-200105

sub23764-05011

main23764-05011i5LE..LN167..DCB..DLX..ARL200105-200402

ENGINE NO.=9000001-9999999

main23764-54080i2L..LN145..DCB..TH;2L..LN145..LHD..IV3;2L,3L..LN145,166..(GCC,GEN,MA)..CBU;2L,3L..LN141,146,150,155,171,191..DLX199808-200109

main23764-54090i2L..LN145..LHD..IV3;2L,3L..LN140,141,145,146,166,171,191..(GCC,GEN,SA)..CBU199708-200108

W(HIGH ALTITUDE COMPENSATOR)

main23764-54090i5L..LN172..THXTR;5L..LN147,152,167..(THDCB,THSCB,THXTR,XTR)..ARL199808-200009

main23764-54110i2L,3L,5L..LN141,145,146,15#,166,171,19#..GCC,GEN,TH199708-199808

main23764-54130i5LE..LN147,152,167,172,192200402-200504

ENGINE NO.=0002001-9000000

main23764-67010i1KZTE..KZN165;1KZTE..KZN190..SR199909-200504

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-0L010i2KDFTV..KDN165,190..MA200209-200503

(L)

sub23770-30031

main23770-30030i2KDFTV..KDN145,15#,165,190200110-200206

main23770-30031i2KDFTV..KDN155200209-200503

(J)

main23770-30031i2KDFTV..KDN165,190..IV1200206-200209

23770BHOSE, FUEL

main90082-53003i2L,3L..LN145,166..RHD..GEN..CBU199808-200402

L=120,TYPE B:REFER TO ILLUSTRATION

main95333-04020i1KZTE..KZN165;1KZTE..KZN190..SR199909-200504

L=200(*H,L=170)

main95333-04020i2L..LN145..GEN,SA;2L..LN145,155..LHD..TH;2L,3L,5L#..LN140,141,146,147,152,157,16#,17#,19#..DEFI,DSL199708-200109

L=200(*H,L=120),ID=4,TYPE A:REFER TO ILLUSTRATION

main95333-06020i1KDFTV,2KDFTV..KDN145,15#,16#,190200110-200503

L=200(*H,L=150)

sub95337-06020

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main90466-T0043i1KDFTV,2KDFTV..KDN145,15#,16#,190200404-200503

(L)

sub90466-T0022

main90467-10049i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

sub90467-10149

main90467-10149i1KZTE..KZN165;1KZTE..KZN190..SR200109-200504

main96132-51000i2L,3L..LN145,166..RHD..GEN200108

main96133-41000i5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,199708-200204

sub96132-51000

main96135-51100i1KDFTV,2KDFTV..KDN145,15#,16#,190200110-200404

main96135-51100i1KDFTV,2KDFTV..KDN145,15#,16#,190200404-200503

(J)
