VACUUM PUMP

0001 1 0003 1

1903

29300PUMP ASSY, VACUUM

main29300-54140i2L,3L,5L..LN14#,166,171,191199708-199805

sub29300-54180

main29300-54180i5L#..LN152..IV3;5L..LN167..ARL,SA;5LE..LN167..DCB..DLX..ARL;2L..LN145,155..LHD..DLX..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,166,17#,19#..DLX..(ARL,G199708-199805

main29300-67020i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02077i5LE..LN157;2L,5L#..LN145,150,152,155,167,192..RHD..TH199806-200109

main90923-02118i3L..LN141,146,166..GCC199708-200502

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54050i5L#..LN152..IV3;2L..LN145,155..LHD..DLX..TH;5L,3RZFE..LN167,RZN174..DCB,SCB,THDCB,THSCB,THXTR;2L,3L,5L#..LN14#,16#,17#,19#..DLX..(ARL,GCC,GEN,SA)199708-200502

29314RING, STOP

main29314-64030i2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU199708-200502

29322BBEARING, VACUUM PUMP

main90099-10185i1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165199909-200504

main90099-10199i5L#..LN152..IV3;5L..LN167..ARL,SA;5LE..LN167..DCB..DLX..ARL;2L..LN145,155..LHD..DLX..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,166,17#,19#..DLX..(ARL,G199708

29331BLADE, VACUUM PUMP, A

main29331-54130i5L#..LN152..IV3;5L..LN167..ARL,SA;5LE..LN167..DCB..DLX..ARL;2L..LN145,155..LHD..DLX..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,166,17#,19#..DLX..(ARL,G199708

main29331-67020i1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165199909-200504

29336SHAFT, VACUUM PUMP

main29336-58050i1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165199909-200504

main29336-64031i2L..LN145..LHD..TH;2L..LN145..LHD..IV3;5LE..LN147,167..IV3;5LE..LN147..DCB,THDCB;2L,5LE..LN152,155..RHD..DLX..CBU;5LE..LN167..(DCB,THDCB)..DLX..ARL;2L,3L,5LE..LN140199708

29341ASEAL, OIL

main29341-64030i3L..LN141,146,166..GCC199708-200502

29342PACKING, VACUUM PUMP

main29342-67020i1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165199909-200504

NO.1

main29342-68010i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

NO.2

29342BRING, O

main29342-58010i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

main29342-64030i2L..LN145..LHD..TH;2L..LN145..LHD..IV3;5LE..LN147,167..IV3;5LE..LN147..DCB,THDCB;2L,5LE..LN152,155..RHD..DLX..CBU;5LE..LN167..(DCB,THDCB)..DLX..ARL;2L,3L,5LE..LN140199708

29364WASHER, VACUUM PUMP

main29364-66010i5LE..LN167..SA;5LE..LN147,167..IV3;2L..LN145..LHD..IV3;5LE..LN147..DCB,THDCB;2L..LN145,155..LHD..TH;5LE..LN167..(DCB,THDCB)..DLX..ARL;2L,5LE..LN145,152..(ARL,GEN,SA199708

29366PULLEY, VACUUM PUMP

main29366-54110i3L..LN141,146,166..GCC199708-200502

29369VALVE SUB-ASSY, CHECK

main29369-64030i5L#..LN152..IV3;5L..LN167..ARL,SA;1KZTE..KZN165..XTR;1KZTE..KZN165..SCB..DLX;2L..LN145,155..LHD..DLX..TH;1KZTE..KZN165..SR..(ARL,SA);5LE..LN167..(SCB,THDCB,THSCB)..199708

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009900166

main90099-00166

9009904577

main90099-04577

9009905171

main90099-05171

9020114099

main90201-14099

9040109001

main90401-09001

9040414016

main90404-14016

9040451012

main90404-51012

9043010020

main90430-10020

9046715018

main90467-15018

9331914012

main93319-14012

9634111000

main96341-11000

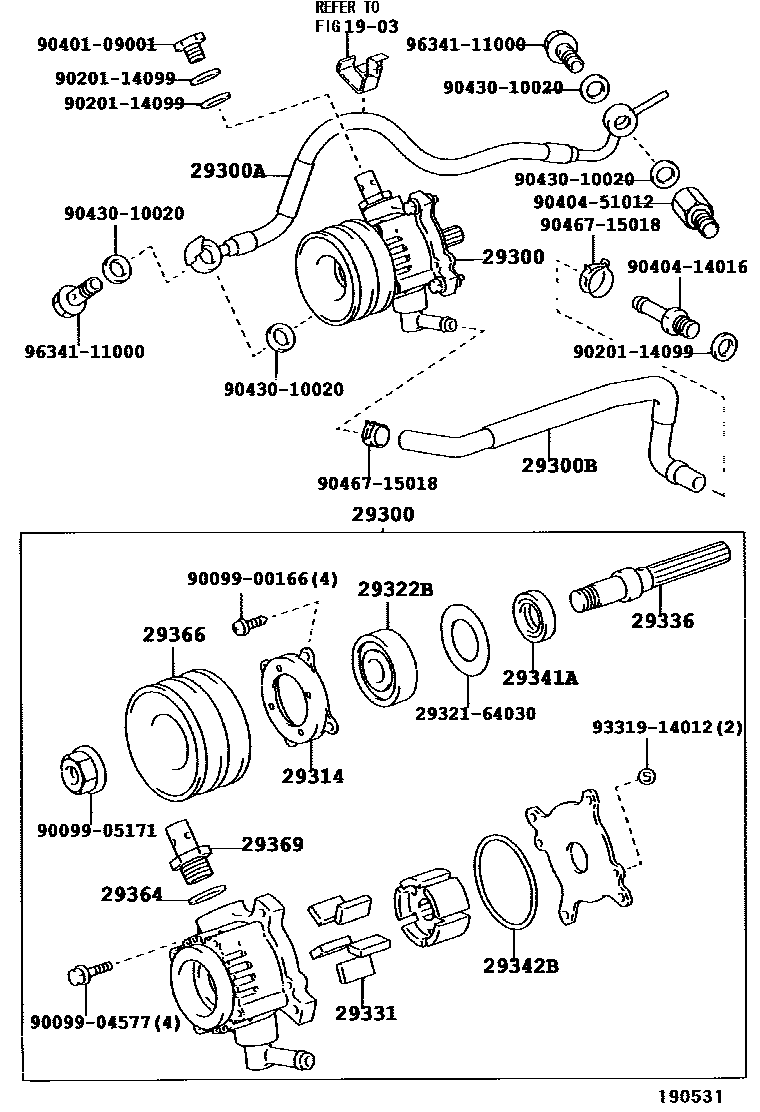

26 parts on this diagram · 2 diagrams in section
