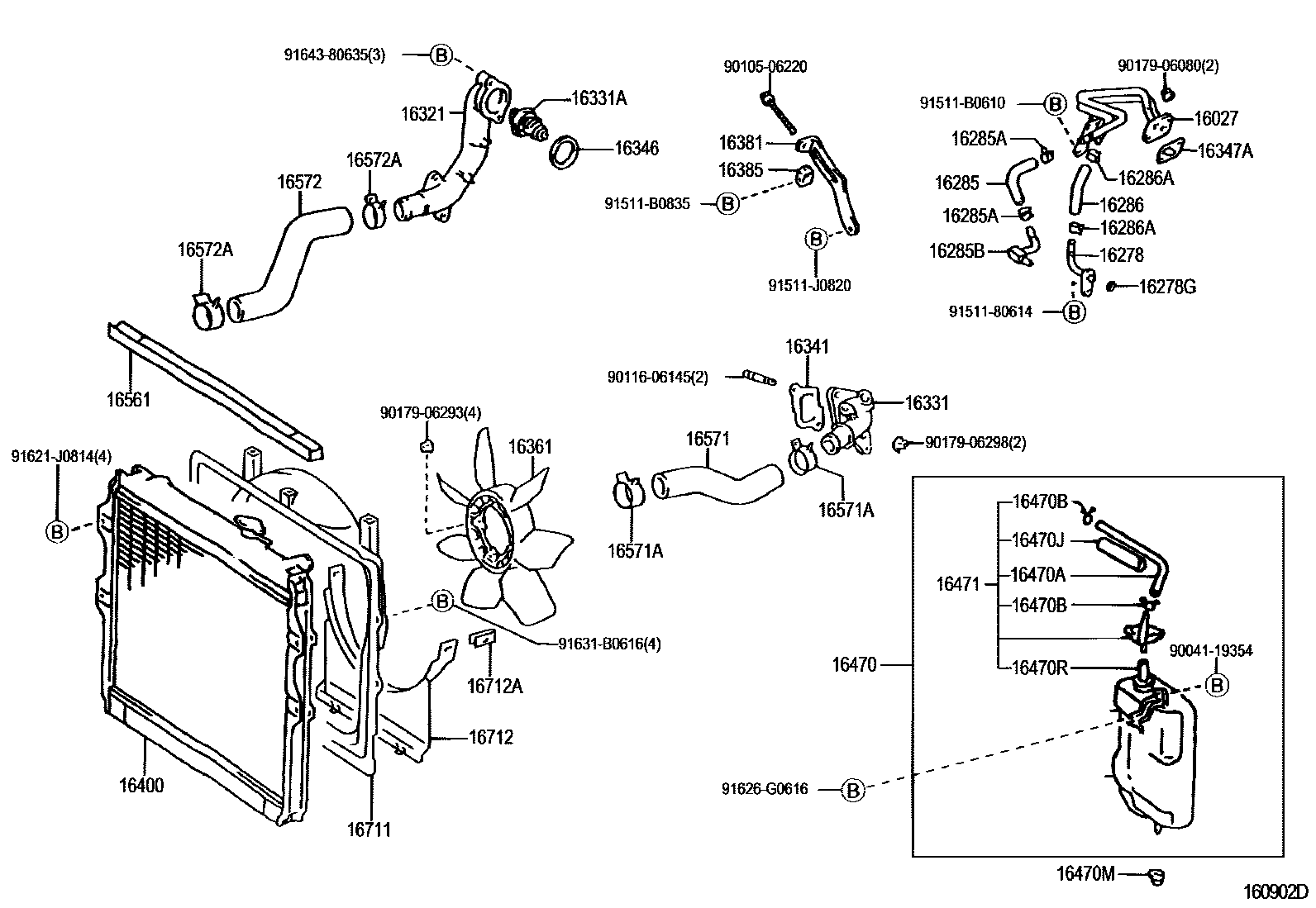

RADIATOR & WATER OUTLET

0001 1 0003 1 0005 1 0007 1 0008 1 0010 1 0011 1 0012 1 0013 1 0017 1 0018 1 0022 1 0026 1 0027 1 0031 1 0032 1 0033 1 0034 1 0035 1 0036 1 0037 1 0038 1 0039 1

16027PIPE SUB-ASSY, TURBO WATER, NO.1

main16027-30030i1KDFTV,2KDFTV..KDN145,15#,16#,190200110-200503

main16027-67011i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

16278PIPE, WATER BY-PASS, NO.2

main16278-30010i1KDFTV..KDN151,166200208-200311

main16278-67010i1KZTE..KZN165;1KZTE..KZN190..SR199909-200504

main16278-75011i1RZE..RZN147199708-200208

main16278-75020i3RZFE..RZN149..GEN;3RZFE..RZN149..(THDCB,THSCB)..DLX;3RZFE..RZN154,174,194..SADCB,THXTR;3RZFE..RZN169..(DCB,THDCB,THSCB)..DLX..ARL199708-200504

16278GRING, O(FOR WATER BY-PASS NO.2 PIPE)

main96761-24010i1KDFTV..KDN151,166199909-200504

16285HOSE, TURBO WATER, NO.2

main16285-30040i2KDFTV..KDN145,150,155,165,190200110-200503

main16285-30050i1KDFTV..KDN151,166200208-200411

main16285-67010i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

16285ACLIP(FOR TURBO WATER HOSE NO.2)

main90466-T0014i1KDFTV,2KDFTV..KDN145,15#,16#,190200405-200503

(L)

main90467-13073i1KDFTV,2KDFTV..KDN145,15#,16#,190200110-200405

sub90467-13128

main90467-13073i1KDFTV,2KDFTV..KDN145,15#,16#,190200405-200503

(J)

sub90467-13128

main90467-15022i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

16285BUNION(FOR TURBO WATER HOSE NO.2)

main90405-10044i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

16286HOSE, TURBO WATER, NO.3

main16284-67020i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

main16286-0L010i1KDFTV,2KDFTV..KDN145,15#,16#,190200209-200503

(L)

main16286-30030i1KDFTV,2KDFTV..KDN145,15#,16#,190200209-200503

(J)

main16286-30030i1KDFTV,2KDFTV..KDN145,15#,16#,190200110-200209

16286ACLIP(FOR TURBO WATER HOSE NO.3)

main90466-T0014i1KDFTV,2KDFTV..KDN145,15#,16#,190200405-200503

(L)

main90467-13073i1KDFTV,2KDFTV..KDN145,15#,16#,190200110-200405

sub90467-13128

main90467-13073i1KDFTV,2KDFTV..KDN145,15#,16#,190200405-200503

(J)

sub90467-13128

main90467-15022i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

16321INLET, WATER

main16321-0K010i1KZTE..KZN165;1KZTE..KZN190..SR;2KDFTV..KDN165,190..IV1200109-200504

(L)

main16321-0L010i1KDFTV,2KDFTV..KDN145,15#,16#,190200311-200503

main16321-0W010i3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN)199708-200506

main16321-62020i5VZFE..VZN167,172200208-200502

main16321-67011i1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU200109-200504

(J)

sub16321-0K010

main16321-67011i1KZTE..KZN165,190199909-200203

sub16321-0K010

main16321-71010i2Y..YN140199808-200010

main16321-75010i1RZ..RZN142,147..SA199708-200506

16331OUTLET, WATER

main16304-75010i1RZ..RZN147..RHD..SCB..GEN199708-200506

main16331-05030i5LE..LN167..DCB..SR;5LE..LN167..DCB..SA;5LE..LN167..THSCB..IV3;2L,5LE..LN140,145,150,192..SA,TH;5LE..LN147,152,172..THDCB,THSCB,THXTR;2L,5LE..LN155,167..RHD..(SCB,T199806-200402

W(HEATER),(L)

main16331-05030i2L..LN155..LHD199806-200402

(L)

main16331-0L010i2KDFTV..KDN145,150,155,165,190200207-200503

(L)

main16331-0L020i1KDFTV..KDN151,166200208-200411

main16331-0W010i3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN)199708-200506

main16331-30050i2KDFTV..KDN145,150,155,165,190200207-200503

(J)

main16331-30050i2KDFTV..KDN145,15#,165,190200110-200207

main16331-54150i5L..LN152..ATM199806-200009

main16331-54210i2L,5LE..LN140,145,147,15#,167,172,192..ARL,SA,TH199708-199812

main16331-54210i2L..LN145,155..LHD..TH199806-200109

W(HEATER),(J)

main16331-54210i5L..LN167..SA;5LE..LN152,167,192..DLX;5L..LN167..THDCB,THSCB,XTR;5L..LN152,157,192..MTM..(CBU,IV1);5L..LN147,152,172..THDCB,THSCB,THXTR;2L,5LE..LN140,145,147,150,15199806-200402

(J)

main16331-62040i5VZFE..VZN167,172200208-200502

main16331-67020i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

main16331-71010i2Y..YN140199808-200010

16331ATHERMOSTAT

main16340-54010i3L..LN166..MA199708-200407

*WAX 88-100

main16340-54040i2L..LN155..LHD;5LE..LN167..SA;5LE..LN167..THDCB..DLX;5LE..LN167..THSCB..IV3;5LE..LN147..THDCB,THSCB;2L,5LE..LN140,145,152,172,192..(SCB,THXTR)..(ARL,SA)200104-200504

*WAX 82-95

main90916-03046i2Y..YN140199808-200010

*WAX 82-95

main90916-03075i5VZFE..VZN167,172200208-200502

*WAX 82-95

main90916-03101i1RZ#,2RZFE,3RZ#..RZN14#,16#,193199708-199709

*WAX 82-95

sub90916-03120

main90916-03106i2L..LN145..DCB..TH;5L..LN167..THDCB,THSCB,XTR;5L..LN147,152,172..THDCB,THSCB,THXTR199808-200203

*WAX 88-100

sub90916-03099

main90916-03118i1KZTE..KZN165..THSCB199909-200503

*WAX 82-95

main90916-03119i1KZTE..KZN165..TH;1KZTE..KZN165..THDCB,THSCB200007-200208

*WAX 76-90

main90916-03120i1RZE,3RZFE..RZN147,169,174..ARL199709-200506

*WAX 82-95

main90916-03121i1KZTE..KZN190..SR;1KZTE..KZN165..(DCB,SCB)..(ARL,SA)200202-200504

*WAX 71-85

16341GASKET, WATER OUTLET

main16341-05020i2L,3L..LN145,166..RHD..GEN199806-200402

(L)

main16341-05020i2L..LN145,155..LHD..TH199806-200409

W(HEATER),(L)

main16341-0L010i1KDFTV,2KDFTV..KDN145,15#,16#,190200209-200503

(L)

main16341-30020i1KDFTV,2KDFTV..KDN145,15#,16#,190200110-200209

main16341-30020i1KDFTV,2KDFTV..KDN145,15#,16#,190200209-200503

(J)

main16341-35010i2L,3L..LN145,166..RHD..GEN199806-200402

(J)

main16341-35010i2L..LN145,155..LHD..TH;2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA199708-200409

main16341-35010i2L..LN145,155..LHD..TH199806-200109

W(HEATER),(J)

main16341-62040i5VZFE..VZN167,172200208-200502

main16341-67020i1KZTE..KZN165;1KZTE..KZN190..SR199909-200504

main16341-71011i2Y..YN140199808-200010

main16341-75010i1RZ..RZN142,147..GCC199708-200506

main16341-75020i3RZFE..RZN169,194..SA199708-200506

16346GASKET, THERMOSTAT

main16346-0K010i1K#,2KDFTV..KDN145,15#,16#,190,KZN165,190200401-200504

(L)

main16346-67010i1KZTE..KZN165..(DCB,SCB)..ARL199909-200208

sub16346-30010

main16346-67010i1KZTE..KZN165..SCB..IV3;1KZTE..KZN165..(DCB,SCB)..ARL..CBU200110-200504

(J)

sub16346-30010

16347AGASKET(FOR TURBO WATER PIPE)

main16347-27010i1KDFTV,2KDFTV..KDN145,15#,16#,190200110-200503

main16347-67010i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

16361FAN

main16361-0L010i1KDFTV,2KDFTV..KDN145,15#,16#,190..TH200209-200407

(L)

sub16361-0L020

main16361-0L020i1KDFTV,2KDFTV..KDN145,15#,16#,190200407-200503

(L)

main16361-38010i1RZE..RZN147..SCB;1RZ..RZN147..LHD..GEN;1RZ..RZN142,147..GCC,SA199708-200112

NO.1

main16361-38010i2Y..YN140199808-200504

main16361-44032i1RZ..RZN142,147..GEN200108-200506

main16361-44032i1RZ..RZN142,147..GEN199708-200108

NO.2

main16361-54040i2L,3L..LN140,145,166,171,191..DSL..(GEN,SA)199708-200506

main16361-54070i2L..LN145,150,155..TH199708-200508

main16361-54111i3L,5L..LN147,152,157,16#,172,192..ARL,GCC,SA,TH199708-200508

main16361-54131i5LE..LN167..THDCB..DLX;5LE..LN167..THSCB..IV3;5LE..LN147,152,172..THDCB,THSCB,THXTR200009-200504

main16361-62010i5VZFE..VZN167,172200208-200502

main16361-67020i1KDFTV,2KDFTV..KDN145,15#,16#,190200110-200209

main16361-67020i1KDFTV,2KDFTV..KDN145,15#,16#,190200209-200503

(J)

main16361-67040i1KZTE..KZN165;1KZTE..KZN190..SR199909-200504

main16361-75020i2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU199708-200506

sub16361-75021

16381BAR, FAN BELT ADJUSTING

main16381-05010i2L..LN145,150,155..RHD..TH199806-200402

(L)

main16381-54060i2L..LN145,150,155..RHD..TH199806-199809

(J),T=3.2

sub16381-54061

main16381-54060i2L..LN145,150,155..RHD..TH199806-199809

T=3.2

sub16381-54061

main16381-54061i2L..LN145,150,155..RHD..TH199809-200109

T=4.5

main16381-54061i5L#..LN152,157,167,192..TH199809-200108

(J),T=4.5

main16381-54061i2L..LN145,150,155..RHD..TH200402-200409

main16381-54061i2L..LN145,150,155..RHD..TH200109-200402

(J)

main16381-54120i2L..LN145,155..LHD..TH;2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA199708-199809

T=3.2

sub16381-54121

main16381-54121i2L..LN145..DCB..IV3;2L..LN145..LHD..IV3;2L..LN145,155..LHD..TH;2L,5L..LN145,167..(GEN,SA)..CBU;3L,5L..LN147,167,171..(THDCB,THSCB,XTR)..DLX;2L,3L,5L..LN140,141,146,199809-200203

T=4.5

main16381-54121i5L..LN152..XTR..IV3199811-200403

main16381-62041i5VZFE..VZN167,172200208-200502

main16381-67020i1KZTE..KZN165;1KZTE..KZN190..SR199909-200504

main16381-71010i2Y..YN140199808-200010

main16381-75040i1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19#199708-199908

sub16381-75050

main16381-75050i1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU199908-200506

16385SLIDER, FAN BELT ADJUSTING

main16385-62020i5VZFE..VZN167,172200208-200502

main16385-67010i1KZTE..KZN165;1KZTE..KZN190..SR199909-200504

main16385-75030i1RZE,3RZFE..RZN147,169,174..ARL199708-200506

16400RADIATOR ASSY

main16400-05150i5LE..LN167,192..SA200210-200504

main16400-0C150i3RZFE..RZN169,194..SA200210-200504

main16400-5B590i3L..LN141,146199708-200108

sub16400-5B820

main16400-5B600i3L,5L..LN147,152,166,171,191..DSL..(ARL,GEN)199708-200506

sub16400-5B820

main16400-5B640i5L..LN167,172..ARL199708-200009

main16400-5B670i2L..LN145..GEN..CBU;2L..LN145..LHD..IV3199708-200506

main16400-5B680i3L,5L..LN16#,192..GCC,SA199708-200108

sub16400-5B810

main16400-5B810i5LE..LN167..THSCB..IV3;5LE..LN167,172..(THDCB,THXTR)..DLX200009-200502

main16400-5B820i5LE..LN147,152..DCB,SCB,XTR200009-200502

main16400-62210i5VZFE..VZN167,172..MTM200208-200502

sub16400-62220

main16400-62220i5VZFE..VZN167,172..ATM200208-200502

main16400-67190i1KZTE..KZN165..(THDCB,THSCB)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

main16400-67220i1KZTE..KZN165..THDCB,THSCB200203-200502

main16400-75250i3RZFE..RZN149,154..(DCB,SCB,XTR)..MTM..ARL199708-200506

sub16400-75270

main16400-75250i2RZFE..RZN148,168..DLX..GEN199708

COLOMBIA CKD SPEC

sub16400-75270

main16400-75260i1RZ..RZN142,147..GCC199708-200506

main16400-75270i3RZFE..RZN149,154..ATM..ARL199708-200502

main16400-75280i3RZFE..RZN169..LHD..DLX..GEN200110-200208

IRAN SPEC

main16400-75280i3RZF..RZN169..GCC199708-200108

main16410-0L020i1KDFTV,2KDFTV..KDN145,15#200110-200302

main16410-0L030i2KDFTV..KDN190..IV1200112-200302

main16410-0L040i2KDFTV..KDN165..IV1200110-200302

main16410-0L060i1KDFTV,2KDFTV..KDN145,15#200302-200407

main16410-0L070i2KDFTV..KDN190..(DCB,XTR)..TH200302-200407

main16410-0L080i2KDFTV..KDN165..MA200302-200407

main16410-67180i1KZTE..KZN165,190..SA200302

16470TANK ASSY, RADIATOR RESERVE

main16470-05030i1RZE..RZN147..THSCB199903-200501

main16470-05040i3RZFE..RZN149,154..THDCB,THSCB,THXTR199903-200501

main16470-30020i1KZTE..KZN165,190..SA200302-200504

main16470-54350i2Y..YN140199808-200010

main16470-75060i1RZE..RZN147..SCB199708-200506

main16470-75070i2L,3L..LN145,166,171,191..LHD..GEN199708-200506

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12066i3RZFE..RZN169,194..SA;2RZFE,3RZFE..RZN148,149,168..DLX..GEN199903-200203

L=600(*H,L=300)

main90445-12067i1KZTE..KZN165,190..SA199708-200203

L=330

main90445-12078i2RZFE,3RZ#..RZN144,148,149,154,16#,174,19#199708-199903

L=600(*H,L=300)

main90445-12078i2Y..YN140199808-200010

*H,L=380

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2RZFE..RZN148..DLX..CBU;3RZFE..RZN149,169..(DCB,SCB)..DLX..ARL;1RZ,3RZFE..RZN147,154..RHD..(SCB,XTR)..(ARL,GEN);1RZE,2RZFE,3RZFE..RZN147,168,174..(DCB,SCB,THSCB,XTR199708-200203

main96135-51300i2KDFTV..KDN165,190..MA200302-200504

16470JHOSE, NO.3(FOR RADIATOR RESERVE TANK)

main16472-70070i2Y..YN140199808-200010

L=150

main16477-11110i2RZFE,3RZFE..RZN148,149,168..DLX..GEN199708-200203

L=100

main16478-46020i1RZ..RZN147..RHD..SCB..GEN199708-200203

L=200

16470MGROMMET

main90480-25025i2Y..YN140199708-200506

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i2L,5LE..LN140,145,167,192..SA199708-200203

*H,L=240

16471CAP SUB-ASSY, RESERVE TANK

main16401-53010i1KZTE..KZN165,190..SA200302-200504

sub16475-51010

main16405-05010i5LE..LN167..THDCB..SR;5LE..LN167..THSCB..CBU199903-200501

main16405-05020i3RZFE..RZN149,154..THDCB,THSCB,THXTR199903-200501

main16405-54330i2Y..YN140199808-200010

main16405-75050i5LE..LN167..DCB..SR..ARL;5LE..LN167..SCB..ARL..CBU199708-200506

main16405-75070i2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN)199708-200506

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-54010i1RZ..RZN147..RHD..SCB;1RZ,3RZFE..RZN142,169,194..SA;2RZFE,3RZFE..RZN148,149,168..DLX..GEN200108-200203

THAILAND PRODUCT

main16561-54010i2L..LN145..SA;5LE..LN147..IV3;2L,5LE..LN140,155,167,172,192..DLX;2L,5LE..LN145,147..(DCB,THDCB)..(ARL,TH)199708-200203

main16561-54050i2RZFE,3RZFE..RZN148,149,168..DCB..CO200108-200508

main16561-54050i2L,3L..LN145,166..RHD..GEN..CBU200108-200506

PLANT NO.P11

16571HOSE, RADIATOR, INLET

main16571-05060i2L..LN145,150,155..RHD..TH200103-200501

main16571-54490i5LE..LN167..DCB..SR..ARL;5LE..LN167..SCB..ARL..CBU199708-200506

main16571-67100i1KZTE..KZN165,190199909-200502

main16571-71030i2Y..YN140199808-200010

main16571-75090i1RZ#..RZN142,147199708

main16571-75100i3RZFE..RZN149,154..THDCB,THSCB,THXTR199708-200402

main16571-75110i3RZF..RZN144,149,154,169199708-200108

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-41008i2KDFTV..KDN165,190..IV1;1KZTE..KZN165..THDCB,THSCB200109-200504

main90467-37005i5LE..LN167..SR..ARL;5LE..LN167..(SCB,THSCB)..ARL..CBU199708-200511

main90467-41007i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

sub90467-41002

16572HOSE, RADIATOR, OUTLET

main16572-54570i5LE..LN147,172..DCB,XTR;5LE..LN147,167..SCB..IV3;5LE..LN152,167..(DCB,XTR)..DLX..ARL..CBU199708-200506

main16572-54570i5LE..LN152,167..TH;5LE..LN167..THDCB,THSCB;2L,5LE..LN147,150,192..THDCB,THSCB,XTR;2L,5LE..LN145,152,155,157,172..RHD..(SCB,THXTR)..(ARL,TH)200103-200109

(J)

main16572-54590i2L..LN145,155..LHD..TH199708-200506

main16572-54600i3L..LN166..GCC199708-200108

main16572-67100i1KZTE..KZN165..THDCB,THSCB199909-200502

main16572-71031i2Y..YN140199808-200010

main16572-75120i1RZ..RZN142,147..SA199708-200506

main16572-75130i3RZFE..RZN149,154..ARL199708-200506

main16572-YE010i2L..LN145,150,155..RHD..TH200103-200407

(L)

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-41008i1KDFTV,2KDFTV..KDN16#,190..TH..CBU200109-200504

main90467-37005i3L..LN141,146,166..GCC199708-200511

main90467-41007i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

sub90467-41002

16711SHROUD, FAN

main16711-54630i2L,3L..LN140,145,166..RHD..(GEN,SA)199708-200508

main16711-54640i5LE..LN167..THSCB..CBU;3L,5LE..LN16#,172,192..(DCB,SCB,THDCB,XTR)..(ARL,GCC,SA)199708-200508

main16711-54660i5LE..LN147,152..THDCB,THSCB,THXTR199708-200502

main16711-54680i5L..LN167,172,192..ARL,TH199708-200009

main16711-62070i5VZFE..VZN167,172200208-200502

main16711-67090i1KZTE..KZN165..THDCB,THSCB199909-200502

main16711-71030i2Y..YN140199808-200010

main16711-75080i1RZ#..RZN142,147199708-200506

main16711-75090i3RZ#..RZN169..ARL,GEN;2RZFE,3RZ#..RZN144,148,149,154,168,174,193199708-200506

main16711-75100i3RZF..RZN169..GCC199708-200108

main16711-75100i3RZFE..RZN169..LHD..SCB..GEN200110-200208

IRAN SPEC

16712SHROUD, FAN, NO.2

main16712-54050i2Y..YN140199808-200010

main16712-54380i2L..LN150..SR;2L..LN145..DCB..GEN;2L..LN145..LHD..IV3;3L..LN166..DSL..GEN;2L..LN145..LHD..DLX..TH;2L..LN145..SCB..(CBU,IV1);2L,3L..LN140,141,146,155,191199708

main16712-54390i5LE..LN147..SCB..IV3;5LE..LN167..THSCB..CBU;2L,3L..LN145,155,166,171,191..LHD;5LE..LN147,152..(DCB,XTR)..ARL..CBU;5LE..LN167,172,192..(DCB,SCB,THDCB,XTR)..(ARL,SA)199708-200508

main16712-62050i5VZFE..VZN167,172200208-200502

main16712-67060i1KZTE..KZN165..THDCB,THSCB199909-200502

main16712-75050i1RZ..RZN142,147..GCC199708-200506

main16712-75060i1RZ..RZN142,147..GCC199708-200506

16712ACLIP

main90468-06092i3RZFE..RZN149,154..(DCB,SCB,XTR)..ARL199708-200508

9004119354

main90041-19354

9010506220

main90105-06220

9011606145

main90116-06145

9017906080

main90179-06080

9017906293

main90179-06293

9017906298

main90179-06298

9151180614

main91511-80614

91511B0610

main91511-B0610

91511B0835

main91511-B0835

91511J0820

main91511-J0820

91621J0814

main91621-J0814

91626G0616

main91626-G0616

91631B0616

main91631-B0616

9164380635

main91643-80635

47 parts on this diagram · 23 diagrams in section
