OIL FILTER

0001 1 0002 1 0003 1 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1

1105

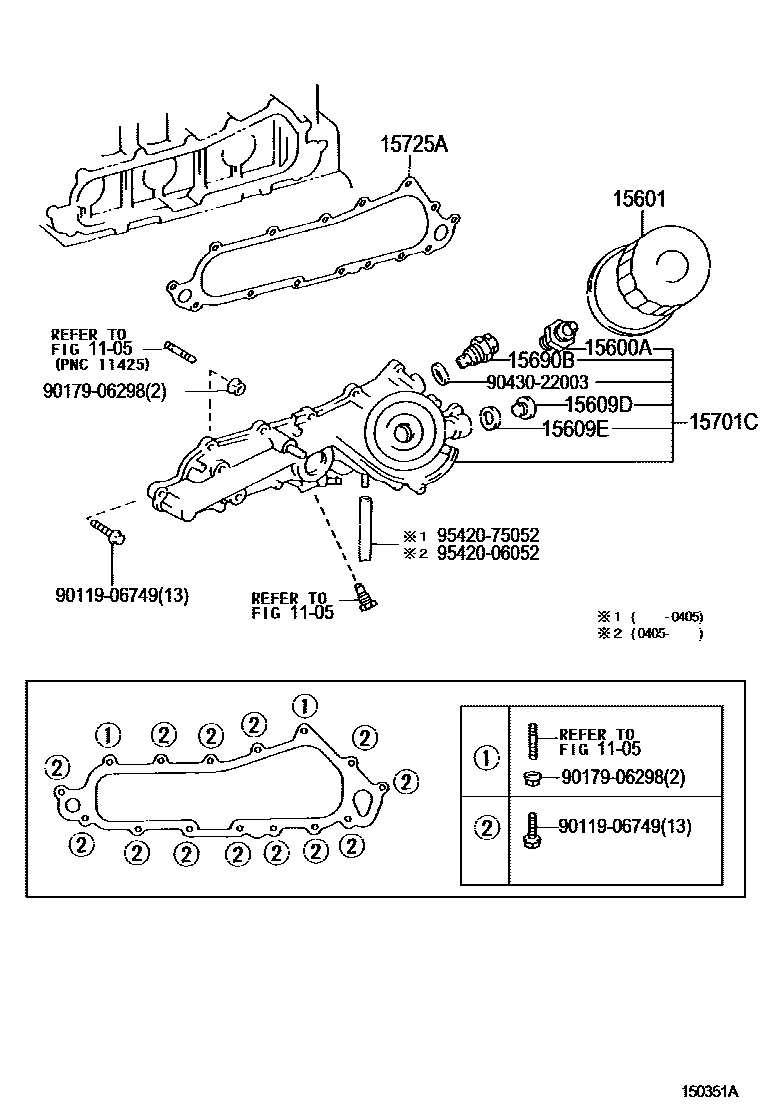

15600AUNION(FOR OIL FILTER)

main15116-54021i2L,5LE..LN140,145,150,155,167,192..RHD..(SA,TH)199807-200504

main15116-54040i5LE..LN147,152,167,172..ARL200009-200208

main90404-19011i2L..LN145..LHD..TH;2L..LN145..LHD..IV3;2L,3L..LN141,146,155,171,191..LHD;2L,3L..LN145,166..(GCC,GEN,MA)..CBU199708-200009

main90404-19013i5VZFE..VZN167,172200208-200502

main90404-19015i1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN200311

TYPE B:REFER TO ILLUSTRATION

main90404-19017i3RZFE..RZN169..DLX..ARL;3RZF..RZN144,149,154,169;3RZFE..RZN149..DLX..(ARL,GEN);3RZFE..RZN154,174,194..RHD..(SADCB,THXTR,XTR)199708-200112

main90404-T0001i1KDFTV..KDN166..SRWGN200309-200503

15601FILTER SUB-ASSY, OIL

main15600-41010i5LE..LN147,167..IV3;5LE..LN147,172..DCB,THDCB,THXTR,XTR;5LE..LN152,167..(DCB,THDCB,THXTR,XTR)..DLX..ARL..CBU199708-200408

sub90915-40002

main15600-41010i2L,5L..LN145,15#,167,192..TH199806-200402

(J)

sub90915-40002

main15601-33021i2Y..YN140199808-200010

main90080-91158i2L,5L..LN145,15#,167,192..TH199806-200402

(L)

sub90915-TD004

main90915-20001i1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19#199708-199908

sub90915-20003

main90915-20003i5VZFE..VZN167,172199908-200506

sub90915-20005

main90915-20003i1KDFTV..KDN166..SRWGN200303-200410

MARK 90915-20003

sub90915-20005

main90915-30002i5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL199807-200504

main90915-TB001i2KDFTV..KDN165,190200410-200503

main90915-TB001i2KDFTV..KDN145,150,155,165,190200407-200503

MARK 90915-TB001

main90915-TD001i1KDFTV..KDN151,166200303-200409

MARK 90915-TD001

sub90915-TB001

15609BRACKET SUB-ASSY, OIL FILTER

main15609-05010i2L,5L..LN145,15#..TH;5L..LN147,152..THDCB,THSCB,THXTR199806-200009

(L)

main15609-05050i5LE..LN167,172..ARL200009-200208

main15609-05060i5LE..LN147,152..ARL200009-200208

main15609-54014i2L..LN145..GEN;2L,3L..LN141,145,146,155..LHD..DLX..(GCC,TH)199708-200009

main15609-54014i2L,5L..LN145,15#..TH;5L..LN147,152..THDCB,THSCB,THXTR199806-200009

(J)

main15609-54043i3L..LN166,171,191199708

main15609-54072i2L..LN140,145..SA199807-200504

main15609-54082i5L..LN167,192..SA199807-200010

main15609-71011i2Y..YN140199808-200010

main15609-75010i1RZ..RZN142,147..SCB..SA199708-200311

sub15609-75050

sub90404-19015

main15609-75010i1RZ,2RZFE..RZN142,147,148,168,193200108-200504

TYPE A:REFER TO ILLUSTRATION

sub15609-75050

sub90404-19015

main15609-75010i1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN200311-200504

TYPE A:REFER ILLUST.

sub15609-75050

sub90404-19015

main15609-75020i3RZFE..RZN169..DLX..ARL;3RZFE..RZN149..DLX..(ARL,GEN);3RZFE..RZN154,174,194..RHD..(SADCB,THXTR,XTR)200009-200108

main15609-75030i3RZFE..RZN144,149,154,169..MTM..(GCC,GEN)199708-200108

main15609-75050i2RZFE..RZN168,193;2RZFE..RZN148..GEN..CBU;1RZ,2RZFE..RZN142,147,148..CO,SA200311-200504

TYPE B:REFER ILLUST.

main15609-75050i1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN200311-200504

TYPE B:REFER TO ILLUSTRATION

main15670-54010i5LE..LN167,172,192200402-200504

main15670-54020i5LE..LN147,152200402-200502

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main15134-67020i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

main90430-T0005i1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190200309-200503

15690BVALVE ASSY, OIL COOLER RELIEF

main15690-50010i3RZFE..RZN169,174..ARL199708-200504

main15690-64010i1KZTE..KZN165;1KZTE..KZN190..SR199909-200504

sub15690-64011

15701CCOVER SUB-ASSY, OIL COOLER

main15701-0L010i2KDFTV..KDN145,150,155,165,190200309-200503

(L)

main15701-0L020i1KDFTV..KDN151,166200309-200409

(L)

main15701-30030i2KDFTV..KDN145,150,155,165,190200309-200503

(J)

sub15701-30031

sub95420-06052

main15701-30030i2KDFTV..KDN145,150,155,165,190200110-200309

sub15701-30031

sub95420-06052

main15701-30040i1KDFTV..KDN151,166200309-200409

(J)

main15701-30040i1KDFTV..KDN151,166200208-200309

main15701-67030i1KZTE..KZN165;1KZTE..KZN190..SR199909-200405

sub15701-67031

sub95420-06052

sub95421-06060

main15701-67031i1KZTE..KZN165,190200405-200504

15725AGASKET, OIL COOLER COVER

main15725-0L010i1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190200309-200503

(L)

main15725-67010i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

main15725-67010i1KDFTV..KDN166..SRWGN200309-200503

(J)

9011906749

main90119-06749

9017906298

main90179-06298

9043022003

main90430-22003

9542006052

main95420-06052

9542075052

main95420-75052
