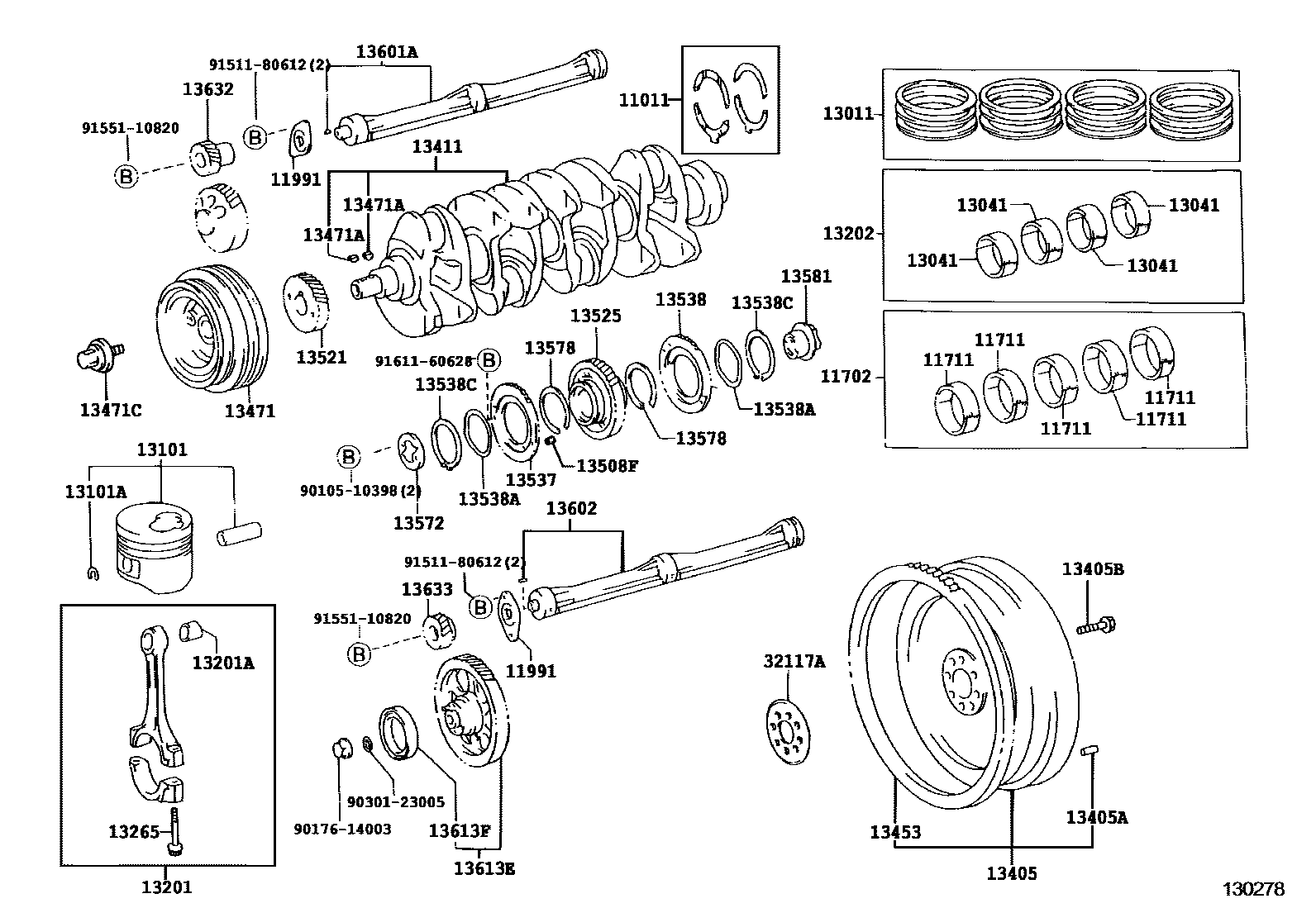

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-0L010i1KDFTV,2KDFTV..KDN145,15#,16#,190200208-200503

STD,(L)

main11011-25010i2Y..YN140199808-200010

STD

main11011-30010i1KZTE..KZN165,190200402-200504

STD

main11011-54020i5LE..LN147,172..DCB,XTR;5LE..LN147,167..SCB..IV3;5LE..LN152,167..(DCB,XTR)..DLX..ARL..CBU200108-200312

STD

main11011-62010i5VZFE..VZN167,172200208-200502

STD

main11011-67020i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

STD

main11011-75010i1RZE,3RZFE..RZN147,169,174..ARL200108-200208

STD

main11012-30010i1K#,2KDFTV..KDN145,15#,16#,190,KZN165,190200402-200504

O/S 0.125

main11012-54020i5LE..LN147..IV3;2L..LN145..LHD..IV3;3L,5LE..LN16#..ARL,GCC,GEN,MA,SA;2L,5LE..LN145,152..(ARL,GEN,SA)..CBU;2L,5LE..LN145,147..(DCB,THDCB)..(ARL,TH);2L,3L,5LE..LN140,200108

O/S 0.125

main11012-67020i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

O/S 0.125

main11013-30010i1K#,2KDFTV..KDN145,15#,16#,190,KZN165,190200402-200504

O/S 0.250

main11013-54020i5L..LN167,192..SA199708-200010

O/S 0.250

main11013-67020i1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165200109-200401

O/S 0.250

11702BEARING SET, CRANKSHAFT

main11704-30020i1K#,2KDFTV..KDN145,15#,16#,190,KZN165,190200402-200504

U/S 0.25

main11704-54061i5L..LN167,192..SA199708-200010

U/S 0.25

main11704-54080i2L,3L..LN145,166..RHD..GEN200108

U/S 0.25

sub11704-54081

main11704-65013i5VZFE..VZN167,172200208-200502

U/S 0.25

main11704-67020i1KZTE..KZN165,190199909-200008

U/S 0.25

main11704-67021i1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165200109-200401

U/S 0.25

main11704-71020i2Y..YN140199808-200010

U/S 0.25

main11704-75020i1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19#199708-199904

U/S 0.25

main11704-75021i3RZFE..RZN194..SADCB;1RZ..RZN147..DCB..SA;1RZE,3RZFE..RZN147,149,154,169,174..DLX..ARL;1RZ,2RZFE,3RZF..RZN142,144,147,149,154,169,193..GCC,GEN199904-200411

U/S 0.25

main11704-75022i2RZFE..RZN148..GEN..CBU;2RZFE,3RZFE..RZN148,149..ARL,CO,GCC;1RZ,2RZFE,3RZFE..RZN142,144,147,154,16#,19#200411

U/S 0.25

main11705-30020i1K#,2KDFTV..KDN145,15#,16#,190,KZN165,190200402-200504

U/S 0.50

main11705-54061i5L..LN147,152,157,167,172,192..ARL,TH199708-200009

U/S 0.50

main11705-54080i2L,3L..LN145,166..RHD..GEN200108

U/S 0.50

sub11705-54081

main11705-67020i1KZTE..KZN165,190199909-200008

U/S 0.50

main11705-67021i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)200008-200203

U/S 0.50

11711BEARING, CRANKSHAFT

main11071-65011-01×3i5VZFE..VZN167,172200208-200502

MARK 1:REFER TO REPAIR MANUAL,MARK 1,NO.1

main11071-65011-02×3i5VZFE..VZN167,172200208-200502

MARK 2:REFER TO REPAIR MANUAL,MARK 2,NO.1

main11071-65011-03×3i5VZFE..VZN167,172200208-200502

MARK 3:REFER TO REPAIR MANUAL,MARK 3,NO.1

main11071-65011-04×3i5VZFE..VZN167,172200208-200502

MARK 4:REFER TO REPAIR MANUAL,MARK 4,NO.1

main11071-65011-05×3i5VZFE..VZN167,172200208-200502

MARK 5:REFER TO REPAIR MANUAL,MARK 5,NO.1

main11071-75020-01×3i1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19#199708-199904

REFER TO REPAIR MANUAL,MARK 1,NO.2

main11071-75020-02×3i1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19#199708-199904

REFER TO REPAIR MANUAL,MARK 2,NO.2

main11071-75020-03×3i1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19#199708-199904

REFER TO REPAIR MANUAL,MARK 3,NO.2

main11071-75021-01×3i3RZFE..RZN194..SADCB;1RZ..RZN147..DCB..SA;1RZE,3RZFE..RZN147,154,169,174..DLX..ARL;2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ,2RZFE,3RZF..RZN142,144,147,149,15199904-200501

REFER TO REPAIR MANUAL,MARK 1,NO.2

main11071-75021-02×3i1RZ..RZN142,147200108-200501

REFER TO REPAIR MANUAL,MARK 2,NO.2

main11071-75021-03×3i1RZE,3RZFE..RZN147,169,174..ARL200108-200208

REFER TO REPAIR MANUAL,MARK 3,NO.2

main11071-75022-01×3i1RZ..RZN147..RHD..SCB..GEN200501-200603

REFER TO REPAIR MANUAL,MARK1,NO.2

main11071-75022-02×3i3RZFE..RZN169,194..SA200411-200504

REFER TO REPAIR MANUAL,MARK2,NO.2

main11071-75022-03×3i3RZFE..RZN169,194..SA200411-200504

REFER TO REPAIR MANUAL,MARK3,NO.2

main11701-05010-01×5i5L..LN152,172..THXTR;2L,5L..LN145,15#,192..TH;5L..LN147,167..THDCB,THSCB,XTR199806-199905

MRAK 1,MARK 1,(L)

main11701-05010-02×5i5L..LN152,172..THXTR;2L,5L..LN145,15#,192..TH;5L..LN147,167..THDCB,THSCB,XTR199806-199905

MRAK 2,MARK 2,(L)

main11701-05010-03×5i5L..LN152,172..THXTR;2L,5L..LN145,15#,192..TH;5L..LN147,167..THDCB,THSCB,XTR199806-199905

MRAK 3,MARK 3,(L)

main11701-05020-01×5i5LE..LN167..SCB..IV3;5LE..LN167..DCB..DLX..ARL;5LE..LN147,152,172..DCB,SCB,XTR200109-200312

MARK 1,(L)

main11701-05020-02×5i5LE..LN167..SCB..IV3;5LE..LN167..DCB..DLX..ARL;5LE..LN147,152,172..DCB,SCB,XTR200109-200312

MARK 2,(L)

main11701-05020-03×5i5LE..LN152..IV3;3L..LN166..RHD..GEN;2L..LN145..LHD..DLX..TH;2L,5LE..LN150,152,167..SR..TH;2L,5LE..LN145,192..RHD..(SCB,XTR);2L,5LE..LN140,147,155,157,172..DLX;5LE..200108

MARK 3,MARK 3,(L)

main11701-0L010-02×5i1KDFTV,2KDFTV..KDN145,15#,16#,190200208-200408

MARK 2,(L):REFER R/M

main11701-0L010-03×5i1KDFTV,2KDFTV..KDN145,15#,16#,190200208-200408

MARK 3,(L):REFER R/M

main11701-0L010-04×5i1KDFTV,2KDFTV..KDN145,15#,16#,190200208-200408

MARK 4,(L):REFER R/M

main11701-0L010-05×5i1KDFTV,2KDFTV..KDN145,15#,16#,190200208-200408

MARK 5,(L):REFER R/M

main11701-0L010-06×5i1KDFTV,2KDFTV..KDN145,15#,16#,190200208-200408

MARK 6,(L):REFER R/M

main11701-0L020-02×5i1KDFTV,2KDFTV..KDN155,16#,190200408-200503

MARK2,(L):REFER R/M

main11701-0L020-03×5i1KDFTV,2KDFTV..KDN155,16#,190200408-200503

MARK3,(L):REFER R/M

main11701-0L020-04×5i1KDFTV,2KDFTV..KDN155,16#,190200408-200503

MARK4,(L):REFER R/M

main11701-0L020-05×5i1KDFTV,2KDFTV..KDN155,16#,190200408-200503

MARK5,(L):REFER R/M

main11701-0L020-06×5i1KDFTV,2KDFTV..KDN155,16#,190200408-200503

MARK6,(L):REFER R/M

main11701-30020-02×5i1KDFTV,2KDFTV..KDN145,15#,16#,190200402-200503

MARK2,(J):REFER R/M

main11701-30020-03×5i1KZTE..KZN165,190200402-200504

MARK3,REFER REPAIR MANUAL

main11701-30020-04×5i1KZTE..KZN165,190200402-200504

MARK4,REFER REPAIR MANUAL

main11701-30020-05×5i1KZTE..KZN165,190200402-200504

MARK5,REFER REPAIR MANUAL

main11701-30020-06×5i1KDFTV,2KDFTV..KDN145,15#,16#,190200402-200503

MARK6,(J):REFER R/M

main11701-54061-01×5i2L,3L,5L..LN141,145,146,147,152,16#,17#,191..(DCB,SCB,XTR)..(ARL,GCC,GEN)199905-200108

MARK 1,MARK 1

main11701-54061-02×5i2L,3L,5L..LN141,145,146,147,152,16#,17#,191..(DCB,SCB,XTR)..(ARL,GCC,GEN)199905-200108

MARK 2,MARK 2

main11701-54061-03×5i2L,3L,5L..LN141,145,146,147,152,16#,17#,191..(DCB,SCB,XTR)..(ARL,GCC,GEN)199905-200108

MARK 3,MARK 3

main11701-54080-01×5i2L,3L..LN145,166..RHD..GEN..CBU200108

MARK 1

sub11701-54081

main11701-54080-02×5i2L,3L..LN145,166..RHD..GEN..CBU200108

MARK 2

sub11701-54081

main11701-54080-03×5i2L,3L..LN145,166..RHD..GEN..CBU200108

MARK 3,MARK 3

sub11701-54081

main11701-62022-01i5VZFE..VZN167,172200208-200502

MARK 1:REFER TO REPAIR MANUAL,MARK 1,NO.2

main11701-62022-02i5VZFE..VZN167,172200208-200502

MARK 2:REFER TO REPAIR MANUAL,MARK 2,NO.2

main11701-62022-03i5VZFE..VZN167,172200208-200502

MARK 3:REFER TO REPAIR MANUAL,MARK 3,NO.2

main11701-62022-04i5VZFE..VZN167,172200208-200502

MARK 4:REFER TO REPAIR MANUAL,MARK 4,NO.2

main11701-62022-05i5VZFE..VZN167,172200208-200502

MARK 5:REFER TO REPAIR MANUAL,MARK 5,NO.2

main11701-62022-06i5VZFE..VZN167,172200208-200502

MARK 6:REFER TO REPAIR MANUAL,MARK 6,NO.2

main11701-67020-02×5i1KZTE..KZN165,190199909-200008

MARK 2,REFER REPAIR MANUAL

main11701-67020-03×5i1KZTE..KZN165,190199909-200008

MARK 3,REFER REPAIR MANUAL

main11701-67020-04×5i1KZTE..KZN165,190199909-200008

MARK 4,REFER REPAIR MANUAL

main11701-67020-05×5i1KZTE..KZN165,190199909-200008

MARK 5,REFER REPAIR MANUAL

main11701-67020-06×5i1KZTE..KZN165,190199909-200008

MARK 6,REFER REPAIR MANUAL

main11701-67021-02×5i1KDFTV,2KDFTV..KDN145,15#,16#,190200208-200402

MARK 2,(J):REFER R/M

main11701-67021-03×5i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)200008-200203

MARK 3,REFER REPAIR MANUAL

main11701-67021-04×5i2KDFTV..KDN145,15#,165,190200110-200208

MARK 4,REFER REPAIR MANUAL

main11701-67021-05×5i2KDFTV..KDN145,15#,165,190200110-200208

MARK 5,REFER REPAIR MANUAL

main11701-67021-06×5i1KDFTV,2KDFTV..KDN145,15#,16#,190200208-200402

MARK 6,(J):REFER R/M

main11701-71020-01×5i2Y..YN140199808-200010

MARK 1

main11701-71020-02×5i2Y..YN140199808-200010

MARK 2

main11701-71020-03×5i2Y..YN140199808-200010

MARK 3

main11701-75020-01×2i1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19#199708-199904

REFER TO REPAIR MANUAL,MARK 1,NO.1

main11701-75020-02×2i1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19#199708-199904

REFER TO REPAIR MANUAL,MARK 2,NO.1

main11701-75020-03×2i1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19#199708-199904

REFER TO REPAIR MANUAL,MARK 3,NO.1

main11701-75021-01×2i2RZFE,3RZFE..RZN154,168,193;2RZFE,3RZFE..RZN148,169..(GCC,GEN,SA)..CBU;2RZFE,3RZFE..RZN144,148,149,194..ARL,CO,GCC,SA200108-200411

REFER TO REPAIR MANUAL,MARK 1,NO.1

main11701-75021-02×2i3RZFE..RZN194..SADCB;1RZ..RZN147..DCB..SA;1RZE,3RZFE..RZN147,154,169,174..DLX..ARL;2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ,2RZFE,3RZF..RZN142,144,147,149,15199904-200501

REFER TO REPAIR MANUAL,MARK 2,NO.1

main11701-75021-03×2i1RZ..RZN142,147200108-200501

REFER TO REPAIR MANUAL,MARK 3,NO.1

main11701-75022-01×2i3RZFE..RZN149,154..ARL200411-200502

REFER TO REPAIR MANUAL,MARK1,NO.1

main11701-75022-02×2i1RZ..RZN142,147..SA200501-200504

REFER TO REPAIR MANUAL,MARK2,NO.1

main11701-75022-03×2i1RZ..RZN147..RHD..SCB..GEN200501-200603

REFER TO REPAIR MANUAL,MARK3,NO.1

11991WASHER, BALANCESHAFT THRUST

main11991-0L010×2i1KDFTV..KDN151,166200404-200411

(L)

main11991-67010×2i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

main11991-75010i3RZFE..RZN149,154..ARL200108-200502

13011RING SET, PISTON

main13011-0L010i2KDFTV..KDN145,150,155,165,190200209-200503

STD,(L)

main13011-30030i2KDFTV..KDN145,150,155,165,190200110-200209

STD

sub13011-30031

main13011-30040i1KDFTV..KDN151,166200208-200409

STD

main13011-54100i2L..LN145..RHD..SCB..GEN;2L..LN145..RHD..DCB..GEN..CBU199708

STD

main13011-54120i3L..LN166..RHD..GEN199708

STD

main13011-54130i5L..LN147,152,157,167,172,192..ARL,TH199708-200009

STD

main13011-62100i5VZFE..VZN167,172200208-200502

STD

main13011-67030i1KZTE..KZN165;1KZTE..KZN190..SR200109-200504

STD

main13011-71033i2Y..YN140199808-200010

STD

main13011-75040i2RZFE,3RZFE..RZN148,149,154,16#,174,193199708-199804

STD

main13011-75041i3RZFE..RZN194..SADCB199804-200010

STD

main13011-75060i3RZF..RZN149..SR..GEN199708-200008

STD

main13011-75080i1RZ..RZN147..DCB..SA199708-200010

STD

main13011-75090i3RZFE..RZN154,169,194..GEN,SA200108-200506

STD

main13013-30030i2KDFTV..KDN145,150,155,165,190200110-200503

O/S 0.50

sub13013-30031

main13013-30040i1KDFTV..KDN151,166200208-200411

O/S 0.50

main13013-54100i2L..LN145..DCB..TH;2L..LN145..LHD..IV3;2L..LN140,150,155..DLX;2L..LN145..(GEN,SA)..CBU200108-200506

O/S 0.50

main13013-54120i3L..LN166..RHD..GEN199708

O/S 0.50

main13013-54130i5LE..LN147,152,167,172,192200109-200504

O/S 0.50

main13013-62100i5VZFE..VZN167,172200208-200502

O/S 0.50

main13013-67030i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

O/S 0.50

main13013-71033i2Y..YN140199808-200010

O/S 0.50

main13013-75040i2RZFE,3RZFE..RZN148,149,154,16#,174,193199708-199804

O/S 0.50

main13013-75041i2RZFE..RZN168,193;2RZFE..RZN148..GEN..CBU;2RZFE,3RZFE..RZN144,148,149,154,169,174..ARL,CO,GCC200108

O/S 0.50

main13013-75060i3RZF..RZN149..GCC;3RZF..RZN144,154,169;3RZF..RZN149..DLX..GEN199708-200108

O/S 0.50

main13013-75080i1RZ..RZN147..RHD..SCB..GEN199708

O/S 0.50

main13013-75090i3RZFE..RZN154,169,194..GEN,SA200108-200506

O/S 0.50

main13014-30040i1KDFTV..KDN151,166200208-200411

O/S 0.75

main13014-54100i2L..LN140,145..SA199708-200203

O/S 0.75

main13014-67030i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

O/S 0.75

main13014-71033i2Y..YN140199808-200010

O/S 0.75

main13015-30040i1KDFTV..KDN151,166200208-200411

O/S 1.00

main13015-54100i2L..LN145,150,155..TH199708-200109

O/S 1.00

main13015-67030i1KZTE..KZN165;1KZTE..KZN190..SR200109-200504

O/S 1.00

main13015-71033i2Y..YN140199808-200010

O/S 1.00

13041BEARING, CONNECTING ROD

main13041-05020-01×4i5LE..LN167..SCB..IV3;5LE..LN167..DCB..DLX..ARL;5LE..LN147,152,172..DCB,SCB,XTR200109-200312

MARK 1,(L)

main13041-05020-02×4i5L..LN167..SA;5L#..LN152..TH;5L#..LN157,192;5LE..LN152..IV3;5LE..LN167..SA,TH;5L..LN167..THDCB,THSCB,XTR;5L..LN147,152,172..THDCB,THSCB,THXTR;5LE..LN147,157,167,172199905-200203

MARK 2,MARK 2,(L)

main13041-05020-03×4i5L..LN152,157,167,192..TH199808-199812

MARK 3,MARK 3,(L)

main13041-0L010-02×4i1KDFTV..KDN151,166200208-200407

MARK 2,(L):REFER R/M

main13041-0L010-03×4i2KDFTV..KDN145,150,155,165,190200208-200408

MARK 3,(L):REFER R/M

main13041-0L010-04×4i2KDFTV..KDN145,150,155,165,190200208-200408

MARK 4,(L):REFER R/M

main13041-0L010-05×4i2KDFTV..KDN145,150,155,165,190200208-200408

MARK 5,(L):REFER R/M

main13041-0L010-06×4i1KDFTV..KDN151,166200208-200407

MARK 6,(L):REFER R/M

main13041-0L020-02×4i2KDFTV..KDN155,165,190200408-200503

MARK2,(L):REFER R/M

main13041-0L020-03×4i2KDFTV..KDN155,165,190200408-200503

MARK3,(L):REFER R/M

main13041-0L020-04×4i2KDFTV..KDN155,165,190200408-200503

MARK4,(L):REFER R/M

main13041-0L020-05×4i2KDFTV..KDN155,165,190200408-200503

MARK5,(L):REFER R/M

main13041-0L020-06×4i2KDFTV..KDN155,165,190200408-200503

MARK6,(L):REFER R/M

main13041-30020-02×4i1KZTE..KZN165,190200402-200504

MARK2,REFER REPAIR MANUAL

main13041-30020-03×4i2KDFTV..KDN145,150,155,165,190200402-200503

MARK3,(J):REFER R/M

main13041-30020-04×4i2KDFTV..KDN145,150,155,165,190200402-200503

MARK4,(J):REFER R/M

main13041-30020-05×4i2KDFTV..KDN145,150,155,165,190200402-200503

MARK5,(J):REFER R/M

main13041-30020-06×4i1KZTE..KZN165,190200402-200504

MARK6,REFER REPAIR MANUAL

main13041-54024-01×4i2L..LN150,155..RHD..DLX;2L..LN145..RHD..DCB..TH200108-200407

MARK 1

main13041-54024-02×4i2L..LN150,155..RHD..DLX;2L..LN145..RHD..DCB..TH200108-200407

MARK 2

main13041-54024-03×4i2L..LN150,155..RHD..DLX;2L..LN145..RHD..DCB..TH200108-200407

MARK 3

main13041-54041-01×4i5LE..LN167..SCB..IV3;5LE..LN167..DCB..DLX..ARL;5LE..LN147,152,172..DCB,SCB,XTR200109-200312

MARK 1,(J)

sub13041-54042

main13041-54041-02×4i5LE..LN167..DCB..SR;5LE..LN167..DCB..SA;5LE..LN167..THSCB..IV3;5LE..LN147,152,172..THDCB,THSCB,THXTR;5LE..LN167,192..(SCB,THDCB,THSCB)..CBU200109-200402

MARK 2,(J)

sub13041-54042

main13041-54041-03×4i5L..LN167..DCB,SCB;3L,5L..LN141,146,147,152,157,166,17#,19#..(DCB,SCB,THXTR,XTR)..DSL..(ARL,GCC,GEN,SA,TH)199708

MARK 3,MARK 3

sub13041-54042

main13041-62030-01×6i5VZFE..VZN167,172200208-200502

MARK 1:REFER TO REPAIR MANUAL,MARK 1

main13041-62030-02×6i5VZFE..VZN167,172200208-200502

MARK 2:REFER TO REPAIR MANUAL,MARK 2

main13041-62030-03×6i5VZFE..VZN167,172200208-200502

MARK 3:REFER TO REPAIR MANUAL,MARK 3

main13041-67030-02×4i1KZTE..KZN165..SR..ARL199909-200009

MARK 2:REFER TO REPAIR MANUAL,MARK 2

main13041-67030-03×4i1KZTE..KZN165..SR..ARL199909-200009

MARK 3:REFER TO REPAIR MANUAL,MARK 3

main13041-67030-04×4i1KZTE..KZN165..SR..ARL199909-200009

MARK 4:REFER TO REPAIR MANUAL,MARK 4

main13041-67030-05×4i1KZTE..KZN165..SR..ARL199909-200009

MARK 5:REFER TO REPAIR MANUAL,MARK 5

main13041-67030-06×4i1KZTE..KZN165..SR..ARL199909-200009

MARK 6:REFER TO REPAIR MANUAL,MARK 6

main13041-67031-02×4i1KZTE..KZN165;1KZTE..KZN190..SR;2KDFTV..KDN165,190..IV1200109-200402

MARK 2,REFER REPAIR MANUAL

main13041-67031-03×4i1KDFTV,2KDFTV..KDN145,15#,16#,190200208-200402

MARK 3,(J):REFER R/M

main13041-67031-04×4i2KDFTV..KDN145,15#,165,190..CBU200109-200208

MARK 4,REFER REPAIR MANUAL

main13041-67031-05×4i1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)200009-200203

MARK 5:REFER TO REPAIR MANUAL,MARK 5

main13041-67031-06×4i2KDFTV..KDN145,15#,165,190..CBU200109-200208

MARK 6,REFER REPAIR MANUAL

main13041-71011-06×4i2Y..YN140199808-200010

MARK 6

sub13041-73010

main13041-71011-07×4i2Y..YN140199808-200010

MARK 7

sub13041-73010

main13041-71011-08×4i2Y..YN140199808-200010

MARK 8

sub13041-73010

main13041-75021-04×4i1RZ..RZN147..RHD..SCB..GEN199708-200501

REFER TO REPAIR MANUAL,MARK 4

main13041-75021-05×4i2RZFE,3RZFE..RZN148,149,168..DLX..GEN199708-200411

REFER TO REPAIR MANUAL,MARK 5

main13041-75021-06×4i1RZ..RZN147..RHD..SCB..GEN199708-200501

REFER TO REPAIR MANUAL,MARK 6

main13041-75022-04×4i1RZ..RZN142,147..GCC200501

REFER TO REPAIR MANUAL,MARK4

main13041-75022-05×4i2RZFE,3RZFE..RZN144,148,149,16#..CO,GCC200411

REFER TO REPAIR MANUAL,MARK5

main13041-75022-06×4i2RZFE,3RZFE..RZN144,148,149,16#..CO,GCC200411

REFER TO REPAIR MANUAL,MARK6

13101PISTON SUB-ASSY, W/PIN

main13101-05010-01×4i5LE..LN167..DCB..SR;5LE..LN167..DCB..SA;5LE..LN167..THSCB..IV3;5LE..LN147,152,172..THDCB,THSCB,THXTR;5LE..LN167,192..(SCB,THDCB,THSCB)..CBU200109-200402

STD,MARK 1

main13101-05010-02×4i5LE..LN167,192..SA200109-200203

STD,MARK 2

main13101-05010-03×4i5LE..LN167,192..SA200109-200203

STD,MARK 3

main13101-0L010-01×4i2KDFTV..KDN145,150,155,165,190200209-200503

STD,MARK 1,(L):REFER R/M

sub13101-0L051

main13101-0L010-02×4i2KDFTV..KDN145,150,155,165,190200209-200503

STD,MARK 2,(L):REFER R/M

sub13101-0L051

main13101-0L010-03×4i2KDFTV..KDN145,150,155,165,190200209-200503

STD,MARK 3,(L):REFER R/M

sub13101-0L051

main13101-30030-01×4i2KDFTV..KDN145,150,155,165,190200110-200209

STD,MARK 1,REFER REPAIR MANUAL

sub13101-30081

main13101-30030-02×4i2KDFTV..KDN145,150,155,165,190200110-200209

STD,MARK 2,REFER REPAIR MANUAL

sub13101-30081

main13101-30030-03×4i2KDFTV..KDN145,150,155,165,190200209-200503

STD,MARK 3,(J):REFER R/M

sub13101-30081

main13101-30040-01×4i1KDFTV..KDN151,166200208-200407

STD,MARK 1,REFER REPAIR MANUAL

main13101-30040-02×4i1KDFTV..KDN151,166200208-200407

STD,MARK 2,REFER REPAIR MANUAL

main13101-30040-03×4i1KDFTV..KDN151,166200208-200407

STD,MARK 3,REFER REPAIR MANUAL

main13101-54070-01×4i2L..LN145,155..LHD..TH199708-200109

STD,MARK 1

main13101-54070-02×4i2L..LN145..DCB..IV3;2L..LN145..LHD..GEN199708-200108

STD,MARK 2

main13101-54070-03×4i2L..LN145..RHD..SCB..GEN;2L..LN145..RHD..DCB..GEN..CBU199708

STD,MARK 3

main13101-54101-01×4i3L..LN141,146,166,171,191..LHD199708-200108

STD,MARK 1

main13101-54101-02×4i3L..LN141,146,166,171,191200108

STD,MARK 2

main13101-54101-03×4i3L..LN166..RHD..GEN199708

STD,MARK 3

main13101-54120-01×4i5L..LN147,152,167,172..(DCB,SCB,XTR)..ARL199708-200009

STD,MARK 1

main13101-54120-02×4i5L..LN147,152,167,172..(DCB,SCB,XTR)..ARL199708-200009

STD,MARK 2

main13101-54120-03×4i5LE..LN147,152,167,172,192200402-200504

STD,MARK 3

main13101-54130-01×4i2L..LN145,150,155..RHD..TH200009-200109

STD,MARK 1

main13101-54130-02×4i2L..LN145,150,155..RHD..TH200109-200407

STD,MARK 2

main13101-54130-03×4i2L..LN145,150,155..RHD..TH200009-200109

STD,MARK 3

main13101-62060-01×6i5VZFE..VZN167,172200208-200502

STD,MARK 1,REFER REPAIR MANUAL

main13101-62060-02×6i5VZFE..VZN167,172200208-200502

STD,MARK 2,REFER REPAIR MANUAL

main13101-62060-03×6i5VZFE..VZN167,172200208-200502

STD,MARK 3,REFER REPAIR MANUAL

main13101-67030-01×4i1KZTE..KZN165..SR..ARL199909-200009

STD,MARK 1,REFER REPAIR MANUAL

main13101-67030-02×4i1KZTE..KZN165..SR..ARL199909-200009

STD,MARK 2,REFER REPAIR MANUAL

main13101-67030-03×4i1KZTE..KZN165..SR..ARL199909-200009

STD,MARK 3,REFER REPAIR MANUAL

main13101-67050-01×4i1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)200009-200203

STD,MARK 1,REFER REPAIR MANUAL

main13101-67050-02×4i1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)200009-200203

STD,MARK 2,REFER REPAIR MANUAL

main13101-67050-03×4i1KZTE..KZN165..DLX;1KZTE..KZN165,190..SA200007-200009

STD,MARK 3,REFER REPAIR MANUAL

main13101-72010-01×4i2Y..YN140199808-200010

STD,MARK1

main13101-72010-02×4i2Y..YN140199808-200010

STD,MARK2

main13101-72010-03×4i2Y..YN140199808-200010

STD,MARK3

main13101-75040×4i3RZFE..RZN149,154,169,174199708-199804

STD

main13101-75041×4i3RZFE..RZN149,154,169,174..ARL199804-200109

STD

main13101-75050×4i3RZF..RZN149..SR..GEN199708-200008

STD

main13101-75070×4i2RZFE..RZN148,168,193199708-199804

STD

main13101-75071×4i2RZFE..RZN168,193;2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU200108

STD

main13101-75090×4i1RZ..RZN142,147..SCB..SA199708-200112

STD

main13103-30030×4i2KDFTV..KDN145,150,155,165,190200110-200503

O/S 0.50

sub13103-30081

main13103-30040×4i1KDFTV..KDN151,166200208-200411

O/S 0.50

main13103-54070×4i2L..LN145..RHD..SCB..GEN;2L..LN145..RHD..DCB..GEN..CBU199708

O/S 0.50

main13103-54101×4i3L..LN141,146,166,171,191200108

O/S 0.50

main13103-54120×4i5L..LN152,172..THXTR199708-199812

O/S 0.50

main13103-54130×4i2L..LN145,150,155..RHD..TH200109-200409

O/S 0.50

main13103-62060×6i5VZFE..VZN167,172200208-200502

O/S 0.50

main13103-67030×4i1KZTE..KZN165..SR..ARL199909-200009

O/S 0.50

main13103-67050×4i1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)200009-200203

O/S 0.50

main13103-72010×4i2Y..YN140199808-200010

O/S 0.50

main13103-75040×4i3RZFE..RZN149,154,169,174199708-199804

O/S 0.50

main13103-75041×4i3RZFE..RZN149..GEN199804

O/S 0.50

main13103-75050×4i3RZF..RZN149..GCC;3RZF..RZN144,154,169;3RZF..RZN149..DLX..GEN199708-200108

O/S 0.50

main13103-75070×4i2RZFE..RZN148,168,193199708-199804

O/S 0.50

main13103-75071×4i2RZFE..RZN168,193;2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU200108

O/S 0.50

main13103-75090×4i1RZ#..RZN142,147200108

O/S 0.50

main13104-30040×4i1KDFTV..KDN151,166200208-200411

O/S 0.75

main13104-54070×4i2L..LN145,155..LHD..TH199708-200109

O/S 0.75

main13104-54130×4i2L..LN145,150,155..RHD..TH200109-200409

O/S 0.75

main13104-67030×4i1KZTE..KZN165..SR..ARL199909-200009

O/S 0.75

main13104-67050×4i1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)200009-200203

O/S 0.75

main13104-72010×4i2Y..YN140199808-200010

O/S 0.75

main13105-30040×4i1KDFTV..KDN151,166200208-200411

O/S 1.00

main13105-54070×4i2L..LN145..LHD..IV3;2L..LN145,155..LHD..TH;2L..LN140,145..(GEN,SA)..CBU200108-200506

O/S 1.00

main13105-54130×4i2L..LN145,150,155..RHD..TH200009-200109

O/S 1.00

main13105-67030×4i1KZTE..KZN165..SR..ARL199909-200009

O/S 1.00

main13105-67050×4i1KZTE..KZN165;1KZTE..KZN190..SR200109-200504

O/S 1.00

main13105-72010×4i2Y..YN140199808-200010

O/S 1.00

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-37014×8i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

main90521-25004×12i5VZFE..VZN167,172200208-200502

sub90520-22025

main90521-28003×8i2RZFE..RZN193199804-200108

main90521-29003×8i2L..LN145..LHD..IV3;2L..LN145,155..LHD..TH;2L..LN140,145..(GEN,SA)..CBU200108-200506

main90521-31001×8i5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL200402

13201ROD SUB-ASSY, CONNECTING

main13201-09080×4i5LE..LN147,152,157,167,172,192..ARL,TH199808-200109

(L)

main13201-0L010×4i2KDFTV..KDN145,150,155,165,190200210-200408

(L)

sub13201-0L011

main13201-0L020×4i1KDFTV..KDN151,166200210-200407

(L)

sub13201-0L041

main13201-0L030×4i2KDFTV..KDN155,165,190200408-200503

(L)

sub13201-0L011

main13201-30020×4i1KDFTV..KDN151,166200208-200210

sub13201-30021

main13201-30030×4i2KDFTV..KDN145,150,155,165,190200210-200503

(J)

sub13201-30031

main13201-59095×4i2L..LN145199708-199803

main13201-59096×4i2L..LN145,150,155..TH199803-200109

main13201-59105×4i3L,5L..LN141,146,147,16#,17#,191199708-199803

main13201-59106×4i5LE..LN147,152,167,172,192200109-200401

(J)

sub13201-59216

main13201-59255×4i2L..LN145..RHD..GEN200404

main13201-67020×4i1KZTE..KZN165..SR..ARL199909-200009

main13201-67021×4i1KZTE..KZN165..DLX;1KZTE..KZN165,190..SA200007-200009

main13201-69145×6i5VZFE..VZN167,172200208-200502

REFER TO REPAIR MANUAL

main13201-71011×4i2Y..YN140199808-200010

main13201-79167×4i1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ,2RZFE..RZN142,147,193..GCC,GEN199708-200404

main13201-79205×4i3RZFE..RZN154,169;3RZFE..RZN144,149,174,194..ARL,CO,GCC,SA200108-200401

main13201-79466×4i3RZFE..RZN149..GEN200404

main13201-79565×4i1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN200404

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73114×4i2L..LN145..DCB..TH;2L..LN145..LHD..IV3;2L..LN140,150,155..DLX;2L..LN145..(GEN,SA)..CBU200108-200506

main90999-73115×4i3L..LN141,146,166,171,191..LHD199708-200108

main90999-73129×4i3RZF..RZN149..SR..GEN199708-200008

main90999-73130×6i5VZFE..VZN167,172200208-200502

main90999-73136×4i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

main90999-73143×4i1KDFTV..KDN151,166200208-200411

sub90999-73156

main90999-73145×4i2KDFTV..KDN145,150,155,165,190200110-200503

sub90999-73157

13202BEARING SET, CONNECTING ROD

main13204-30020i2KDFTV..KDN190..DCB,XTR;1K#,2KDFTV..KDN145,15#,16#,KZN165,190200402-200504

U/S 0.25

main13204-54024i2L..LN145,150,155..TH199708-200109

U/S 0.25

main13204-54041i5LE..LN147..IV3;5LE..LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU;3L,5LE..LN141,146,16#,17#,19#..ARL,GCC,GEN,MA,SA200108

U/S 0.25

sub13204-54042

main13204-62030i5VZFE..VZN167,172200208-200502

U/S 0.25

main13204-67030i1KZTE..KZN165..ARL199909-200008

U/S 0.25

main13204-67031i1KZTE..KZN165,190..SA200007-200008

U/S 0.25

main13204-71011i2Y..YN140199808-200010

U/S 0.25

sub13204-73010

main13204-75021i3RZFE..RZN194..SADCB;1RZ..RZN147..DCB..SA;1RZE,3RZFE..RZN147,149,154,169,174..DLX..ARL;1RZ,2RZFE,3RZF..RZN142,144,147,149,154,169,193..GCC,GEN199708-200411

U/S 0.25

main13204-75022i2RZFE..RZN148..GEN..CBU;2RZFE,3RZFE..RZN148,149..ARL,CO,GCC;1RZ,2RZFE,3RZFE..RZN142,144,147,154,16#,19#200411

U/S 0.25

main13205-30020i2KDFTV..KDN190..DCB,XTR;1K#,2KDFTV..KDN145,15#,16#,KZN165,190200402-200504

U/S 0.50

main13205-54024i2L..LN145..LHD..SCB;2L..LN145..RHD..DCB..GEN200401-200408

U/S 0.50

main13205-54041i5L..LN167,192..SA199905-200010

U/S 0.50

sub13205-54042

main13205-67030i1KZTE..KZN165..ARL199909-200008

U/S 0.50

main13205-67031i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)200008-200203

U/S 0.50

13265BOLT, CONNECTING ROD

main13265-29025×8i2Y..YN140199808-200010

main13265-54020×8i2L,3L,5L..LN14#,16#,17#,191199708-199803

main13265-54021×8i5LE..LN167..DCB..SA;2L..LN145,155..LHD..TH;5LE..LN167..DCB..SR..ARL;5LE..LN147,167..THSCB..IV3;5LE..LN147,152..(THDCB,THXTR)..CBU;5LE..LN167..(SCB,THDCB,THSCB)..CBU200108

main13265-62030×12i5VZFE..VZN167,172200208-200502

sub13265-74030

main13265-67020×8i1KZTE..KZN165..SR..ARL199909-200009

main13265-67021×8i2KDFTV..KDN145,150,155,165,190..TH200210-200504

main13265-75030×8i1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN200112-200203

13405FLYWHEEL SUB-ASSY

main13405-05010i2L..LN145,150,155..TH200109-200402

TYPE A:REFER TO ILLUSTRATION,(L)

main13405-05020i5LE..LN167..DCB..SR;5LE..LN167..DCB..SA;5LE..LN167..THSCB..IV3;5LE..LN147,152,172..THDCB,THSCB,THXTR;5LE..LN167,192..(SCB,THDCB,THSCB)..CBU200109-200402

(L)

main13405-05070i5LE..LN172..IV3;5LE..LN147,152,167,192;5LE..LN172..THXTR..CBU200402-200504

TYPE C:REFER TO ILLUSTRATION,(L)

main13405-05090i2L..LN145,150,155..TH200211-200402

TYPE B:REFER TO ILLUSTRATION,(L)

main13405-0L010i2KDFTV..KDN145,150,155200111-200409

(L)

main13405-0L020i1KDFTV,2KDFTV..KDN151,16#..MTM200111-200503

(L)

sub13405-0L021

main13405-0L030i1KDFTV,2KDFTV..KDN166,190..ATM200112-200503

(L)

main13405-30020i2KDFTV..KDN145,150,155200111-200409

(J)

main13405-30030i1KDFTV,2KDFTV..KDN151,16#..MTM200111-200503

(J)

sub13405-30031

main13405-54012i2L..LN145..GEN199708-200210

main13405-54060i2L..LN140,145..SA200402-200504

main13405-54070i3L..LN141,146,166,171,191..DSL..(GCC,GEN)199708

main13405-54080i5L..LN147,152,167,172..(DCB,SCB,XTR)..ARL199905-200009

main13405-62030i5VZFE..VZN167,172..MTM200208-200502

main13405-67030i1KDFTV,2KDFTV..KDN166,190..ATM200112-200503

(J)

main13405-67070i1KZTE..KZN165;1KZTE..KZN190..SR200109-200504

main13405-71011i2Y..YN140199808-200010

main13405-75010i1RZ..RZN142,147199708-200112

main13405-75030i2RZFE..RZN148,168..CO200108

main13405-75040i3RZFE..RZN169,174..ARL200108-200208

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-05121i1KDFTV,2KDFTV..KDN166,190..ATM200112-200303

L=15,OD=5

main90250-08054×3i2L..LN150,155..DLX;2L..LN145..DCB..TH200108-200407

L=23,OD=8

main90250-08120×3i5VZFE..VZN167,172..MTM200208-200502

L=18,OD=8

main90250-10192×3i1KDFTV,2KDFTV..KDN151,16#..MTM..CBU200109-200303

L=22,OD=10

main90250-T0008×3i1KDFTV,2KDFTV..KDN151,16#..MTM200303-200503

L=22,OD=10,(L)

main90250-T0010×3i2KDFTV..KDN145,150,155200303-200409

L=23,OD=8,(L)

main90250-T0013i1KDFTV,2KDFTV..KDN166,190..ATM200303-200503

L=15,OD=5,(L)

13405BBOLT, FLYWHEEL SETTING

main90105-10042×6i2Y..YN140199808-200010

main90105-10138×8i5VZFE..VZN167,172..MTM200208-200502

main90105-10207×10i2RZFE..RZN148,168..DLX;1RZ..RZN147..RHD..SCB..GEN200112-200203

main90105-12109×8i5LE..LN167..THSCB;5LE..LN167..DCB..SA;5LE..LN167..(SCB,THDCB)..CBU;2L,5LE..LN140,145,150,155,192..SA,TH;5LE..LN147,152,172..THDCB,THSCB,THXTR200304-200402

(J)

main90105-13010×8i1KDFTV,2KDFTV..KDN145,15#,16#..MTM200404-200503

(J)

main90105-T0048×8i5LE..LN167..THSCB;5LE..LN167..DCB..SA;5LE..LN167..(SCB,THDCB)..CBU;2L,5LE..LN140,145,150,155,192..SA,TH;5LE..LN147,152,172..THDCB,THSCB,THXTR200304-200402

(L)

main90105-T0113×8i1KDFTV,2KDFTV..KDN145,15#,16#..MTM200404-200503

(L)

main90910-02116×10i1RZ..RZN142,147..SA200312-200504

13411CRANKSHAFT

main13401-05010i2L..LN140,145,150,155..SA,TH200109-200402

(L)

main13401-05020i5L..LN152..CBU;5L..LN152,157,172..SCB,THXTR;5L..LN147,167,192..THDCB,THSCB,XTR199806-199905

(L)

main13401-05030i5LE..LN147,152,167,172,192200109-200301

main13401-0L010i2KDFTV..KDN145,150,155,165,190200402-200408

(L)

sub13401-30030

main13401-0L020i1KDFTV..KDN151,166200402-200409

(L)

sub13401-0L090

main13401-0L030i2KDFTV..KDN155,165,190200408-200503

(L)

sub13401-0L100

main13401-30010i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)200005-200203

main13401-30020i2KDFTV..KDN145,150,155,165,190200110-200402

sub13401-30060

main13401-54040i2L..LN145..RHD..GEN200203

main13401-54061i3L,5L..LN141,146,147,152,16#,17#,191..(DCB,SCB,XTR)..DSL..(ARL,GCC,GEN)199905-200209

main13401-54100i3L..LN141,146,166,171,191200209

main13401-62030i5VZFE..VZN167,172200208-200502

sub13401-62040

sub13408-62060

main13401-67010i1KZTE..KZN165199909-200005

main13411-72010i2Y..YN140199808-199810

main13411-72900i2Y..YN140199810-200010

main13411-75020i3RZFE..RZN149,154..ARL200108-200502

sub13411-75901

main13411-75030i3RZF..RZN144,149,154,169199708-200108

main13411-75900i1RZ,2RZFE..RZN142,147,148,168,193..GEN..CBU200108-200506

13453GEAR, FLYWHEEL RING

main13453-05010i5L..LN167..SA;5L#..LN157,192;5LE..LN167..TH;5LE..LN152..IV3;2L..LN145..LHD..DLX..TH;2L..LN145..SCB..(GEN,TH);2L,5L#..LN150,152..MTM..SR;5L..LN167..THDCB,THSCB,XTR;2199907-200210

(L)

main13453-0L010i1KDFTV,2KDFTV..KDN145,15#,16#,190200209-200503

(L)

main13453-0W010i1RZE..RZN147200108-200208

TYPE B:REFER ILLUST.

main13453-20010i1RZ..RZN142,147..GCC200108

TYPE B:REFER TO ILLUSTRATION

main13453-54010i5L..LN167..SA;5L#..LN157,192;5LE..LN167..TH;5LE..LN152..IV3;2L..LN145..LHD..DLX..TH;2L..LN145..SCB..(GEN,TH);2L,5L#..LN150,152..MTM..SR;5L..LN167..THDCB,THSCB,XTR;2199907-200210

(J)

main13453-65010i5VZFE..VZN167,172..MTM200208-200502

main13453-67030i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

13471PULLEY, CRANKSHAFT

main13408-0L010i1KDFTV,2KDFTV..KDN145,15#,16#,190200209-200312

(L)

main13408-0L020i1KDFTV,2KDFTV..KDN145,15#,16#,190200312-200503

(L)

main13408-30010i1KDFTV,2KDFTV..KDN145,15#,16#,190200110-200209

sub13408-30011

main13408-54090i5LE..LN147..THDCB;2L..LN145..DCB..TH;2L..LN145..LHD..IV3;5LE..LN167..DCB..SA;5LE..LN167..DCB..SR..ARL;5LE..LN147,167..THSCB..IV3;3L,5LE..LN166,172..DCB,SCB,THXTR;5L200108

main13408-62040i5VZFE..VZN167,172200208-200502

main13408-67020i1KZTE..KZN165;1KZTE..KZN190..SR200109-200504

main13408-71010i2Y..YN140199808-200010

main13408-75030i1RZE,3RZFE..RZN147,169,174..ARL200108-200208

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i2Y..YN140199808-200010

main90280-T0002×2i1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190200402-200503

(L)

main95161-30516×2i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

main95161-30622i5LE..LN147,172..DCB,XTR;5LE..LN147,167..SCB..IV3;5LE..LN152,167..(DCB,XTR)..DLX..ARL..CBU200108-200312

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-14069i2Y..YN140199808-200010

main90105-16041i1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU200108-200506

main90119-16006i5VZFE..VZN167,172200208-200502

main90119-18003i1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU200109-200404

main90119-T0218i1KDFTV,2KDFTV..KDN145,15#,16#,190200404-200503

(L)

main90901-19028i5LE..LN147,172..DCB,XTR;5LE..LN147,167..SCB..IV3;5LE..LN152,167..(DCB,XTR)..DLX..ARL..CBU200108-200312

13508FPIN, STRAIGHT(FOR IDLE GEAR)

main90250-05027×2i2KDFTV..KDN145,150,155,165,190200110-200503

(J)

main90250-T0011×2i2KDFTV..KDN145,150,155,165,190200406-200503

(L)

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0L010i2KDFTV..KDN145,150,155,165,190200406-200503

(L)

main13521-33010i2Y..YN140199808-200010

main13521-67020i2KDFTV..KDN145,150,155,165,190..CBU200109-200406

main13521-75010i1RZE,3RZFE..RZN147,169,174..ARL200108-200208

13525GEAR, IDLE, NO.1

main13508-0L010i2KDFTV..KDN145,150,155,165,190200406-200503

(L)

main13508-30010i2KDFTV..KDN145,150,155,165,190200110-200407

(J)

main13508-30011i2KDFTV..KDN145,150,155,165,190200407-200503

(J)

main13508-67011i1KZTE..KZN190..SR;1K#..KDN151,166,KZN165..DCB,SCB,THDCB,THSCB,XTR200109-200504

main13508-67900i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

13537GEAR, IDLE SUB, NO.1

main13537-67900i1KZTE..KZN190..SR;1K#..KDN151,166,KZN165..DCB,SCB,THDCB,THSCB,XTR200109-200504

13538GEAR, IDLE SUB, NO.2

main13538-0L010i2KDFTV..KDN145,150,155,165,190200406-200503

(L)

main13538-67900i1KDFTV..KDN166..SRWGN200109-200409

13538AWASHER, WAVE

main90206-69001×2i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

main90206-T0001i2KDFTV..KDN145,150,155,165,190200406-200503

(L)

13538CRING, SHAFT SNAP

main90520-58002×2i1KDFTV..KDN166..SRWGN200109-200409

main90520-T0032i2KDFTV..KDN145,150,155,165,190200406-200503

(L)

13572PLATE, IDLE GEAR THRUST

main13572-0L010i1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190200311-200503

(L)

main13572-67041i1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190200311-200503

(J)

13578SPRING, IDLE GEAR

main13578-0L010i2KDFTV..KDN145,150,155,165,190200406-200503

(L)

main13578-67010×2i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

13581SHAFT, IDLE GEAR, NO.1

main13581-0L010i2KDFTV..KDN155,165,190200408-200503

(L)

main13581-67041i1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,150,151,16#,190,KZN165..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,SA,TH)200109-200504

13601ABALANCESHAFT SUB-ASSY, NO.1

main13601-67020i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

sub13601-0L020

13602BALANCESHAFT SUB-ASSY, NO.2

main13602-67020i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

sub13602-0L020

13613EGEAR, INJECTION

main13603-0L010i2KDFTV..KDN145,150,155,165,190200406-200503

(L)

main13603-30020i1KDFTV..KDN151,166;2KDFTV..KDN165,190..IV1200110-200409

main13613-67900i1KZTE..KZN165,190199909-200108

main13613-67902i1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)200108-200203

13613FBEARING, RADIAL BALL

main90363-60004i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

main90363-67001i1KDFTV..KDN166..SRWGN200110-200409

13632GEAR, BALANCESHAFT DRIVEN, NO.1

main13632-67010i1KDFTV..KDN166..SRWGN200109-200409

main13632-75010i3RZFE..RZN149..GEN200203

13633GEAR, BALANCESHAFT DRIVEN, NO.2

main13633-67010i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

32117ASPACER, FLYWHEEL PLATE

main32117-60050iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

9010510398

main90105-10398

9017614003

main90176-14003

9030123005

main90301-23005

9151180612

main91511-80612

9155110820

main91551-10820

9161160628

main91611-60628

43 parts on this diagram · 9 diagrams in section
