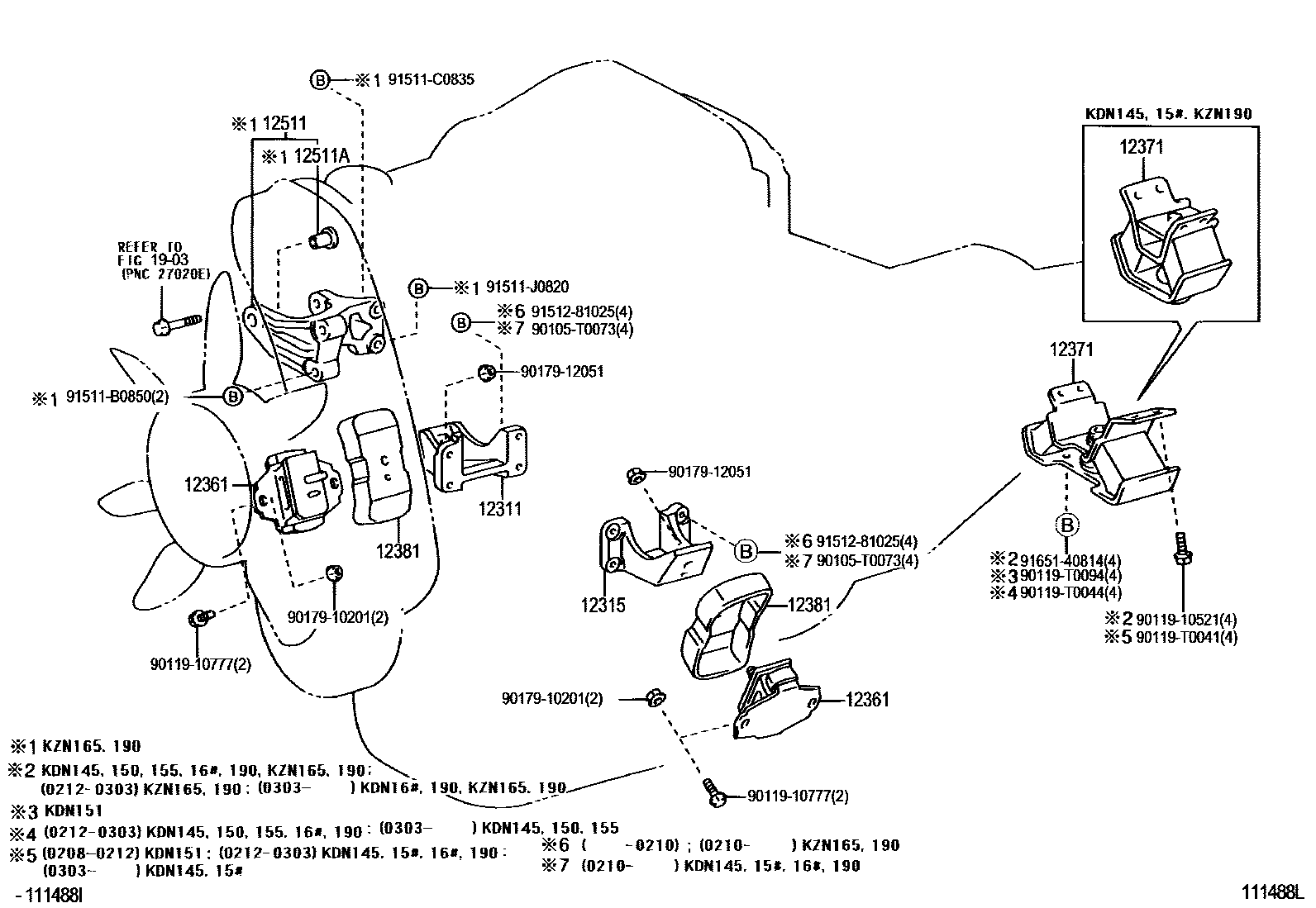

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-05010i2L,5L#..LN145,15#,167,192..RHD..TH199806-200402

(L)

main12311-0L010i1KDFTV,2KDFTV..KDN145,15#200209-200409

(L)

sub12311-30030

main12311-0L020i1KDFTV,2KDFTV..KDN16#,190200209-200503

(L)

main12311-30030i1KDFTV,2KDFTV..KDN145,15#200209-200409

(J)

main12311-30030i1KDFTV,2KDFTV..KDN145,15#200110-200209

main12311-54091i2L,5L#..LN145,15#,167,192..RHD..TH199806-200409

(J)

main12311-54091i5LE..LN152,157..MTM..CBU200009-200108

main12311-54181i2L,3L..LN145,166..RHD..(GEN,MA)..CBU199708-200502

main12311-62070i5VZFE..VZN167,172200208-200502

main12311-67020i1KZTE..KZN165,190199909-200102

sub12311-67021

main12311-67021i1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)200102-200504

main12311-67021i1KDFTV,2KDFTV..KDN16#,190200209-200503

(J)

main12311-71010i2Y..YN140199808-200010

main12311-75080i1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN199708-200506

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0L010i1KDFTV,2KDFTV..KDN145,15#200209-200409

(L)

sub12315-30030

main12315-0L020i1KDFTV,2KDFTV..KDN16#,190200209-200503

(L)

main12315-30030i1KDFTV,2KDFTV..KDN145,15#200209-200409

(J)

main12315-30030i1KDFTV,2KDFTV..KDN145,15#200110-200209

main12315-62080i5VZFE..VZN167,172200208-200502

main12315-67010i1KZTE..KZN165,190199909-200102

sub12315-67011

main12315-67011i1KDFTV,2KDFTV..KDN16#,190..CBU200102-200504

main12315-67011i1KDFTV,2KDFTV..KDN16#,190200209-200503

(J)

main12315-71010i2Y..YN140199808-200010

main12315-75070i1RZE,3RZFE..RZN147,169,174..ARL199708-200506

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-30030i1KDFTV..KDN166200208-200407

main12361-35050i2Y..YN140199808-200010

main12361-35090i3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,1199708-200506

sub12361-35091

main12361-54111i5LE..LN147..SCB..IV3;5LE..LN147,152..(DCB,XTR)..ARL..CBU199708-200506

main12361-54121i5LE..LN172,192;5LE..LN167..TH;5LE..LN167..DCB..DLX..ARL;5LE..LN167..(SCB,THDCB,THSCB)..DLX;3L,5L..LN16#,17#,192..DSL..(ARL,GCC,GEN,SA,TH)199708-200506

main12361-62150i5VZFE..VZN167,172200208-200502

main12361-67020i2KDFTV..KDN165,190..TH..CBU199909-200503

main12361-67030i1KDFTV,2KDFTV..KDN145,15#200110-200407

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-05010i5LE..LN167..SR;5LE..LN167..(SCB,THSCB)..ARL..CBU200109-200502

(L)

main12371-05030i2L..LN145,150,155..TH200103-200501

main12371-0C050i3RZFE..RZN149,154..(THDCB,THSCB,THXTR)..MTM200109-200501

main12371-0C060i3RZFE..RZN149,154..(THDCB,THSCB,THXTR)..ATM200109-200501

main12371-34030i5LE..LN147..SCB..IV3;5LE..LN147,152..(DCB,XTR)..ARL..CBU199708-200506

main12371-35070i2Y..YN140199808-200010

main12371-54060i3L..LN166,171..DSL..GEN199708-200506

main12371-54180i5LE..LN167..SA199708-200504

main12371-54180i5LE..LN167..SCB..IV3;5LE..LN167,172..(DCB,XTR)..DLX..ARL200109-200502

(J)

main12371-54190i1KZTE..KZN190200007-200504

main12371-62190i5VZFE..VZN167,172..MTM200208-200502

main12371-62200i5VZFE..VZN167,172..ATM200208-200502

main12371-65010i1KZTE..KZN165..TH;1KZTE..KZN165..THDCB,THSCB199708-200504

main12371-75050i1RZ..RZN142,147..SA199708-200506

main12371-75060i3RZFE..RZN149..CO199708-200502

main12371-75070i3RZFE..RZN169..SA199708-200506

main12371-75080i3RZFE..RZN194199708-200506

12381STABILIZER, ENGINE MOUNTING

main12381-54010i2L..LN145..LHD..IV3;2L,3L..LN145,191..GEN..CBU199708-200506

main12381-54020i5L#..LN167,192..TH199806-200108

main12381-54060i3L..LN166,171..GEN199708-200506

main12381-62020i5VZFE..VZN167,172200208-200502

main12381-67010i1KZTE..KZN165..(DCB,SCB)..ARL199909-200502

main12381-73010i2Y..YN140199808-200010

main12381-75020i1RZE,3RZFE..RZN147,169,174..ARL199708-200506

12511BRACKET, ALTERNATOR, NO.1

main12511-62010i5VZFE..VZN167,172200208-200502

main12511-67020i1KZTE..KZN165;1KZTE..KZN190..SR199909-200504

main12511-71010i2Y..YN140199808-200010

main12511-75041i1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN199708-200506

12511ABUSH, ALTERNATOR BRACKET

main90389-10039i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200504

1903

90105T0073

main90105-T0073

9011910521

main90119-10521

9011910777

main90119-10777

90119T0041

main90119-T0041

90119T0044

main90119-T0044

90119T0094

main90119-T0094

9017910201

main90179-10201

9017912051

main90179-12051

91511B0850

main91511-B0850

91511C0835

main91511-C0835

91511J0820

main91511-J0820

9151281025

main91512-81025

9165140814

main91651-40814

21 parts on this diagram · 7 diagrams in section
