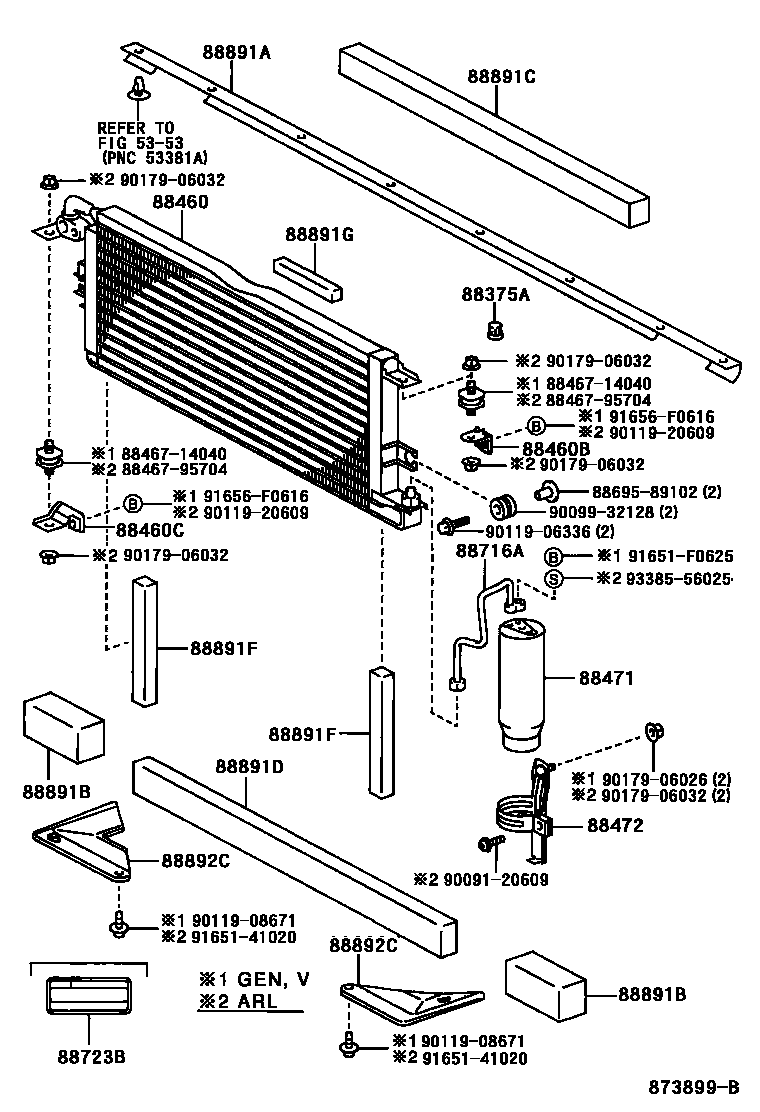

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER & RECEIVER 0002 1BLOWER ASSY,CONDENSER & RECEI0003 1HOSE & PIPE 0004 1HOSE & PIPE 0005 1HOSE & PIPE 0006 1HOSE & PIPE 0007 1HOSE & PIPE 0008 1HOSE & PIPE 0009 1HOSE & PIPE 0010 1HOSE & PIPE 0011 1HOSE & PIPE 0012 1HOSE & PIPE 0013 1HOSE & PIPE 0014 1HOSE & PIPE 0015 1

5353

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iLN8#,90,RN80;RN85,90..LHD199401-200106

88460CONDENSER ASSY, COOLER

main88460-35130iRN85..ARL,V;RN85..LHD..GEN;LN8#,90,RN80,90,YN8#,9#199401-199408

main88460-35150iRN85..ARL,V;RN85..LHD..GEN;LN8#,9#,RN80,90,YN8#,9#199408-200106

main88460-89115iLN8#,90,RN8#,90,YN8#,92..ARL,GEN,V198808-199401

sub88460-35020

main88460-89117iRN125198907-199308

sub88460-89118

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-89120iYN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92198808-200106

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-89121iYN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92198808-200106

88471TANK, RECEIVER AIR CONDITIONER

main88471-16040iLN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V198808-199401

sub88471-16050

main88471-20050iRN85..ARL,V;RN85..LHD..GEN;LN8#,9#,RN80,90,YN8#,9#199401-200106

sub88471-34010

main88471-50010iRN85..LHD;LN8#,90,RN80,90,YN8#,92..GEN,TH,V199305-199401

sub88471-16040

88472BRACKET, RECEIVER TANK, NO.1

main88472-35010iRN125199108-199308

main88472-89110iYN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92198808-200106

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-35100iRN125199108-199308

main88716-35230iRN85..ARL,V;RN85..LHD..GEN;LN8#,9#,RN80,90,YN8#,9#199401-200106

main88716-89163iLN8#,90,RN8#,90,YN8#,92..ARL,GEN,V198808-199401

88723BLABEL, COOLER SERVICE CAUTION

main88723-17030iRN125199108-199308

main88723-20010iYN85..ARL199108-199301

main88723-20020iLN81,86,RN8#,90,YN81,86..ARL,V199008-199401

main88723-20040iLN86,RN85,90,YN85..ARL199401-200106

main88723-20040iRN85..DLX..V199408-199708

DEALER OPTION

main88723-35050iRN85..EFI;LN81,86,RN8#,90,YN81,86..V199401-199909

main88723-35050iRN85..DLX..V199408-199708

MAKER OPTION

88891APACKING A (FOR COOLER)

main53381-89104iLN90..5F;RN85..EFI..CBU;RN85..LHD..CBR..GEN;LN86,RN85,YN86..ARL,V;LN80,81,85,RN125,80,90,YN80,81,85,87,9#198808-199909

main88578-89112iLN200200106

88891BPACKING B (FOR COOLER)

main88578-35120iLN200,RZN200200106

main88578-89103iYN85..ARL198809-199708

main88578-89103iRN85..DLX..V;LN85..LHD..TW1199408-200106

DEALER OPTION

main88578-89111iLN8#,90,RN125,8#..GEN,V198808-199909

main88578-89111iLN85..RHD;LN85..LHD..T1;RN85..LHD..(SR5,STD);LN80,81,86,90,RN80,90..GEN,TH,V199408-200106

MAKER OPTION

88891CPACKING C (FOR COOLER)

main88578-89111iLN200200106

main88578-89118iRN85..ARL,V;RN85..LHD..GEN;RN80,90,YN8#,9#198808-199909

main88892-89115iLN81,86199008-199108

88891DPACKING D (FOR COOLER)

main88578-89119iRN85..LHD..(SR5,STD);LN8#,9#,RN80,90,YN8#,9#..GEN,TH,V198808-200106

main88578-89119iRN85..DLX..V199408-199708

MAKER OPTION

main88578-89127iRN85..DLX..V199408-199708

DEALER OPTION

sub88578-89119

main88578-89127iLN85,RN85,90..ARL198808-199708

sub88578-89119

88891FPACKING F (FOR COOLER)

main88578-89122iYN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92198808-200105

LH

main88578-89122iRN85..EFI..IV3;LN85..LHD..5F..GEN;LN86,RN85,90,YN85..ARL199510-200106

main88578-89123iRN85..ARL,V;RN85..LHD..GEN;LN8#,90,RN80,90,YN8#,9#198808-199708

RH

sub88578-89122

main88578-89128iRN125198907-199308

88891GPACKING G (FOR COOLER)

main88578-89107iLN85..LHD..TW1;LN86,RN90,YN85..ARL;RN85..(DLX,STD)..(ARL,V)198808-200106

main88578-89129iLN81,86..V199008-199708

88892CPLATE, CONDENSER, NO.1

main88892-89114iLN8#,90,RN8#,90198808-200106

RH

main88892-89115iLN8#,90,RN8#,90198808-200106

LH

main88892-89116iRN125198907-199108

RH

main88892-89117iRN125198907-199108

LH

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

8846795704CUSHION, COOLER CONDENSER, NO.1

main88467-95704

8869589102

main88695-89102

9009120609

main90091-20609

9009932128

main90099-32128

9011906336

main90119-06336

9011908671

main90119-08671

9011920609

main90119-20609

9017906026

main90179-06026

9017906032

main90179-06032

9165141020

main91651-41020

91651F0625

main91651-F0625

91656F0616

main91656-F0616

9338556025

main93385-56025

30 parts on this diagram · 15 diagrams in section
