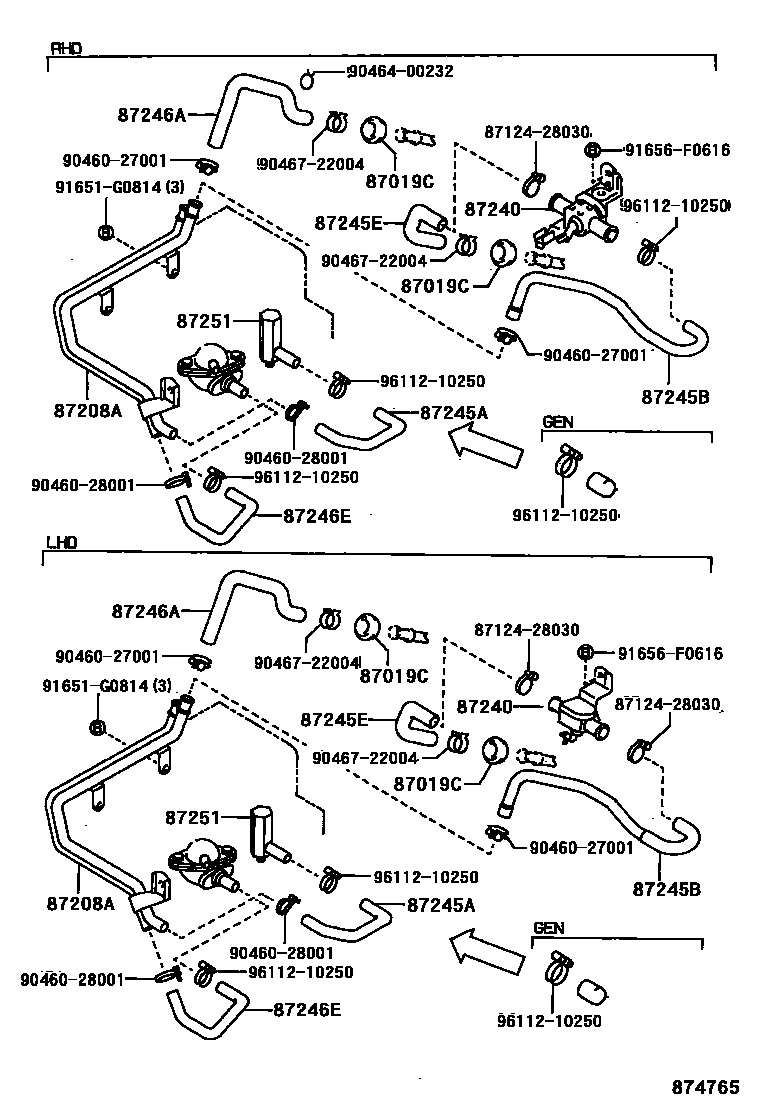

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

87019CGROMMET, HEATER HOSE

main90480-36005iLN8#,90,RN125,8#,90,YN8#,92198808-200106

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-89136iLN8#,90198808-198810

sub87207-89102

main87208-89143iLN85..LHD..TH;LN8#..ARL,GEN,V198810-200106

NO.1

main87208-89144iLN8#,90198810-200106

NO.2

87240VALVE ASSY, HEATER WATER

main87240-35020iYN80,85..RHD;LN80,85,86,RN85,90..RHD..(ARL,GEN)199308-199909

main87240-89124iRN125,8#,90,YN8#,92..LHD198808-199909

main87240-89125iLN81,85,86,90..LHD198808-200106

main87240-89126iYN80,85..RHD;LN80,85,86,RN85,90..RHD..(ARL,GEN)198808-199308

87245AHOSE, HEATER WATER, INLET A

main87245-89218iRN125,8#,90..LHD198808-199909

main87245-89220iRN85,90..RHD198808-199812

main87245-89226iYN8#,92..LHD198808-199708

main87245-89228iYN80,85,87,92..RHD198808-199909

main87245-89238iLN8#,90198808-198810

sub87245-89279

main87245-89279iLN8#,90198810-200106

87245BHOSE, HEATER WATER, INLET B

main87245-89240iLN8#..RHD198808-198810

main87245-89281iLN8#,90..ARL,GEN198810-200106

87245EHOSE, HEATER WATER, INLET E

main87245-89231iRN125,8#,90,YN8#,92..LHD198808-199909

main87245-89232iLN81,85,86,90..LHD198808-200106

main87245-89233iLN8#,RN85,90,YN85,87,92..RHD..(ARL,GEN)198808-199909

87246AHOSE, HEATER WATER, OUTLET A

main87245-89217iYN85,87,92..RHD..(ARL,GEN)198808-199909

main87245-89219iRN125,8#,90..LHD198808-199909

main87245-89221iRN85,90..RHD198808-199812

main87245-89227iYN8#,92..LHD198808-199708

main87245-89241iLN80,85,90..RHD198808-199909

main87245-89242iLN81,85,86,90..LHD198808-200106

87246EHOSE, HEATER WATER, OUTLET E

main87245-89239iLN8#,90198808-198810

sub87245-89280

main87245-89280iLN8#,90..ARL,GEN198810-200106

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-89113iLN8#,90198808-200106

8712428030CLAMP, HEATER

main87124-28030

9046027001

main90460-27001

9046028001

main90460-28001

9046400232

main90464-00232

9046722004

main90467-22004

91651G0814

main91651-G0814

91656F0616

main91656-F0616

9611210250

main96112-10250

17 parts on this diagram · 6 diagrams in section
