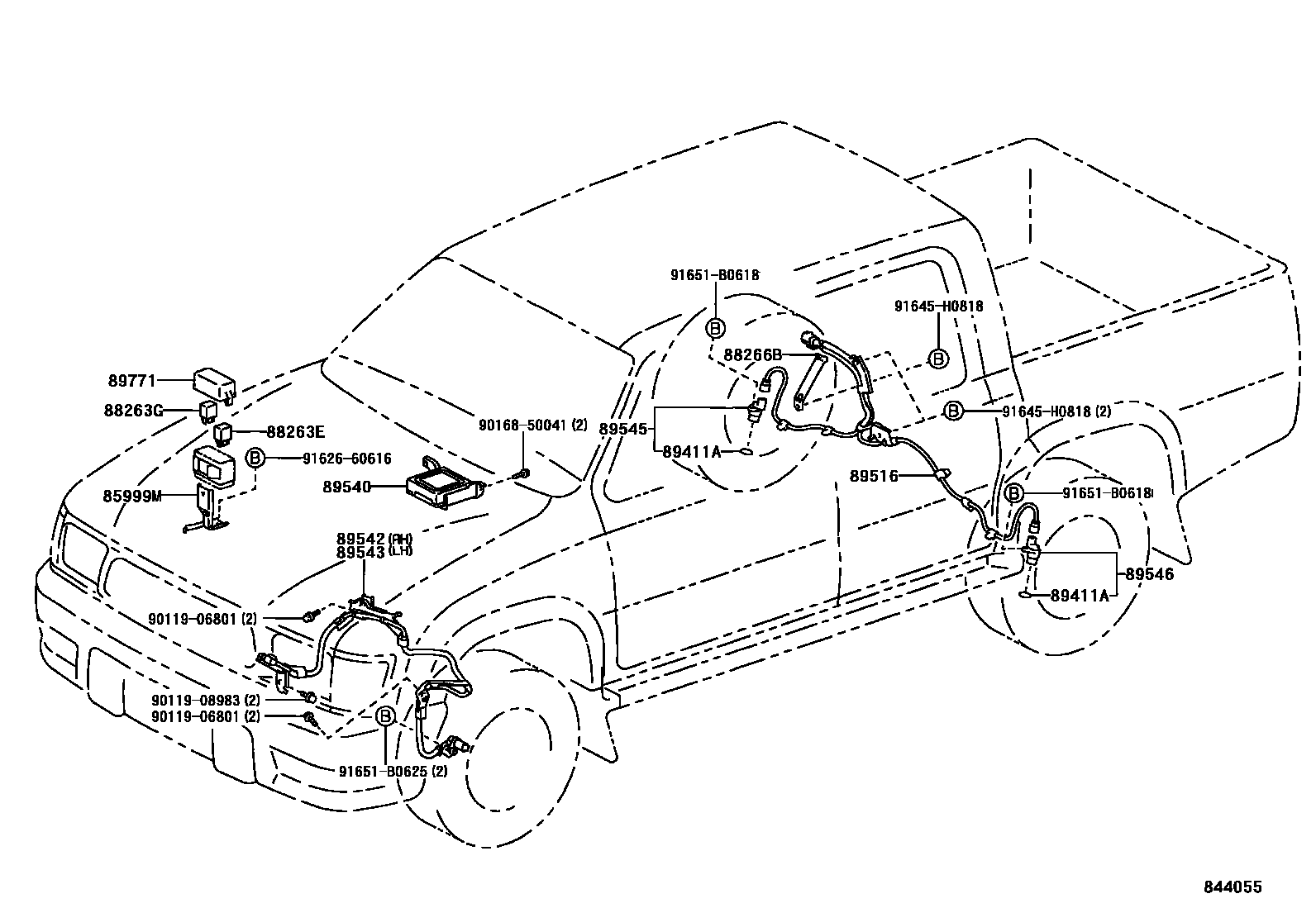

ABS & VSC

85999MBRACKET, RELAY

main85999-35090iRZN200;LN200..SRV200106

88263ERELAY, SKID CONTROL NO.2

main88263-24020iRZN200;LN200..SRV200106

88263GRELAY, SKID CONTROL

main88263-24030iRZN200;LN200..SRV200106

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-35710iRZN200;LN200..SRV200106

89411ARING, O (FOR SPEED SENSOR)

main96723-19021×2iRZN200;LN200..SRV200106

89516WIRE, SKID CONTROL SENSOR

main89516-35060iRZN200;LN200..SRV200106

89540COMPUTER ASSY, SKID CONTROL

main89540-35300iRZN200;LN200..SRV200106

89542SENSOR, SPEED, FRONT RH

main89542-35070iRZN200;LN200..SRV200106

89543SENSOR, SPEED, FRONT LH

main89543-35090iRZN200;LN200..SRV200106

89545SENSOR, SPEED, REAR RH

main89545-35020iRZN200;LN200..SRV200106

89546SENSOR, SPEED, REAR LH

main89546-35020iRZN200;LN200..SRV200106

89771COVER, ABS RELAY BLOCK, UPPER

main89771-21010iRZN200;LN200..SRV200106

9011906801

main90119-06801

9011908983

main90119-08983

9016850041

main90168-50041

9162660616

main91626-60616

91645H0818

main91645-H0818

91651B0618

main91651-B0618

91651B0625

main91651-B0625

19 parts on this diagram · 1 diagram in section
